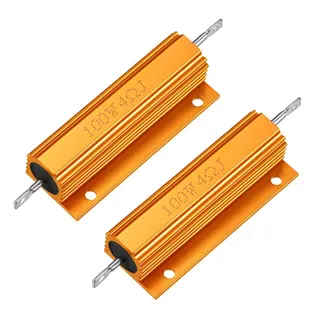

Two aluminum-cased wirewound resistors with mounting holes

Unique-Bargains

Unique-Bargains 2pcs Aluminum Shell Resistor 100W 4 Ohm Wirewound

SKU CH-V8NQ-7YR65

Two 100W 4-ohm wirewound resistors in aluminium housings for LED converters and motor speed control

  • FeaturesAluminum Case Resistor 100w;Aluminum Housed Resistor 100w;wi
  • High 100 W power handling for demanding circuits
  • Aluminium housing dissipates heat to maintain stable resistance
  • Wire-wound construction delivers 5 % tolerance accuracy
  • 59 mm body with 3.2 mm mounting hole fits #2 screws
  • Suitable for LED, converter, inverter and motor-speed control

Aluminium-Housed 100 W Wirewound Resistor

This two-piece set supplies 100 W, 4 Ω wirewound resistors in aluminium cases. They suit LED replacement converters, AC/DC circuits, inverters, motor-speed controls and driver boards where stable power dissipation is required. Each unit offers a 5 % tolerance for consistent circuit behaviour.

Verify Voltage, Current and Mounting Space

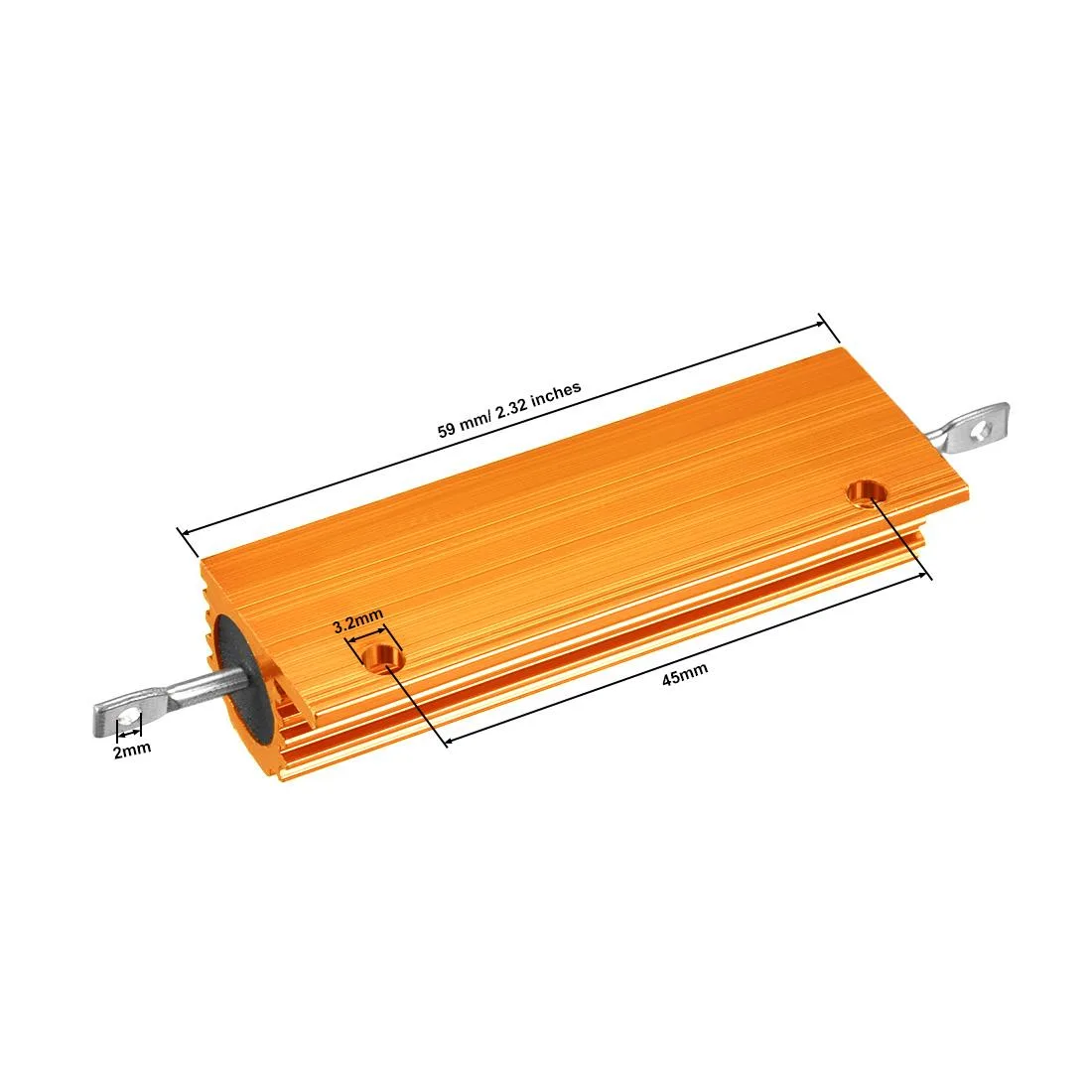

Confirm that your circuit never exceeds the 100 W rating at 4 Ω before installation. The body measures 59 mm long with a 3.2 mm mounting hole for M2.3 or #2 screws, so check available board area and screw clearance. Two 2 mm solder rods provide the electrical connection points.

Aluminium Case Dissipates Heat Without a Fan

The aluminium housing acts as the heatsink, eliminating the need for forced airflow in most enclosed builds. Qualified copper, nickel and aluminium construction gives overload capability within a compact structure. Direct chassis mounting through the 3.2 mm hole improves thermal transfer and mechanical security.

Highlights

  • High 100 W power handling for demanding circuits
  • Aluminium housing dissipates heat to maintain stable resistance
  • Wire-wound construction delivers 5 % tolerance accuracy
  • 59 mm body with 3.2 mm mounting hole fits #2 screws
  • Suitable for LED, converter, inverter and motor-speed control

Specifications

BrandUnique Bargains
FeaturesAluminum Case Resistor 100w;Aluminum Housed Resistor 100w;wire wound resistor 100w 4 ohm;resistor for LED PCB;resistor for converter speed control

Questions about this item

What comes in the package and is any mounting hardware included?

The package contains two aluminum-housed 100 W 4 Ω wire-wound resistors. Each unit has a 3.2 mm mounting hole that accepts #2 screws or M2.3 nuts, but screws and nuts are not supplied.

How do I decide between different power or resistance options for this part?

This listing is fixed at 100 W and 4 Ω with 5 % tolerance; no other power ratings or resistance values are offered for this model.

Will the 100 W rating hold up when the resistor is installed on a typical PCB?

The 100 W rating assumes the aluminum case is properly bolted to a heatsink; without adequate mounting the safe dissipation drops well below 100 W.
