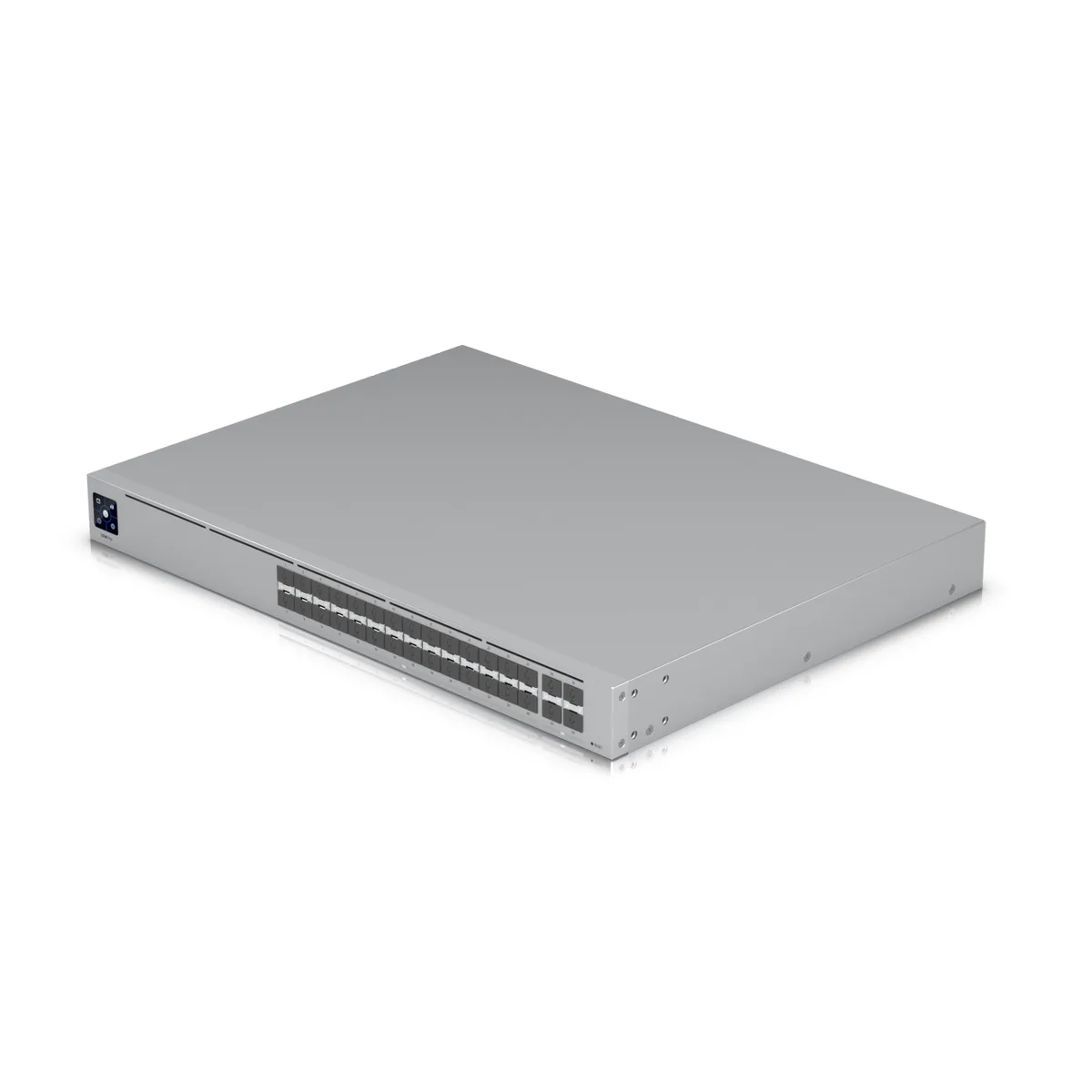

Silver rackmount switch with 32 SFP ports in a single row

Ubiquiti Networks

Ubiquiti Networks USW-Pro-Aggregation 32-port network switch

SKU CH-PJB7-1DRSY

A managed 32-port rackmount switch with 28 10G SFP+ and 4 25G SFP28 ports, 380 Gbps non-blocking throughput and Layer 3 routing

  • FormatRackmount
  • Network Management TypeManaged
  • Primary Ports(28) 1/10G SFP+ ports (4) 1/10/25G SFP28 ports* *Don't suppo
  • Primary Port SpeedTotal non-blocking throughput 380 Gbps Switching capacity 76
  • LayerLayer 2 features IGMP snooping STP / RSTP with priorities an
  • LEDsSystem Status SFP28/SFP+ Link/activity

Model Hi-Capacity Aggregation

  • 32 ports deliver high-density aggregation for 10G and 25G links
  • 28 SFP+ ports provide 1/10G connectivity across the rack
  • 4 SFP28 ports enable 25G uplinks for backbone throughput
  • 380 Gbps non-blocking throughput sustains line-rate traffic under load
  • Dual AC and DC power inputs keep the switch running during mains loss

32-port Layer 3 aggregation switch

The Ubiquiti USW-Pro-Aggregation is a managed rackmount switch built for high-capacity fibre uplinks. It provides 28 SFP+ ports running at 1 or 10 Gbps and four SFP28 ports capable of 1, 10 or 25 Gbps. Total non-blocking throughput reaches 380 Gbps with a 760 Gbps switching capacity. Layer 3 features include inter-VLAN routing and DHCP relay for locally managed networks.

Replaces lower-density 10G uplinks

This unit consolidates many 10G SFP+ links and adds 25G SFP28 capacity in a single 1U chassis. The jump is worth it when your core or aggregation layer needs more than 24 ports of 10G connectivity plus a handful of 25G links for server or storage uplinks. Mixed-speed operation at 25 Gbps forces all four SFP28 ports to 25 Gbps, so plan port groups accordingly.

Check rack depth and power redundancy

The switch measures 442 x 325 x 44 mm and weighs 4.6 kg without brackets. It ships with an internal 100 W AC supply (100—240 V) and a USP RPS DC input (11.5 V, 8.7 A) for backup power. Verify your rack can accommodate the 325 mm depth and that you have compatible SFP+ or SFP28 transceivers for the required link distances. Operating temperature range is -5 to 40 °C at 10—90 % non-condensing humidity.

Highlights

  • 32 ports deliver high-density aggregation for 10G and 25G links
  • 28 SFP+ ports provide 1/10G connectivity across the rack
  • 4 SFP28 ports enable 25G uplinks for backbone throughput
  • 380 Gbps non-blocking throughput sustains line-rate traffic under load
  • Dual AC and DC power inputs keep the switch running during mains loss

Specifications

BrandUbiquiti Networks
SeriesNetwork Switch
ModelUSW-Pro-Aggregation
FormatRackmount
Network Management TypeManaged
Primary Ports(28) 1/10G SFP+ ports
(4) 1/10/25G SFP28 ports*
*Don't support mixed speed at 25 Gbps mode. Once one of the ports is configured at 25 Gbps mode, the others will be limited at 25 Gbps too. Supports mixed speed when all ports are at 1 or 10 Gbps.
Primary Port SpeedTotal non-blocking throughput 380 Gbps
Switching capacity 760 Gbps
Forwarding rate 565.44 Mpps
LayerLayer 2 features IGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLs
Layer 3 features DHCP for locally-managed networks
DHCP relay
Inter-VLAN routing between networks on same switch
Static routing between local networks
LEDsSystem Status
SFP28/SFP+ Link/activity
PowerAC/DC, internal, 100W
(1) Universal input, 100—240V AC, 2A Max., 50/60 Hz
(1) USP RPS DC input, 11.5V DC, 8.7A
Dimensions442 x 325 x 44 mm (17.4 x 12.8 x 1.7")
WeightWithout mounting brackets: 4.6 kg (10.1 lb)
With mounting brackets: 4.7 kg (10.4 lb)
Temperature-5 to 40° C (23 to 104° F)
Humidity10 to 90% noncondensing
Shipping weight5.90 kg
Package size533 × 457 × 122 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What rack width and depth does the USW-Pro-Aggregation require?

The chassis is 442 mm wide and 325 mm deep (17.4 x 12.8 inches) and mounts in a standard rack using the included brackets.

Which transceivers must I insert first to avoid the 25 Gbps port-lock?

Populate the four SFP28 ports with 1 Gbps or 10 Gbps modules before enabling any 25 Gbps link; once a port runs at 25 Gbps the other three are locked to that speed.

When should I replace the internal AC supply or add the DC backup?

The built-in 100 W AC unit runs from 100—240 V AC; add the USP RPS DC input (11.5 V, 8.7 A) for redundant power if uptime demands it.
