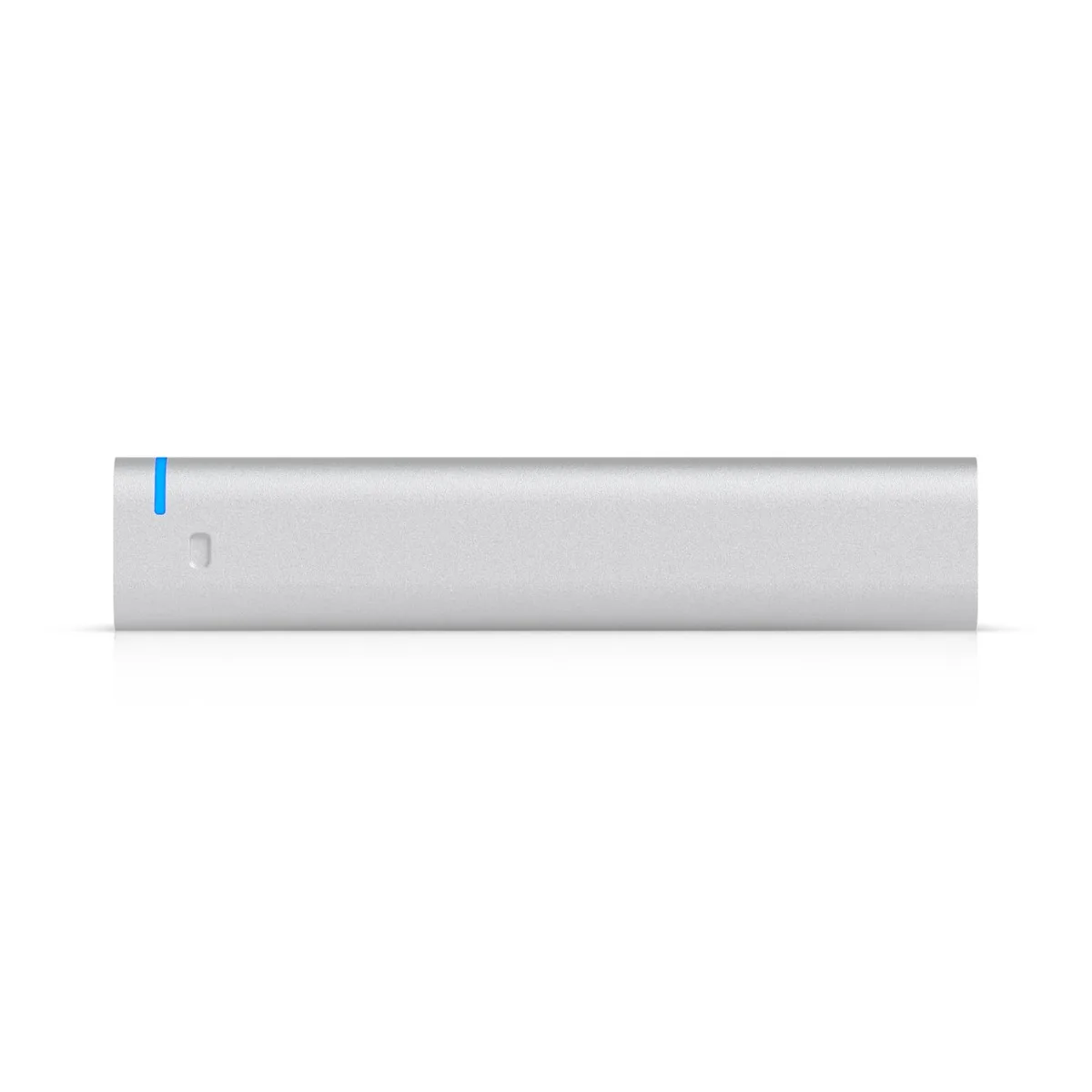

Compact white square console with front LED and rear ports

Ubiquiti Networks

Ubiquiti Networks UCK-G2-SSD firewall appliance 1 TB SSD

SKU CH-P5C0-SV53J MPN UCK-G2-SSD

Compact UniFi console with pre-installed 1 TB SATA SSD, PoE power and Bluetooth setup for multi-application site management

  • ProcessorOcta-core Arm® Cortex®-A53 based chip
  • FeaturesManagement interface: Ethernet Bluetooth Networking interfac
  • Dimensions131.2 x 27.1 x 134.2 mm (5.2 x 1.1 x 5.3")
  • Weight560 g (1.2 lb)

Model CloudKey+ 1TB SSD

Show 1 more configurations
  • Full UniFi application suite manages all devices centrally
  • Pre-installed 1 TB SATA SSD provides ample local storage
  • Octa-core Arm Cortex-A53 processor handles multiple applications
  • Powered via PoE or USB-C with Quick Charge 2.0/3.0
  • Bluetooth enables quick initial configuration without cables

Compact UniFi Console with 1 TB SSD

The Ubiquiti CloudKey+ UCK-G2-SSD is a firewall appliance that runs the full UniFi application suite for multi-application site management. It integrates a 1 TB 2.5" SATA SSD and 32 GB eMMC storage alongside 3 GB of RAM. An octa-core Arm Cortex-A53 processor handles network traffic and application workloads. This unit suits administrators who want a single console for UniFi deployments without separate storage hardware.

Build and connectivity

The enclosure measures 131.2 x 27.1 x 134.2 mm and weighs 560 g, allowing placement on a shelf or in a rack tray. A single GbE RJ45 port provides the management Ethernet link and accepts PoE for power and data over one cable. Bluetooth is included for initial setup and local configuration. Optional USB-C power requires a Quick Charge 2.0/3.0 compliant adapter only. The SSD bay is user-upgradeable with drives that operate on 5 V.

Thermals and power

Passive cooling keeps the device silent in normal operation with no moving parts to generate noise. PoE powering draws from the network switch, eliminating a separate mains adapter in many installs. When PoE is unavailable the USB-C input accepts a Quick Charge 2.0/3.0 adapter for flexible deployment. The low-power Arm architecture and modest 3 GB RAM footprint contribute to modest energy consumption under typical management loads.

Highlights

  • Full UniFi application suite manages all devices centrally
  • Pre-installed 1 TB SATA SSD provides ample local storage
  • Octa-core Arm Cortex-A53 processor handles multiple applications
  • Powered via PoE or USB-C with Quick Charge 2.0/3.0
  • Bluetooth enables quick initial configuration without cables

Specifications

BrandUbiquiti
SeriesCloudKey
ModelUCK-G2-SSD
ProcessorOcta-core Arm® Cortex®-A53 based chip
FeaturesManagement interface:
Ethernet
Bluetooth
Networking interface: (1) GbE RJ45 port
Memory:
32 GB eMMC
3 GB RAM
SSD capacity: 1 TB 2.5" SATA SSD (user-upgradeable*)
*CloudKey+ only supports drives that can operate on 5V power. Drives that require additional power are not supported.
Power method:
PoE
Quick charge 2.0/3.0 power adapter, 9V DC, 2A
Max. power consumption 9.6W
Display 1.42" gray-scale OLED
LEDs: (1) Power: white/blue
Buttons:
(1) Power
(1) Factory reset
Ambient operating temperature: 0 to 35° C (32 to 104° F)
Ambient operating humidity: 20 to 80% noncondensing
Certifications
Dimensions131.2 x 27.1 x 134.2 mm (5.2 x 1.1 x 5.3")
Weight560 g (1.2 lb)
Shipping weight1.36 kg
Package size203 × 152 × 127 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What does the single GbE RJ45 port limit in practice?

The single GbE RJ45 port caps throughput at 1 Gbps for both management traffic and any routed data passing through the appliance.

What physical space and drive format are required for the pre-installed storage?

The unit fits a 2.5 inch SATA SSD and measures 131.2 x 27.1 x 134.2 mm, so the drive bay must accommodate that form factor.

How is the device powered, and which step is often missed?

Connect the GbE port to a PoE switch or use a USB-C adapter compliant with Quick Charge 2.0/3.0; the step often missed is verifying the adapter meets that exact specification.
