Silver 1U rack appliance with aluminium front panel, 1.3 inch touchscreen, two RJ45 ports and one SFP+ cage

Ubiquiti Networks

Ubiquiti Cloud Key Enterprise (CK-Enterprise) firewall appliance

SKU CH-YKMZ-T6C72

A rack-mountable UniFi console with a 16-core Xeon processor, 32 GB DDR4 ECC memory and 256 GB SATA storage, managing 1,000+ devices and 10,000+ clients via 10G SFP+

  • TypeWired
  • Form FactorRack Mountable
  • Ports2 x 1GbE RJ45, 1 x 10G SFP+
  • Simultaneous Sessions10000
  • LAN PortsLAN: (1) GbE RJ45 port (1) 10G SFP+ port MGMT LAN: (1) GbE R
  • LEDsEthernet White: link/activity SFP+ White: link/activity Powe

Model CloudKey Enterprise

Show 1 more configurations
  • Manages 1,000+ UniFi devices with 16-core Xeon processor
  • Supports 10,000+ simultaneous client sessions for large-scale networks
  • 10G SFP+ and dual GbE RJ45 ports for high-speed connectivity
  • Dual hot-swappable 550W power supplies ensure continuous operation
  • 1U rack-mountable form factor fits standard 19-inch racks

Enterprise UniFi console for large networks

The Ubiquiti Cloud Key Enterprise is a 1U rack-mountable console built to manage more than 1000 UniFi Network devices and over 10000 simultaneous clients. A 16-core Intel Xeon processor at 2.3 GHz, 32 GB of DDR4 ECC memory and a 256 GB M.2 SATA drive power the management plane. Redundant 550 W hot-swappable power supplies and a front-panel touchscreen complete the appliance.

Redundant power and high-speed uplink change

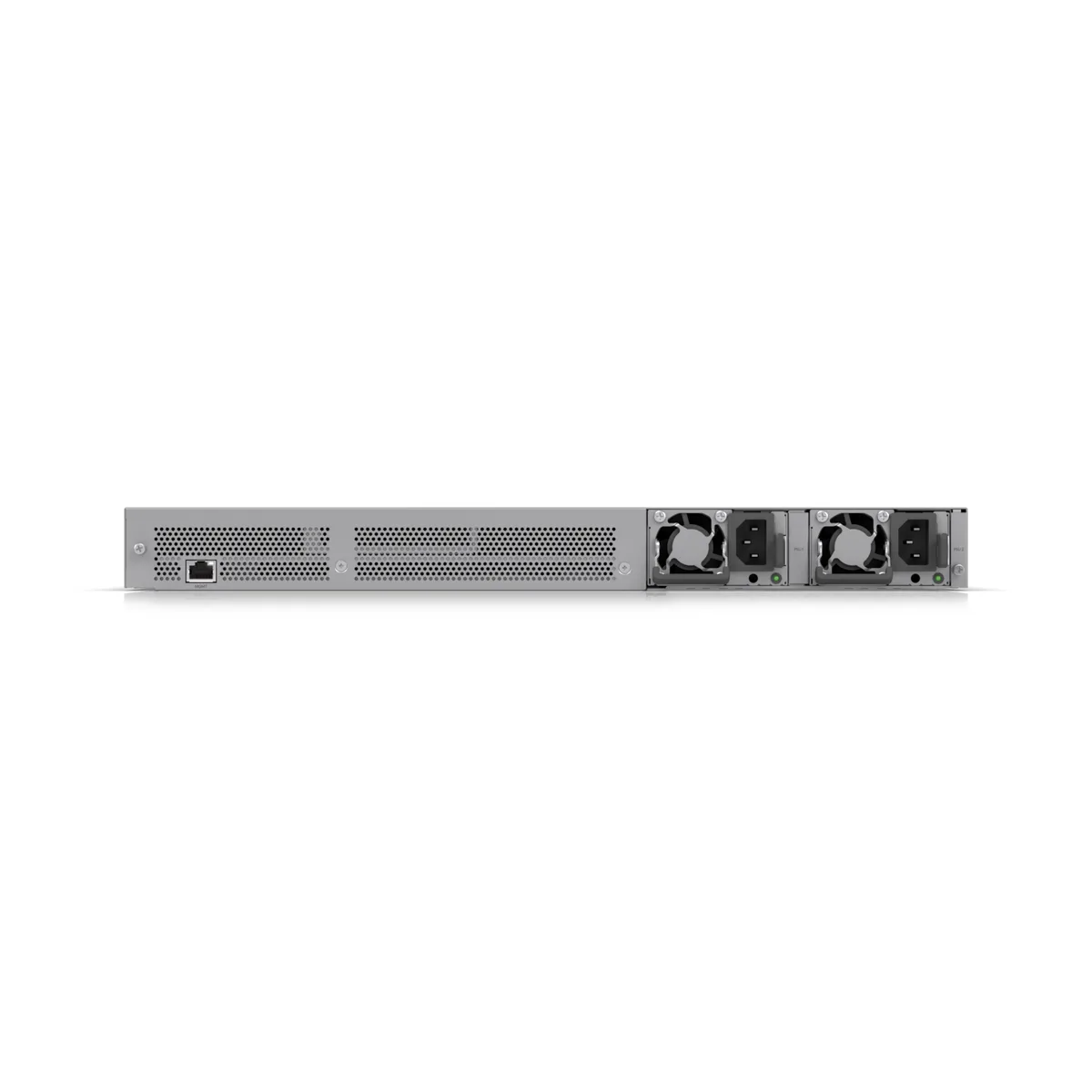

Two hot-swappable 550 W AC power supplies keep the unit running if one module fails. A single 10G SFP+ LAN port and a 1GbE RJ45 LAN port provide the data path, while a dedicated 1GbE management port separates control traffic. Bluetooth enables initial provisioning without a wired connection to the console.

Verify rack depth and SFP+ module compatibility

The chassis measures 787 mm deep, so confirm that your cabinet can accommodate the full length. The 10G uplink requires a compatible SFP+ transceiver, which is not included. Operating temperature range is 0 to 35 °C with 8 to 90 % non-condensing humidity, so ensure adequate airflow in the rack.

Highlights

  • Manages 1,000+ UniFi devices with 16-core Xeon processor
  • Supports 10,000+ simultaneous client sessions for large-scale networks
  • 10G SFP+ and dual GbE RJ45 ports for high-speed connectivity
  • Dual hot-swappable 550W power supplies ensure continuous operation
  • 1U rack-mountable form factor fits standard 19-inch racks

Specifications

BrandUbiquiti Networks
SeriesGateway
ModelCloudKey Enterprise
Part NumberCK-Enterprise
TypeWired
Form FactorRack Mountable
Ports2 x 1GbE RJ45, 1 x 10G SFP+
Simultaneous Sessions10000
LAN PortsLAN:
(1) GbE RJ45 port
(1) 10G SFP+ port
MGMT LAN:
(1) GbE RJ45 port
LEDsEthernet White: link/activity
SFP+ White: link/activity
Power supply Off: no AC power present
Steady green: AC power and DC output active
Flashing green: AC power present and DC output inactive
Steady amber: AC power lost/failure events
Flashing amber: warning events
Temperature0 to 35° C (32 to 95° F)
Humidity8 to 90% noncondensing
FeaturesProcessor 16-core Intel® Xeon®-SP Gold 5218 at 2.3 GHz
Memory (2) 16 GB DDR4 ECC RDIMM
On-board storage (1) 256 GB, M.2 2280 SATA
Management interface Ethernet
Bluetooth
Power method Universal AC input, 100—240V AC, 7A Max, 50/60 Hz
Power supply (2) Hot-swappable AC/DC PSU, 550W
LCM display (1) 1.3" touchscreen
Button Factory reset
Dimensions787 x 43.7 x 481.4 mm (31 x 1.7 x 19")
Weight13.1 kg (28.9 lb)
Shipping weight13.15 kg
Package size787 × 483 × 25 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I replace a failed power supply in the CK-Enterprise?

The unit includes two hot-swappable 550W AC/DC PSUs; slide out the faulty module and insert a replacement without powering down the appliance.

Which resource caps out first when the CK-Enterprise runs at full load?

The appliance supports 10,000 simultaneous sessions, so the session table fills before the 16-core Xeon processor or 32 GB of ECC memory become bottlenecks.

What noise and heat should I expect from the CK-Enterprise in a rack running 24/7?

Operating temperature is rated 0 to 35 °C with dual 550W redundant PSUs and forced-air cooling; fan speed scales with load, so expect audible airflow in a quiet room.
