Ubiquiti Networks
Ubiquiti Networks UAP-AC-M-PRO access point
Indoor/outdoor WiFi 5 access point with 6 spatial streams, dual GbE ports and PoE power for 185 m² coverage
- Standards802.11a/b/g/n/ac
- Wireless Data Rates802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b 1, 2, 5.5,
- SecurityWEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
- Antenna2.4 GHz 3 x 3 (DL MU-MIMO) 5 GHz 3 x 3 (DL MU-MIMO)
- Transmitted Power2.4 GHz 22 dBm 5 GHz 22 dBm
- Interface(2) GbE RJ45 ports
Class AC
- AC
- Utility
Options AC Mesh Pro
- AC Mesh
- AC Mesh Pro
- Swiss Army Knife
- WiFi BaseStation
Struck-through versions exist but are not stocked here.
- Indoor and outdoor WiFi 5 coverage up to 185 m²
- Six spatial streams deliver aggregate throughput up to 1750 Mbps
- Supports 250-plus concurrent clients per access point
- Two Gigabit Ethernet ports enable wired backhaul
- Operates from -40 °C to 70 °C for harsh environments
Indoor/Outdoor WiFi 5 Access Point

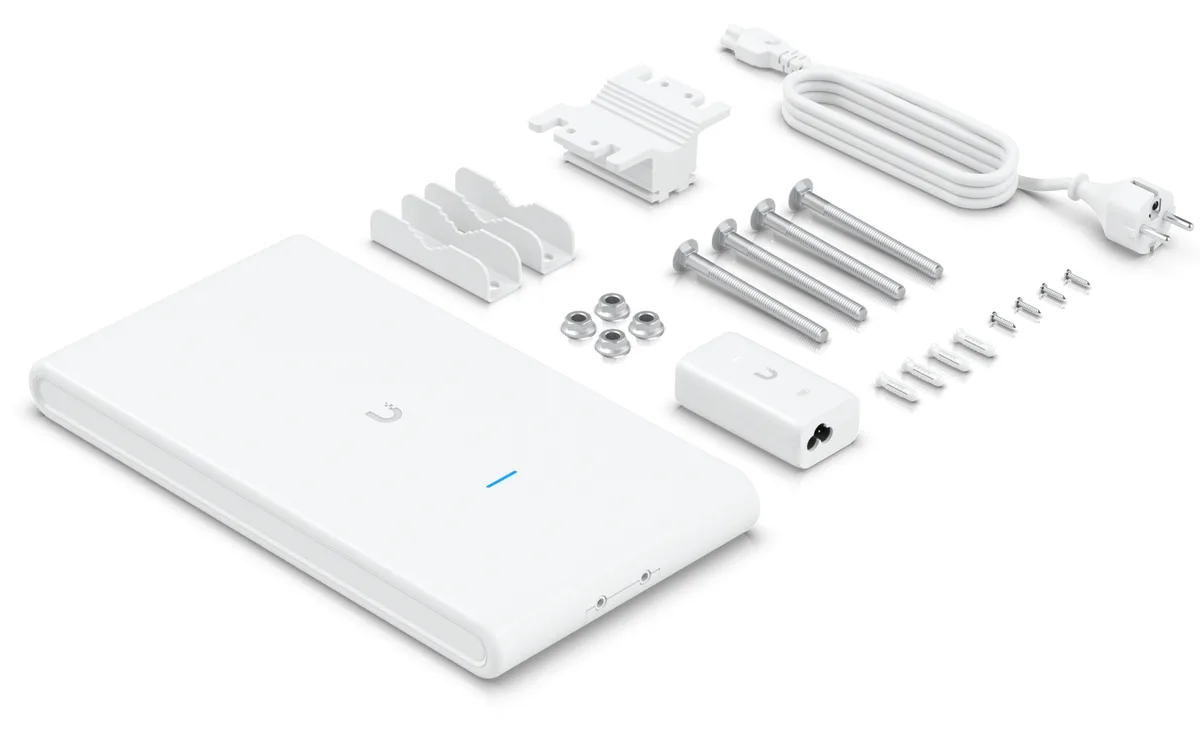

The Ubiquiti Networks UAP-AC-M-PRO is a dual-band WiFi 5 access point built for indoor and outdoor deployment. It delivers up to six spatial streams using 3x3 MU-MIMO on both 2.4 GHz and 5 GHz radios. The unit includes a Gigabit PoE adapter and supports 802.1Q VLAN tagging for network segmentation.
Suits campus WiFi expansion.
This access point targets installers who need weatherproof coverage across courtyards, warehouses or multi-building sites where 250-plus concurrent clients are expected. It is less suited for a single-room home or small office that only requires basic wireless connectivity without mesh roaming or advanced QoS features.
Verify PoE source and mounting surface
Before ordering, confirm your switch or injector supplies 48 V passive PoE at 0.5 A, as the included adapter is the only guaranteed power source. Ensure the mounting location — wall or pole — can accommodate the 343.2 x 181.2 x 60.2 mm chassis and that ambient temperatures stay within the -40 to 70 °C operating range.
Highlights
- Indoor and outdoor WiFi 5 coverage up to 185 m²
- Six spatial streams deliver aggregate throughput up to 1750 Mbps
- Supports 250-plus concurrent clients per access point
- Two Gigabit Ethernet ports enable wired backhaul
- Operates from -40 °C to 70 °C for harsh environments
Specifications
| Brand | Ubiquiti Networks |
|---|---|
| Series | WIFI Access points |
| Model | UAP-AC-M-PRO |
| Standards | 802.11a/b/g/n/ac |
| Wireless Data Rates | 802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b 1, 2, 5.5, 11 Mbps 802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11n 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40) 802.11ac 6.5 Mbps to 1.3 Gbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80) |
| Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| Antenna | 2.4 GHz 3 x 3 (DL MU-MIMO) 5 GHz 3 x 3 (DL MU-MIMO) |
| Transmitted Power | 2.4 GHz 22 dBm 5 GHz 22 dBm |
| Interface | (2) GbE RJ45 ports |
| LAN Ports | (2) GbE RJ45 ports |
| Power Supply | Gigabit PoE adapter 48V DC, 0.5A* |
| Temperature | -40 to 70° C (-40 to 158° F) |
| Humidity | 5 to 95% noncondensing |
| Dimensions | 343.2 x 181.2 x 60.2 mm (13.5 x 7.1 x 2.4") |
| Weight | 633 g (1.4 lb) |
| Features | VLAN 802.1Q BSSID Up to 4 per radio Advanced QoS Per-user rate limiting Guest traffic isolation Supported Power save Supported WMM Voice, video, best effort, and background Concurrent clients 250+ |
| Shipping weight | 2.21 kg |
| Package size | 401 × 218 × 91 mm |
Other versions of this model
2 more in the same range
Same family, different memory, cooler or clock — compare before you commit.
Ubiquiti Networks
Ubiquiti Networks WiFi BaseStation XG access point
- 802.11 a/b/g/n/ac
- 802.11a 6, 9, 12, 1…
$1,180.99$1,266.99−7%
0.01363352BTC
In stockQuestions about this item
Do I need a PoE switch or injector to power the UAP-AC-M-PRO?
The access point is powered by the included 48 V DC Gigabit PoE adapter, so a separate PoE switch or injector is not required.
Can the UAP-AC-M-PRO mesh wirelessly with an older UniFi AP that only supports 802.11n?
Yes, the 802.11n radio operates at up to 450 Mbps and will interoperate with legacy UniFi units on the same 2.4 GHz or 5 GHz channels.
How do I confirm the UAP-AC-M-PRO is delivering the advertised 1750 Mbps aggregate throughput after installation?
In the UniFi controller check that both radios show 3x3 MIMO, 802.11ac rates up to 1.3 Gbps on 5 GHz and 450 Mbps on 2.4 GHz, and run a local speed test between two clients.
