White rectangular outdoor Wi-Fi 5 access point with two adjustable antennas and pole mount brackets

Ubiquiti Networks

Ubiquiti Networks UAP-AC-M AC Mesh access point

SKU CH-XZXK-HJS6P

Weather-resistant Wi-Fi 5 access point with dual-band 2×2 MIMO, PoE power, and versatile mounting for indoor or outdoor coverage up to 140 m

  • WiFi GenerationWi-Fi 5
  • Wireless Data Rates802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b 1, 2, 5.5,
  • Interface(1) GbE RJ45 port
  • # of Users200+
  • Standards802.11a/b/g/n/ac
  • SecurityWEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)

Class AC

Options AC Mesh

Struck-through versions exist but are not stocked here.

  • Compact indoor/outdoor AP covers 140 m range
  • Wi-Fi 5 dual-band reaches 1167 Mbps aggregate throughput
  • 2×2 MU-MIMO on both bands supports 200+ clients
  • Single GbE PoE port simplifies power and data
  • 30 °C to 70 °C operation suits harsh environments

Ubiquiti AC Mesh Wireless Access Point

The Ubiquiti Networks UAP-AC-M is a compact indoor/outdoor Wi-Fi 5 access point built for UniFi enterprise systems. It supports 802.11a/b/g/n/ac standards with 2x2 MIMO on both bands and DL MU-MIMO capability. The unit operates in temperatures from -30 to 70° C and mounts on walls or poles for flexible deployment.

Dual-Band Wi-Fi 5 With 4 Spatial Streams

This access point delivers up to 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz using four spatial streams across two radios. It includes two RP-SMA connectors for the supplied omni-directional antennas or optional high-gain directional antennas. Security covers WEP, WPA-PSK and WPA-Enterprise with TKIP or AES encryption.

Passive PoE Power And Silent Operation

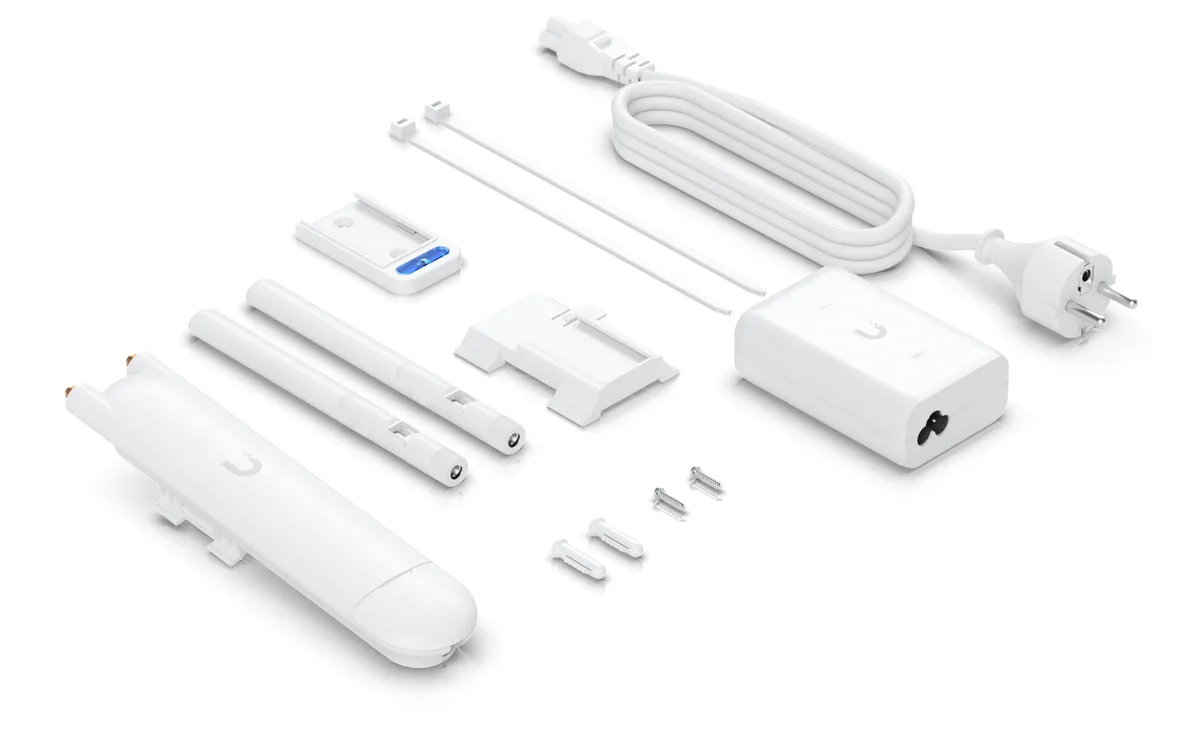

The device draws power through a single Gigabit RJ45 port using a 24V 0.5A passive PoE adapter included in the box. With no moving parts it runs completely silent in normal use. The weather-resistant enclosure handles humidity from 5 to 95% non-condensing for reliable outdoor performance.

Highlights

  • Compact indoor/outdoor AP covers 140 m range
  • Wi-Fi 5 dual-band reaches 1167 Mbps aggregate throughput
  • 2×2 MU-MIMO on both bands supports 200+ clients
  • Single GbE PoE port simplifies power and data
  • 30 °C to 70 °C operation suits harsh environments

Specifications

WiFi GenerationWi-Fi 5
Wireless Data Rates802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
Interface(1) GbE RJ45 port
# of Users200+
Standards802.11a/b/g/n/ac
SecurityWEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
Antenna2.4 GHz 2 x 2 (DL MU-MIMO)
5 GHz 2 x 2 (DL MU-MIMO)
Transmitted Power2.4 GHz 20 dBm
5 GHz 20 dBm
Mounting LocationIndoor / Outdoor
Operating RangeIndoor: Up to 140m, Outdoor: Up to 140m
LAN Ports(1) GbE RJ45 port
Power SupplyGigabit PoE adapter 24V, 0.5A*
BrandUbiquiti Networks
SeriesWIFI Access points
ModelAC Mesh
Part NumberUAP-AC-M
Temperature-30 to 70° C (-22 to 158° F)
Humidity5 to 95% noncondensing
Dimensions353 x 46 x 34.4 mm (13.9 x 1.8 x 1.4")
Weight152 g (5.4 oz)
FeaturesVLAN 802.1Q
BSSID Up to 4 per radio
Advanced QoS Per-user rate limiting
Guest traffic isolation Supported
Power save Supported
WMM Voice, video, best effort, and background
Concurrent clients 250+
Shipping weight0.64 kg
Package size248 × 112 × 86 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What real-world throughput can I expect from the 1167 Mbps headline rate once the AP is installed?

The 1167 Mbps figure is the combined PHY ceiling of the dual-band 2x2 Wi-Fi 5 radio; actual client throughput will be lower and depends on channel width, interference and client capabilities.

What does the single GbE RJ45 port limit in practice?

The Gigabit Ethernet uplink caps wired backhaul at 1 Gbps, so aggregate wireless traffic above that rate will be bottlenecked at the port.

What mounting hardware is needed to attach the 353 x 46 x 34.4 mm unit to a wall or pole?

The AP includes versatile wall- and pole-mount brackets; no extra hardware is required for standard installations.
