Ubiquiti Networks PS-5AC network antenna
Shielded 5 GHz base station with active RF filtering, GPS sync, and a dedicated management radio for noise-heavy deployments
- Interface1 x 10/100/1000 Ethernet Port
- LEDsPower
- Power SupplyMax. Power Consumption: 10W Power Supply: 24V, 1A Gigabit Po
- TemperatureOperating Temperature: -40 ~ 70 degree Celsius (-40 ~ 158 de
- HumidityOperating Humidity: 5% ~ 95% non-condensing
- Dimensions5.16" x 5.16" x 4.09" 3.27" x 4.61" x 2.72" (Mounting Hardwa
- Shielded airPrism filtering rejects RF noise in crowded spectrum
- Interchangeable horn antennas tailor beamwidth for precise sector coverage
- Gigabit PoE port delivers data and power over single cable
- Industrial temperature rating from -40 to 70 °C ensures outdoor reliability
- Dedicated Wi-Fi radio enables local management without extra hardware
Ubiquiti PrismStation 5AC base station
The Ubiquiti Networks PS-5AC is a shielded airMAX ac base station that integrates airPrism active RF filtering. It uses a proprietary Ubiquiti airMAX ac processor and includes a dedicated Wi-Fi radio for local management. A 24V 1A passive PoE adapter is supplied and the unit draws up to 10W.
Suited for noisy RF environments needing sector
Installers who require GPS synchronisation and interchangeable horn antennas for precise beam-shaping will benefit. Buyers who need a standard omnidirectional access point or a client-only CPE should look at other product types.
Single 10/100/1000 Ethernet port with passive PoE
The only wired interface is one Gigabit Ethernet port powered by 20 to 26V DC passive PoE on pairs 4,5+ and 7,8 return. Verify that your switch or injector matches this voltage and pin-out before deployment.
Highlights
- Shielded airPrism filtering rejects RF noise in crowded spectrum
- Interchangeable horn antennas tailor beamwidth for precise sector coverage
- Gigabit PoE port delivers data and power over single cable
- Industrial temperature rating from -40 to 70 °C ensures outdoor reliability
- Dedicated Wi-Fi radio enables local management without extra hardware
Specifications
| Brand | Ubiquiti Networks |
|---|---|
| Model | PS-5AC |
| Interface | 1 x 10/100/1000 Ethernet Port |
| LEDs | Power |
| Power Supply | Max. Power Consumption: 10W Power Supply: 24V, 1A Gigabit PoE Adapter (Included) Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return) Supported Voltage Range: 20 to 26V DC |
| Temperature | Operating Temperature: -40 ~ 70 degree Celsius (-40 ~ 158 degree Fahrenheit) |
| Humidity | Operating Humidity: 5% ~ 95% non-condensing |

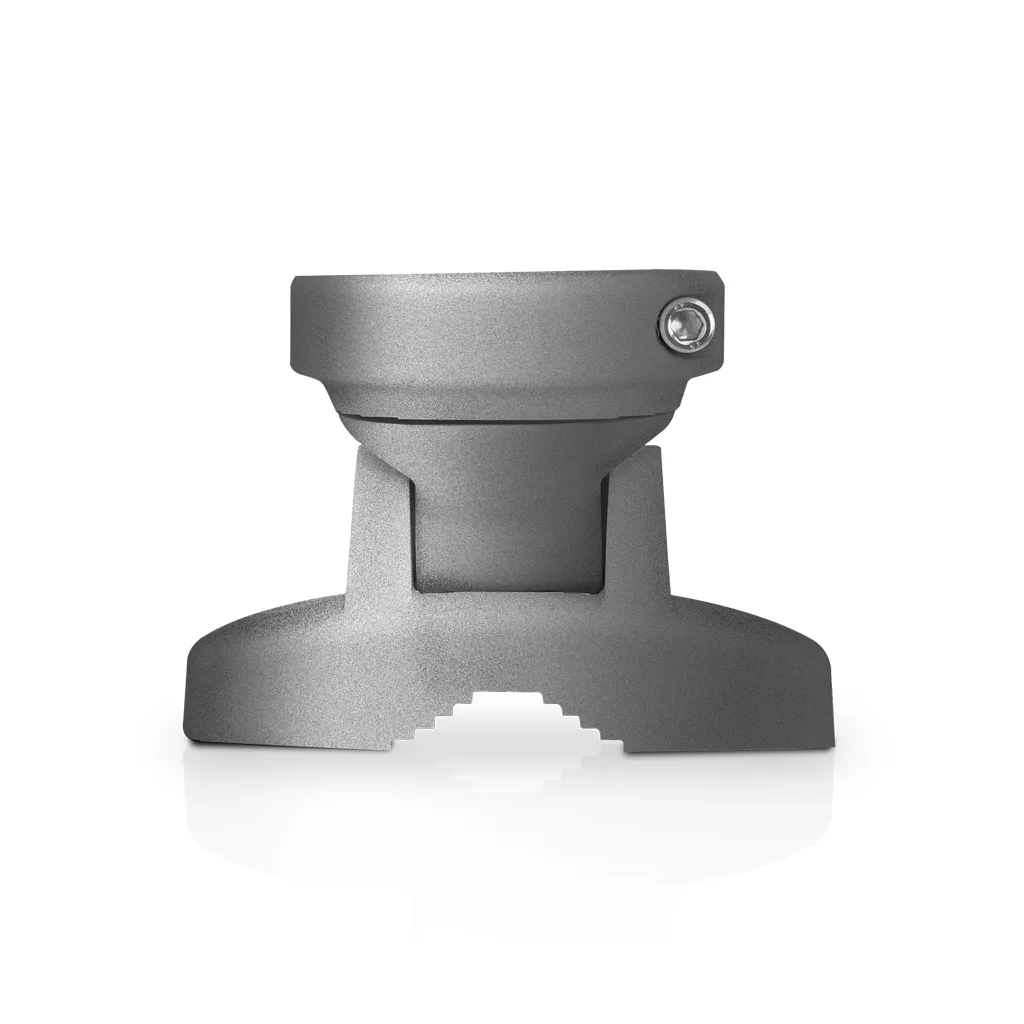

| Dimensions | 5.16" x 5.16" x 4.09" 3.27" x 4.61" x 2.72" (Mounting Hardware Only) |
| Weight | 1.70 lbs. 1.74 lbs. |
| Features | Proprietary Ubiquiti airMAX ac Processor airPrism Active RF Filtering Technology Dedicated Wi-Fi Radio for Management |
| Shipping weight | 1.81 kg |
| Package size | 254 × 229 × 229 mm |
Questions about this item
Which horn antenna version should I choose for the PrismStation 5AC?
Choose a 30° symmetrical horn for narrow sectors, a 45° symmetrical horn for wider coverage, or an asymmetrical horn when the deployment needs a tilted beam pattern.
What does the 10 W maximum power consumption mean for daily operation?
The unit draws up to 10 W under full load, so a 24 V 1 A passive PoE supply included in the box provides adequate headroom for continuous use.
How does the single Gigabit Ethernet port limit real-world throughput?
The 10/100/1000 port caps wired traffic at 1 Gbps, so aggregate wireless throughput above that rate will be bottlenecked at the Ethernet interface.
