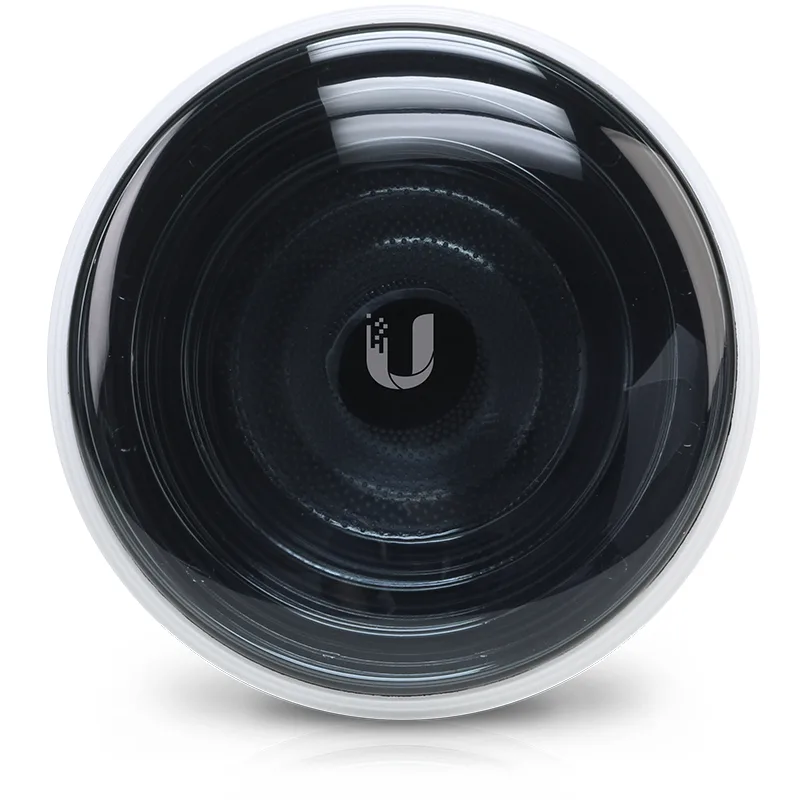

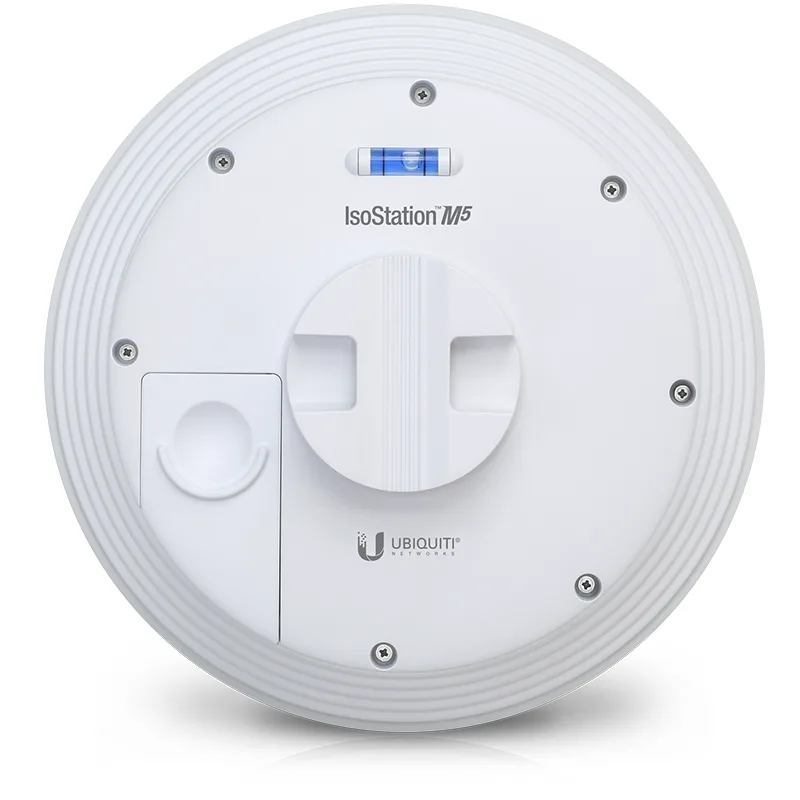

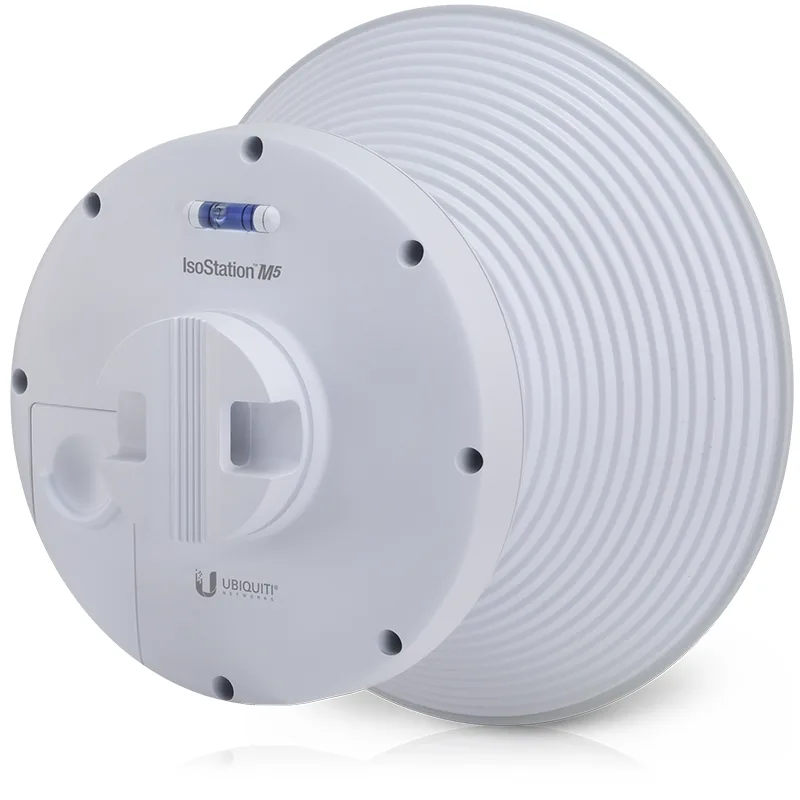

Ubiquiti Networks IS-M5-US 5.0 GHz network antenna
5 GHz shielded airMAX radio with interchangeable isolation antenna horn delivering up to 150 Mbps throughput
- StandardsIEEE 802.11n
- Frequency Band5.0 GHz
- InterfaceEthernet Port
- WAN Ports1x 10/100/1000 Ethernet Port
- Power Supply24V, 0.5A Gigabit PoE Adapter
- Temperature-40 to 70° C (-40 to 158° F)
- Interchangeable antenna horn enables precise beam-shaping for targeted coverage
- All-metal shielded radio base improves noise immunity in dense deployments
- airMAX processor delivers up to 150+ Mbps throughput for reliable links
- Operates from -40 to 70 °C for harsh outdoor environments
- Gigabit Ethernet port with 24 V PoE simplifies single-cable installation
5.0 GHz Shielded CPE
The Ubiquiti Networks IS-M5-US is a shielded airMAX customer-premises radio operating in the 5.0 GHz band. It targets installers who need a compact, all-metal unit with an interchangeable isolation antenna horn for point-to-point or point-to-multipoint links. The integrated radio base and modular horn allow beam-shaping to match specific deployment requirements.
Sustained throughput and co-location
The airMAX processor delivers up to 150+ Mbps throughput under continuous load rather than brief bursts. Asymmetrical horn options at 60° and 90° provide naturally attenuated side lobes and extremely low back radiation, while symmetrical 30° and 45° horns support dense cluster sector installations without sacrificing gain.
Industrial temperature range and PoE power
The die-cast aluminum enclosure operates from -40 to 70° C (-40 to 158° F) with passive cooling and no moving parts. A 24V 0.5A Gigabit PoE adapter supplies power and data over a single 10/100/1000 Ethernet port, simplifying cabling on poles or towers where AC power is unavailable.
Highlights
- Interchangeable antenna horn enables precise beam-shaping for targeted coverage
- All-metal shielded radio base improves noise immunity in dense deployments
- airMAX processor delivers up to 150+ Mbps throughput for reliable links
- Operates from -40 to 70 °C for harsh outdoor environments
- Gigabit Ethernet port with 24 V PoE simplifies single-cable installation
Specifications
| Brand | Ubiquiti Networks |
|---|---|
| Series | IsoStation |
| Model | IS-M5-US |
| Standards | IEEE 802.11n |
| Frequency Band | 5.0 GHz |
| Interface | Ethernet Port |
| WAN Ports | 1x 10/100/1000 Ethernet Port |
| Power Supply | 24V, 0.5A Gigabit PoE Adapter |
| Temperature | -40 to 70° C (-40 to 158° F) |
| Features | Interchangeable Isolation Antenna Horn All-Metal, Shielded Radio Base airMAX Processor for Superior Performance Improved Noise Immunity |
| Package Contents | Pole-Mount |
| Shipping weight | 1.42 kg |
| Package size | 211 × 201 × 178 mm |
Questions about this item
How much heat can the IsoStation M5 handle during continuous outdoor operation?
The unit is rated for an operating range of -40 to 70 °C, so it stays functional through extreme daytime heat and sub-zero nights.
What cabling and power gear must I already have to install this radio?
You need a Cat5e or better Ethernet run to the single Gigabit PoE port and the included 24 V 0.5 A PoE injector for power.
Will the 30° symmetrical horn work alongside older 5 GHz sectors on the same tower?
Yes, the symmetrical 30° and 45° horns are designed for cluster sector installs with high co-location density and low side-lobe radiation.
