Compact white plastic PoE injector with two RJ45 ports and US power cord

Tycon Systems

Tycon Systems TP-POE-24 24V 19W Surge Protector

SKU CH-DC81-M9RNV

Injects 24V 19W passive PoE up to 100m with built-in Ethernet and AC surge protection, autoranging 90-264VAC input and industrial temperature rating

  • Delivers 24 V passive PoE to remote devices up to 100 m
  • Built-in surge protection safeguards both Ethernet and AC inputs
  • Auto-ranging 90–264 VAC supply works worldwide without manual switching
  • Comprehensive short-circuit, over-current and over-voltage protection ensures safe operation
  • Industrial-grade -30 °C to +60 °C temperature range for harsh environments

Passive PoE power inserter

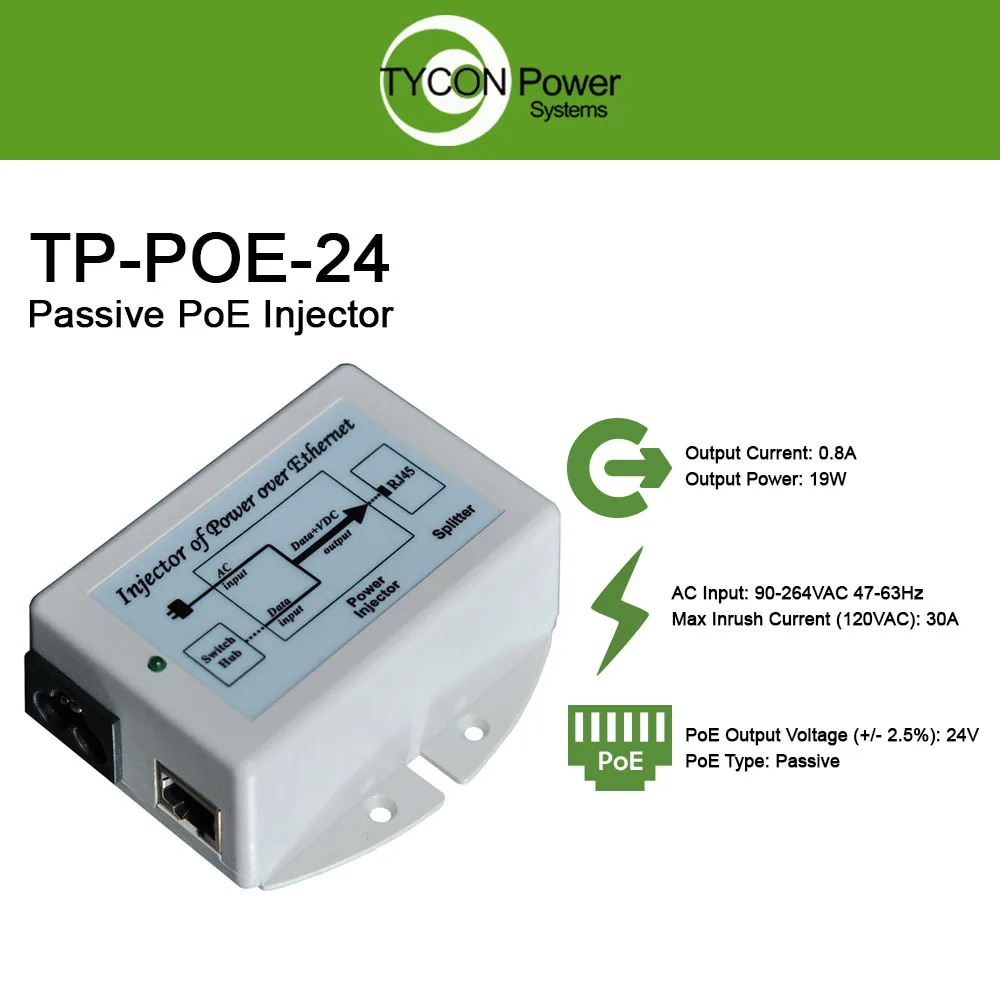

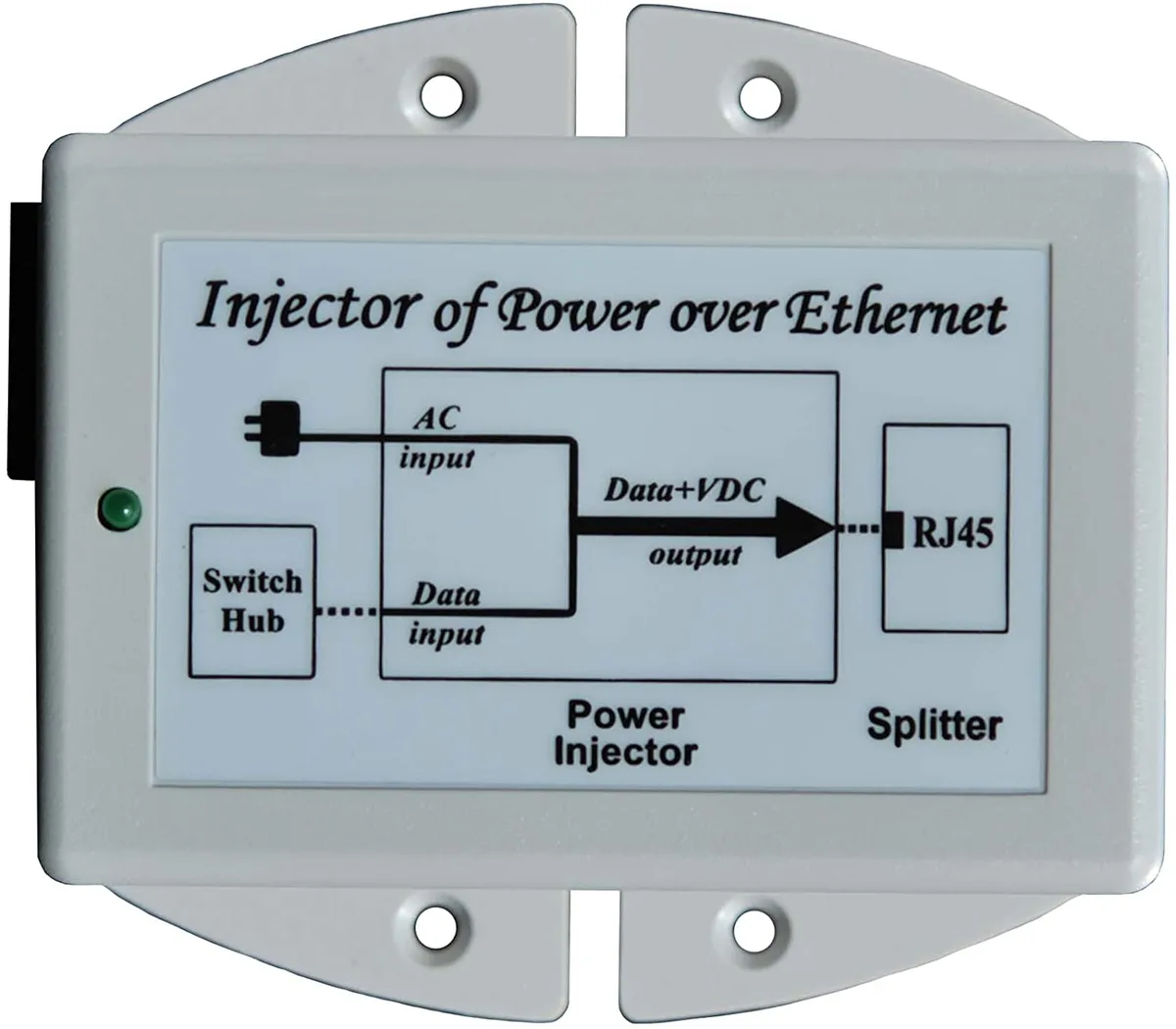

The Tycon Systems TP-POE-24 is a midspan power source that injects 24 V passive PoE over unused Ethernet pins four, five, seven and eight. It accepts 90 to 264 VAC at 47 to 63 Hz and delivers up to 19 W with 0.8 A output current. Built-in surge protection covers both the Ethernet line and the AC input for reliable operation in harsh environments.

Indoor installers needing simple 24 V PoE

This unit suits installers who need to power compatible cameras, access points or radios up to 100 m over Cat5 cable without a separate AC outlet at the device. It is not for equipment that requires standardised active PoE negotiation. It is not for deployments that need more than 19 W of delivered power.

19 W passive 24 V output

The single specification that decides fit is the 19 W passive 24 V PoE output on pins four, five, seven and eight. The supply provides 0.8 A with overload, over-voltage and short-circuit protection and operates from 30 to 60 °C. Verify that the remote device accepts passive 24 V on those pins before purchase.

Highlights

  • Delivers 24 V passive PoE to remote devices up to 100 m
  • Built-in surge protection safeguards both Ethernet and AC inputs
  • Auto-ranging 90–264 VAC supply works worldwide without manual switching
  • Comprehensive short-circuit, over-current and over-voltage protection ensures safe operation
  • Industrial-grade -30 °C to +60 °C temperature range for harsh environments

Specifications

BrandTycon Power Systems
SeriesTP-POE
ModelTP-POE-24

Questions about this item

Do I need a shielded Cat5 cable to use the RJ45 ports on the TP-POE-24?

Yes, the unit accepts data-in and provides data-out on shielded RJ45 jacks, so a shielded Cat5 cable up to 100 m is required for proper operation.

Will the TP-POE-24 work with my older 10/100 Mbps network switches?

The inserter is rated for 10/100 Mbps Ethernet, so it will pass data through legacy 10/100 switches without reducing their link speed.

How can I confirm the TP-POE-24 is delivering 24 V passive PoE after installation?

Measure 24 V on pins 4, 5 (V+) and 7, 8 (V-) of the output RJ45 jack; the connected device should power up and show a stable link light.
