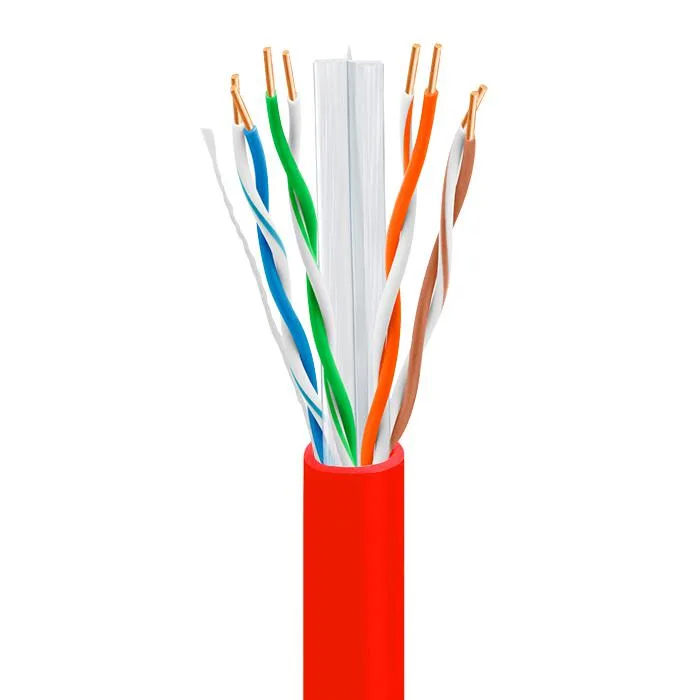

Red Cat6 plenum cable reel in easy-pull box, 1000 ft solid bare copper UTP

Turnstone Cables

Turnstone Cables CAT6 Plenum (CMP) 1000 ft 23AWG 550MHz UTP Red

SKU CH-NNQE-FAE68

1000 ft plenum-rated Cat 6 UTP cable with 23 AWG solid copper conductors and 550 MHz bandwidth for in-wall and ceiling installations

  • TypeNetwork Ethernet Cables
  • Cat6
  • Connector ARJ45
  • Connector BRJ45
  • Length1000 ft.
  • ColorRed
  • Supports 10-Gigabit Ethernet with 550 MHz bandwidth
  • Plenum CMP rating meets fire safety for air spaces
  • 1000 ft easy-pull box with sequential foot markings
  • 23 AWG solid bare copper reduces signal loss
  • Centre spline separates pairs to minimise crosstalk

Plenum-rated CAT6 for indoor runs

This plenum-rated CAT6 cable is built for installation in air-handling spaces above suspended ceilings or below raised floors. It uses solid bare copper conductors and meets TIA/EIA 568-C.2 standards for commercial and residential networking.

Solid-core construction and 550 MHz bandwidth

The 23 AWG solid conductors with a centre spline keep pair geometry stable during pulls, reducing cross-talk and supporting up to 550 MHz bandwidth. Unshielded twisted-pair design suits typical indoor environments without adding bulk.

Easy-pull box with foot markings

Sequential foot markings on the jacket let you track remaining length during long runs. The 1000 ft easy-pull box pays out cleanly for single-person installation. Not suited for outdoor burial or direct UV exposure.

Highlights

  • Supports 10-Gigabit Ethernet with 550 MHz bandwidth
  • Plenum CMP rating meets fire safety for air spaces
  • 1000 ft easy-pull box with sequential foot markings
  • 23 AWG solid bare copper reduces signal loss
  • Centre spline separates pairs to minimise crosstalk

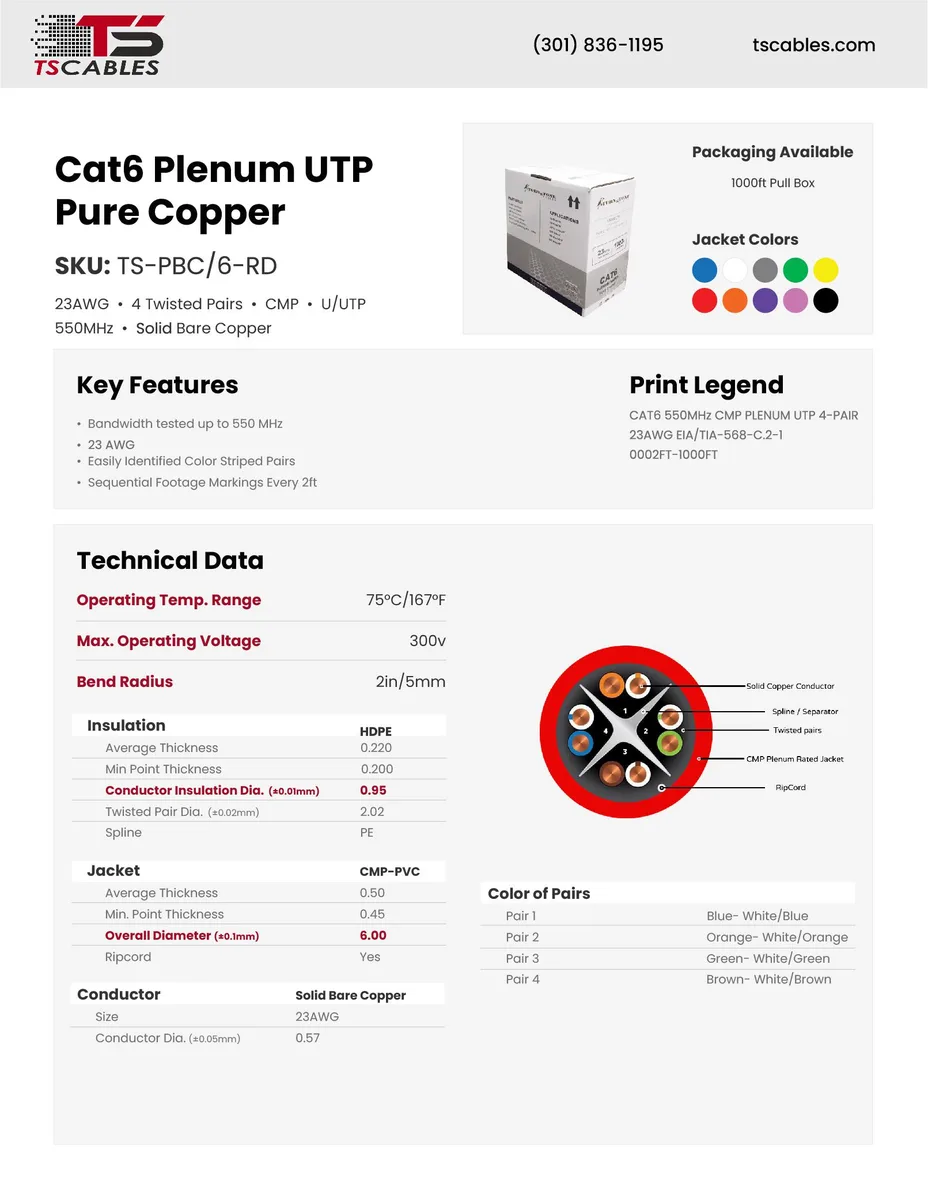

Specifications

BrandTurnstone Cables
TypeNetwork Ethernet Cables
Cat6
Connector ARJ45
Connector BRJ45
Length1000 ft.
ColorRed
ShieldedNo

Questions about this item

How do I pull the 1000 ft plenum cable from its easy-pull box without kinking the 23 AWG solid copper pairs?

Feed the cable straight from the box opening while keeping the centre spline aligned; the sequential foot markings let you track length without forcing bends that exceed the spline's kink resistance.

Will the CMP-rated red jacket need replacement after long-term exposure in air-handling spaces?

The plenum-rated jacket meets TIA/EIA 568-C.2 fire-safety requirements for continuous use above suspended ceilings or below raised floors, so no scheduled jacket replacement is required under normal indoor conditions.

At what distance does the 550 MHz bandwidth limit 10-Gigabit Ethernet performance on this UTP run?

10-Gigabit Ethernet over Cat 6 UTP is supported up to 100 ft; beyond that the 550 MHz bandwidth ceiling makes 10 GbE unreliable, so plan shorter links for sustained 10 GbE throughput.
