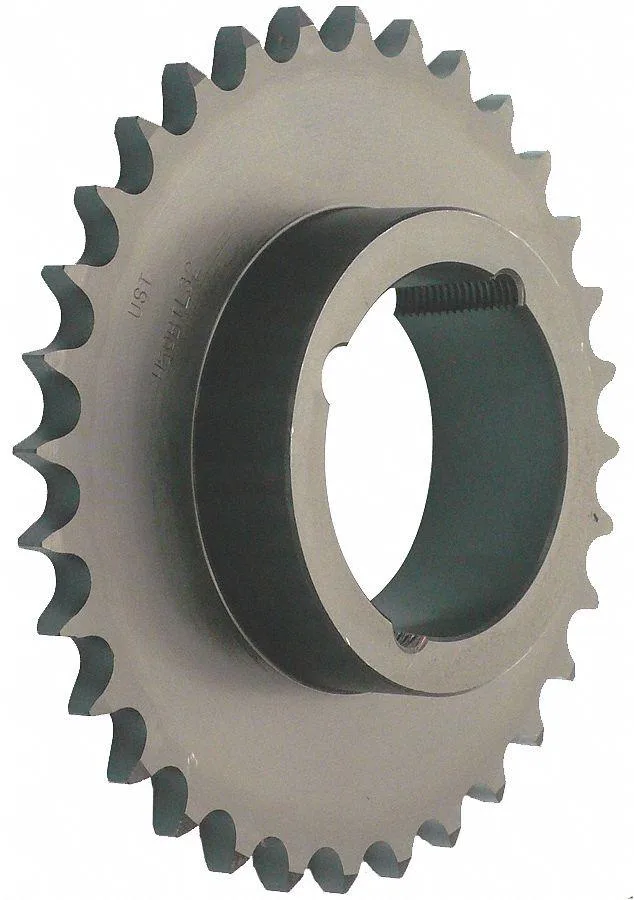

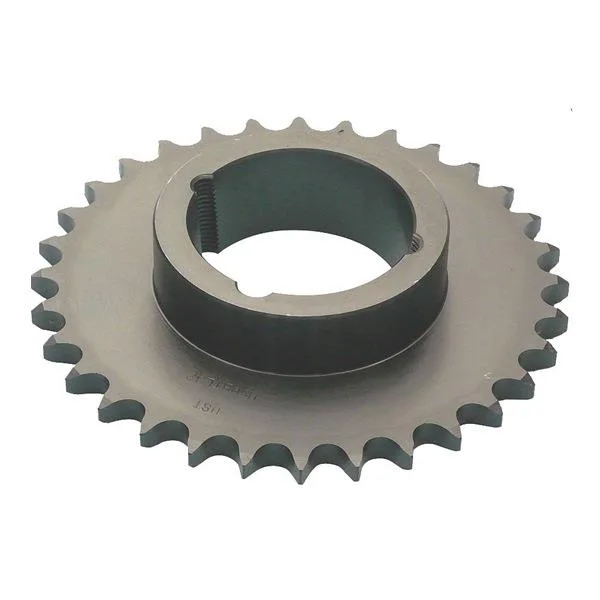

Black oxide steel sprocket, 36 teeth, single hub, taper lock bushing 1610

Tsubaki

Tsubaki 40BTL36 Sprocket 40 Chain 36 Teeth

SKU CH-7AQZ-JZDKP

Steel sprocket for 40 chain with 36 teeth, 5.737 in pitch diameter and 1610 taper-lock bushing

  • TypeSprockets
  • Fits 40 chain with 36 teeth for precise power transmission
  • Taper Lock 1610 bushing simplifies installation and removal
  • 1045 steel construction with black oxide finish resists corrosion
  • 737 in pitch diameter ensures accurate chain engagement
  • 015 in outside diameter provides reliable sprocket clearance

Tsubaki 40BTL36 Sprocket for Chain Size 40

The Tsubaki 40BTL36 is a single-strand sprocket designed for chain pitch 1/2 in and chain number 40. It features 36 teeth, a pitch diameter of 5.737 in and an outside diameter of 6.015 in. The steel body uses material grade 1045 with a black oxide finish for corrosion resistance. This component suits maintenance teams and OEM builders replacing worn drive sprockets on existing #40 roller chain systems.

Upgrade from worn or undersized #40 sprockets

A direct replacement is warranted when the current sprocket shows hooked teeth, excessive wear or incorrect tooth count for the drive ratio. The jump is worth it when the application demands the exact 36-tooth geometry to maintain proper chain engagement and speed reduction. The taper-lock hub accepts bushing size 1610 for secure shaft mounting without set-screw damage.

Verify shaft diameter and bushing compatibility

Confirm the driven shaft diameter falls within the 1 5/8 in minimum and maximum bore range before ordering. Ensure a 1610 taper-lock bushing is available or already installed, as the sprocket hub type is one-side with 0.716 in projection and 1 in length through bore. Check that the 3 in hub diameter clears adjacent components on the machinery.

Highlights

  • Fits 40 chain with 36 teeth for precise power transmission
  • Taper Lock 1610 bushing simplifies installation and removal
  • 1045 steel construction with black oxide finish resists corrosion
  • 737 in pitch diameter ensures accurate chain engagement
  • 015 in outside diameter provides reliable sprocket clearance

Specifications

TypeSprockets

Questions about this item

Does this sprocket need a specific bushing to mount on a shaft?

It is designed for a 1610 taper-lock bushing with a maximum bore of 1 5/8 in and a minimum bore of 1 5/8 in.

How do I install the taper-lock bushing correctly on this hub?

Clean the shaft and bushing bore, insert the bushing into the hub, tighten the set screws alternately to the recommended torque, and avoid over-tightening which can crack the hub.

When should I replace this sprocket due to wear?

Replace it when the 36 teeth show hooked or pointed profiles, the 1/2 in chain pitch no longer seats cleanly, or the black oxide finish has worn through exposing bare 1045 steel.
