Black 2-post open frame rack with adjustable vertical rails, wall-mount brackets and included hardware

Tripp Lite

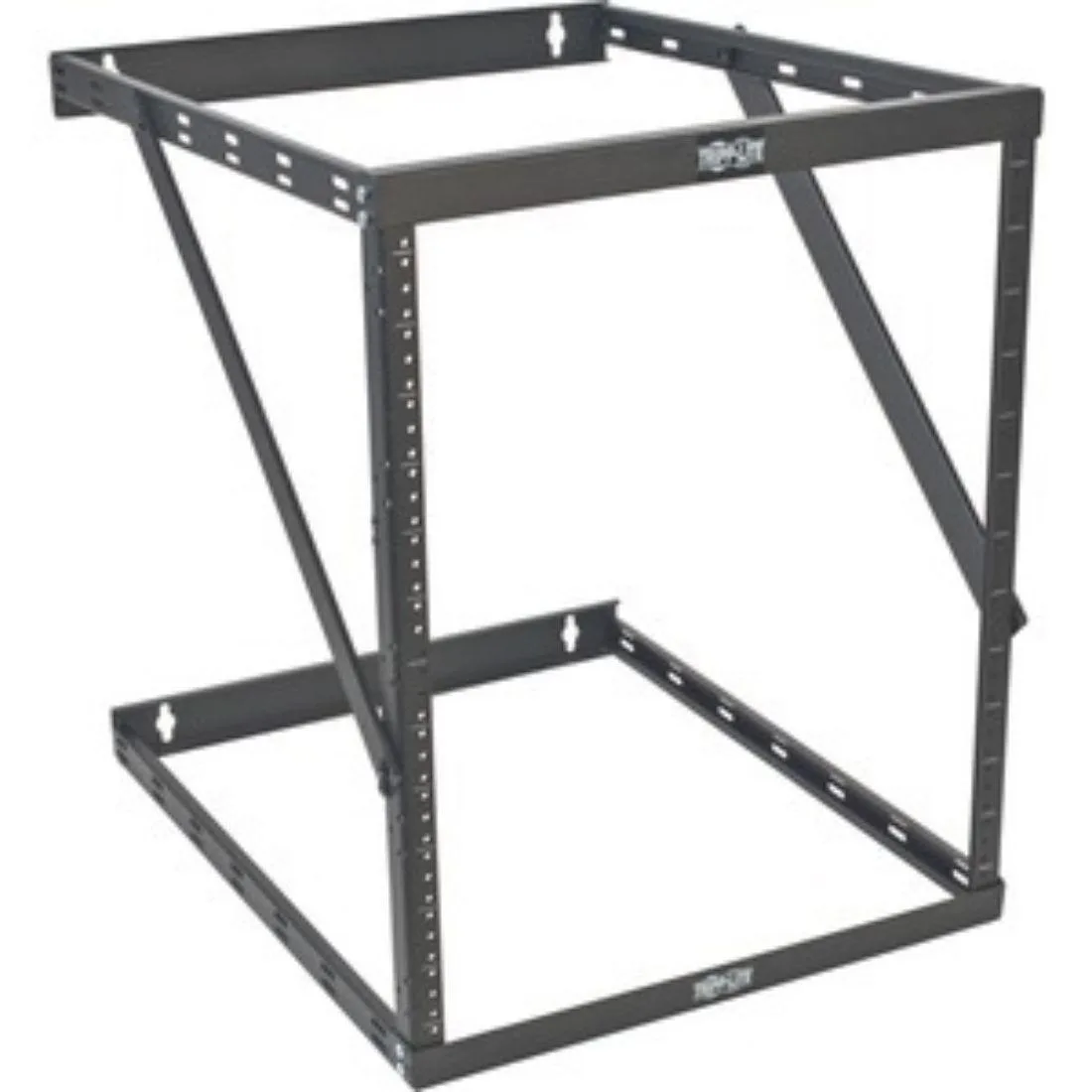

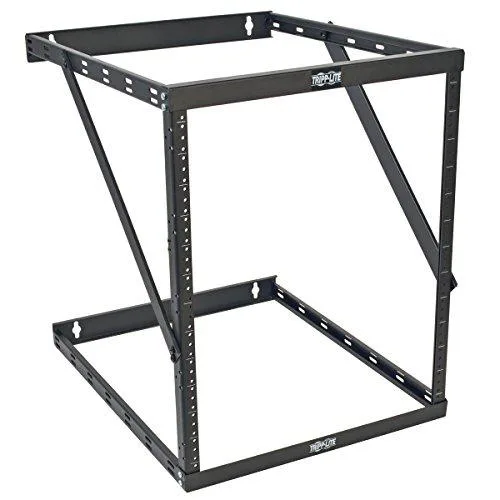

Tripp Lite SRWO8U22DP 8U-22U Expandable 2-Post Open Frame Server Rack 23.5in Depth

SKU CH-TCC7-C5PFH MPN SRWO8U22DP

Expandable 2-post open-frame rack adjusts to 8U, 12U or 22U and holds 19 in. equipment up to 23.5 in. deep with a 150 lb. capacity

  • Type2 Post Open Frame Rack
  • ColorBlack
  • FeaturesMaximum load capacity of 150 lbs. Secures 19 in. rack equipm
  • Included Accessory(24) 12-24 equipment mounting screws (16) M5 button-head cap
  • Unit Dimension17.80" x 20.11" x 24.00"
  • Unit Weight13.03 lbs.
  • Houses 19 in. rack gear up to 23.5 in. deep
  • Adjusts to 8U, 12U or 22U without a larger rack
  • Supports 150 lbs. on heavy-duty steel frame
  • Ships with 24 mounting screws plus rails and tie plates
  • Compact 17.80 x 20.11 x 24.00 in. footprint fits tight spaces

Expandable 2-Post Open Frame Rack

This Tripp Lite SRWO8U22DP rack provides 8U, 12U or 22U of EIA-standard 19 in. mounting space for servers, switches or UPS units. Heavy-duty steel construction supports a maximum load of 150 lbs. The open-frame design allows unrestricted airflow around installed equipment. It ships new with all necessary assembly hardware included.

Wall Clearance and Depth Check

Verify that the mounting wall can bear the combined weight of the rack plus 150 lbs of equipment. Confirm at least 23.5 in. of usable depth from the wall surface to accommodate devices up to that length. Ensure the installation area provides the unit's full 24.00 in. height and 20.11 in. width footprint. No floor space is required for this wall-mount design.

Sustained Load Behaviour

The welded steel frame maintains structural rigidity when fully loaded to the 150 lb rating over extended periods. Open posts prevent heat build-up during continuous operation of network gear or battery packs. Included tie plates keep vertical rails aligned under constant weight. Hardware remains secure without loosening from vibration in long-term deployments.

Highlights

  • Houses 19 in. rack gear up to 23.5 in. deep
  • Adjusts to 8U, 12U or 22U without a larger rack
  • Supports 150 lbs. on heavy-duty steel frame
  • Ships with 24 mounting screws plus rails and tie plates
  • Compact 17.80 x 20.11 x 24.00 in. footprint fits tight spaces

Specifications

BrandTripp Lite
ModelSRWO8U22DP
Type2 Post Open Frame Rack
ColorBlack
FeaturesMaximum load capacity of 150 lbs.
Secures 19 in. rack equipment up to 23.5 in. deep
Configures to 8U, 12U or 22U of rack space
Heavy-duty steel construction designed to last
Easy to assemble with included hardware
Included Accessory(24) 12-24 equipment mounting screws
(16) M5 button-head cap screws
(8) M6 x 12 Phillips-head screws
(2) Short vertical mounting rails
(2) Long vertical mounting rails
(2) Mounting rail tie plates
(2) Metal support straps
(2) Top / bottom panel frames
(8) Zip ties
3 mm L-shaped hex key
Owner’s manual
Unit Dimension17.80" x 20.11" x 24.00"
Unit Weight13.03 lbs.
Shipping weight9.10 kg
Package size724 × 559 × 102 mm

Questions about this item

What hardware is included and what must I buy separately?

The package supplies 24 12-24 screws, 16 M5 button-head screws, 8 M6 x 12 Phillips screws, two short rails, two long rails, two tie plates and two metal support straps. You must provide wall anchors and any shelf or cable-management accessories.

Should I configure the rack to 8U, 12U or 22U?

Choose 8U for a compact patch-panel or switch stack, 12U for a small UPS plus network gear, or 22U when you need room for a deeper UPS and future expansion; the frame reconfigures without buying a larger unit.

What does the 150 lb load rating mean once the rack is wall-mounted?

It is the total weight of all installed equipment — UPS, batteries, switches and patch panels — that the assembled frame can safely support when secured to a suitable wall structure.
