Black steel 2-post open frame rack 12U 19in wide 18in deep

Tripp Lite

Tripp Lite SRWO12UHD 12U 2-Post Open Frame Server Rack 19in 18in Deep 550 lbs

SKU CH-TCZW-E8E5X MPN SRWO12UHD

A 12U open-frame wall rack holds 19-inch equipment up to 18 inches deep with a 550 lb capacity

  • Type2 Post Open Frame Rack
  • Rack Units12U
  • ColorBlack
  • MaterialSteel
  • Weight Capacity550 lbs.
  • FeaturesSaves Valuable Workspace Perfect for network wiring closets,
  • Stores 12U of 19 in. equipment in 18 in. depth
  • Supports up to 550 lbs load capacity on heavy-duty steel
  • Wall-mount design saves valuable floor space in tight areas
  • Open 2-post frame allows easy access to equipment and cabling
  • Includes 24 mounting screws, support straps and rails for quick assembly

12U wall-mount open frame rack

The Tripp Lite SRWO12UHD is a 12U 2-post open frame rack designed for 19-inch EIA-standard equipment up to 18 inches deep. It mounts directly to a wall, saving valuable floor space in wiring closets, back offices or other secure areas where a locked enclosure is not required. Heavy-duty steel construction supports a maximum load capacity of 200 lbs.

Suits shallow gear in tight rooms.

This rack suits installers who need to organise patch panels, switches or shallow appliances in locations with limited floor space and no requirement for a locking cabinet. The 18-inch depth and 200 lb load limit mean it cannot accommodate deeper servers, large UPS units or heavy blade chassis that exceed those constraints. Builders needing lockable sides or higher weight ratings should look at enclosed or floor-standing alternatives.

Bundled hardware and rails simplify assembly

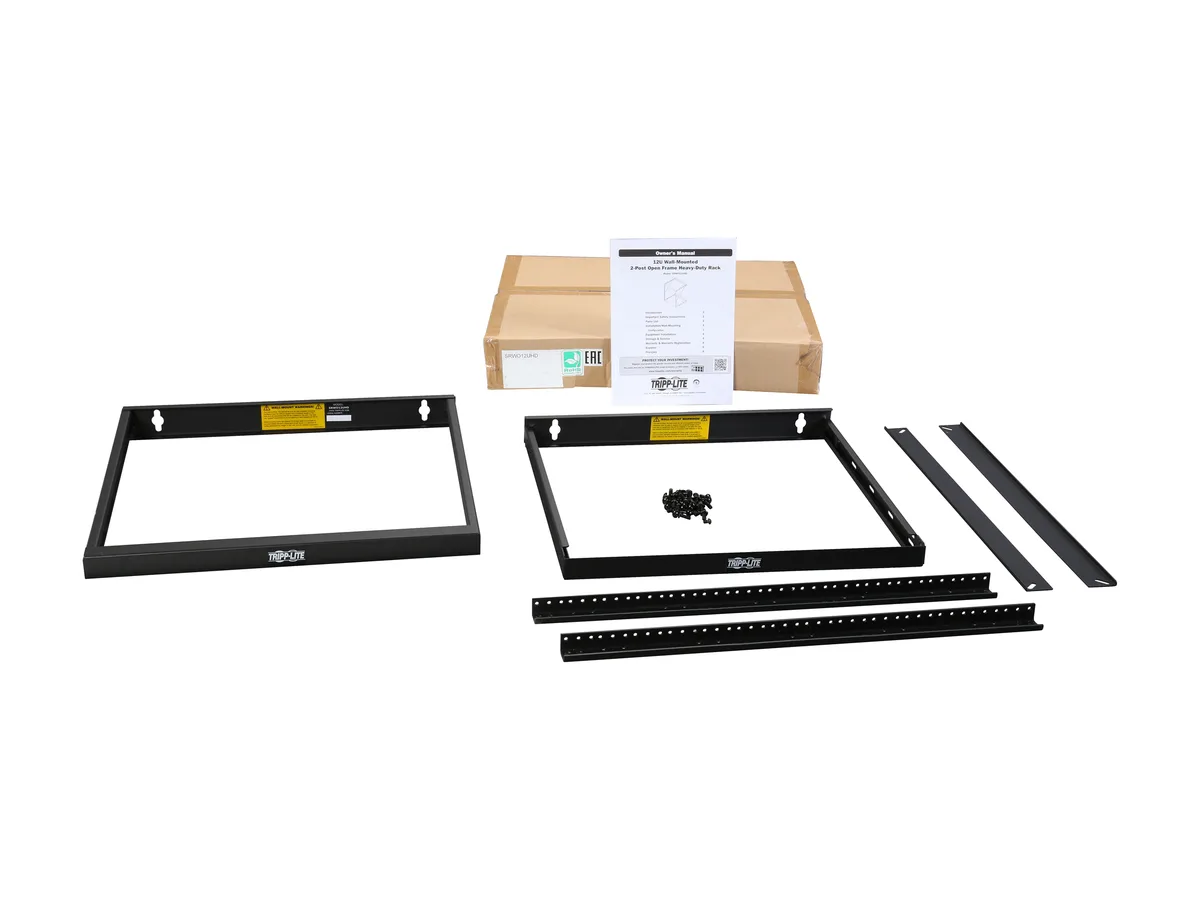

The package includes 24 equipment mounting screws (12-24 thread), eight M5 button-head cap screws, eight M6 x 12 Phillips-head screws, two support straps, two vertical mounting rails, two top/bottom panel frames and a 3 mm hex key. These parts provide everything needed to secure the frame to the wall and mount standard 19-inch gear without sourcing additional fasteners. An owner's manual guides the straightforward assembly process.

Highlights

  • Stores 12U of 19 in. equipment in 18 in. depth
  • Supports up to 550 lbs load capacity on heavy-duty steel
  • Wall-mount design saves valuable floor space in tight areas
  • Open 2-post frame allows easy access to equipment and cabling
  • Includes 24 mounting screws, support straps and rails for quick assembly

Specifications

BrandTripp Lite
ModelSRWO12UHD
Type2 Post Open Frame Rack
Rack Units12U
ColorBlack
MaterialSteel
Weight Capacity550 lbs.
FeaturesSaves Valuable Workspace
Perfect for network wiring closets, back offices and other secure areas with limited floor space where a locked enclosure is not required
Stores and organizes EIA-standard 19 in. rack equipment compatible with 2-post mounting in 12U of space
Maximum load capacity of 200 lb.
2-Post Open Frame Design
Allows easy access for installing, configuring and servicing equipment and cabling
Easy Assembly and Installation
Wall-mounting holes spaced 16 in. apart for standard wall stud placement
Vertical mounting rails accommodate equipment up to 18 in. deep, such as netwo
Included Accessory(24) 12-24 equipment mounting screws
(8) M5 button-head cap screws
(8) M6 x 12 Phillips-head screws
(2) Support straps
(2) Vertical mounting rails

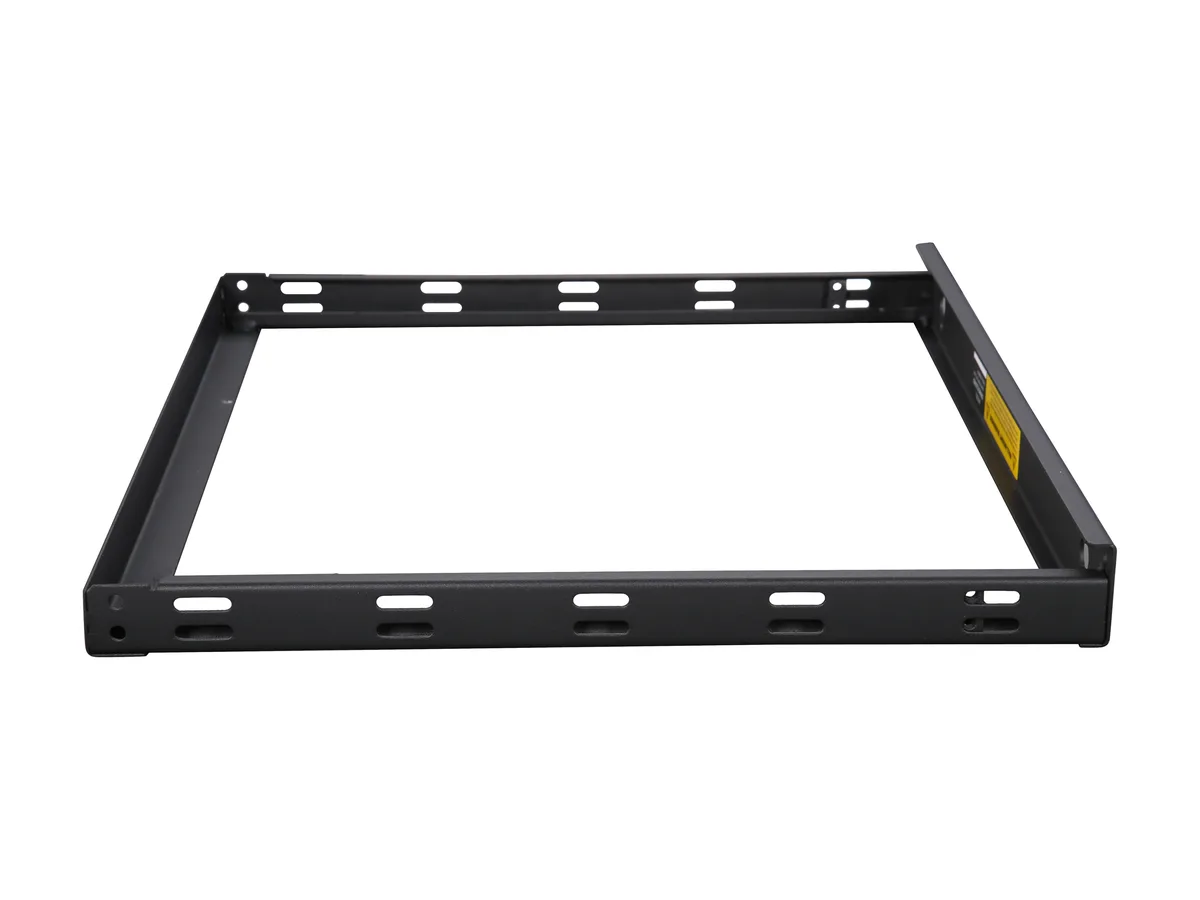

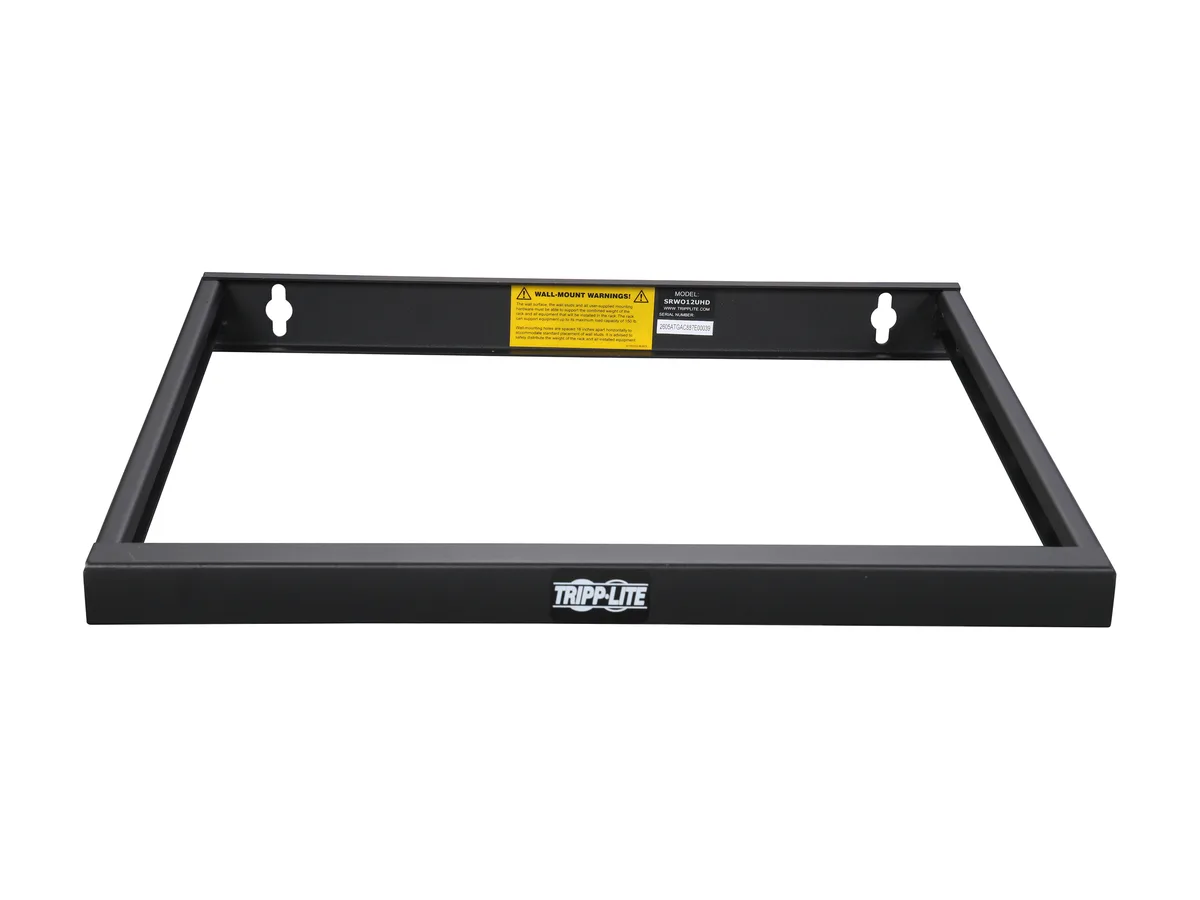

(2) Top/bottom panel frames
3 mm hex key
Owner’s manual
Unit Dimension24.80" x 20.10" x 18.24"
Unit Weight14.30 lbs.
Shipping Dimension4.00" x 22.00" x 23.80"
Shipping Weight15.40 lbs.
Shipping weight6.92 kg
Package size577 × 556 × 107 mm

Questions about this item

What wall structure must already be in place to support the 550 lbs weight capacity of this SRWO12UHD rack?

The rack mounts to a solid wall using the included vertical rails and support straps; the wall must be concrete, brick or stud-framed with lag bolts into studs to handle the 550 lbs rating.

Will my existing 19 in. patch panels and 18 in. deep switches fit the 12U threaded 12-24 holes on this unit?

Yes, the rack accepts EIA-standard 19 in. equipment up to 18 in. deep, and the 12-24 threaded holes match the included 24 mounting screws for patch panels and switches.

How can I confirm the SRWO12UHD is level and secure after mounting it on the wall?

Use a spirit level on the top frame, verify all 8 M5 and 8 M6 screws are tight, check that the support straps are tensioned, and ensure the unit sits flush at 24.80 in. high by 20.10 in. wide.
