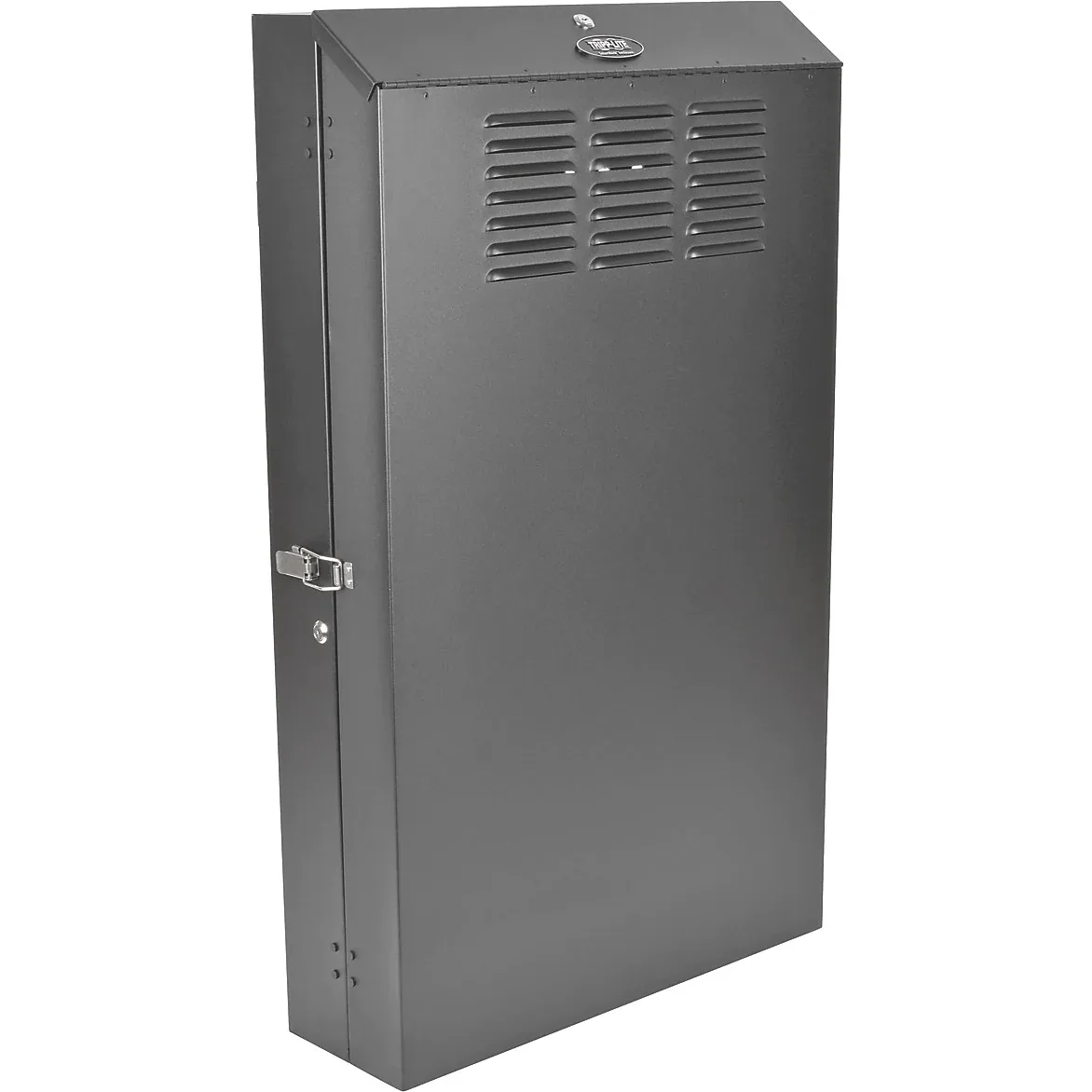

Black steel wall-mount server rack, vertical 4U enclosure, vented locking door, 36 inch depth

Tripp Lite

Tripp Lite SRWF4U36 4U Wall Mount Server Rack 36" Deep

SKU CH-GQ7Z-SANWF MPN SRWF4U36

A 4U wall-mount steel cabinet secures 19-inch rack gear up to 36 inches deep with 150 lb capacity and vented locking doors

  • TypeWall Mount Cabinet
  • ColorBlack
  • Weight Capacity150 lbs.
  • FeaturesPerfect for network wiring closets, retail locations, classr
  • Unit Dimension43.20" x 25.60" x 9.70"
  • Unit Weight55.12 lbs.
  • Secures 4U of 19-inch rack gear up to 36 inches deep
  • Maximum load capacity of 150 lbs for heavy equipment
  • Includes extra 2U slide-out bracket for patch panels up to 2.5 inches deep
  • Locking vented steel cabinet keeps hardware cool and secure
  • Ships fully assembled for quick wall-mount installation

4U wall-mount rack for 36-inch-deep gear

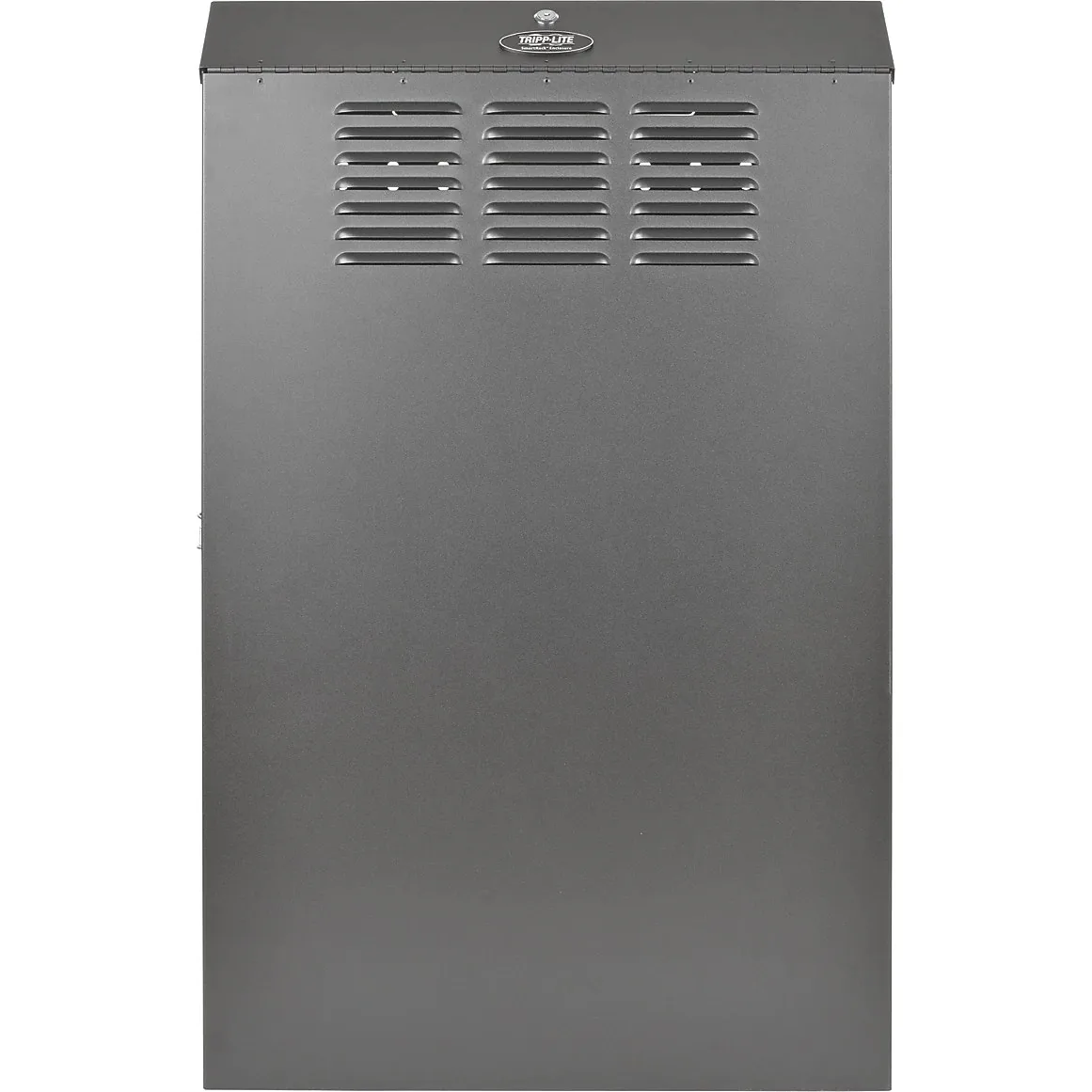

This Tripp Lite enclosure secures 4U of EIA-standard 19-inch rack equipment up to 36 inches deep in a low-profile cabinet that extends only eight inches from the wall. It is built from heavy-duty steel with a black powder-coated finish and supports a maximum load of 150 pounds. The unit ships fully assembled for immediate installation.

Suits tight spaces needing secure 19-inch mounting

Ideal for network closets, retail sites, classrooms and back offices where floor space is limited but 36-inch-deep servers, UPS units, battery packs or switches must be locked away and ventilated. Not suited for deployments requiring more than 4U of primary rack space, loads exceeding 150 pounds or equipment deeper than 36 inches.

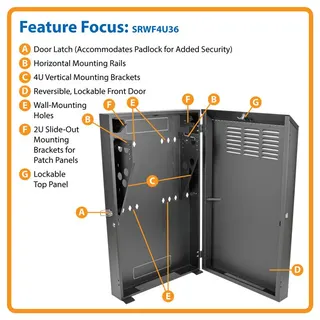

Slide-out 2U patch-panel bracket and reversible door

A slide-out 2U bracket at the top accommodates patch panels up to 2.5 inches deep, adding organisation without using primary U space. The reversible front door can be hung left or right, and both the top panel and door lock to deter tampering. Vented sides and top and bottom cable ports complete the fitted package.

Highlights

  • Secures 4U of 19-inch rack gear up to 36 inches deep
  • Maximum load capacity of 150 lbs for heavy equipment
  • Includes extra 2U slide-out bracket for patch panels up to 2.5 inches deep
  • Locking vented steel cabinet keeps hardware cool and secure
  • Ships fully assembled for quick wall-mount installation

Specifications

BrandTripp Lite
ModelSRWF4U36
TypeWall Mount Cabinet
ColorBlack
Weight Capacity150 lbs.
FeaturesPerfect for network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way
Houses EIA-standard 19 in. rack equipment in 4U of space
Low-profile vertical-mount cabinet extends only 8 in. from the wall while housing equipment up to 36 in. deep, including 1U servers, UPS systems, battery packs and switches
Also includes a slide-out 2U mounting bracket at the top of the enclosure for patch panels up to 2.5 in. deep
Maximum load capacity of 150 lb.
Unit Dimension43.20" x 25.60" x 9.70"
Unit Weight55.12 lbs.
Shipping weight35.38 kg
Package size1219 × 813 × 356 mm

Questions about this item

What wall structure and hardware do I need to mount the 55.12 lb cabinet and support its 150 lb load rating?

The cabinet must be secured to wall studs or a solid masonry wall using lag bolts or anchors rated for the combined weight of the 55.12 lb unit plus up to 150 lb of installed equipment.

Will my existing 19 inch rackmount patch panels fit in the extra 2U slide-out bracket at the top?

Yes, the bracket accepts standard EIA 19 inch patch panels up to 2.5 inches deep, so most existing 1U or 2U panels will mount directly.

After installation, how can I confirm the cabinet is ventilating properly and the front door seals correctly?

Check that air moves freely through the vented sides and top, and verify the reversible front door latches securely in both left- and right-hand orientations.
