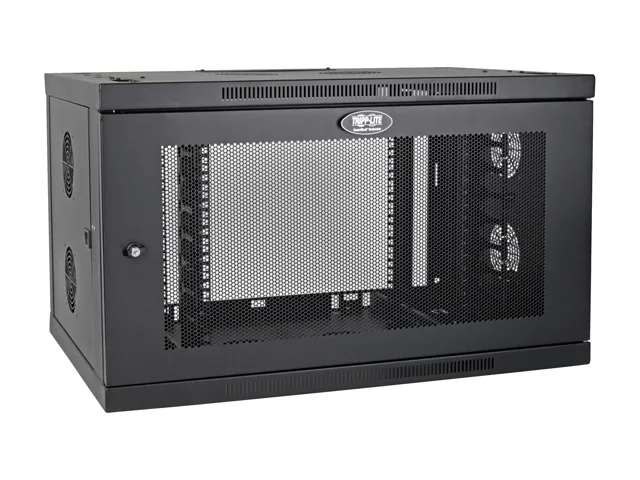

Black powder-coated steel wall-mount rack cabinet, 9U, front door and side panels lockable, 20.5 inch depth

Tripp Lite

Tripp Lite SRW9UDPVRT 9U Wall Mount Cabinet PDU 20.5" Deep

SKU CH-4EJN-VC779 MPN SRW9UDPVRT

A 9U wall-mount steel enclosure secures 19‑inch rack gear up to 20.5 inches deep with lockable doors and 200‑pound capacity

  • TypeWall Mount Cabinet
  • Rack Units9U
  • ColorBlack
  • Weight Capacity200.00 lbs.
  • SpecificationForm Factor:Wall Mountable
  • Features9U rack constructed from powder-coated steel that stands up
  • Houses 9U of 19-inch rack equipment up to 20.5 in. deep
  • Supports 200 lb static load with heavy-duty steel construction
  • Lockable front door and side panels prevent tampering or theft

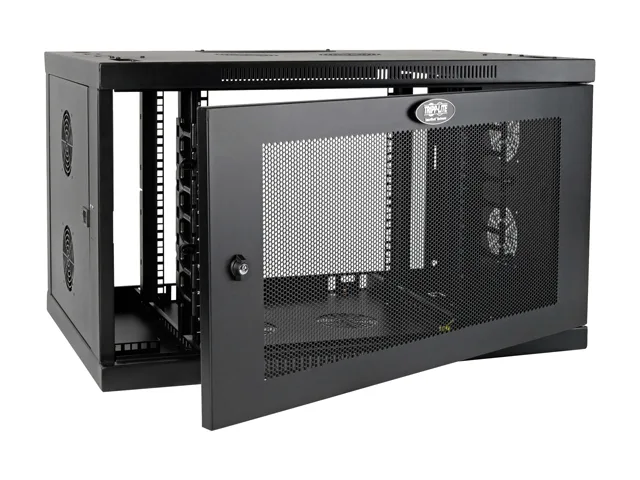

  • Reversible door opens left or right by rotating cabinet 180 degrees
  • Top and bottom cable access ports simplify routing and organisation

9U Wall-Mount Cabinet for Network Gear

This lockable steel enclosure holds 9U of EIA-standard 19-inch rack equipment such as switches and patch panels. It is built for branch offices, classrooms and retail spaces where floor space is limited but gear must stay secure and organised. The reversible front door and locking side panels deter tampering and theft. A durable black powder-coat finish resists tough environments.

20.5-Inch Maximum Equipment Depth

The cabinet accepts devices up to 20.5 inches deep, which is the single figure that decides whether your hardware will fit. Top and bottom cable-access ports simplify routing while keeping cables inside the locked area. Vertical cable-management fingers help maintain airflow and tidy bundles. Exceeding this depth means the door will not close or equipment will not mount.

Mounts with Standard Hardware and a Removable Plate

The package includes 22 each of M6 screws, cage nuts, cup washers and 12-24 screws plus a removable mounting plate for easier wall attachment. The door can be hinged left or right by rotating the cabinet 180 degrees before installation. The unit weighs 51.8 pounds, so verify that the wall structure and fasteners can support the load plus the 200-pound equipment rating. Common issues are insufficient wall anchors and forgetting to orient the door swing before lag-bolting the plate.

Highlights

  • Houses 9U of 19-inch rack equipment up to 20.5 in. deep
  • Supports 200 lb static load with heavy-duty steel construction
  • Lockable front door and side panels prevent tampering or theft
  • Reversible door opens left or right by rotating cabinet 180 degrees
  • Top and bottom cable access ports simplify routing and organisation

Specifications

BrandTripp Lite
ModelSRW9UDPVRT
TypeWall Mount Cabinet
Rack Units9U
ColorBlack
Weight Capacity200.00 lbs.
SpecificationForm Factor:Wall Mountable
Features9U rack constructed from powder-coated steel that stands up to tough environments
Doors and side panels lock securely to help prevent damage, tampering or theft
Extra 3 in. width and integrated cable managers cut down on rear cord clutter
Ships fully assembled for immediate wall-mounting with user-supplied hardware
Provides physical equipment and media security required for PCI DSS compliance
Included AccessorySRW9UDPVRT SmartRack 9U Low-Profile Switch-Depth-Plus Wall-Mount Rack Enclosure Cabinet
22 x M6 screws
22 x M6 cage nuts
22 x M6 cup washers
22 x 12-24 screws
Removable mounting plate

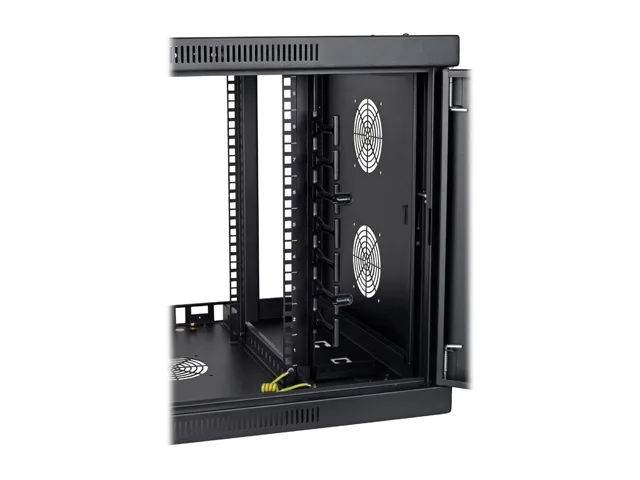

Vertical cable management fingers
3 x Mounting plate screws
2 x Keys
Owner's manual
Unit Dimension19.83" x 29.62" x 21.71"
Unit Weight51.80 lbs.
Shipping Dimension23.03" x 32.28" x 24.40"
Shipping Weight57.54 lbs.
Shipping weight26.10 kg
Package size820 × 620 × 620 mm

Questions about this item

What does the 9U height mean for the equipment I can install?

The cabinet provides 9U of rack space, which equals 19.8 inches of vertical room for EIA-standard 19-inch devices such as switches or patch panels.

How does the 20.5-inch rack depth limit what hardware fits inside?

Equipment deeper than 20.5 inches will not mount properly; the usable depth is 20.5 inches, while the overall cabinet depth is 21.7 inches including doors.

What mounting hardware and wall clearance do I need for this 51.80-pound cabinet?

The package includes 22 M6 screws, 22 M6 cage nuts, 22 M6 cup washers, 22 12-24 screws and a removable mounting plate; the cabinet weighs 51.80 pounds and supports up to 200 pounds of equipment.
