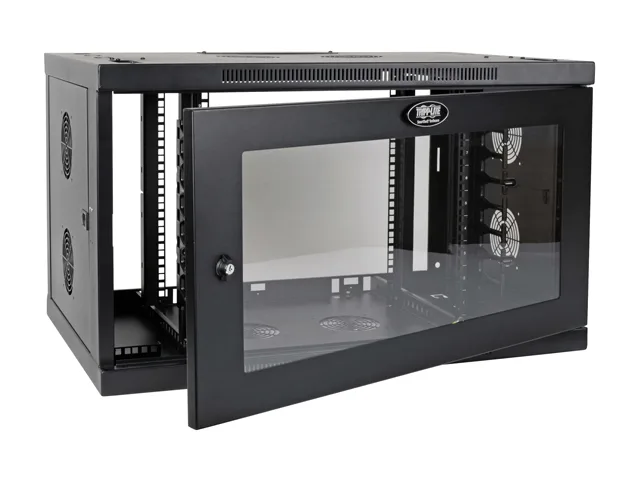

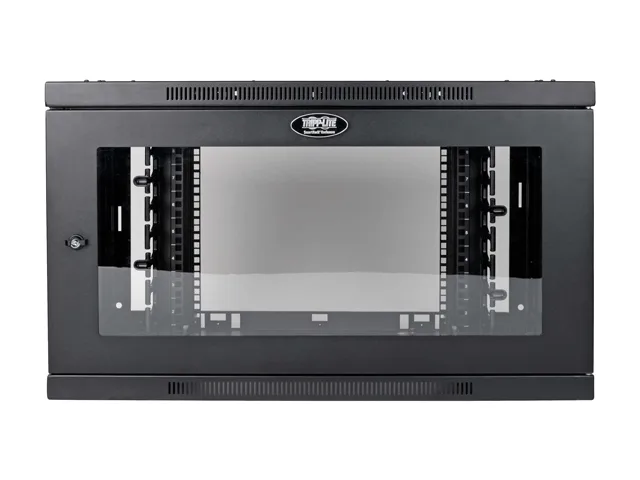

Black steel 9U wall-mount rack cabinet, 29.6" wide, 21.7" deep, lockable front door

Tripp Lite

Tripp Lite SRW9UDPGVRT 9U Wall-Mount Server Rack 29.6"W 21.7"D

SKU CH-4EP4-WPHSK MPN SRW9UDPGVRT

A 9U wall-mount steel cabinet with lockable door and side panels holds 19-inch rack equipment up to 20.5 inches deep and supports 200 pounds

  • TypeWall Mount Cabinet
  • Rack Units9U
  • MaterialSteel
  • SpecificationForm Factor:Wall Mountable
  • FeaturesPackage Contents: SmartRack SRW9UDPGVRT Rack Cabinet 22 x M6
  • Unit DimensionHeight:19.8" x Width:29.6" x Depth:21.7"
  • 9U capacity fits 19-inch rack gear up to 20.5 inches deep
  • Heavy-duty steel construction supports 200-pound maximum load capacity
  • Lockable front door and side panels secure equipment against tampering
  • Reversible door opens left or right after 180-degree cabinet rotation
  • Top and bottom cable ports plus round ventilation ports simplify routing and cooling

Compact 9U Wall Cabinet

The Tripp Lite SRW9UDPGVRT is a steel wall-mount enclosure that provides 9U of 19-inch rack space for switches, patch panels and similar network gear. It suits wiring closets, retail back-rooms, classrooms and offices where floor space is limited but equipment must stay secure and organised.

Passive Cooling With Optional Fans

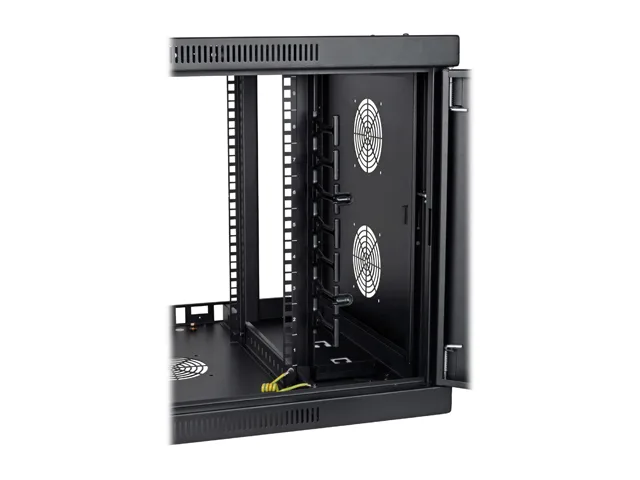

Round ventilation ports on the top, bottom and both sides accept add-on fans for active airflow, while the perforated door and side panels allow passive convection. The cabinet weighs 53.13 lb and carries a 200 lb maximum load rating, so installed hardware remains stable without stressing the wall fixings.

Extra Width For Cable Management

At 29.6 inches wide the unit is three inches broader than standard racks, giving more room for vertical cable fingers and easier patch-cord routing. The reversible front door swings 180 degrees for left or right access, and lockable side panels simplify maintenance without compromising physical security.

Highlights

  • 9U capacity fits 19-inch rack gear up to 20.5 inches deep
  • Heavy-duty steel construction supports 200-pound maximum load capacity
  • Lockable front door and side panels secure equipment against tampering
  • Reversible door opens left or right after 180-degree cabinet rotation
  • Top and bottom cable ports plus round ventilation ports simplify routing and cooling

Specifications

BrandTripp Lite
ModelSRW9UDPGVRT
TypeWall Mount Cabinet
Rack Units9U
MaterialSteel
SpecificationForm Factor:Wall Mountable
FeaturesPackage Contents:
SmartRack SRW9UDPGVRT Rack Cabinet
22 x M6 Screws
22 x M6 cage Nuts
22 x M6 cup Washers
22 x 12-24 Screws
Removable Mounting Plate
Vertical Cable Management Fingers
3 x Mounting Plate Screws
2 x Keys
Owner's Manual
Unit DimensionHeight:19.8" x Width:29.6" x Depth:21.7"
Unit Weight53.13 lb
Shipping weight26.70 kg
Package size820 × 620 × 585 mm

Questions about this item

How do I mount the 9U cabinet to the wall and what is the step installers often miss?

Mount the cabinet using the removable mounting plate and three mounting-plate screws; the step often missed is rotating the cabinet 180 degrees before mounting if you need the reversible front door to open left instead of right.

What maintenance or replacement will the lockable front door and side panels need later?

The two included keys operate the lockable front door and side panels; if a key is lost, replace the lock cylinder or contact a locksmith — no other user-serviceable parts are required.

What is the first limit reached under sustained use — the 200-pound load capacity or the 20.5-inch equipment depth?

The 200-pound maximum load capacity is the limit that appears first; equipment depth is fixed at 20.5 inches, so exceeding the weight rating will be the constraining factor during sustained operation.
