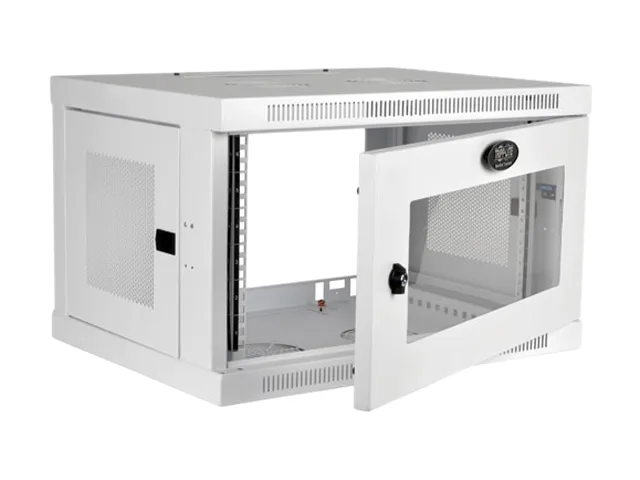

White wall-mount server rack with clear acrylic front door, 6U height, 16.5 inches deep

Tripp Lite

Tripp Lite SRW6UWG 6U Wall-Mount Server Rack 200 lb 16.5 in Deep White

SKU CH-2G3D-G0B5Y MPN SRW6UWG

A 6U wall-mount rack enclosure with a clear acrylic window and 200 lb capacity for equipment up to 16.5 in deep

  • TypeWall Mount Cabinet
  • Rack Units6U
  • ColorWhite
  • SpecificationGrounding Lug: Front and Back door frames Seismic Rack: No
  • FeaturesMaximum load capacity of 200 lbs. Front door includes shatte
  • Included AccessorySRW6UWG SmartRack 6U Low-Profile Switch-Depth Wall-Mount Rac
  • Holds 6U of 19 in. rack gear up to 16.5 in. deep
  • Shatter-resistant acrylic window lets you check status without unlocking
  • Locking vented steel cabinet secures equipment against tampering
  • 200 lb load capacity supports heavy switches and servers
  • Includes 12 each of M6 screws, cage nuts, cup washers and 12-24 screws

6U Wall-Mount Rack for Shallow Equipment

The Tripp Lite SRW6UWG is a 6U wall-mount cabinet designed to hold standard 19 in. rack equipment up to 16.5 in. deep. It supports a maximum load capacity of 200 lbs and includes a clear acrylic window on the front door for equipment monitoring without unlocking the enclosure.

Mounting Hardware and Ventilation Included

The unit ships with a removable mounting plate, three mounting plate screws, two keys, and two full sets of rail hardware comprising 12 M6 screws, 12 M6 cage nuts, 12 M6 cup washers, and 12 12-24 screws. The steel cabinet is vented at the sides, top, and bottom to promote passive airflow around installed devices.

Locked Enclosure Weighs 28.66 lbs

The assembled cabinet measures 14.50 in. high, 23.50 in. wide, and 17.50 in. deep with a weight of 28.66 lbs. A locking front door prevents equipment tampering while the acrylic window allows visual status checks. Grounding lugs on the front and back door frames provide a path for chassis grounding. Builders needing deeper server chassis or seismic-rated construction should look elsewhere.

Highlights

  • Holds 6U of 19 in. rack gear up to 16.5 in. deep
  • Shatter-resistant acrylic window lets you check status without unlocking
  • Locking vented steel cabinet secures equipment against tampering
  • 200 lb load capacity supports heavy switches and servers
  • Includes 12 each of M6 screws, cage nuts, cup washers and 12-24 screws

Specifications

BrandTripp Lite
ModelSRW6UWG
TypeWall Mount Cabinet
Rack Units6U
ColorWhite
SpecificationGrounding Lug: Front and Back door frames
Seismic Rack: No
FeaturesMaximum load capacity of 200 lbs.
Front door includes shatter-resistant clear acrylic window
Locking steel cabinet vented at sides, top and bottom
Secures 6U of 19 in. rack equipment up to 16.5 in. deep
Mounts to wall or rolls on floor(with optional SRCASTER)
Included AccessorySRW6UWG SmartRack 6U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet
(12) M6 screws
(12) M6 cage nuts
(12) M6 cup washers
(12) 12-24 screws
Removable mounting plate
(3) Mounting plate screws
(2) Keys
Owner’s manual
Unit Dimension14.50" x 23.50" x 17.50"
Unit Weight28.66 lbs.
Shipping Dimension17.30" x 25.80" x 19.90"
Shipping Weight32.74 lbs.
Shipping weight16.33 kg
Package size655 × 505 × 439 mm

Questions about this item

How deep is the cabinet for 19 in. rack equipment?

The enclosure secures 6U of standard 19 in. rack gear up to 16.5 in. deep.

Does the steel cabinet vent heat when fully loaded?

Vented sides, top and bottom provide passive airflow through the locking steel cabinet.

What mounting hardware is included for the wall?

A removable mounting plate and three mounting-plate screws are supplied for wall installation.
