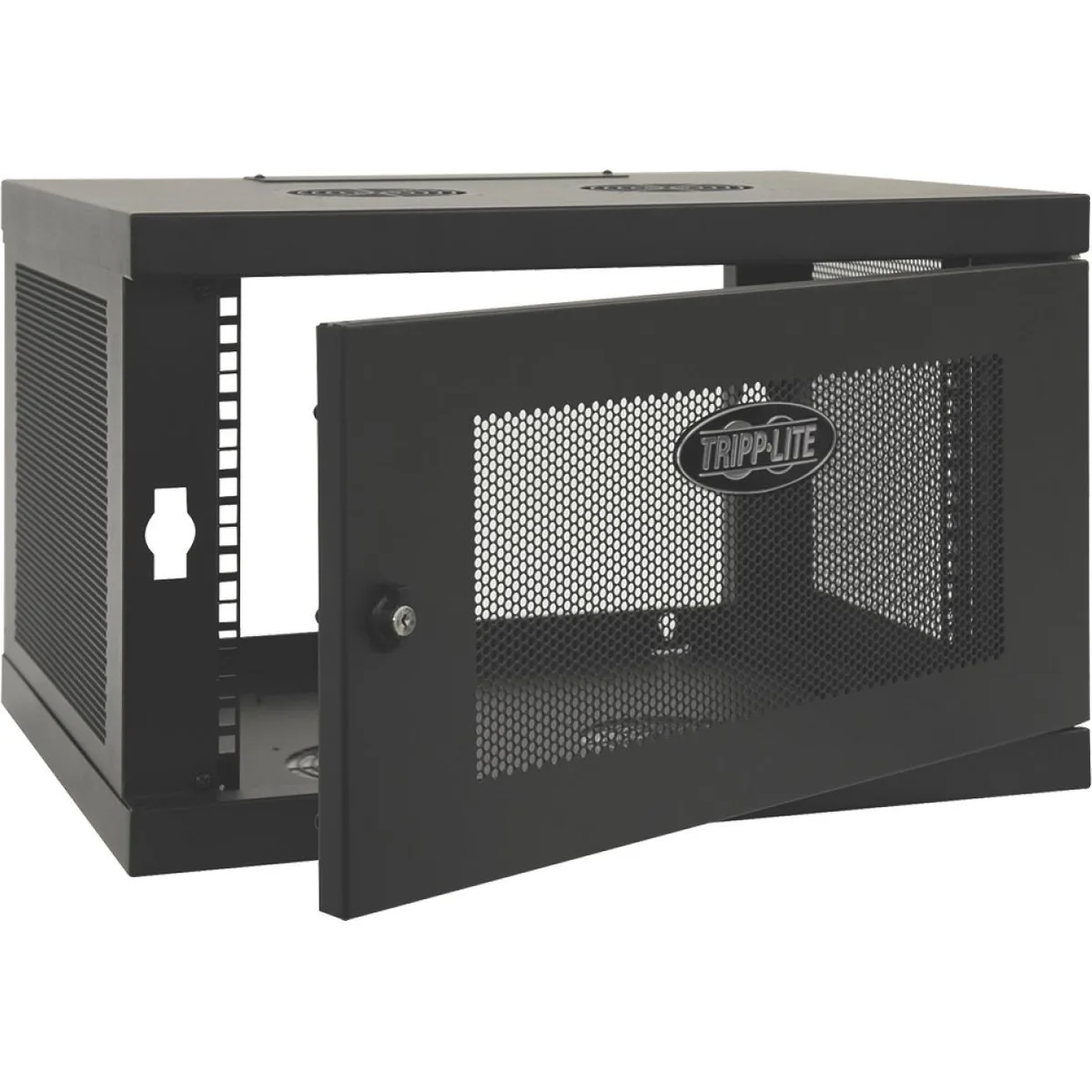

Black steel 6U wall mount server rack cabinet unassembled with vented panels and locking front door

Tripp Lite

Tripp Lite SRW6UKD 6U Wall Mount Server Rack 16.5" Deep Knock Down

SKU CH-CAFD-AZ3PP MPN SRW6UKD

A 6U wall-mount steel cabinet that holds 19 in. rack equipment up to 16.5 in. deep with a 200 lb load rating and vented, locking sides

  • TypeWall Mount Cabinet
  • Rack Units6U
  • ColorBlack
  • MaterialSteel
  • SpecificationForm Factor:Wall Mountable
  • FeaturesPackage Contents: SmartRack SRW6UKD Rack Cabinet Owner's Man
  • Secures 6U of 19 in. rack equipment up to 16.5 in. deep
  • Maximum load capacity of 200 lbs for heavy hardware
  • Locking steel cabinet vented at sides, front, top and bottom
  • Ships unassembled for easy transport and storage
  • Includes 12 x 12-24 screws, 12 x M6 cage nuts and washers

6U Wall-Mount Server Rack

The Tripp Lite SRW6UKD is a 6U wall-mount cabinet that secures 19-inch rack equipment up to 16.5 inches deep. It ships unassembled in a knock-down package for easier transport and storage. The steel frame includes vented sides, front, top and bottom for airflow. Assembly hardware and 12-24 screws, M6 cage nuts and washers are supplied.

Installers needing shallow depth

This unit suits network closets or small offices where a full-depth floor rack will not fit. The 16.5-inch usable depth supports switches, patch panels and shallow servers. Builders who need deeper equipment bays or higher load ratings should consider a larger enclosure. The 200-pound capacity limits very dense installations.

16.5-inch usable equipment depth

The single specification that decides fit is the 16.5-inch maximum equipment depth. Measure your hardware from mounting flange to rear before ordering. If any device exceeds this length the cabinet doors will not close. The knock-down design allows the frame to enter tight stairwells before final assembly.

Highlights

  • Secures 6U of 19 in. rack equipment up to 16.5 in. deep
  • Maximum load capacity of 200 lbs for heavy hardware
  • Locking steel cabinet vented at sides, front, top and bottom
  • Ships unassembled for easy transport and storage
  • Includes 12 x 12-24 screws, 12 x M6 cage nuts and washers

Specifications

BrandTripp Lite
ModelSRW6UKD
TypeWall Mount Cabinet
Rack Units6U
ColorBlack
MaterialSteel
SpecificationForm Factor:Wall Mountable
FeaturesPackage Contents:
SmartRack SRW6UKD Rack Cabinet
Owner's Manual
Assembly Hardware
2 x Top/bottom Panels
2 x Side
Equipment Mounting Hardware
12 x 12-24 Screws
12 x M6 Cage Nuts
12 x M6 Sup Washers
Unit DimensionHeight:14.5" x Width:23.6" x Depth:17.9"
Unit Weight29 lb
Shipping weight14.97 kg
Package size655 × 525 × 195 mm

Questions about this item

How much 19-inch rack gear can actually fit inside the 16.5-inch usable depth?

The cabinet accepts equipment up to 16.5 inches deep, giving you six full rack units for switches, patch panels or shallow servers.

What does the 200 lb load rating cover in everyday use?

That 200 lb limit is the total weight the wall-mounted frame can safely carry when properly secured to studs or masonry.

What clearance do I need on the wall for the assembled 17.9-inch deep unit?

Allow at least 17.9 inches of projection from the wall surface, plus a few inches extra for cable routing at the rear.
