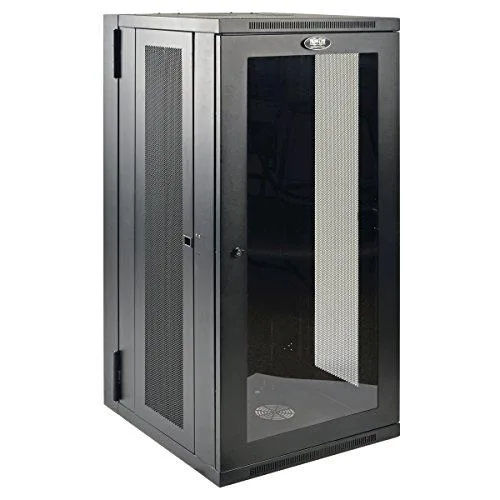

Black wall-mount server rack, 26U, clear acrylic front window, hinged back, vented steel sides

Tripp Lite

Tripp Lite SRW26USG 26U Wall-Mount Server Rack

SKU CH-SS9M-K89N7 MPN SRW26USG

A 26U wall-mount cabinet that holds 19-inch rack equipment up to 20.5 inches deep, swings away on a hinge for rear access and supports 250 lbs

  • TypeWall Mount Cabinet
  • Rack Units26U
  • ColorBlack
  • MaterialAcrylic Window Steel
  • SpecificationForm Factor:Wall Mountable
  • FeaturesMaximum load capacity of 250 lbs. Swings away from wall on h
  • Secures 26U of 19 in. rack equipment up to 20.5 in. deep
  • Maximum load capacity of 250 lbs supports heavy servers
  • Swings away from wall on hinge for rear maintenance access
  • Front door includes shatter-resistant clear acrylic window for visibility
  • Locking steel cabinet vented at sides, top and bottom for airflow

26U Wall-Mount Server Rack

The Tripp Lite SRW26USG is a 26U wall-mount cabinet designed to secure 19-inch rack equipment up to 20.5 inches deep. It suits network managers and IT installers who need a lockable, ventilated enclosure for switches, patch panels or shallow servers in spaces where a floor-standing rack is impractical.

Hinged Back Access Under Load

The cabinet supports a maximum load capacity of 250 lbs while its hinged frame swings away from the wall to provide full rear access to cabling and hardware. Ventilation at the sides, top and bottom maintains airflow around active gear, and the shatter-resistant acrylic front window allows visual status checks without opening the locked door.

19-Inch Rack Standard Constraints

The enclosure accepts standard 19-inch rack-mount devices up to 20.5 inches deep, limiting equipment choices to low-profile switches and short-depth servers. Mounting hardware includes 48 each of M6 screws, cage nuts, washers and 12-24 screws, and the unit can be fixed to a wall or moved on an optional caster kit not included in the package.

Highlights

  • Secures 26U of 19 in. rack equipment up to 20.5 in. deep
  • Maximum load capacity of 250 lbs supports heavy servers
  • Swings away from wall on hinge for rear maintenance access
  • Front door includes shatter-resistant clear acrylic window for visibility
  • Locking steel cabinet vented at sides, top and bottom for airflow

Specifications

BrandTripp Lite
ModelSRW26USG
TypeWall Mount Cabinet
Rack Units26U
ColorBlack
MaterialAcrylic Window
Steel
SpecificationForm Factor:Wall Mountable
FeaturesMaximum load capacity of 250 lbs.
Swings away from wall on hinge for back-door easy access
Front door includes shatter-resistant clear acrylic window
Locking steel cabinet vented at sides, top and bottom
Secures 26U of 19 in. rack equipment up to 20.5 in. deep
Included AccessorySRW26USG SmartRack 26U
Low-Profile Switch-Depth
Wall-Mount Rack Enclosure Cabinet
(48) M6 screws
(48) M6 cage nuts
(48) M6 washers
(48) 12-24 screws
(2) Keys
Owner’s manual
Unit Dimension49.70" x 23.62" x 21.60"
Unit Weight125 lbs.
Shipping Dimension55.40" x 24.00" x 22.00"
Shipping Weight140 lbs.
Shipping weight63.50 kg
Package size1397 × 660 × 610 mm

Questions about this item

How much heat builds up inside the 26U cabinet when it is fully loaded and running continuously?

The cabinet is vented at the sides, top and bottom to promote passive airflow; with a 250 lb load limit and 20.5 in depth for equipment, heat dissipation depends on the installed devices and room ventilation.

What wall structure and hardware are required before the 125 lb rack can be mounted?

The unit includes 48 M6 screws, 48 M6 cage nuts, 48 M6 washers and 48 12-24 screws for equipment mounting; wall-mounting fasteners for studs or concrete must be supplied by the installer.

Will my existing 19 in patch panels and 12 U switch fit in the 20.5 in deep enclosure alongside the new gear?

The rack accepts standard 19 in equipment up to 20.5 in deep, so legacy patch panels and a 12 U switch will fit as long as each device meets the depth limit.
