Black steel wall-mount server rack 26U with acrylic window door

Tripp Lite

Tripp Lite SRW26USDPG 26U Wall-Mount Server Rack 24.5in Deep

SKU CH-T8X6-PJ38P MPN SRW26USDPG

A 26U wall-mount steel cabinet with a 24.5-inch depth, 250 lb capacity, locking acrylic front door and swing-away hinge for rear access

  • TypeWall Mount Cabinet
  • Rack Units26U
  • ColorBlack
  • MaterialAcrylic Window Steel
  • Weight Capacity250.00 lbs.
  • FeaturesSaves Valuable Workspace Perfect for network wiring closets,
  • Secure 26U of 19-inch rack gear in 24.5in depth
  • Hinge swing-away gives easy rear access for cabling
  • Locking vented steel cabinet protects equipment from tampering
  • Shatter-resistant acrylic window allows monitoring without opening
  • 250 lbs load capacity supports heavy servers and UPS units

Wall-Mount Server Rack for Space-Constrained IT

The Tripp Lite SRW26USDPG is a 26U wall-mount cabinet built from heavy-duty steel with a black powder-coated finish. It secures EIA-standard 19-inch rack equipment in wiring closets, retail locations, classrooms and back offices where floor space is limited. Locking doors and side panels protect gear from tampering or theft while keeping the installation organised and out of the way.

Practical Limits of Wall-Mount Access and Depth

The enclosure swings away from the wall on a hinge to provide rear access to cabling and equipment during maintenance. It supports devices up to 24.5 inches deep, which restricts the chassis length of any server, UPS or switch you intend to install. The reversible doors can open left or right by rotating the cabinet 180 degrees before mounting, adapting the swing direction to the room layout.

250-Pound Load Capacity Determines Fit

The maximum load capacity is 250 pounds, and this single figure decides whether your planned hardware complement is suitable. The cabinet weighs 123.70 pounds empty, so the combined weight of all mounted equipment must remain within the rated limit. If your deployment exceeds this threshold, the rack is not the right part for the installation.

Highlights

  • Secure 26U of 19-inch rack gear in 24.5in depth
  • Hinge swing-away gives easy rear access for cabling
  • Locking vented steel cabinet protects equipment from tampering
  • Shatter-resistant acrylic window allows monitoring without opening
  • 250 lbs load capacity supports heavy servers and UPS units

Specifications

BrandTripp Lite
ModelSRW26USDPG
TypeWall Mount Cabinet
Rack Units26U
ColorBlack
MaterialAcrylic Window
Steel
Weight Capacity250.00 lbs.
FeaturesSaves Valuable Workspace
Perfect for network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way
Houses EIA-standard 19 in. rack equipment in 26U of space
Maximum load capacity of 250 lb.
Hinged Cabinet for Convenient Access
Swings away from the wall to allow easy back-door access to equipment and cabling during installation and maintenance
Rotate cabinet 180 degree before mounting to open reversible doors left or right
Shatter-Resistant Clear Acrylic Front Window
Lets

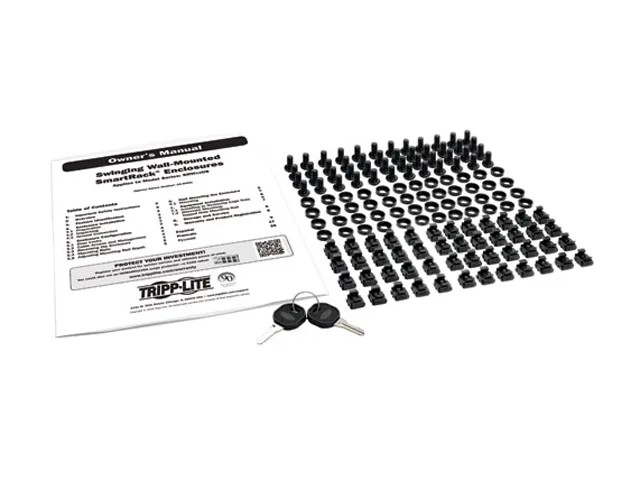

Included AccessorySRW26USDPG SmartRack 26U UPS-Depth Wall-Mount Rack Enclosure Cabinet
(48) M6 screws
(48) M6 cage nuts
(48) M6 washers
(48) 12-24 screws
(2) Keys
Owner's manual
Unit Dimension49.63" x 23.62" x 25.51"
Unit Weight123.70 lbs.
Shipping Dimension55.12" x 26.77" x 27.56"
Shipping weight68.04 kg
Package size720 × 720 × 670 mm

Questions about this item

Which rack depth should I choose for my 24.5 in. deep servers?

This cabinet secures 26U of 19 in. rack equipment up to 24.5 in. deep, so it matches that exact depth requirement.

What does the 250 lb. load rating mean when the cabinet is mounted on a wall?

The maximum load capacity is 250 lbs. for the fully assembled enclosure, including all rack-mounted gear, when properly secured to the wall.

How does the 180° hinge affect cable access during maintenance?

The cabinet swings away from the wall on a sturdy hinge, giving full back-door access to equipment and cabling for installation and maintenance.
