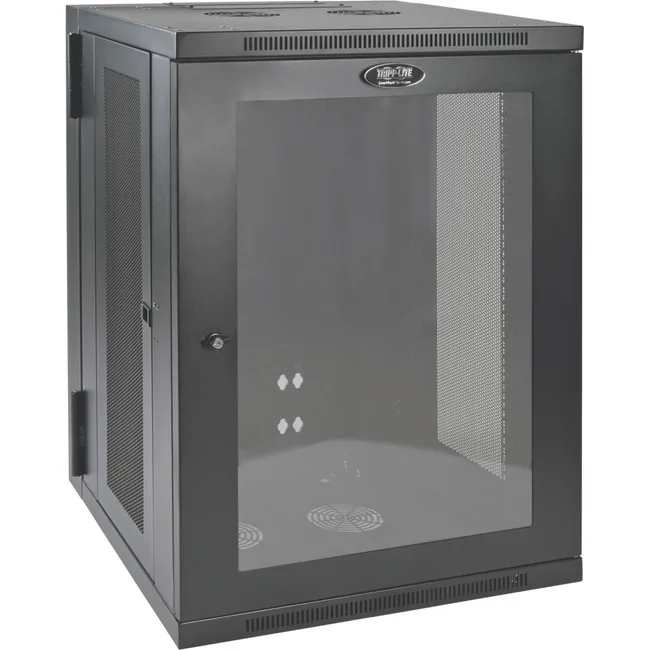

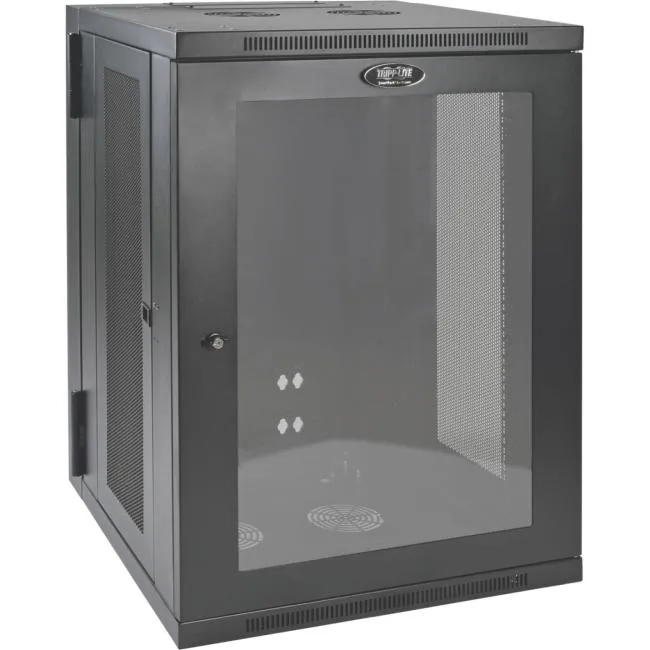

Black steel 18U wall-mount rack cabinet with acrylic front window, 35.6 by 23.6 by 21.6 inches

Tripp Lite

Tripp Lite SRW18USG 18U Wall Mount Server Rack 21.6" Deep

SKU CH-YPTK-6SYS5 MPN SRW18USG

An 18U wall-mount cabinet holds 19-inch rack gear up to 20.5 inches deep and swings away on a hinge for rear access

  • TypeWall Mount Cabinet
  • Rack Units18U
  • ColorBlack
  • MaterialAcrylic Window Steel
  • SpecificationForm Factor:Wall Mountable
  • FeaturesPackage Contents: SRW18USG SmartRack 18U Low-Profile Switch-
  • Holds 18U of 19-inch rack gear up to 20.5 inches deep
  • Swings away from wall on hinge for full rear access
  • Shatter-resistant acrylic window shows equipment status without opening door
  • Heavy-duty steel construction supports 250 lb stationary load
  • Includes 42 M6 and 42 12-24 screws plus cage nuts for quick install

18U Wall-Mount Rack for Network Closets

The Tripp Lite SRW18USG is an 18U wall-mount enclosure built to hold 19-inch EIA rack equipment in spaces where floor room is limited. It suits network closets, offices or edge locations that need secure, organised mounting for switches, patch panels and similar devices.

Heavy-Duty Steel Build with Hinged Access

Constructed from steel with a black powder-coated finish, the cabinet carries a 250 lb static load rating and a 200 lb maximum weight capacity. A sturdy hinge lets the unit swing away from the wall bracket, giving clear access to cabling and hardware during installation or maintenance. The front door includes a shatter-resistant acrylic window for at-a-glance status checks without unlocking, and the package supplies 42 each of M6 screws, cage nuts, washers and 12-24 screws plus two keys.

Depth and Load Limits Define Fit

Usable internal depth is 20.5 inches, so equipment deeper than that will not mount. The 250 lb stationary capacity caps the total installed gear weight, and the 18U height fixes the vertical rack space available. Buyers needing more rack units, deeper chassis support or higher load ratings will need a larger or floor-standing alternative.

Highlights

  • Holds 18U of 19-inch rack gear up to 20.5 inches deep
  • Swings away from wall on hinge for full rear access
  • Shatter-resistant acrylic window shows equipment status without opening door
  • Heavy-duty steel construction supports 250 lb stationary load
  • Includes 42 M6 and 42 12-24 screws plus cage nuts for quick install

Specifications

BrandTripp Lite
ModelSRW18USG
TypeWall Mount Cabinet
Rack Units18U
ColorBlack
MaterialAcrylic Window
Steel
SpecificationForm Factor:Wall Mountable
FeaturesPackage Contents:
SRW18USG SmartRack 18U Low-Profile Switch-Depth WallMount Rack Enclosure Cabinet
42 x M6 Screws
42 x M6 Cage Nuts
42 x M6 Washers
42 x 12-24 Screws
2 x Keys
Owner's Manual
Unit DimensionHeight:35.6" x Width:23.6" x Depth:21.6"
Unit Weight96 lb
Shipping weight43.55 kg
Package size904 × 600 × 549 mm

Questions about this item

What depth of 19-inch equipment does the 21.6-inch deep SRW18USG actually accommodate?

The cabinet secures 18U of EIA-standard 19-inch rack equipment up to 20.5 inches deep, leaving roughly one inch of clearance behind the front door for cables and airflow.

What wall structure and hardware are required to mount the 96 lb SRW18USG safely?

The wall bracket must be fastened to studs or solid masonry using installer-supplied lag bolts or anchors rated for at least 250 lb static load; the package supplies only rack-mount screws, cage nuts, washers and two door keys.

How is the SRW18USG installed, and which step do installers most often get wrong?

Mount the wall bracket level and into structural members first, then hang the cabinet on the hinge pins; the common error is skipping the level check, which makes the door bind and the latch misalign.
