Black 15U wall-mount server rack with ventilated front door, hinged back, 20.5in depth

Tripp Lite

Tripp Lite SRW15US 15U Wall-Mount Server Rack 20.5in Depth

SKU CH-P2WA-3FHRT MPN SRW15US

A 15U wall-mount cabinet holds 19-inch rack gear up to 20.5 inches deep, swings away on a hinge for rear access, and supports 225 lbs

  • TypeWall Mount Rack Enclosure Cabinet
  • Rack Units15U
  • ColorBlack
  • Weight Capacity225 lbs.
  • SpecificationInstalled whole system maximum rack depth: 20.5" Installed w
  • Features15U wall-mounted enclosure Adjustable mounting depths from 3
  • Holds 15U of 19-inch equipment up to 20.5 inches deep
  • Adjustable mounting depth from 3 to 20.5 inches for flexible installs
  • Hinged cabinet swings away from wall for rear equipment access
  • Vented front door and side panels promote airflow through cabinet
  • Supports 225 lb weight capacity with included M6 hardware kit

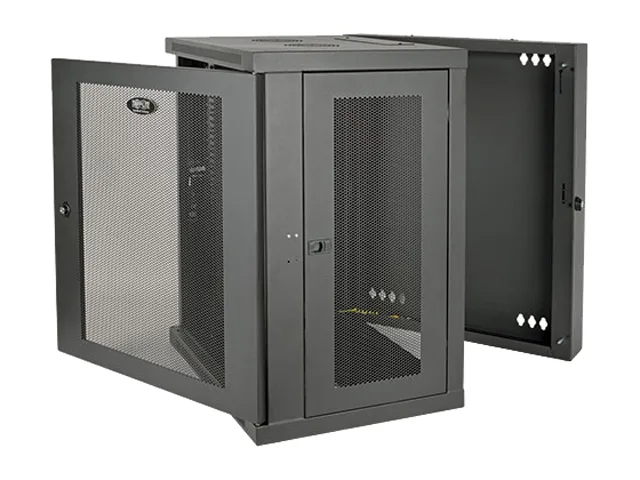

15U Wall-Mount Rack Enclosure

The Tripp Lite SRW15US is a 15U wall-mounted server rack designed to secure 19-inch rack equipment in space-constrained environments. It supports a maximum load capacity of 200 lbs and a weight capacity of 225 lbs. The locking steel cabinet features ventilation at the sides, front, top, and bottom to promote airflow for installed devices.

Adjustable Depth Hinged Access

This enclosure replaces fixed-depth wall brackets by offering adjustable mounting depths from 3 inches to 20.5 inches. The hinged cabinet swings away from the wall bracket on a hinge, providing easy rear access for equipment installation and cable management. The jump is worth it when rear-access serviceability is required in tight rooms or closets.

20.5-Inch Maximum Depth Limit

The practical limit of this enclosure is the maximum installed system depth of 20.5 inches, which restricts the length of servers, switches, or patch panels that can be housed. The factory preset rack depth is 10.42 inches, and the cable access hole measures 9.812 by 2.35 inches. Buyers needing deeper equipment accommodation cannot use this model.

Highlights

  • Holds 15U of 19-inch equipment up to 20.5 inches deep
  • Adjustable mounting depth from 3 to 20.5 inches for flexible installs
  • Hinged cabinet swings away from wall for rear equipment access
  • Vented front door and side panels promote airflow through cabinet
  • Supports 225 lb weight capacity with included M6 hardware kit

Specifications

BrandTripp Lite
ModelSRW15US
TypeWall Mount Rack Enclosure Cabinet
Rack Units15U
ColorBlack
Weight Capacity225 lbs.
SpecificationInstalled whole system maximum rack depth: 20.5"
Installed whole system minimum rack depth: 3"
Style: Wall Mounted
Factory preset rack depth: 10.42"
Cable Access Hole Measurement: 9.812" x 2.35" (L x W)
Grounding lug: Front and Back door frames
CERTIFICATIONS
NOM (Mexico): Tested to NOM (Mexico)
Approvals: EIA-310-E, IEC 60297-3-100, IP20 Protection Rating, RoHS
Features15U wall-mounted enclosure
Adjustable mounting depths from 3" to 20.5" inches
Ventilated front door and side panels for increased airflow
Hinged cabinet swings away from wall bracket for easy equipment and cable access
Locking, reversible front door
Locking, removable side panels
Top and bottom panel cable access openings
Fully assembled for quick installation
Meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard)

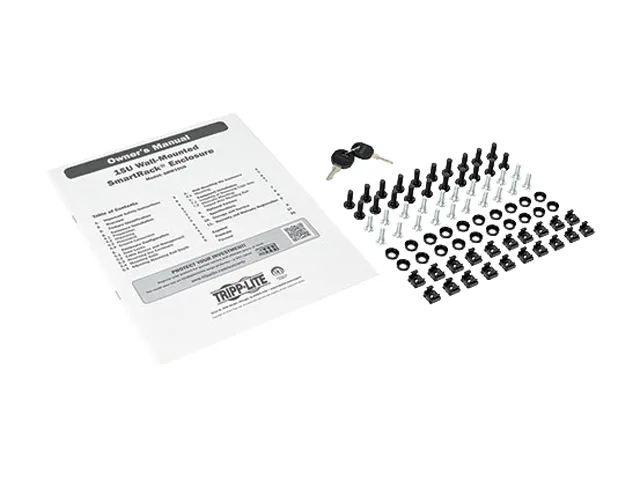

Included AccessorySRW15US Wallmount Rack Enclosure
(42) M6 screws
(42) M6 cage nuts
(42) M6 washers
(2) Keys
Owner's Manual
Unit Dimension30.33" x 23.63" x 21.60"
Unit Weight88.2 lbs.
Shipping Dimension33.07" x 26.38" x 24.41"
Shipping Weight96 lbs.
Shipping weight32.66 kg
Package size838 × 673 × 630 mm

Questions about this item

What wall spacing is needed for the 20.5-inch maximum depth setting?

The cabinet depth adjusts from 3 inches to 20.5 inches, so the wall bracket must be mounted with enough clearance for the chosen depth setting and the 21.60-inch overall cabinet projection.

Which hardware do I use to secure the cage nuts when mounting 19-inch equipment?

Use the included 42 M6 screws, 42 M6 cage nuts and 42 M6 washers; the cage nuts clip into the square holes on the vertical rails before you fasten each screw.

How do I maintain airflow through the ventilated panels over time?

Vacuum or brush dust from the vented front door, side panels, top and bottom openings regularly; the hinged swing-away design lets you reach the interior surfaces without removing the cabinet from the wall.
