Tripp Lite SRW12USDP 12U UPS-Depth Wall-Mount Server Rack

12U UPS-depth wall-mount rack

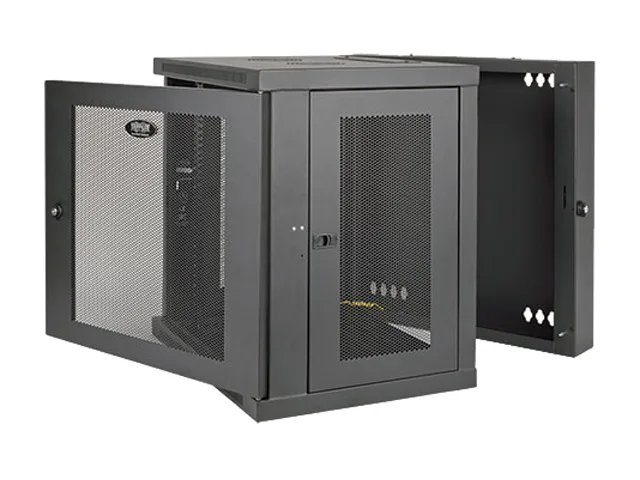

The Tripp Lite SRW12USDP is a 12U wall-mount enclosure that accepts EIA-standard 19-inch rack equipment up to 24.5 inches deep. It suits network wiring closets, retail locations, classrooms and back offices where floor space is limited but equipment must stay secure and organised. Heavy-duty steel construction with a black powder-coated finish supports a maximum load of 200 pounds. Locking doors and side panels deter tampering and theft.

Hinged swing-away frame and mounting kit

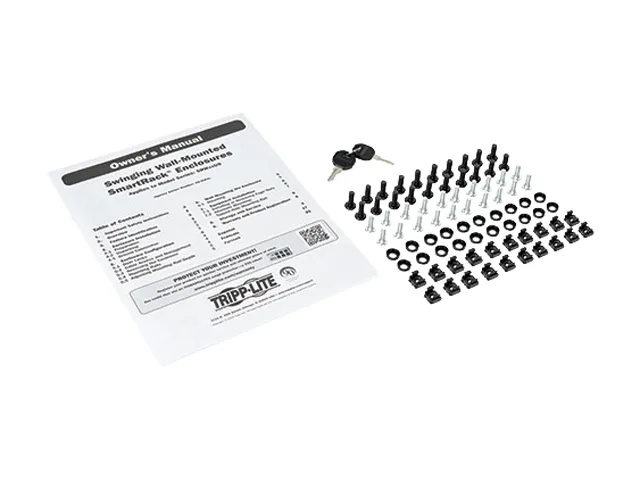

The cabinet swings away from the wall on a sturdy hinge, rotating 180 degrees to give clear rear access for cabling and maintenance. Vented front, top, bottom and removable side panels promote airflow through the enclosure. The package includes 20 M6 screws, 20 M6 cage nuts, 20 M6 washers, 20 12-24 screws and two keys so the rack can be secured and populated immediately.

200-pound static load limit

The 200-pound weight capacity applies to the fully populated cabinet when mounted to a suitable wall structure; installers must verify that the mounting surface can support the combined load. Equipment deeper than 24.5 inches will not fit, and the 12U height caps the number of rack units available. The unit itself weighs 63.50 pounds, which factors into the total load the wall must bear.
