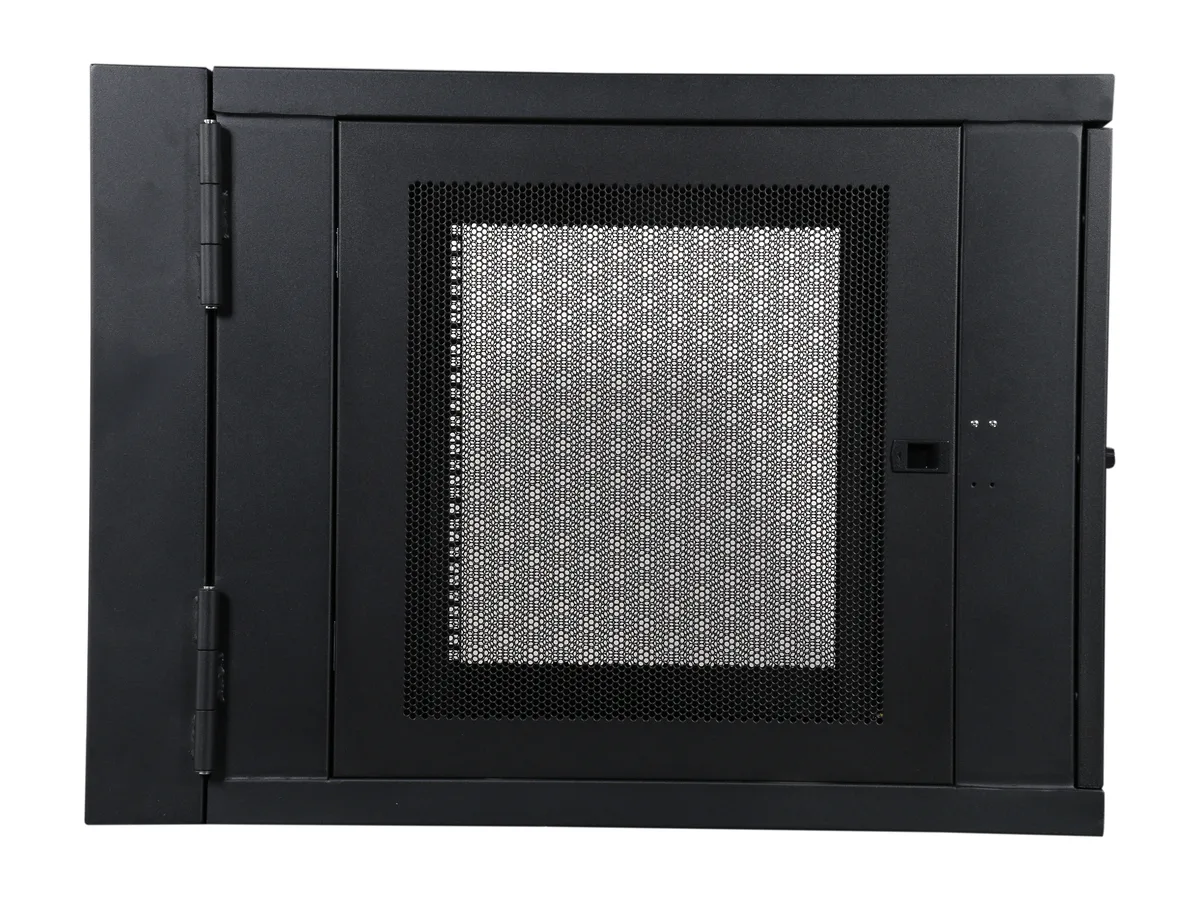

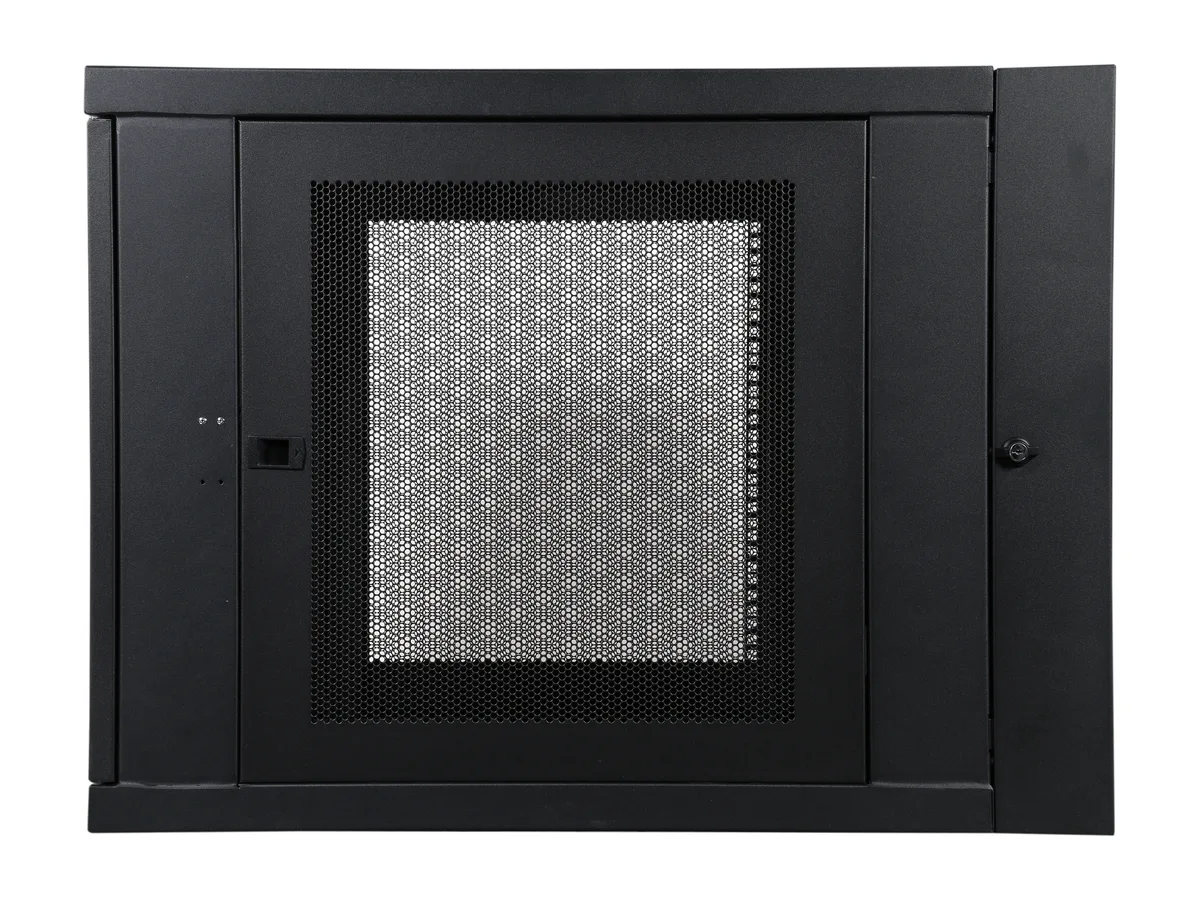

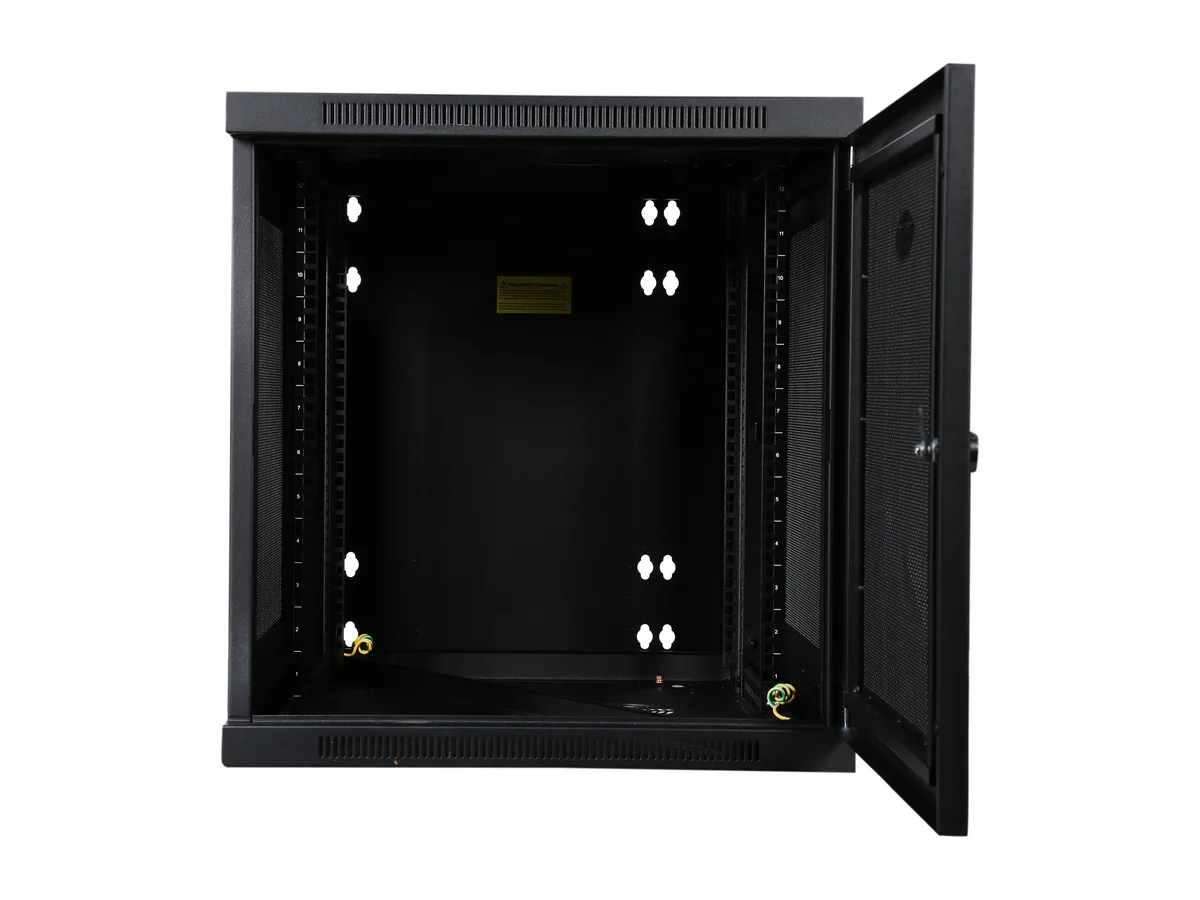

Black 12U wall-mount server rack, 33 inches deep, hinged cabinet swings open, vented steel panels, locking front door

Tripp Lite

Tripp Lite SRW12US33 12U Wall-Mount Server Rack 33" Deep

SKU CH-BQY7-23S3B MPN SRW12US33

Holds 12U of 19-inch rack equipment up to 32.5 inches deep with a 250 lb capacity and hinged swing-away design for rear access

  • TypeWall Mount Cabinet
  • Rack Units12U
  • ColorBlack
  • Weight Capacity250 lbs -Stationary
  • Features12U with adjustable front and rear vertical rackmount rails.
  • Industry StandardEIA-310-D, IEC 60297-3-100, DIN 41494, IP250 Protection Rati
  • Holds 12U of 19-inch equipment up to 32.5 inches deep
  • 250 lbs stationary load capacity for heavy servers
  • Hinged cabinet swings away from wall for rear access
  • Locking steel enclosure vented on all sides for airflow
  • Meets EIA-310-D, IEC 60297 and UL 60950 standards

12U wall-mount rack for 19 in. gear

The Tripp Lite SRW12US33 is a 12U wall-mount cabinet that secures standard 19 in. rack equipment up to 32.5 in. deep. It suits network managers who need server-depth capacity in rooms without floor space for a full rack. The unit holds up to 250 lbs of stationary load. Locking steel doors and vented panels protect the installed hardware.

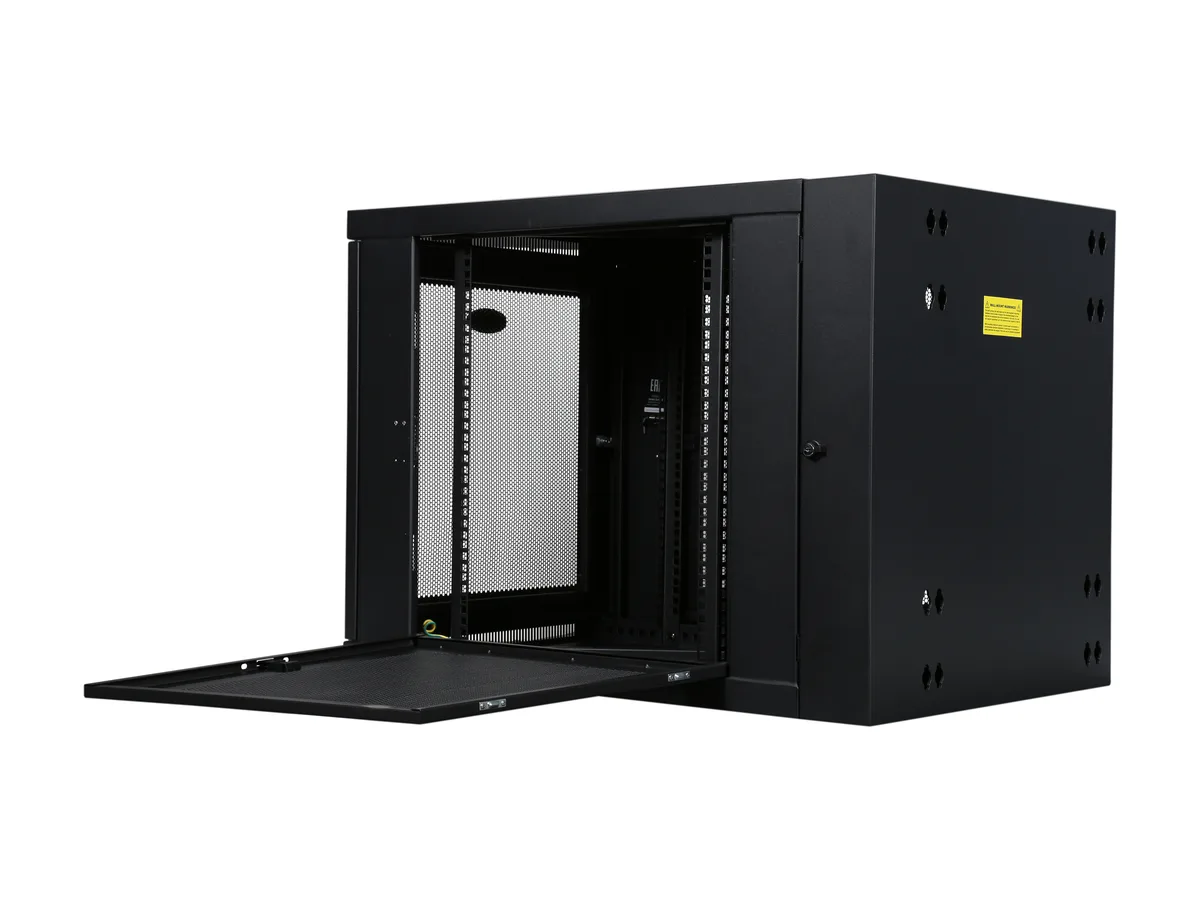

Hinged frame swings away for rear access

Heavy-duty construction handles the leverage of deep equipment mounted on adjustable front and rear rails. The cabinet swings away from the wall bracket on a hinge so technicians can reach back-door connections without removing the rack from the wall. Venting at the sides, front, top and bottom promotes passive airflow through the enclosure. The assembly weighs 100 lbs and meets EIA-310-D and IEC 60297-3-100 mounting standards.

Replaces floor-standing racks where space is limited

This enclosure upgrades from shallow wall brackets that cannot accept full-depth servers or UPS units. The 33 in. overall depth and 250 lb rating make the jump worthwhile when gear exceeds the reach or weight limit of lighter shelves. It is not for installers who need more than 12U of rack height or who cannot reinforce the wall for a 100 lb cabinet plus payload.

Highlights

  • Holds 12U of 19-inch equipment up to 32.5 inches deep
  • 250 lbs stationary load capacity for heavy servers
  • Hinged cabinet swings away from wall for rear access
  • Locking steel enclosure vented on all sides for airflow
  • Meets EIA-310-D, IEC 60297 and UL 60950 standards

Specifications

BrandTripp Lite
ModelSRW12US33
TypeWall Mount Cabinet
Rack Units12U
ColorBlack
Weight Capacity250 lbs -Stationary
Features12U with adjustable front and rear vertical rackmount rails.
33" deep with heavy duty construction to handle added leverage.
Hinged cabinet swings away from wall bracket for easy equipment access (swing direction is reversible).
Locking, reversible front door and locking, removable side panels.
Fully assembled for quick installation.
Industry StandardEIA-310-D, IEC 60297-3-100, DIN 41494, IP250 Protection Rating, RoHS, UL 60950
Unit Dimension25.00" x 23.63" x 33.50"
Unit Weight100 lbs.
Shipping weight54.43 kg
Package size895 × 787 × 641 mm

Questions about this item

Does the EIA-310-D standard limit the usable depth of the 19-inch rails?

The cabinet secures equipment up to 32.5 inches deep on adjustable front and rear 19-inch rails.

What wall structure is required to support the 100-lb cabinet and 250-lb load?

Mount the steel wall bracket to studs or masonry rated for the combined weight of cabinet plus installed gear.

Which way does the hinged back swing, and what clearance is needed?

The hinge swings right; allow enough space for the 23.63-inch wide door to open fully for rear access.
