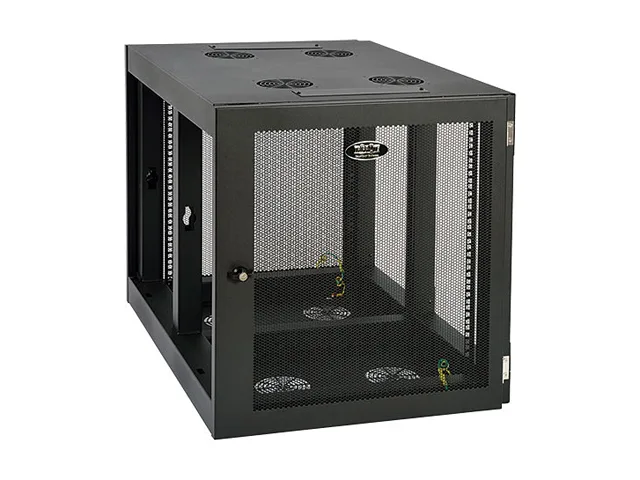

Black steel wall-mount server rack enclosure, 12U side-mount design with vented doors and removable side panel

Tripp Lite

Tripp Lite SRW12UHD 12U Side-Mount Wall Server Rack 32.5" Depth 500 lbs

SKU CH-4R5X-KNTX0 MPN SRW12UHD

Holds 12U of 19-inch server equipment up to 32.5 inches deep with a 500 lb capacity while extending less than 25 inches from the wall

  • TypeSide-Mount Wall-Mount Rack Enclosure Cabinet
  • Rack Units12U
  • ColorBlack
  • Weight Capacity500 lbs.
  • SpecificationInstalled whole system maximum rack depth: 32.5" Installed w
  • FeaturesHeavy Duty/High Weight Capacity side-mount construction 12U
  • Holds 12U of 19-inch rack gear up to 32.5 inches deep
  • Supports 500 lbs load capacity with heavy-duty side-mount construction
  • Extends less than 25 inches from the wall to save floor space

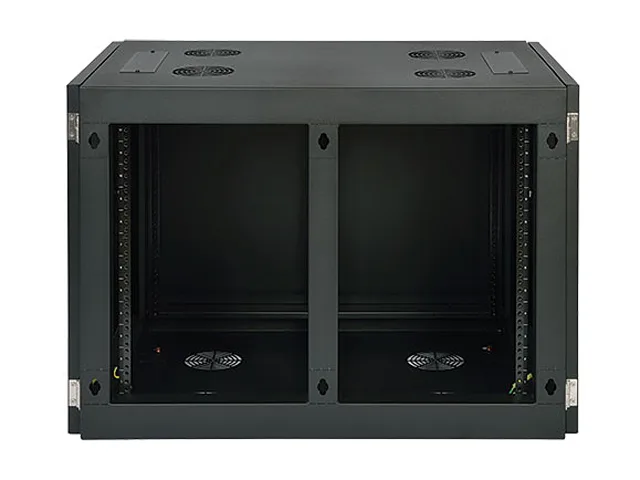

  • Locking steel cabinet vented at sides, top and bottom for airflow
  • Includes 20 M6 cage nuts, 20 M6 screws, 20 washers, 20 12-24 screws and key set

12U Heavy-Duty Side-Mount Wall Rack

The Tripp Lite SRW12UHD is a wall-mount enclosure that holds 12U of 19-inch rack equipment up to 32.5 inches deep. It supports a maximum load of 500 lbs while extending less than 25 inches from the wall. The side-mount design reduces leverage stress on the mounting surface. It is built for server rooms and network closets needing full-depth hardware in limited floor space.

EIA-310-E Square and Threaded Rail Limits

Adjustable front and rear rails provide both square holes and 12-24 threaded holes compliant with EIA-310-E. Equipment depth can range from a minimum of 3 inches up to the full 32.5-inch internal capacity. The dual-rail mounting design supports side-access installation but does not accommodate centre-mount or four-post configurations. Buyers needing deeper than 32.5 inches or standard front-to-rear airflow rails should look elsewhere.

32.5-Inch Maximum Equipment Depth

The single specification that decides fit is the 32.5-inch maximum installed equipment depth. This allows full-size servers typically measuring 29 to 31 inches deep to mount sideways inside the 36.2-inch wide cabinet. If your hardware exceeds this depth, the enclosure will not close or secure the equipment properly.

Highlights

  • Holds 12U of 19-inch rack gear up to 32.5 inches deep
  • Supports 500 lbs load capacity with heavy-duty side-mount construction
  • Extends less than 25 inches from the wall to save floor space
  • Locking steel cabinet vented at sides, top and bottom for airflow
  • Includes 20 M6 cage nuts, 20 M6 screws, 20 washers, 20 12-24 screws and key set

Specifications

BrandTripp Lite
ModelSRW12UHD
TypeSide-Mount Wall-Mount Rack Enclosure Cabinet
Rack Units12U
ColorBlack
Weight Capacity500 lbs.
SpecificationInstalled whole system maximum rack depth: 32.5"
Installed whole system minimum rack depth: 3"
EIA Mounting Rails: Square holes / 12-24 threaded holes
CERTIFICATIONS
Certifications: EIA-310-E
NOM (Mexico): Tested NOM ( Mexico)
Approvals: RoHS
FeaturesHeavy Duty/High Weight Capacity side-mount construction
12U of server depth equipment capacity

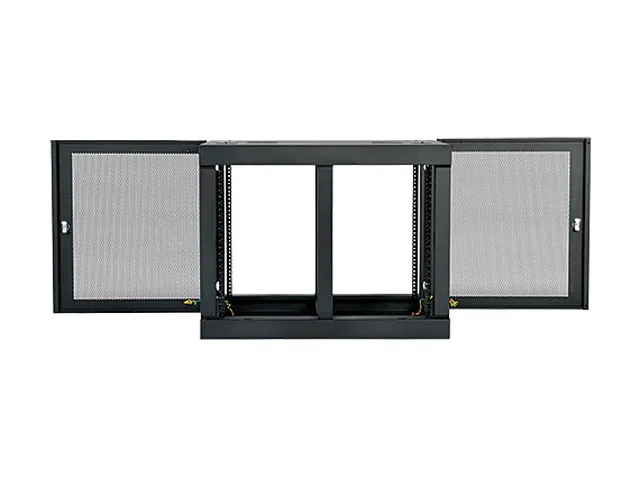

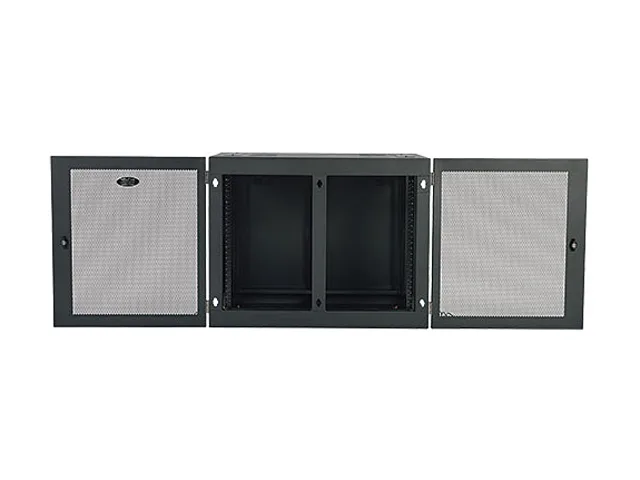

Fully vented doors and side panel
Adjustable front and rear rails
Dual-rail mounting designs supports equipment mounting via square holes or threaded holes
500lb weight capacity
Included AccessorySRW12UHD Wall-mount enclosure
(20) M6 cage nuts
(20) M6 equipment mounting screws
(20) M6 washers
(20) 12-24 equipment mounting screws
(1) Key set
Owner's Manual
Unit Dimension26.46" x 36.20" x 24.77"
Unit Weight101.4 lbs.
Shipping Dimension28.00" x 26.00" x 38.00"
Shipping Weight119.1 lbs.
Shipping weight54.02 kg
Package size965 × 711 × 660 mm

Questions about this item

How many rack units does this enclosure provide and what depth of equipment will it hold?

It provides 12U of rack space and accepts equipment up to 32.5 inches deep.

What does the 500 lb rating mean once the cabinet is mounted on the wall?

The cabinet can support up to 500 lbs of installed equipment when securely fastened to the wall structure.

What rail standard does it use and what hole types are available?

The adjustable rails follow EIA-310-E and offer both square holes and 12-24 threaded holes.
