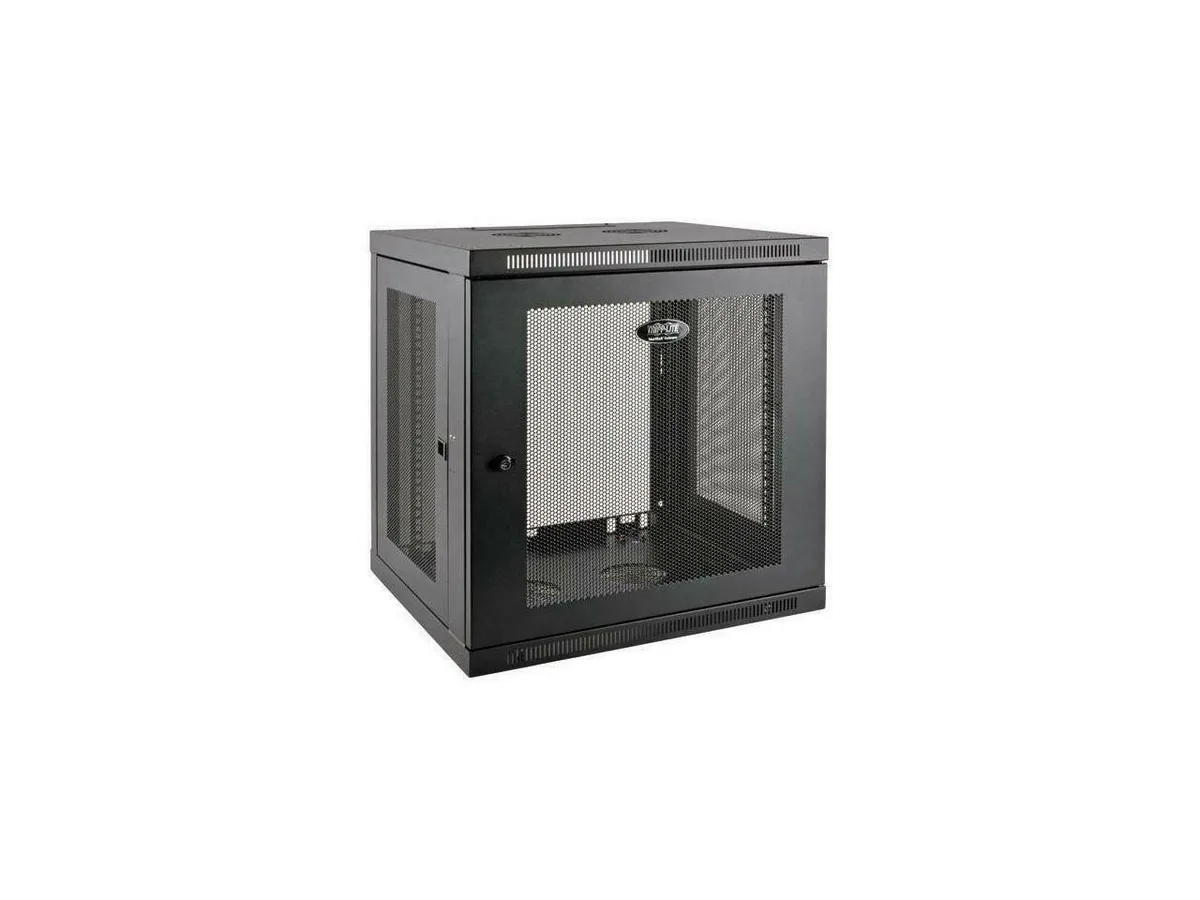

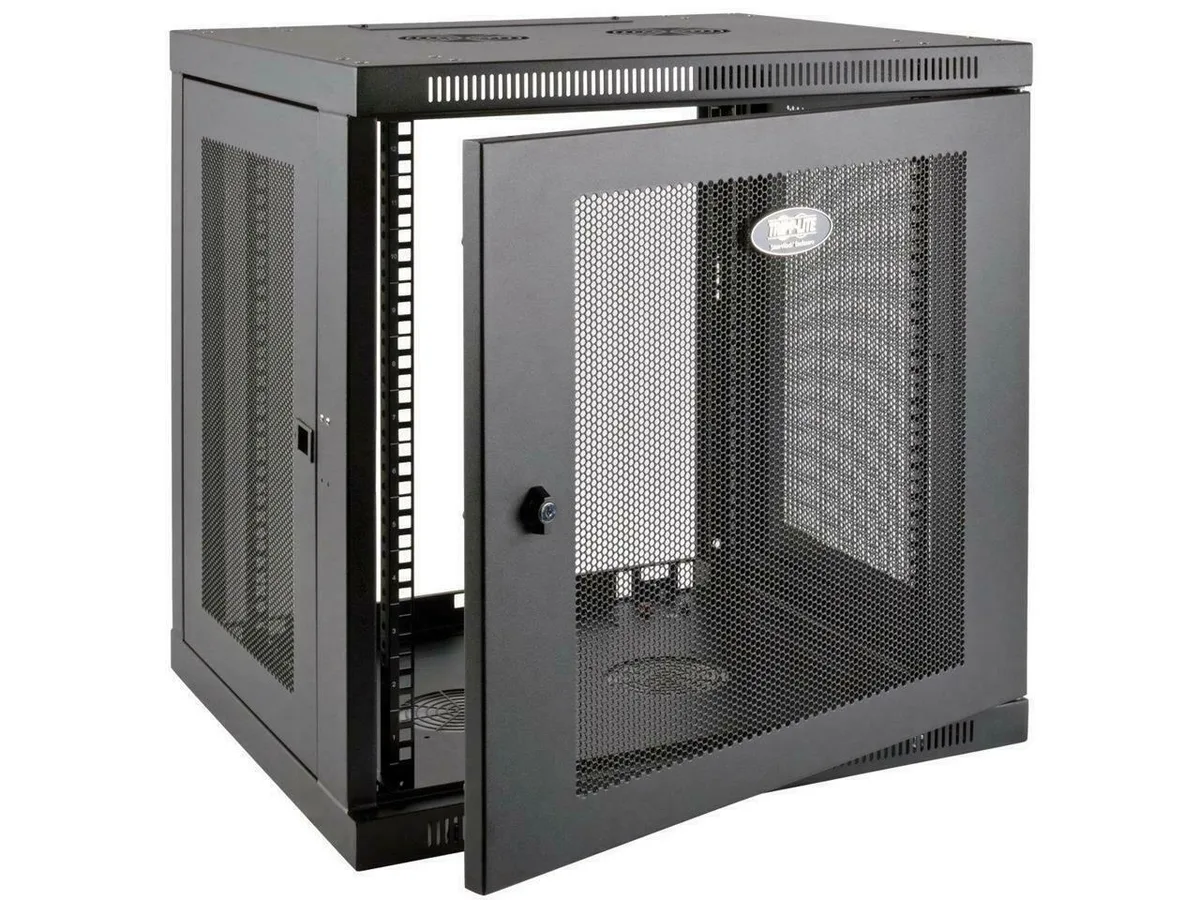

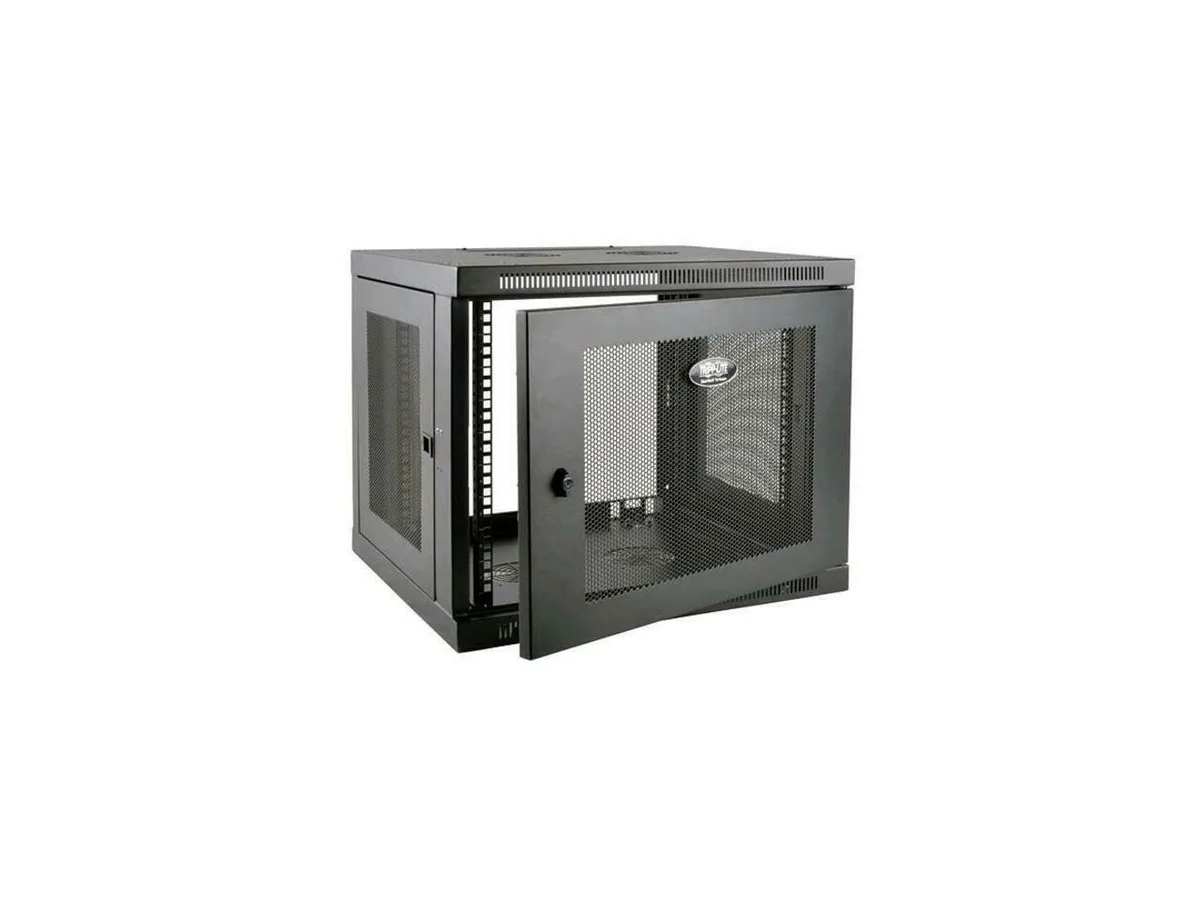

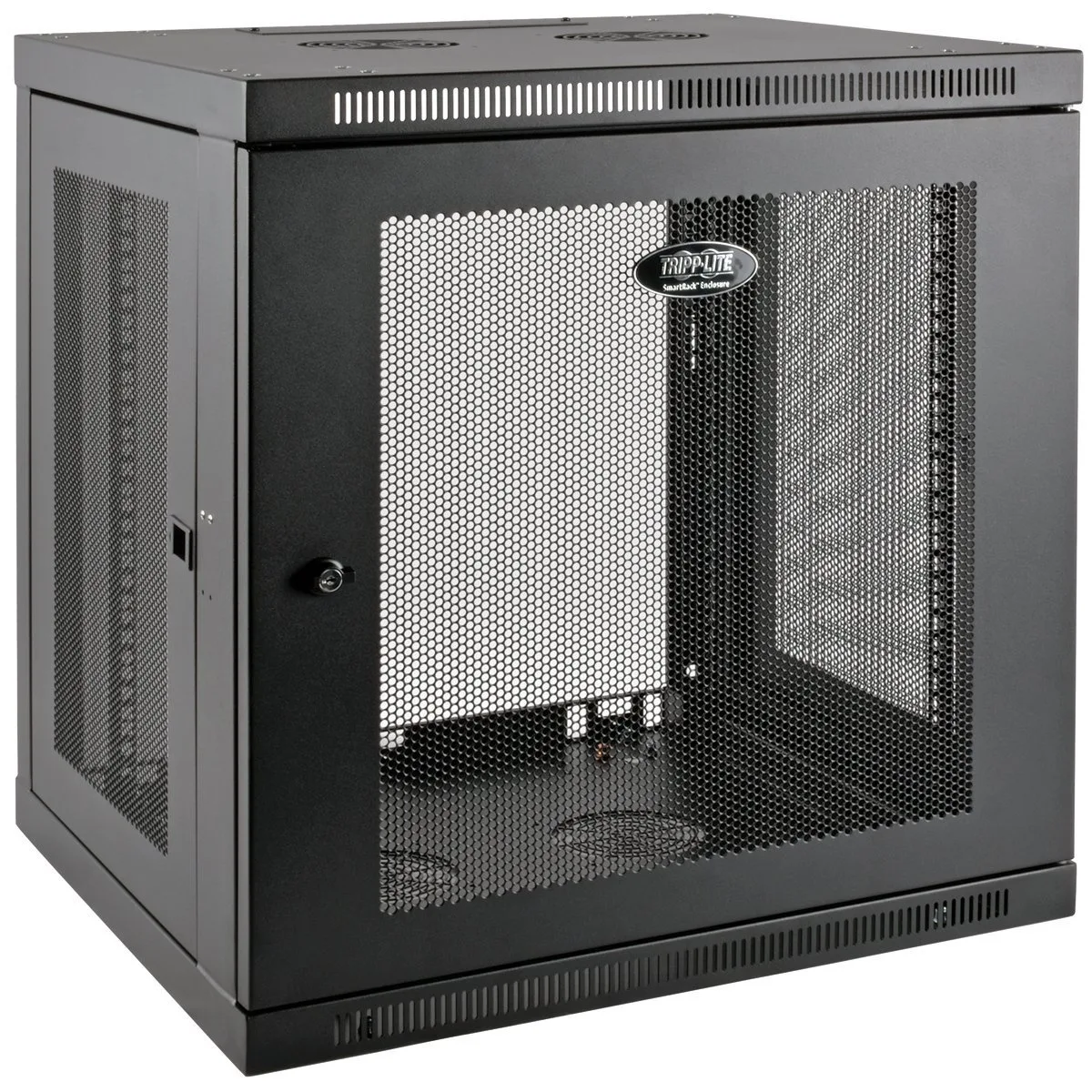

Black steel 12U wall-mount server rack 21.8in deep with front glass door

Tripp Lite

Tripp Lite SRW12UDP 12U Wall Mount Server Rack 21.8in Deep

SKU CH-GD62-93REP MPN SRW12UDP

A 12U wall-mount steel cabinet that secures 19 in. rack equipment up to 20.5 in. deep with a 200 lb load capacity

  • TypeWall Mount Cabinet
  • Rack Units12U
  • ColorBlack
  • MaterialSteel
  • SpecificationForm Factor:Wall Mountable
  • FeaturesPackage Contents: SmartRack 12U Low-Profile Switch-Depth-Plu
  • Secures 12U of 19 in. equipment up to 20.5 in. deep
  • Supports up to 200 lbs maximum load capacity
  • Mounts to wall or rolls on floor with optional casters
  • Low-profile 21.8 in. depth saves space in tight areas
  • Includes 20 M6 screws, 20 cage nuts, 20 washers, 20 12-24 screws, 2 keys

12U Wall-Mount Cabinet

The Tripp Lite SRW12UDP is a 12U wall-mount steel enclosure finished in black. It accepts standard 19 in. rack equipment and ships with M6 and 12-24 mounting hardware plus two keys for the locking doors.

Depth and Load Constraints

The cabinet interior accommodates devices up to 20.5 in. deep, a limit set by its low-profile 21.8 in. overall depth. Total installed equipment must not exceed the 200 lb maximum load capacity.

Twelve Rack Units

Twelve rack units of vertical space determine how many patch panels, switches or servers can be installed. Buyers needing more than 12U of equipment height must choose a larger enclosure.

Highlights

  • Secures 12U of 19 in. equipment up to 20.5 in. deep
  • Supports up to 200 lbs maximum load capacity
  • Mounts to wall or rolls on floor with optional casters
  • Low-profile 21.8 in. depth saves space in tight areas
  • Includes 20 M6 screws, 20 cage nuts, 20 washers, 20 12-24 screws, 2 keys

Specifications

BrandTripp Lite
ModelSRW12UDP
TypeWall Mount Cabinet
Rack Units12U
ColorBlack
MaterialSteel
SpecificationForm Factor:Wall Mountable
FeaturesPackage Contents:
SmartRack 12U Low-Profile Switch-Depth-Plus Wall-Mount Rack Enclosure Cabinet
20 x M6 Screws
20 x M6 Cage Nuts
20 x M6 Washers
20 x 12-24 Screws
2 x Keys
Owner's Manual
Unit DimensionHeight:25.1" x Width:23.6" x Depth:21.8"
Unit Weight58.40 lb
Shipping weight28.12 kg
Package size762 × 711 × 686 mm

Questions about this item

Should I choose the 12U wall-mount rack or a different capacity for my 19 in. equipment?

This model provides 12U of vertical space and accepts standard 19 in. rack gear up to 20.5 in. deep, so select it when your device count and depth fit those limits.

What does the 200 lb load rating mean once the cabinet is mounted on a wall?

The enclosure can hold up to 200 lbs of installed equipment when securely fastened to a suitable wall structure using the included hardware.

How does the 21.8 in. overall depth affect the usable space for my servers?

The cabinet's 21.8 in. depth yields a maximum equipment depth of 20.5 in., leaving a small clearance for cables and airflow at the rear.
