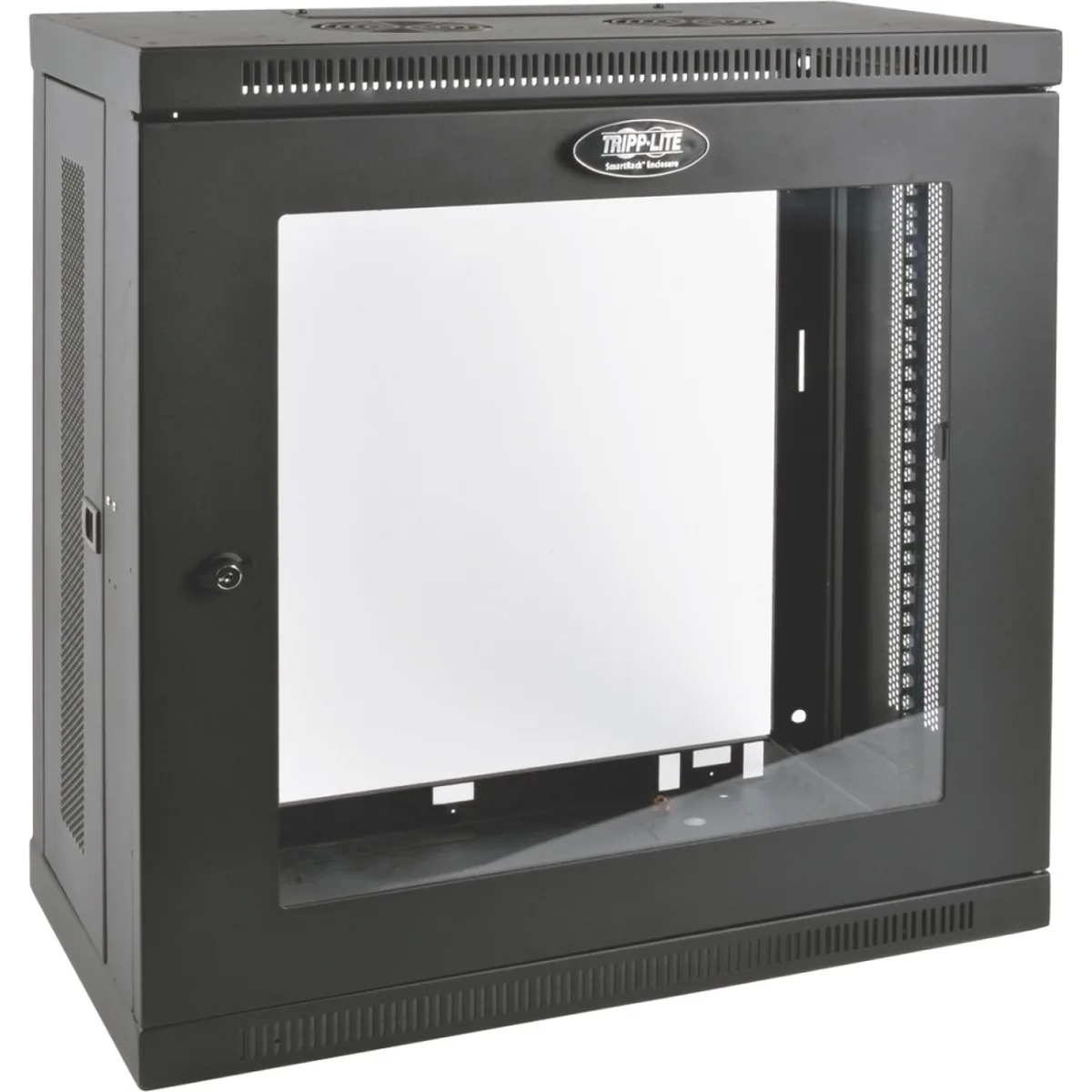

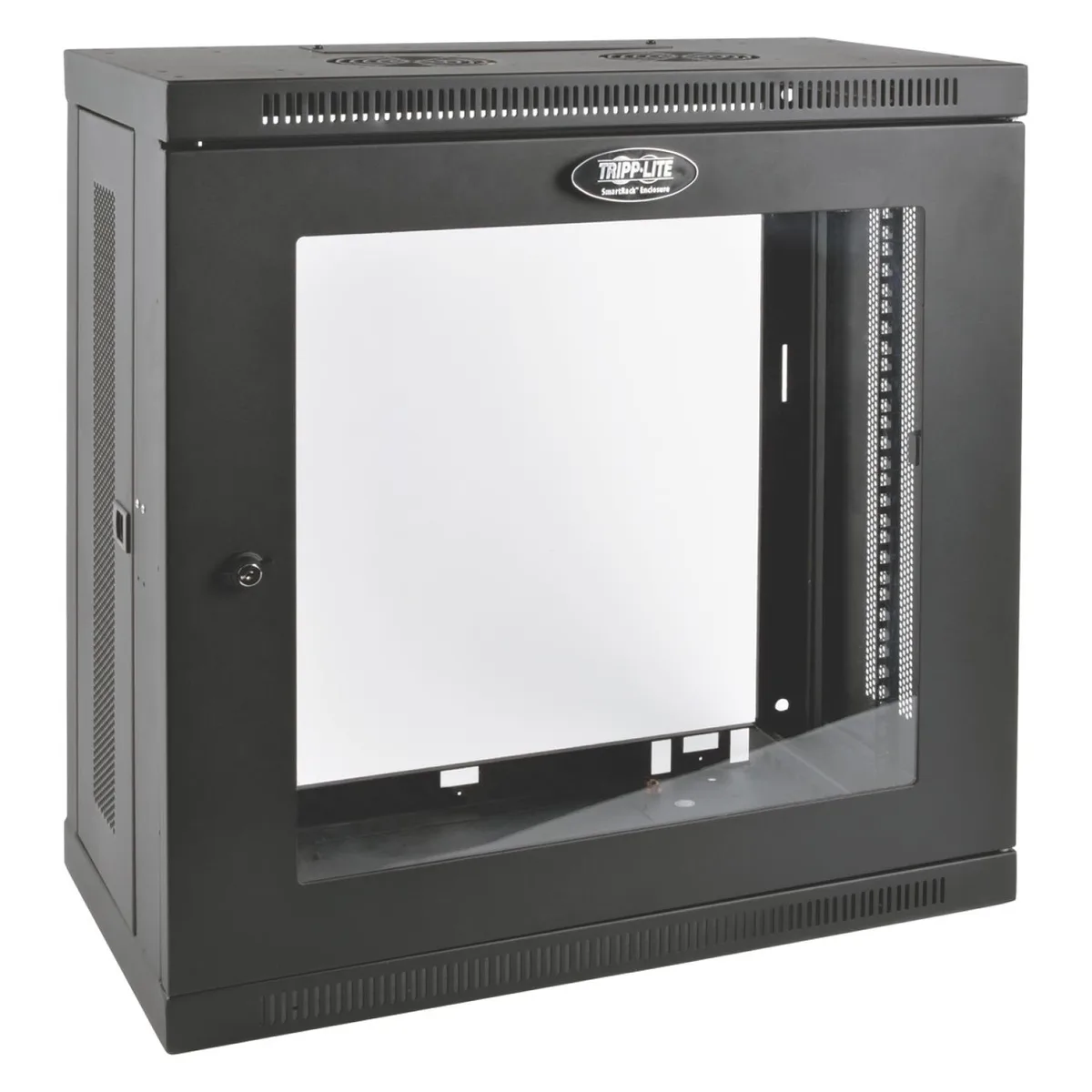

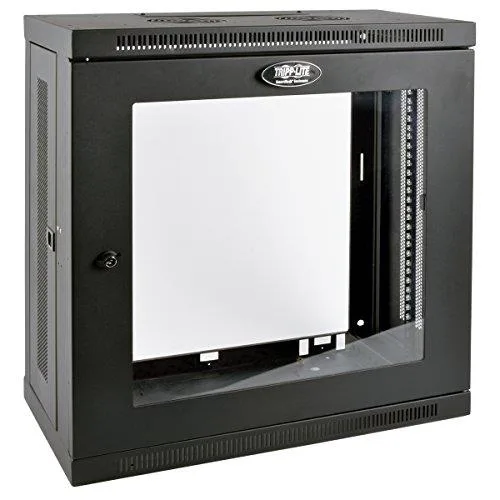

Black 12U wall-mount rack cabinet with clear acrylic front door, steel body, 13in depth

Tripp Lite

Tripp Lite SRW12U13G 12U Wall-Mount Server Rack 13in Deep

SKU CH-33F1-0P7TY MPN SRW12U13G

A 12U wall-mount cabinet secures 19 in. rack gear up to 13 in. deep with a 200 lb load rating and a clear acrylic front door

  • TypeWall Mount Cabinet
  • Rack Units12U
  • ColorBlack
  • MaterialAcrylic Window Steel Body
  • SpecificationForm Factor:Floor Standing Form Factor:Wall Mountable
  • FeaturesPackage Contents: SmartRack SRW12U13G Rack Cabinet 20 x M6 S
  • Holds 12U of 19 in. gear within 13 in. depth
  • Supports up to 200 lbs. of equipment weight
  • Shatter-resistant acrylic window allows visual checks without opening door
  • Mounts on wall or stands on floor with optional casters
  • Includes M6, 12-24 hardware, cage nuts, washers, mounting plate and keys

Wall-Mount 12U Cabinet

The Tripp Lite SRW12U13G is a 12U wall-mount server rack that accepts 19 in. equipment up to 13 in. deep. It suits network closets, small offices or edge locations where floor space is limited but secure, organised mounting is required. The steel body and shatter-resistant acrylic front door protect installed gear while allowing visual status checks. Maximum load capacity is 200 lbs.

Pre-Installation Checks

Verify that the mounting surface can support the combined weight of the 38 lb cabinet plus up to 200 lb of equipment. Ensure the wall structure provides suitable anchor points for the included removable mounting plate and hardware kit. Confirm that the 13 in. usable depth accommodates your deepest device, including cables and connectors, before ordering.

Sustained-Load Behaviour

Under continuous full load the welded steel frame maintains structural rigidity without bowing, keeping rack rails aligned for reliable equipment operation. The perforated side panels and vented top and bottom promote passive airflow, helping internal temperatures remain stable during extended duty cycles. The lockable acrylic door stays secure while allowing ongoing visual monitoring of status LEDs.

Highlights

  • Holds 12U of 19 in. gear within 13 in. depth
  • Supports up to 200 lbs. of equipment weight
  • Shatter-resistant acrylic window allows visual checks without opening door
  • Mounts on wall or stands on floor with optional casters
  • Includes M6, 12-24 hardware, cage nuts, washers, mounting plate and keys

Specifications

BrandTripp Lite
ModelSRW12U13G
TypeWall Mount Cabinet
Rack Units12U
ColorBlack
MaterialAcrylic Window
Steel Body
SpecificationForm Factor:Floor Standing
Form Factor:Wall Mountable
FeaturesPackage Contents:
SmartRack SRW12U13G Rack Cabinet
20 x M6 Screws
20 x M6 Cage Nuts
20 x M6 Washers
20 x 12-24 Screws
Removable Mounting Plate
3 x Mounting Plate Screws
2 x Keys
Owner's Manual
Unit DimensionHeight:25.1" x Width:23.6" x Depth:13"
Unit Weight38 lb
Shipping weight18.14 kg
Package size720 × 670 × 400 mm

Questions about this item

What hardware and accessories come with the SRW12U13G, and what must be purchased separately?

The box contains the rack cabinet, 20 M6 screws, 20 M6 cage nuts, 20 M6 washers, 20 12-24 screws, a removable mounting plate with 3 screws, 2 keys and the owner's manual. Casters for floor rolling are sold separately as the SRCASTER kit.

Which depth should I choose for equipment that is 13 inches deep?

This model provides 13 inches of usable depth and accepts 19 inch wide rack gear up to that depth, so it matches equipment that measures 13 inches or less from front panel to rear.

What does the 200 lb load rating mean when the cabinet is mounted on a wall?

The 200 lb maximum load capacity applies when the unit is securely fastened to a wall that can support the combined weight of the cabinet (38 lb) plus the installed equipment.
