Black steel wall-mount server rack enclosure 12U 16.5in deep

Tripp Lite

Tripp Lite SRW12U 12U Wall-Mount Server Rack 16.5in Deep

SKU CH-D30Q-0PDV0 MPN SRW12U

A 12U wall-mount cabinet secures 19-inch rack gear up to 16.5 inches deep with a 200-pound load rating

  • TypeWall Mount Cabinet
  • Rack Units12U
  • ColorBlack
  • FeaturesSaves Valuable Workspace Perfect for network wiring closets,
  • Included AccessorySRW12U SmartRack 12U Low-Profile Switch-Depth Wall-Mount Rac
  • Unit Dimension25.0" x 23.62" x 17.69"
  • Secures 12U of 19 in. rack gear up to 16.5 in. deep
  • Supports up to 200 lbs. of equipment weight
  • Locking steel cabinet with vented sides, front, top and bottom
  • Mounts to wall or rolls on floor with optional casters
  • Includes M6 and 12-24 screws, cage nuts, washers, mounting plate and keys

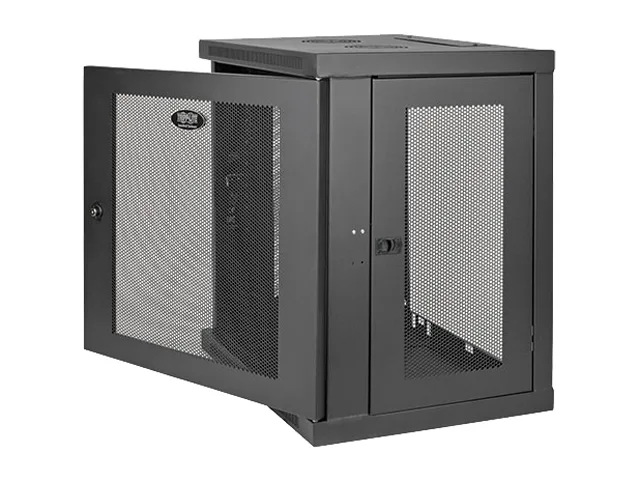

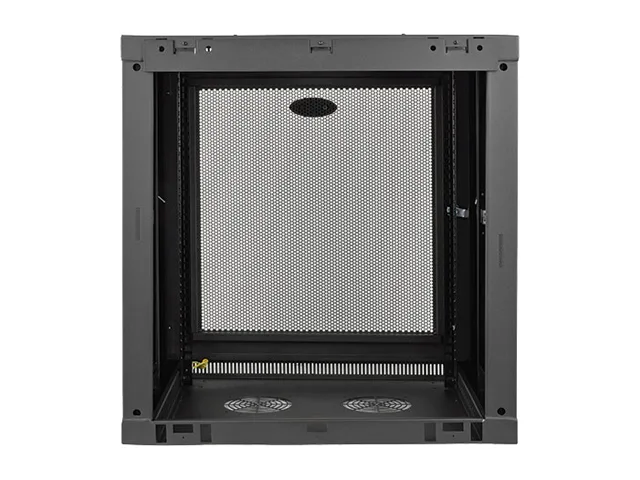

12U Wall-Mount Rack for Shallow Equipment

This 12U wall-mount cabinet secures 19-inch rack equipment up to 16.5 inches deep. It suits network wiring closets, retail locations, classrooms and back offices where floor space is limited. The locking steel cabinet vents at the sides, front, top and bottom. Maximum load capacity is 200 lbs.

Mounts to Wall with Included Hardware

The unit ships with 20 M6 screws, 20 M6 cage nuts, 20 M6 cup washers and 20 12-24 screws. A removable mounting plate and three mounting-plate screws simplify alignment before the cabinet is lifted. Two keys lock the front door once installation is complete. Optional casters allow floor rolling if wall mounting is not possible.

Depth Limit Restricts Device Choice

Equipment deeper than 16.5 inches will not fit inside the enclosure. The 200 lb weight ceiling also caps the total mass of installed gear. Builders needing deeper servers, larger UPS units or higher density loads must choose a different rack format.

Highlights

  • Secures 12U of 19 in. rack gear up to 16.5 in. deep
  • Supports up to 200 lbs. of equipment weight
  • Locking steel cabinet with vented sides, front, top and bottom
  • Mounts to wall or rolls on floor with optional casters
  • Includes M6 and 12-24 screws, cage nuts, washers, mounting plate and keys

Specifications

BrandTripp Lite
ModelSRW12U
TypeWall Mount Cabinet
Rack Units12U
ColorBlack
FeaturesSaves Valuable Workspace
Perfect for network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way
Houses EIA-standard 19 in. rack equipment in 12U of space
Maximum load capacity of 200 lbs.
Keeps Important Equipment Secure
Side panels and front door lock securely to help prevent damage, tampering or theft
Vented panels allow generous airflow that keeps equipment cool
Rotate cabinet 180° before mounting to open reversible front door left or right
Convenient ports with rem
Included AccessorySRW12U SmartRack 12U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet

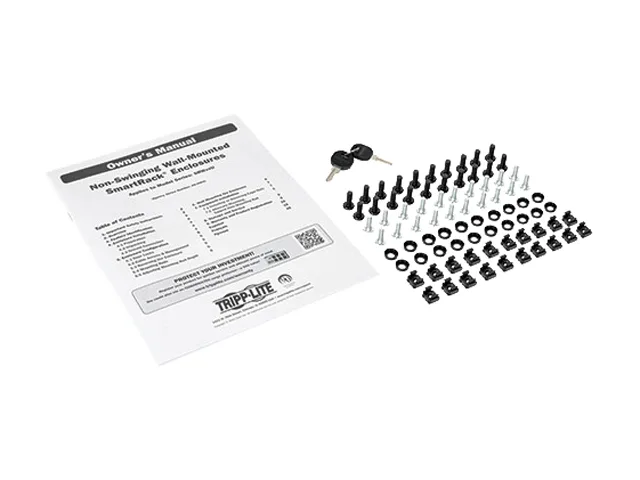

(20) M6 screws
(20) M6 cage nuts
(20) M6 cup washers
(20) 12-24 screws
Removable mounting plate
(3) Mounting plate screws
(2) Keys
Owner’s manual
Unit Dimension25.0" x 23.62" x 17.69"
Unit Weight48.50 lbs.
Shipping Dimension27.95" x 26.38" x 20.67"
Shipping Weight55.12 lbs.
Shipping weight19.50 kg
Package size737 × 660 × 533 mm

Questions about this item

How can I confirm the 12U wall-mount rack is securely holding 19-inch equipment up to 16.5 inches deep after installation?

Verify that all 20 M6 screws, 20 M6 cage nuts and 20 M6 cup washers are tightened, the removable mounting plate is fixed with its three screws, the front door locks with the two keys, and the total installed weight does not exceed 200 lbs.

What ships with the SRW12U and which mounting hardware must be sourced separately?

The box includes the 12U cabinet, 20 M6 screws, 20 M6 cage nuts, 20 M6 cup washers, 20 12-24 screws, a removable mounting plate, three mounting-plate screws and two keys; wall anchors and the optional SRCASTER floor-rolling kit are not included.

Should I choose the 12U low-profile switch-depth model or a deeper cabinet for my 16.5-inch-deep switches?

Select this 12U low-profile switch-depth cabinet when your 19-inch rack gear is 16.5 inches deep or less; it supports up to 200 lbs and measures 25.0 by 23.62 by 17.69 inches, weighing 48.50 lbs.
