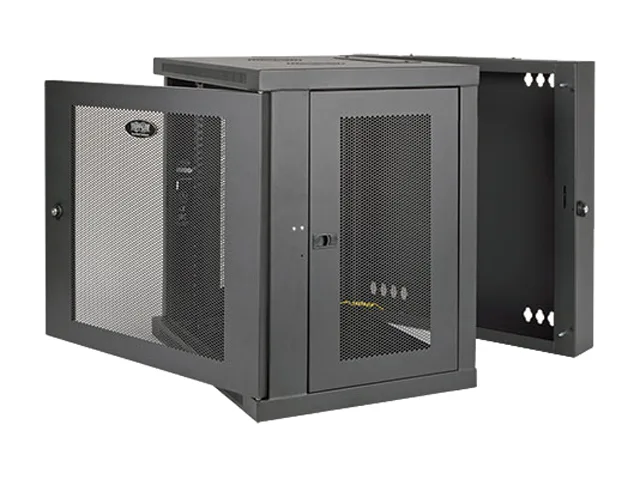

Black steel 10U wall-mount rack cabinet with hinged back and vented locking front door

Tripp Lite

Tripp Lite SRW10US 10U Wall-Mount Server Rack 20.5in Deep

SKU CH-CCQC-1HCWJ MPN SRW10US

A 10U wall-mount cabinet that holds 19-inch rack equipment up to 20.5 inches deep, swings away on a reversible hinge for rear access and supports a 200 lb stationary load

  • TypeWall Mount Cabinet
  • Rack Units10U
  • ColorBlack
  • Weight Capacity200 lbs. -Stationary
  • Features10U with adjustable front and rear vertical rackmount rails.
  • Industry StandardEIA-310-E, IEC 60297-3-100, RoHS, DIN 41494, IP20 Protection
  • Holds 10U of 19-inch rack gear up to 20.5 inches deep
  • Supports 200 lbs stationary load for heavy servers or switches
  • Hinged cabinet swings away from wall for rear equipment access
  • Locking steel door and vented panels secure airflow and hardware
  • Meets EIA-310-E, IEC 60297, UL 60950 and IP20 standards

10U Wall-Mount Rack for 19-inch Equipment

The Tripp Lite SRW10US is a 10U wall-mount cabinet that secures up to 10U of 19-inch rack equipment. It suits network closets, small offices or edge locations where floor space is limited but secure, ventilated housing is required. The cabinet accepts devices up to 20.5 inches deep and carries a stationary load rating of 200 lbs.

Hinged Swing-Out Design Replaces Fixed Wall Shelves

Unlike fixed wall shelves, the hinged cabinet swings away from the wall bracket to give full rear access for cabling and maintenance. The swing direction is reversible to suit the room layout. This design is worth the step-up when rear access is needed regularly or when equipment depth approaches the 20.5-inch limit.

Ventilated Steel Cabinet Under Continuous Load

The locking steel cabinet is vented at the sides, front, top and bottom to promote passive airflow around active gear. With a 200 lbs. stationary capacity and 55 lbs. unit weight, the enclosure is built to support the rated load continuously without deformation. IP20 protection and compliance with EIA-310-E, IEC 60297-3-100, DIN 41494, RoHS and UL 60950 confirm structural and safety standards for sustained operation.

Highlights

  • Holds 10U of 19-inch rack gear up to 20.5 inches deep
  • Supports 200 lbs stationary load for heavy servers or switches
  • Hinged cabinet swings away from wall for rear equipment access
  • Locking steel door and vented panels secure airflow and hardware
  • Meets EIA-310-E, IEC 60297, UL 60950 and IP20 standards

Specifications

BrandTripp Lite
ModelSRW10US
TypeWall Mount Cabinet
Rack Units10U
ColorBlack
Weight Capacity200 lbs. -Stationary
Features10U with adjustable front and rear vertical rackmount rails.
Hinged cabinet swings away from wall bracket for easy equipment access (swing direction is reversible).
Locking, reversible front door and locking, removable side panels.
Fully assembled for quick installation.
Industry StandardEIA-310-E, IEC 60297-3-100, RoHS, DIN 41494, IP20 Protection Rating, UL 60950
Unit Dimension21.57" x 23.62" x 21.5"
Unit Weight55 lbs.
Shipping weight26.76 kg
Package size671 × 616 × 615 mm
