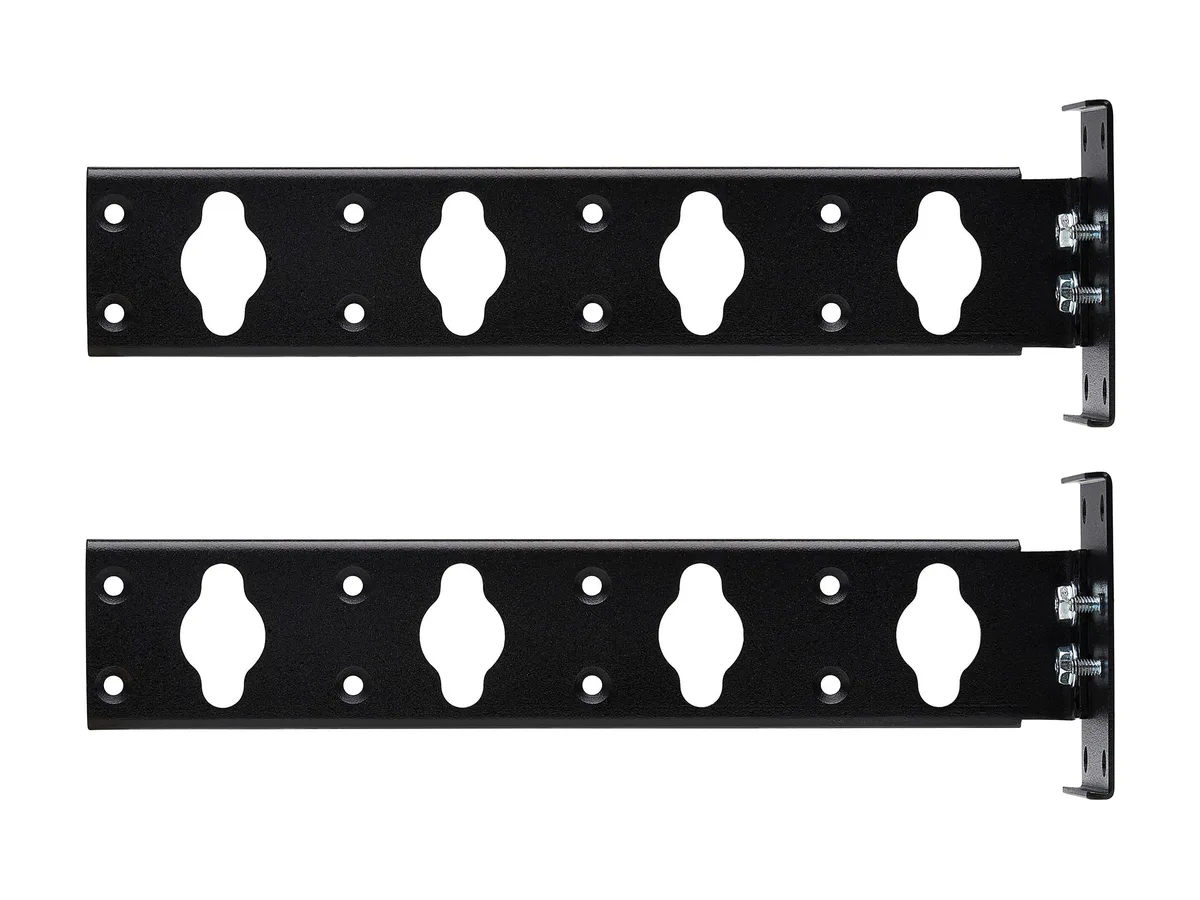

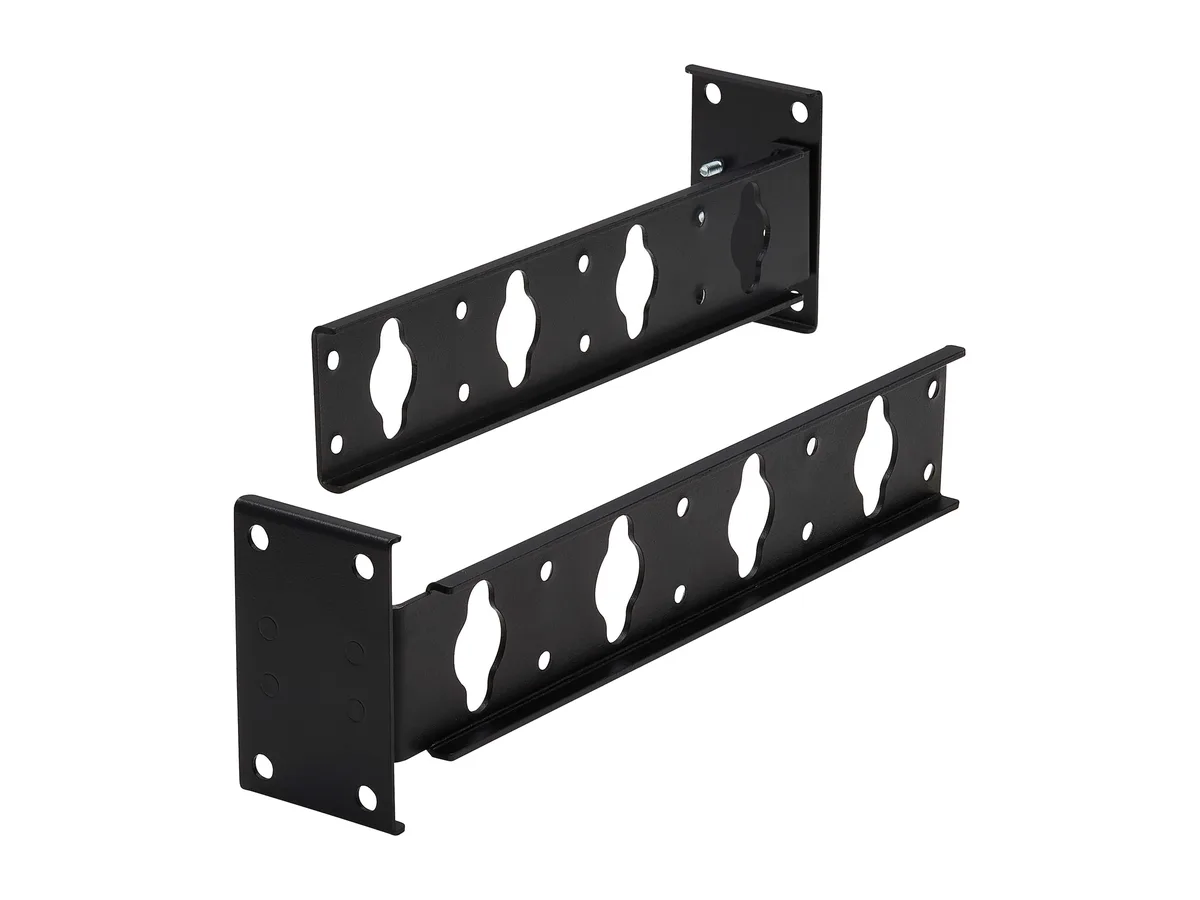

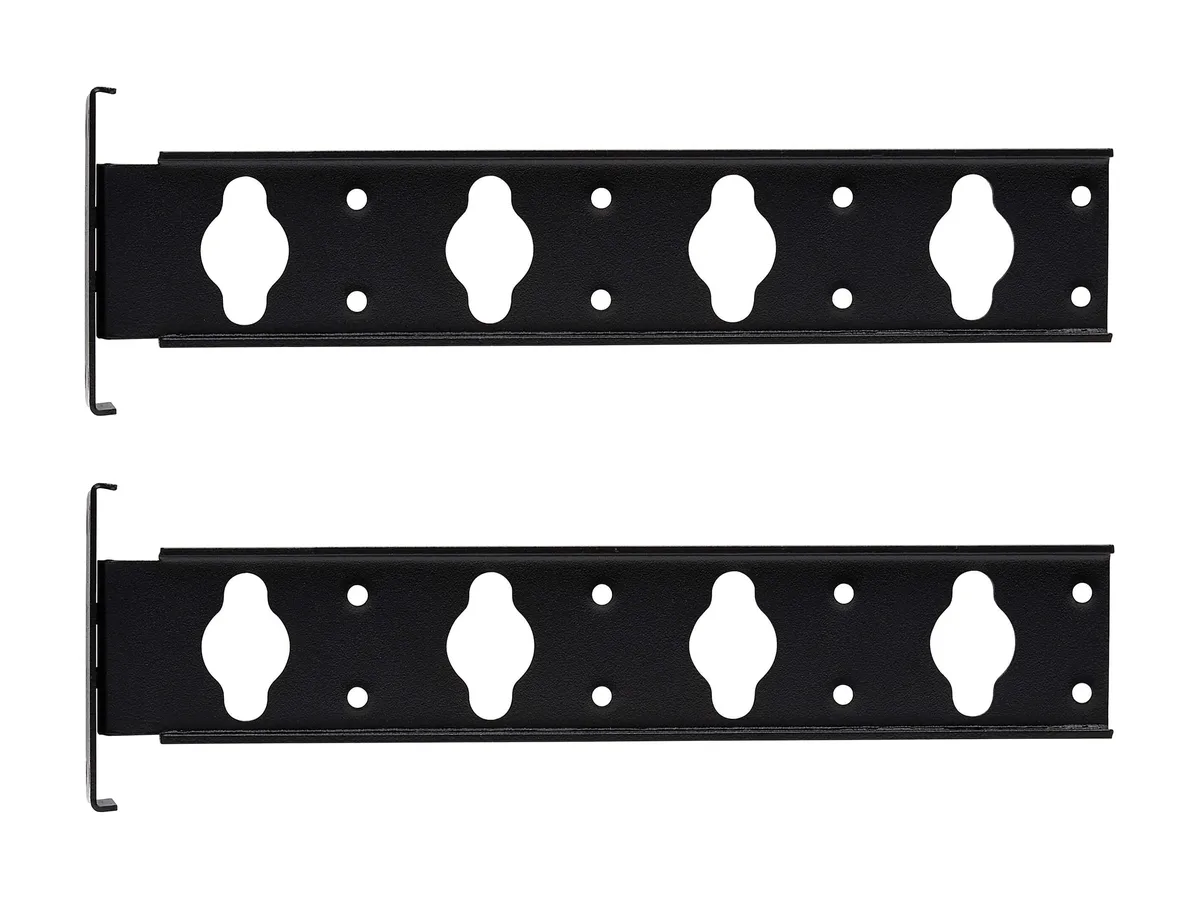

Two black steel brackets with keyhole slots and adapter plates for rack mounting

Tripp Lite

Tripp Lite SRPDU4PHDBRKT PDU Mounting Bracket Kit for 3 Vertical Units

SKU CH-HCWF-2VRNJ MPN SRPDU4PHDBRKT

Mounts up to three vertical PDUs or cable managers inside rack enclosures or open-frame racks using included brackets, adapters and hardware

  • TypeMounting Bracket
  • Package IncludesVertical PDU Installation Bracket for Server Racks (2) Mount
  • Dimensions2.36" x 12.00" x 3.35"
  • Mounts up to three vertical PDUs or cable managers
  • Works with rack enclosures and open frame racks using included adapters
  • Toolless button-mount slots speed installation of each unit
  • Sturdy steel construction provides a secure mounting surface

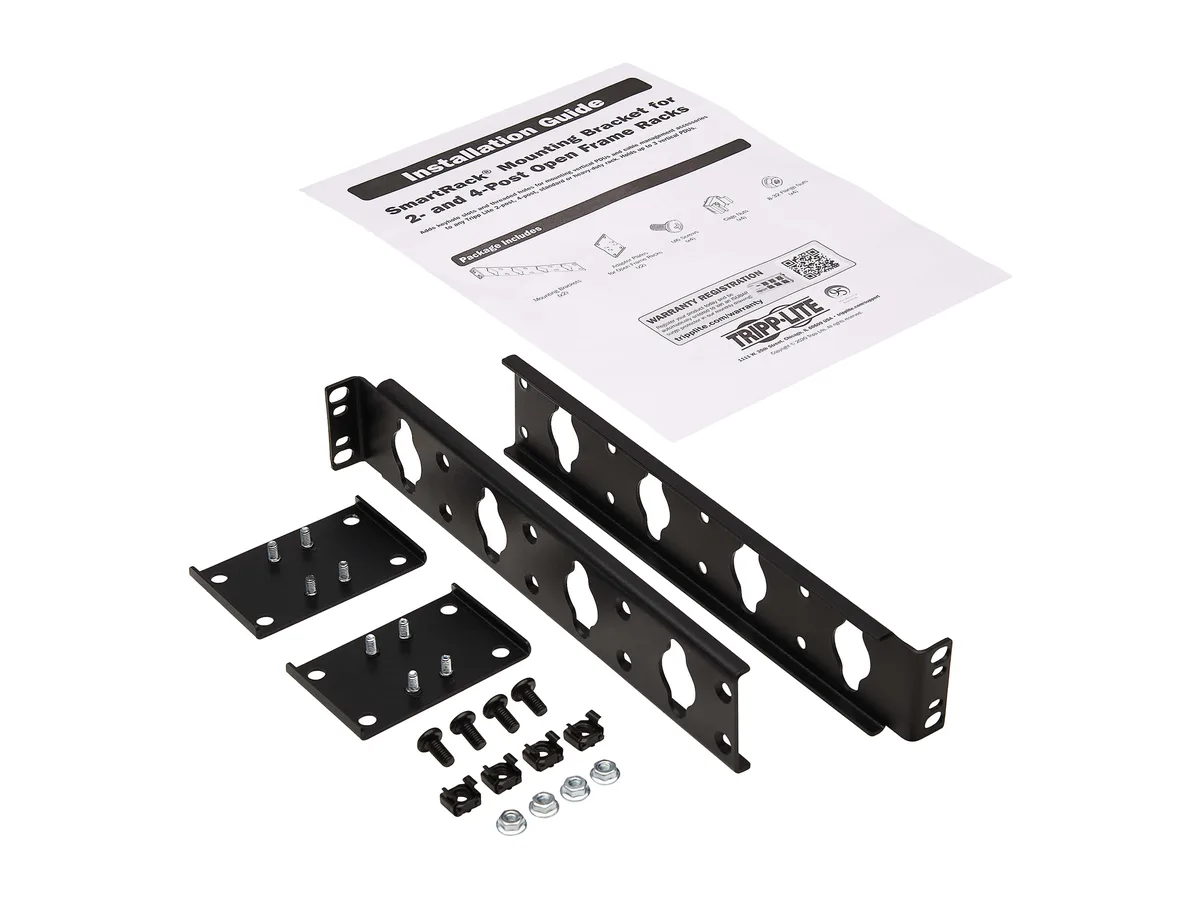

  • Hardware kit includes brackets, adapter plates, screws, cage nuts and flange nuts

Three-PDU Mounting Kit

The Tripp Lite SRPDU4PHDBRKT bracket kit lets installers add up to three vertical PDUs or cable managers to a standard rack enclosure or 2-post and 4-post open frame racks without buying a larger cabinet. Included adapter plates and hardware cover both enclosure and open-frame mounting styles.

Sturdy Steel Build

Two steel brackets measuring 12.00" x 2.36" x 3.35" attach securely using the supplied M6 screws and cage nuts for enclosures or the adapter plates and 8-32 flange nuts for open frames. Keyhole slots on each bracket accept toolless button mounts so PDUs can be fitted or removed quickly during maintenance windows.

Expands Existing Rack Capacity

The kit is aimed at sites that have run out of 0U mounting space but do not need a full rack replacement. It does not suit installations that require more than three vertical units per bracket pair or racks that lack standard mounting rails for the included hardware.

Highlights

  • Mounts up to three vertical PDUs or cable managers
  • Works with rack enclosures and open frame racks using included adapters
  • Toolless button-mount slots speed installation of each unit
  • Sturdy steel construction provides a secure mounting surface
  • Hardware kit includes brackets, adapter plates, screws, cage nuts and flange nuts

Specifications

BrandTripp Lite
ModelSRPDU4PHDBRKT
TypeMounting Bracket
Package IncludesVertical PDU Installation Bracket for Server Racks
(2) Mounting brackets
(2) Adapter plates for open frame racks
(4) M6 screws
(4) Cage nuts
(4) 8-32 flange nuts
Owner's manual
Dimensions2.36" x 12.00" x 3.35"
Shipping weight0.59 kg
Package size305 × 85 × 60 mm

Questions about this item

How do I install the brackets on a 2-post open frame rack using the adapter plates?

Attach the upper and lower brackets to the frame with the included M6 screws and cage nuts, then connect the adapter plates to the mounting rails for 2-post or 4-post open frame racks.

What hardware might need replacing if the cage nuts strip during a future reconfiguration?

The kit includes four cage nuts, four M6 screws and four 8-32 flange nuts; any of these can be swapped individually if threads are damaged.

How many vertical PDUs can the upper and lower brackets support before the steel frame becomes the limiting factor?

The sturdy steel construction is rated to hold up to three vertical (0U) PDUs or cable managers per bracket set.
