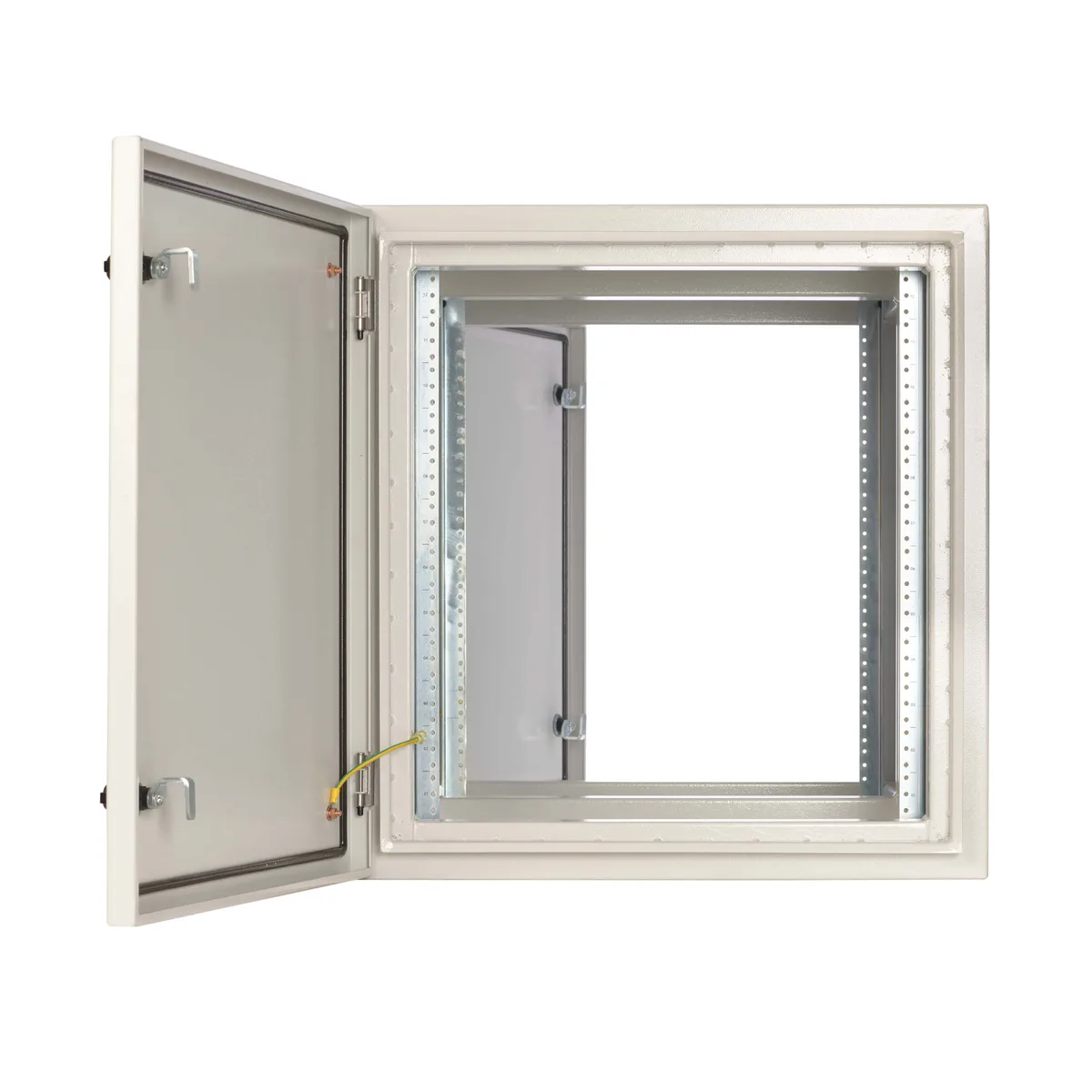

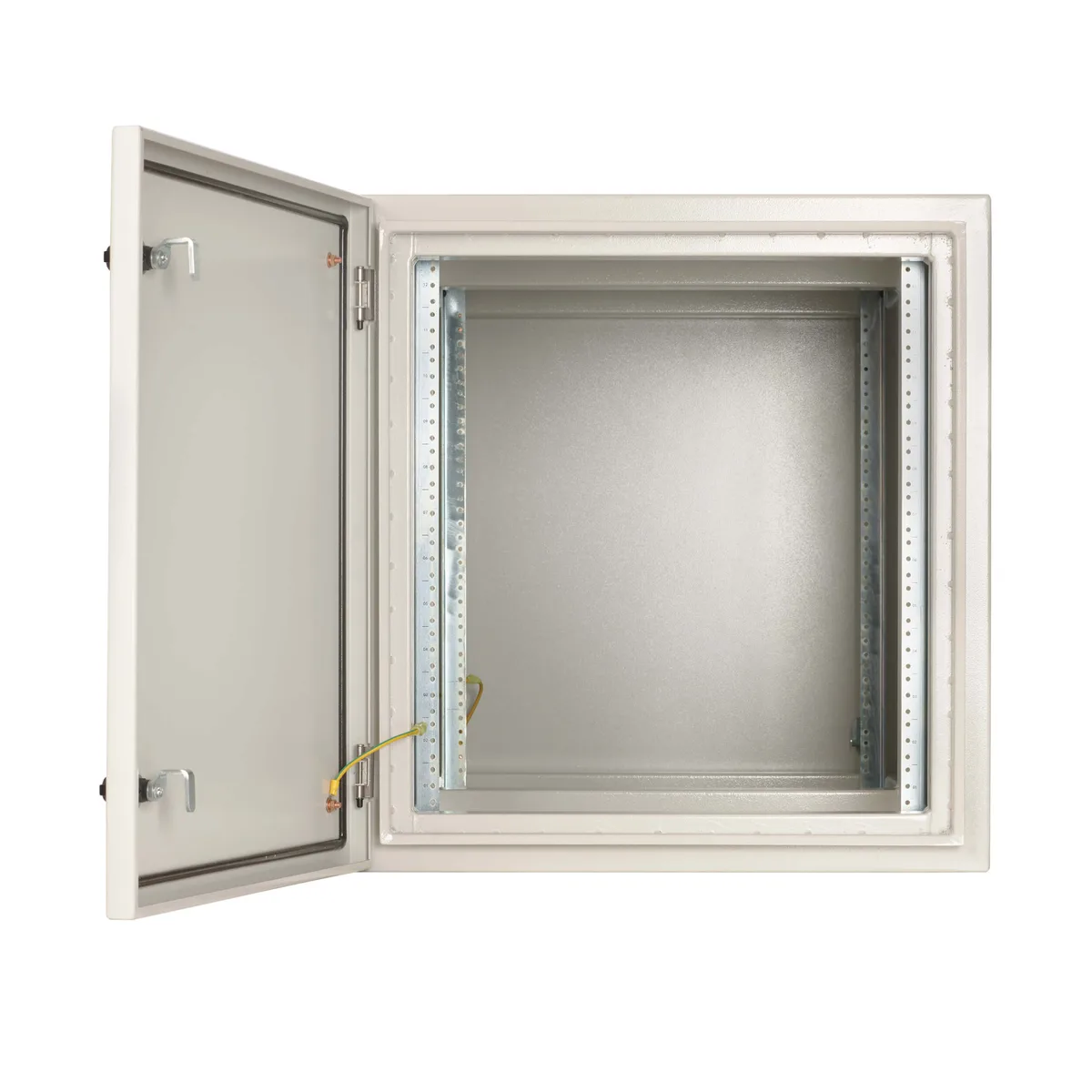

Gray steel wall-mount server rack enclosure 12U 32.5in deep NEMA 4 sealed housing

Tripp Lite

Tripp Lite SRN4G12UHD 12U Wall Mount Server Rack 32.5in Deep NEMA 4 Gray

SKU CH-EV6X-DGPKT MPN SRN4G12UHD

NEMA 4 sealed steel enclosure holds 12U of equipment up to 32.5in deep, locks securely, and ships fully assembled for wall mounting

  • TypeWall Mount Rack
  • Rack Units12U
  • ColorGray
  • MaterialSteel
  • Weight Capacity200 lb
  • Unit WeightHeight 25.4" Width 24" Depth 36.2"

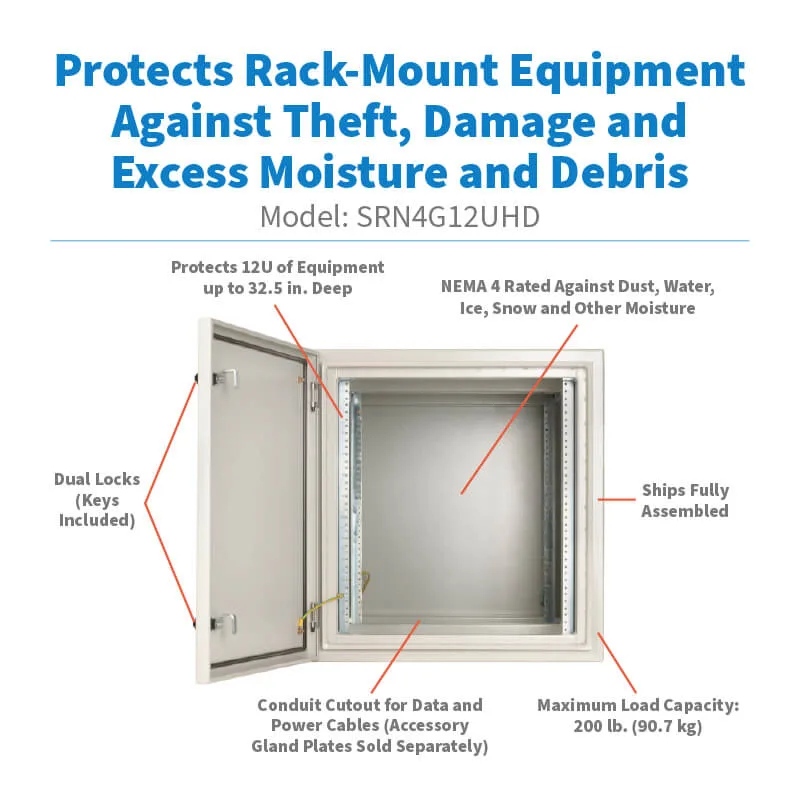

  • Heavy-duty sealed steel housing protects 12U of equipment up to 32.5 in. deep
  • NEMA 4 rating provides protection against water, ice, snow and other moisture
  • Locking doors with included keys help prevent damage, tampering or theft
  • Ships fully assembled for immediate wall-mounting with user-supplied hardware
  • Supports up to 200 lb weight capacity in a 25.4 in. high by 24 in. wide frame

Industrial wall-mount rack

The Tripp Lite SRN4G12UHD is a 12U steel enclosure built for industrial and outdoor environments. It houses network, server or security equipment up to 32.5 inches deep. The NEMA 4 rating makes it suitable for wash-down areas, exposed walls or unconditioned spaces.

Sealed thermal management

The sealed NEMA 4 housing blocks water, ice, snow and dust, so no external air moves through the cabinet. Equipment cooling relies on the internal heat load and the steel walls radiating to the ambient space. Fan kits or active cooling are not included and must be planned separately.

Depth clearance decides fit

The usable mounting depth is 32.5 inches; any device deeper than that will not install. The overall cabinet depth is 36.2 inches, so wall protrusion is fixed. Verify every component length against the 32.5-inch limit before purchase.

Highlights

  • Heavy-duty sealed steel housing protects 12U of equipment up to 32.5 in. deep
  • NEMA 4 rating provides protection against water, ice, snow and other moisture
  • Locking doors with included keys help prevent damage, tampering or theft
  • Ships fully assembled for immediate wall-mounting with user-supplied hardware
  • Supports up to 200 lb weight capacity in a 25.4 in. high by 24 in. wide frame

Specifications

BrandTripp Lite
ModelSRN4G12UHD
Part NumberSRN4G12UHD
TypeWall Mount Rack
Rack Units12U
ColorGray
MaterialSteel
Weight Capacity200 lb
Unit WeightHeight 25.4"
Width 24"
Depth 36.2"
Shipping Dimension200 lbs
Shipping weight109.77 kg
Package size1016 × 686 × 660 mm

Questions about this item

How do I mount the 200 lb rack to a wall with user-supplied hardware?

Secure the fully assembled 25.4 in high by 24 in wide cabinet to studs or concrete using lag bolts or anchors rated for the 200 lb capacity; the step often missed is verifying the wall can hold the loaded weight before drilling.

What maintenance does the NEMA 4 sealed steel enclosure require over time?

Inspect the door gaskets and latch seals annually for wear, clean any debris from the sealing surfaces, and lubricate the lock cylinders so the moisture barrier stays intact.

What is the first limit reached when the 12U cabinet is fully loaded and running continuously?

The 200 lb weight capacity is the hard limit; exceeding it risks wall-mount failure before any thermal or space constraint appears.
