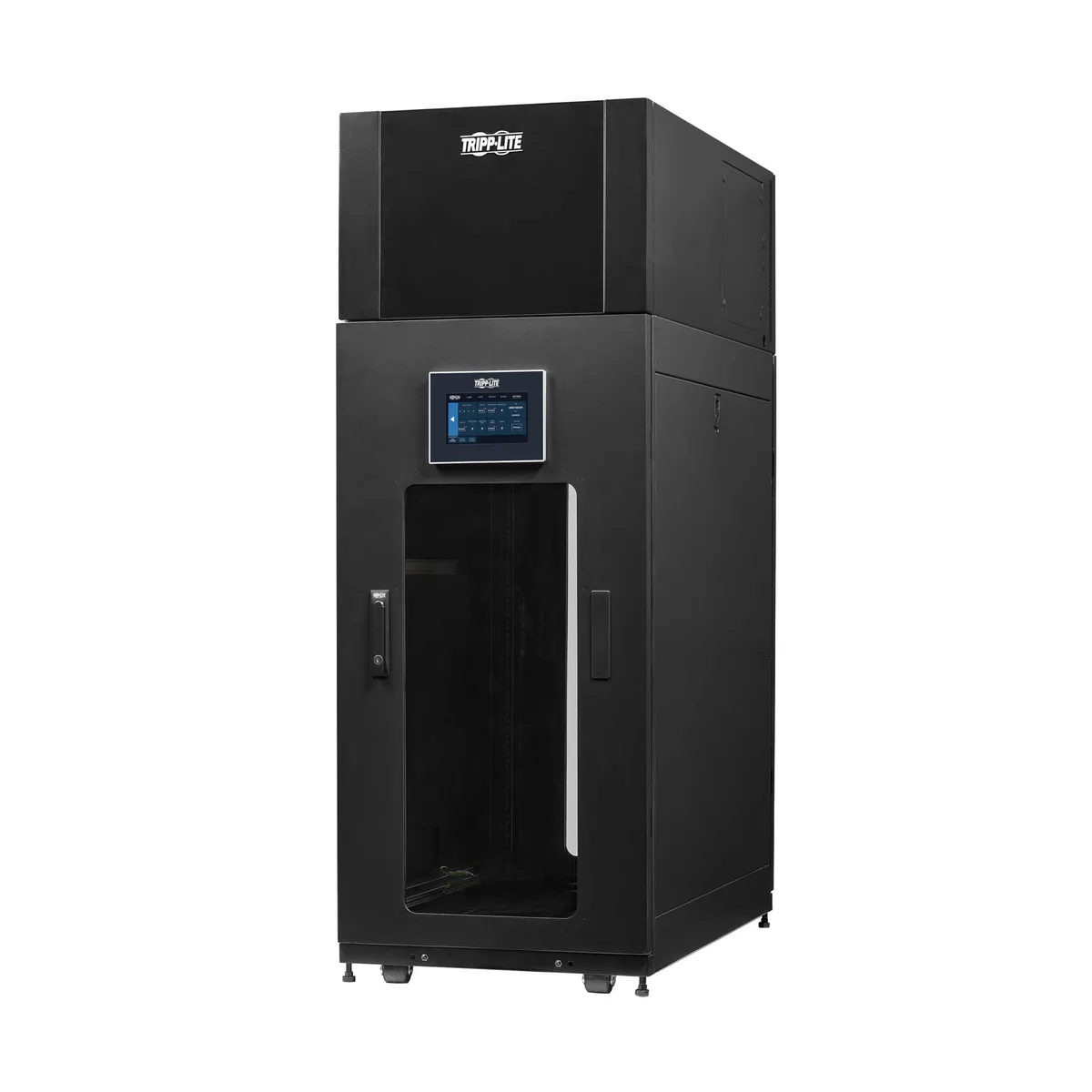

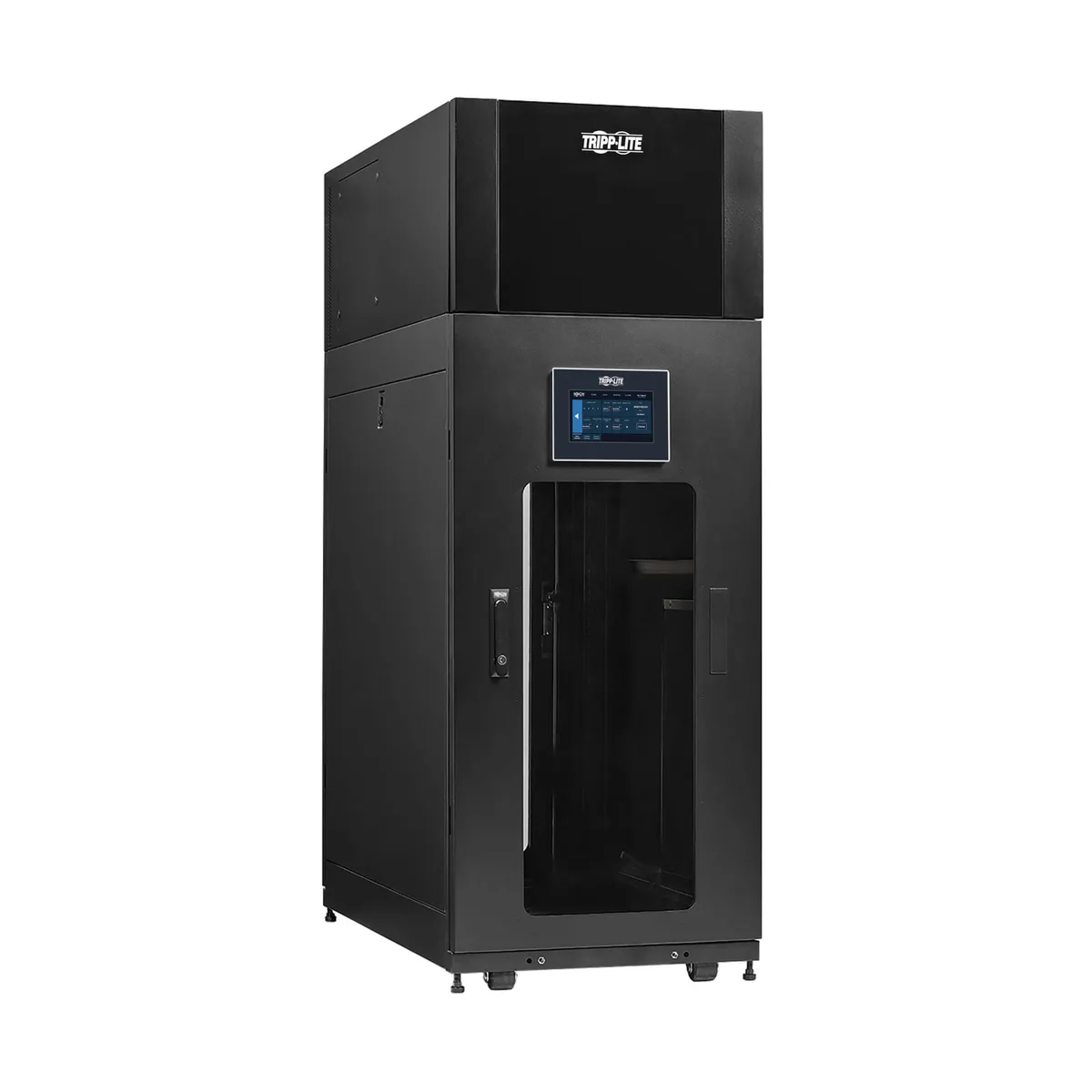

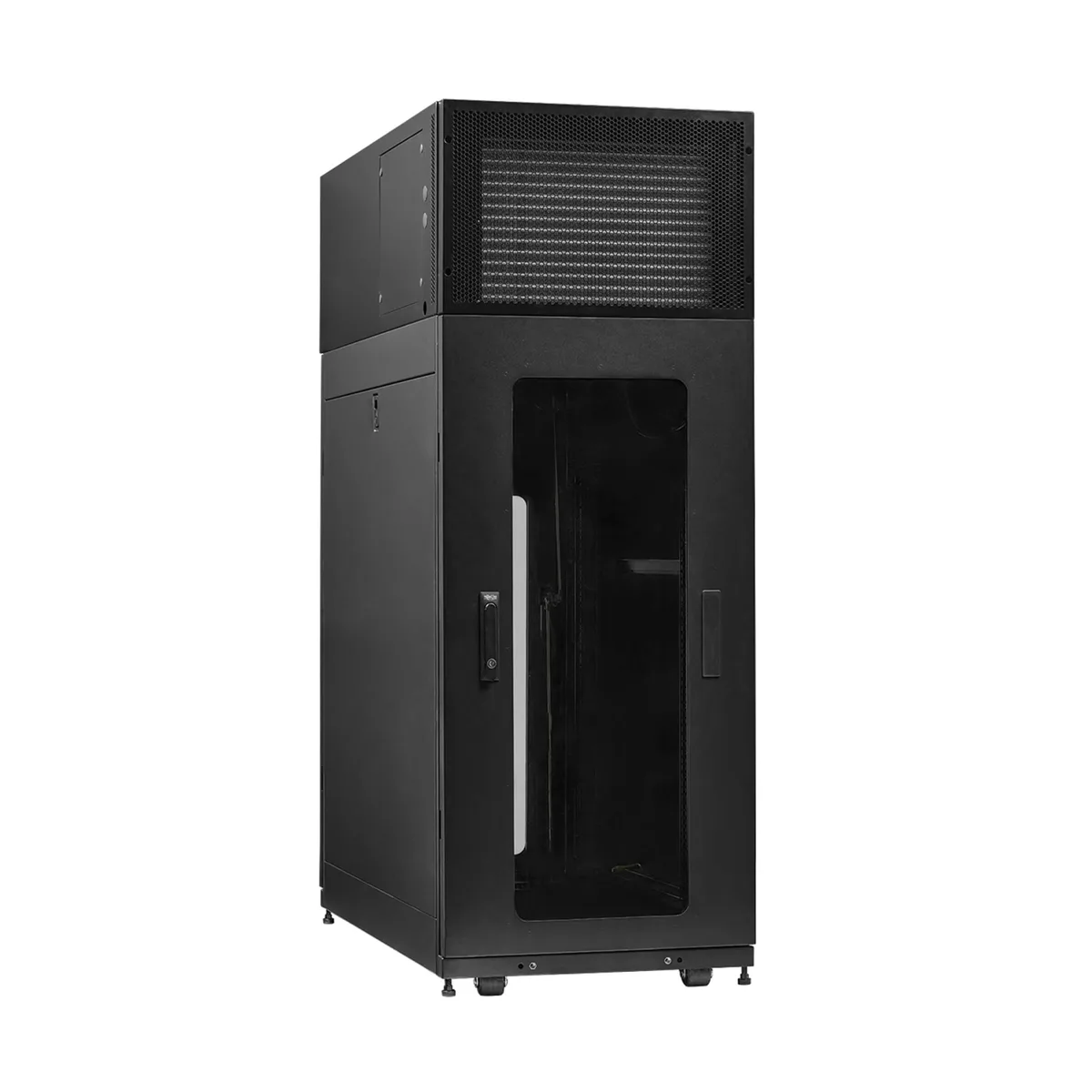

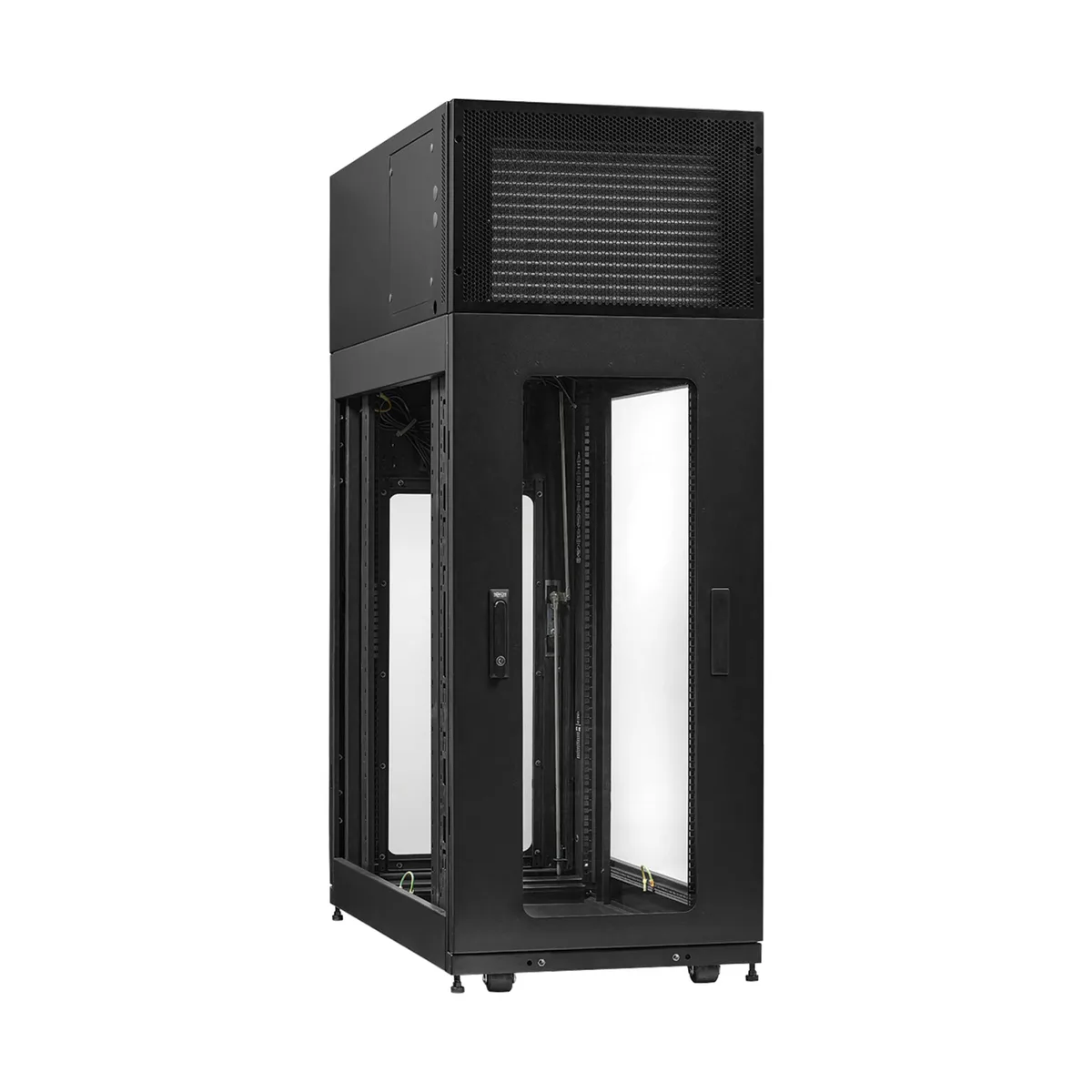

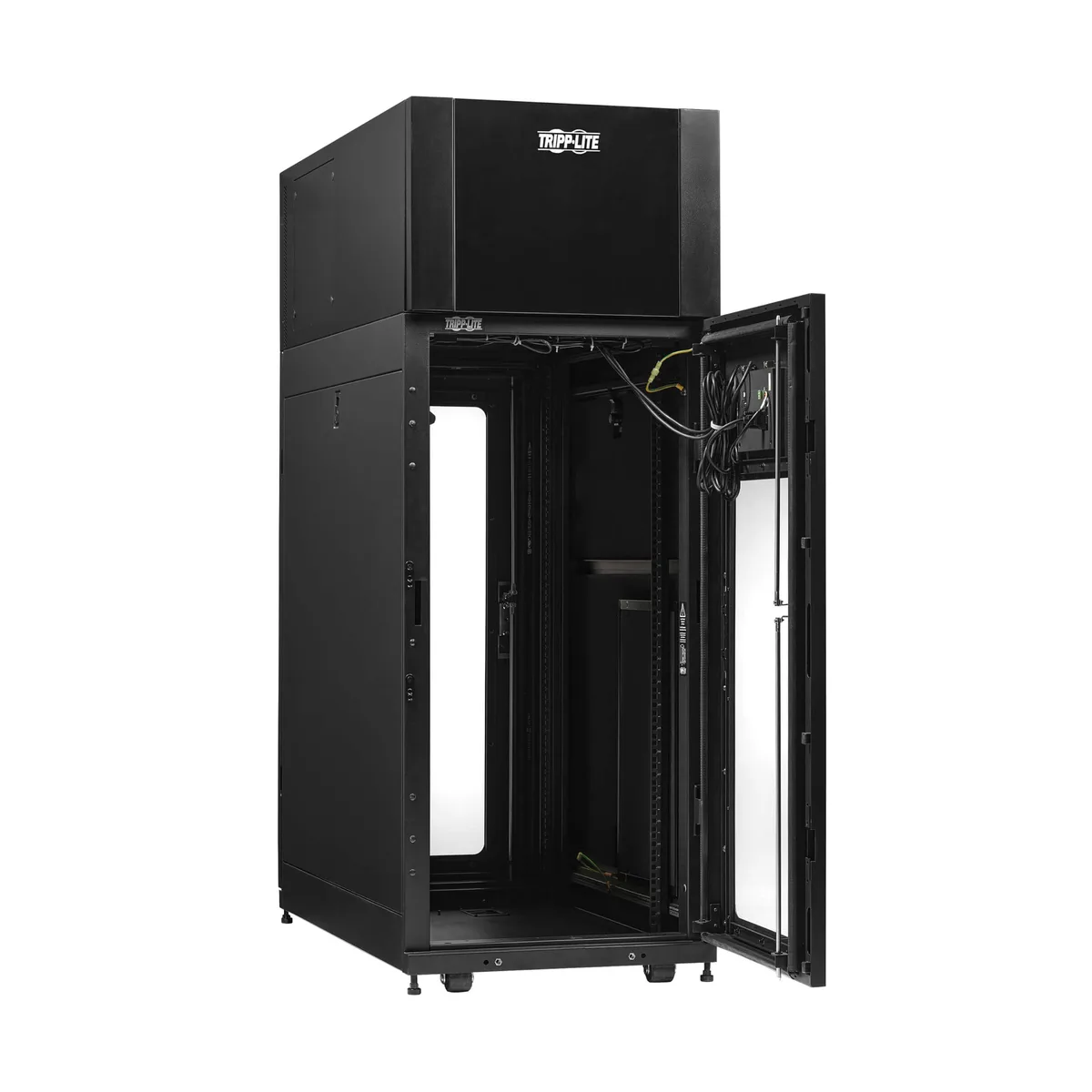

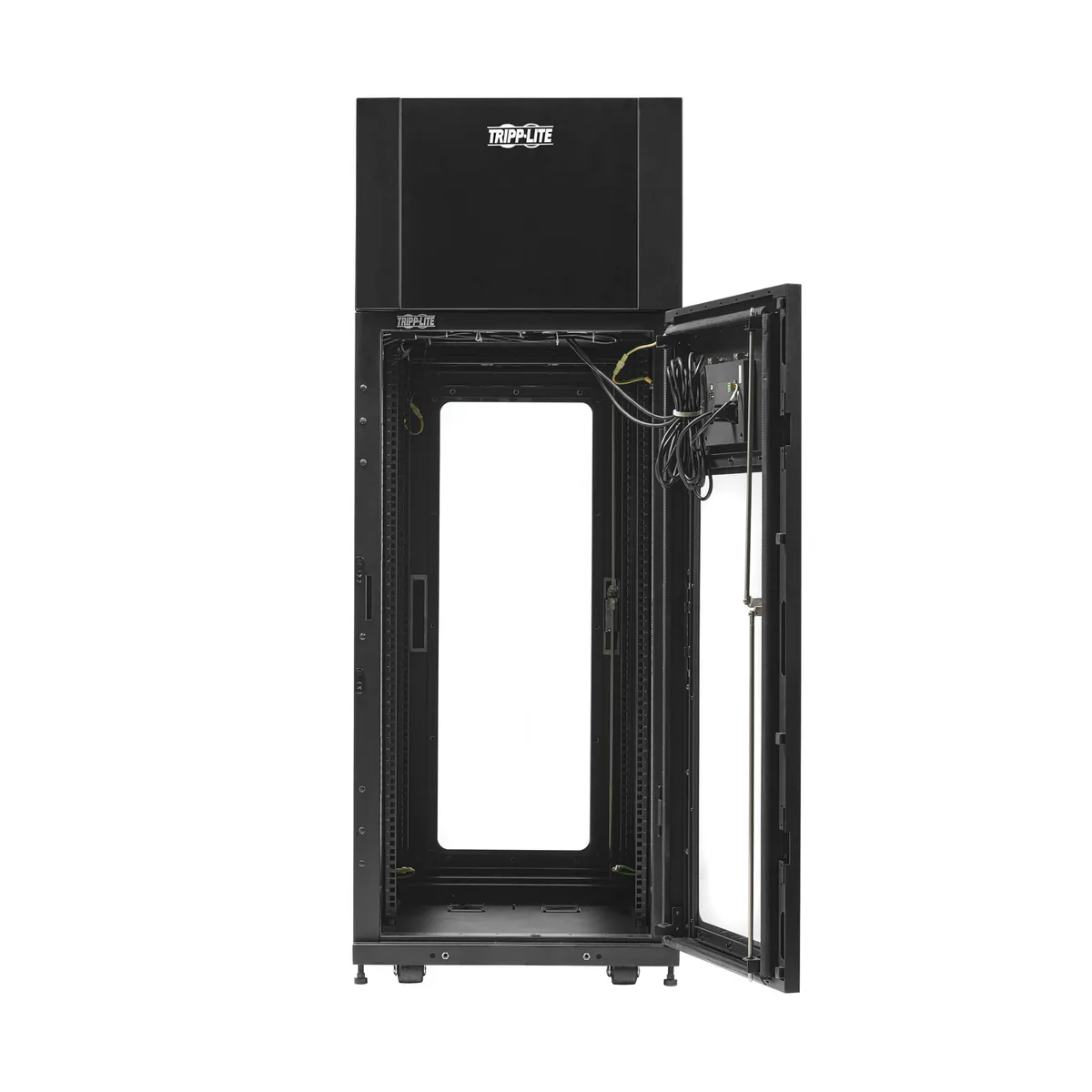

Black 25U server rack cabinet with top-mounted air conditioner unit

Tripp Lite

Tripp Lite SRCOOL3KTP25U SmartRack 25U Self-Cooling Server Rack with 3.5kW Top-Mount AC

SKU CH-1827-QPR82 MPN SRCOOL3KTP25U

A 25U self-cooling rack enclosure with integrated 3.5kW top-mount air conditioner protects 19-inch equipment from overheating

  • TypeRack Enclosure
  • Rack Units25U
  • ColorBlack
  • Cooling (Standard)Self-Cooling
  • Weight Capacity550 lbs.
  • SpecificationINPUT Electrical Consumption (Max): 3536 Watts Nominal Input
  • 5 kW cooling capacity protects equipment from overheating
  • Top-mount design saves floor space and directs cold air downward
  • Built-in LX Platform enables 24/7 remote monitoring and control
  • Locking doors and side panels meet PCI DSS physical security requirements
  • 25U standard-depth cabinet fits 19 in. rack gear with 550 lb weight capacity

25U Self-Cooling Server Rack

The Tripp Lite SRCOOL3KTP25U combines a 25U standard-depth cabinet with a 3.5kW top-mounted air conditioner. It accepts 19 in. rack equipment and provides 12,000 BTU/hr of cooling capacity. The integrated design saves floor space while protecting installed hardware from overheating. Locking doors and side panels add physical security for compliance needs.

Sustained Load Cooling Behaviour

The top-of-rack unit delivers cold air downward across the full 25U height, maintaining consistent inlet temperatures during continuous operation. A built-in evaporator expels condensed water through the exhaust duct, eliminating the need for a separate drain line. Commercial-grade components support 24/7 duty cycles at the rated 3.5kW capacity. The LX Platform interface enables remote monitoring of thermal performance at any time.

208V Hardwire Power Requirement

This enclosure requires a 208V AC 60 Hz hardwire connection drawing up to 3536 watts at maximum load. No plug or alternative voltage option is provided, so site electrical infrastructure must match this specification exactly. The cabinet supports 3000 lb stationary and 2250 lb rolling loads on pre-installed casters. Buyers without 208V three-phase service cannot install this unit.

Highlights

  • 5 kW cooling capacity protects equipment from overheating
  • Top-mount design saves floor space and directs cold air downward
  • Built-in LX Platform enables 24/7 remote monitoring and control
  • Locking doors and side panels meet PCI DSS physical security requirements
  • 25U standard-depth cabinet fits 19 in. rack gear with 550 lb weight capacity

Specifications

BrandTripp Lite
ModelSRCOOL3KTP25U
SeriesSmartRack
TypeRack Enclosure
Rack Units25U
ColorBlack
Cooling (Standard)Self-Cooling
Weight Capacity550 lbs.
SpecificationINPUT
Electrical Consumption (Max): 3536 Watts
Nominal Input Voltage(s) Supported: 208V AC
Nominal Input Voltage Description: 208V AC 60 Hz
Input Connection Type: Hardwire
Input Plug Features: Hardwire
Voltage Compatibility (VAC): 208
Input Frequency: 60 HZ
OUTPUT
Frequency Compatibility: 60 Hz
COOLING
Cooling Capacity (BTUs): 12000
Cooling Capacity (kW): 3.5
FEATURES & SPECIFICATIONS
Locking: Yes
Pre-Installed Casters: Yes
FeaturesRack Cabinet/Cooling Unit Combo with a Convenient Space-Saving Design
Standard-Depth 25U Server Cabinet Accommodates 19 in. Rack Equipment
3.5kW (12,000 BTU/hr) Cooling Capacity Protects Your Equipment and Prevents Expensive Downtime
Rack AC Unit Focuses Cold Air Where It’s Most Needed
Built-In Evaporator Expels the Condensed Water Through the Exhaust Duct
Commercial-Grade Components for Reliable Performance
LX Platform Remote Network Interface Offers 24/7 Monitoring and Control
Keeps Important Equipment Secure
Easy Enclosure and Equipment Installation
Designed for Baying Multiple En
Included AccessoryPre-Assembled SRCOOL3KTP Top-of-Rack Precision Cooling Air Conditioner
SR25UBAC 25U Server Rack with pre-assembled 1U blanks in the front rails to optimize cold air flow
(2) Doors with Plexiglas window
(2) Side panels
(2) Side panel locks
(2) Keys
(50) M6 screws
(50) M6 washers
(50) M6 cage nuts
Touchscreen LCD and necessary cabling
Rack-mounting hardware
Owner's manuals
Unit Dimension64.11" x 23.73" x 42.95"
Shipping weight136.08 kg
Package size1016 × 762 × 603 mm

Questions about this item

How much electrical power does the 3.5 kW air conditioner draw when running continuously at maximum load?

The unit consumes up to 3536 watts at 208 V AC, 60 Hz, with a hardwired input connection.

What site infrastructure must already be in place for this rack to operate?

A dedicated 208 V AC, 60 Hz hardwired circuit and enough floor space for the 64.11" x 23.73" x 42.95" footprint.

Will my existing 19-inch rack-mount servers fit and stay cool in this 25U cabinet?

The standard-depth 25U enclosure accepts 19 in. equipment, and the top-mount AC pushes cold air downward through pre-installed 1U blanks for direct cooling.
