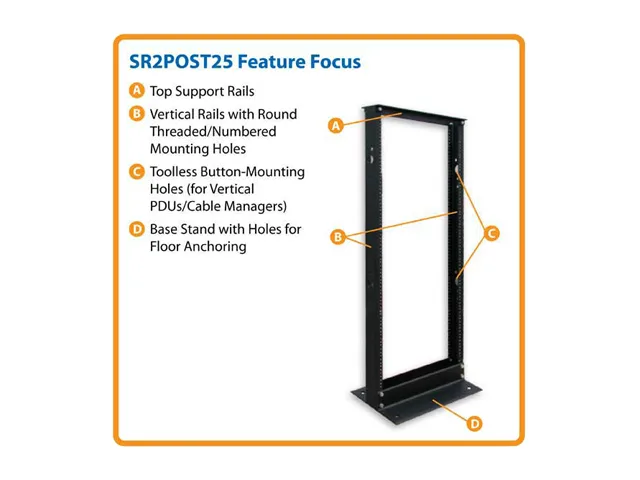

Black aluminum 25U 2-post open frame rack with threaded numbered holes and toolless button holes

Tripp Lite

Tripp Lite SR2POST25 25U 2-Post SmartRack Open Frame Server Rack

SKU CH-VD75-R2CC0 MPN SR2POST25

A 25U open-frame rack holds 19-inch equipment up to 800 lbs with 12-24 threaded holes and a 14-inch support depth

  • Type2 Post Open Frame Rack
  • Rack Units25U
  • ColorBlack
  • MaterialAluminum
  • Weight Capacity800 lbs.
  • Features25U 2-Post SmartRack Open Frame Rack - Organize and Secure N
  • 25U capacity fits 19-inch rackmount gear
  • 800 lb weight rating secures heavy equipment
  • 12-24 threaded numbered holes simplify installation
  • Toolless button holes accept PDUs and cable managers
  • Bolt-down provisions anchor rack for stability

25U 2-Post Open Frame Rack

The Tripp Lite SR2POST25 provides 25U of 19-inch rack space for network and server equipment. It suits installations where an open frame design is preferred for accessibility and airflow. The black aluminum frame supports up to 800 lbs. of mounted hardware. Multiple units can be bolted together side by side for expanded capacity.

Check 19-Inch Mounting and Depth

Verify that your equipment uses standard 19-inch rackmount dimensions before ordering. The rack offers 12-24 threaded and numbered mounting holes for secure installation. Maximum installed equipment depth is 48 inches within the frame. Ensure your floor can accommodate the unit footprint of 49.0 inches by 20.3 inches and has bolt-down provisions if required.

Aluminum Frame and Passive Cooling

The lightweight aluminum construction weighs 23 lbs. and relies on natural convection for equipment cooling. Open frame design eliminates fan noise and allows unrestricted airflow around installed devices. Toolless button holes accept compatible PDUs or cable managers without added hardware. Total depth with the support base is 14 inches for stability.

Highlights

  • 25U capacity fits 19-inch rackmount gear
  • 800 lb weight rating secures heavy equipment
  • 12-24 threaded numbered holes simplify installation
  • Toolless button holes accept PDUs and cable managers
  • Bolt-down provisions anchor rack for stability

Specifications

BrandTripp Lite
ModelSR2POST25
Type2 Post Open Frame Rack
Rack Units25U
ColorBlack
MaterialAluminum
Weight Capacity800 lbs.
Features25U 2-Post SmartRack Open Frame Rack - Organize and Secure Network Rack Equipment.
Installed whole system maximum rack depth (inches): 48"
Black aluminum with round threaded and numbered mounting holes.
Toolless button holes to accept PDUs or cable managers.
Certifications:
NOM (Mexico): Tested to NOM (Mexico)
Approvals: EIA-310-D, IEC 60297-3-100, RoHS
Unit Dimension49.0" x 20.3" x 4.75" (14" total depth with support base)
Unit Weight23 lbs.
Shipping weight11.64 kg
Package size1245 × 147 × 108 mm

Questions about this item

What comes with the SR2POST25 and what must I buy separately?

The rack ships assembled with 12-24 threaded and numbered mounting holes plus toolless button holes for PDUs or cable managers. You supply the 19-inch rackmount equipment and any bolts if you choose to anchor the unit to the floor.

How do I decide which capacity version of this rack to choose?

This model provides 25U of vertical rack space and an 800 lb weight rating. Choose it when your equipment fits within 25U and the combined weight stays at or below 800 lbs.

What does the 48-inch depth figure mean once the rack is installed?

It is the maximum depth available for mounted equipment from the front mounting plane to the rear of the rack, so any server or device deeper than 48 inches will not fit.
