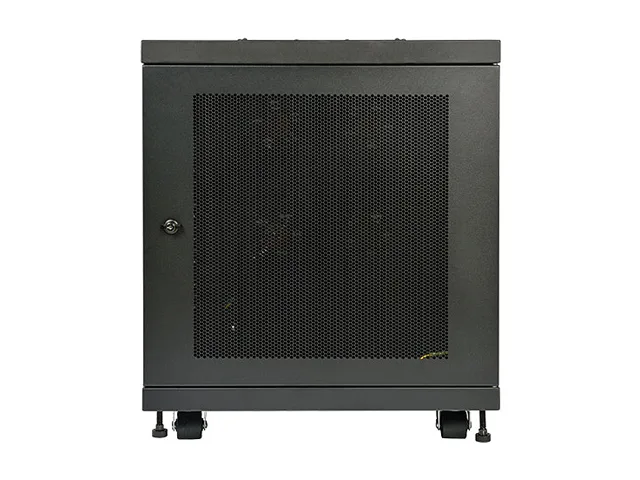

Black 12U floor standing server rack enclosure with louvered front door and casters

Tripp Lite

Tripp Lite SR12UBFFD 12U floor server rack 19" 32.5" depth IP54

SKU CH-8AD2-9D4C5 MPN SR12UBFFD

A 12U floor-standing server rack with IP54 protection, adjustable 3" to 32.5" depth and four high-performance fans for harsh environments

  • Type12U Industrial Floor Enclosure
  • Rack Units12U
  • ColorBlack
  • Weight Capacity1000 lbs.
  • SpecificationInstalled whole system maximum rack depth: 32.5" Installed w
  • Features12U floor enclosure Protection from falling dirt, dust, drip
  • IP54 protection shields equipment from dust, drips and splashes
  • Adjustable rails from 3" to 32.5" fit diverse server depths
  • Four high-performance fans maintain airflow through filter resistance
  • Supports 1000 lbs load for dense 19" rackmount gear
  • Removable dust filter swaps with standard furnace filters

12U IP54 floor enclosure

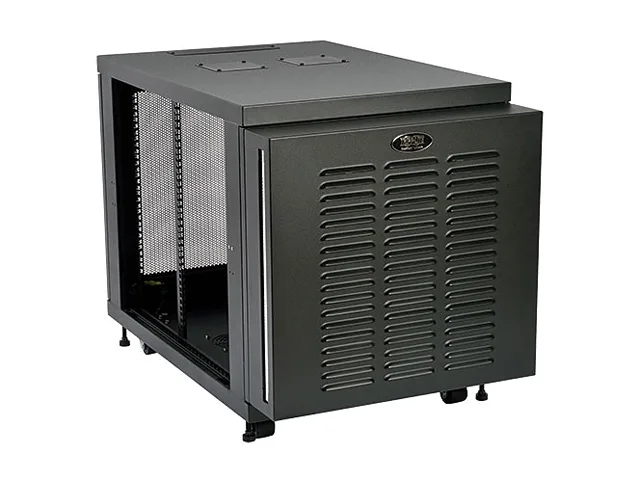

The Tripp Lite SR12UBFFD is a 12U floor-standing rack enclosure built for harsh environments where dust, moisture and accidental contact threaten standard cabinets. Its IP54-rated construction blocks falling dirt, drips and splashes while maintaining airflow through louvered doors. The unit ships fully assembled with 36 M6 cagenuts, screws, washers, four casters, four leveling feet and a replaceable dust filter.

Sustained thermal management

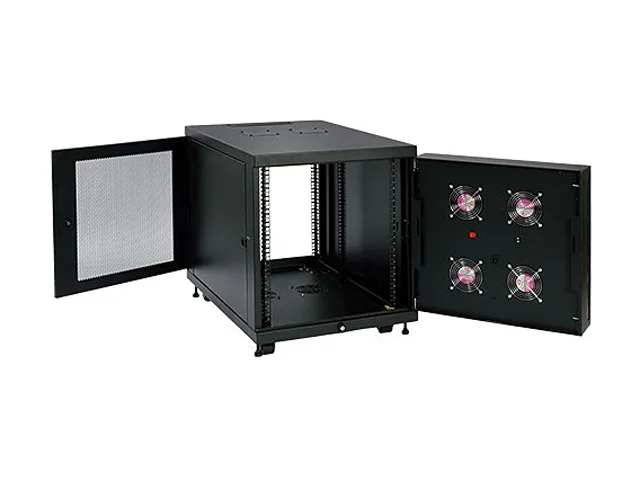

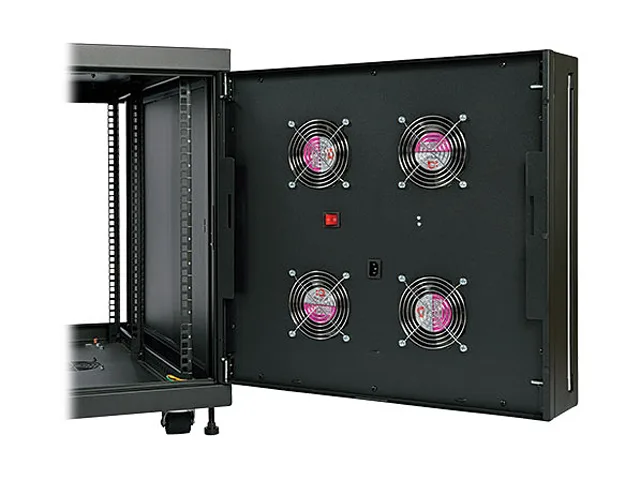

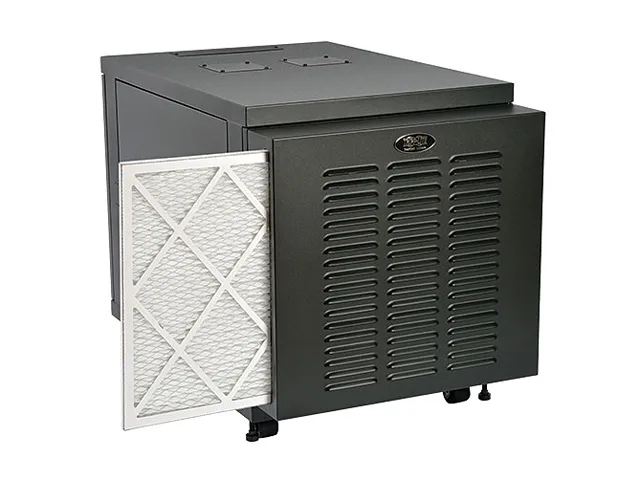

Four high-performance intake fans mounted in the front door pull air through the enclosure from front to side, compensating for the added resistance of the dust filter. The removable filter can be swapped with standard off-the-shelf furnace filters without tools, keeping maintenance simple during continuous operation. This forced-air path protects installed equipment under prolonged load in dirty or humid conditions.

19-inch EIA-310-E compliance

Adjustable mounting rails accept standard 19-inch rackmount gear and support equipment depths from 3 to 32.5 inches, with a factory preset of 10.42 inches. The enclosure meets EIA-310-E dimensional requirements and carries NOM approval for the Mexican market. Total weight capacity reaches 1000 lbs distributed across the 12U of rack space.

Highlights

  • IP54 protection shields equipment from dust, drips and splashes
  • Adjustable rails from 3" to 32.5" fit diverse server depths
  • Four high-performance fans maintain airflow through filter resistance
  • Supports 1000 lbs load for dense 19" rackmount gear
  • Removable dust filter swaps with standard furnace filters

Specifications

BrandTripp Lite
ModelSR12UBFFD
Type12U Industrial Floor Enclosure
Rack Units12U
ColorBlack
Weight Capacity1000 lbs.
SpecificationInstalled whole system maximum rack depth: 32.5"
Installed whole system minimum rack depth: 3"
Factory preset rack depth: 10.42"
Style: Floor
CERTIFICATIONS
NOM (Mexico): Tested to NOM (Mexico)
Approvals: EIA-310-E, IEC 60297-3-100, DIN 41494, IP20 Protection Rating, RoHS
Features12U floor enclosure
Protection from falling dirt, dust, drips, splashes and accidental contact with personnel
Adjustable mounting depths from 3" to 20.5" inches
Front door has ventilating louvers
Built-in removable dust filter that can be replaced with standard furnace filters
4 large, high-performance fans in front door that pull air through the enclosure, from front to rear
4 cable ports allow cable access while maintaining dust and moisture resistance
Locking, reversible front door
Locking, removable solid side panels
Fully assembled for quick installation
Meets all enclosure requ
Included AccessorySR12UBFFD floor rack enclosure
(36) M6 cagenuts
(36) M6 screws
(36) Washers
(2) Keys
(1) Removable/Replaceable dust filter
(4) Casters
(4) Leveling feet
Owner's Manual
Unit Dimension25.20" x 23.60" x 38.50"
Unit Weight96 lbs.
Shipping Dimension29.80" x 27.00" x 41.10"
Shipping Weight130 lbs.
Shipping weight62.60 kg
Package size1008 × 772 × 625 mm

Questions about this item

How loud are the four built-in fans when the rack runs continuously in an office?

The four high-performance intake fans pull air front-to-side through the filter; Tripp Lite does not publish a decibel rating for this model.

What mounting hardware must I already have to install 19-inch equipment in the 12U enclosure?

The rack includes 36 M6 cagenuts, 36 M6 screws and 36 washers, so no extra mounting kit is required for standard 19-inch gear.

Will my existing 32.5-inch deep servers fit on the adjustable rails without modification?

Yes — the rails adjust from 3 to 32.5 inches, matching the factory preset depth of 10.42 inches and the maximum installed depth of 32.5 inches.
