Black 3U rackmount UPS with front LCD panel and rear outlet array

Tripp Lite

Tripp Lite SMART5000XFMRXL 5000VA 3750W 208V 120V 3U UPS

SKU CH-VR3S-M3AHC MPN SMART5000XFMRXL

Line-interactive 5000 VA UPS with 208 V and 120 V sine-wave output, 11 outlets, 8.5 minute full-load runtime and 3U rack or tower mounting

  • VA Rating5000 VA
  • Watts3750 Watts
  • Output VoltageLINE MODE: Sine wave line voltage 208V & 120V (+/-10%) BATTE
  • Outlets11
  • Outlet Type1 NEMA L6-30R, 2 NEMA L6-20R and 8 NEMA 5-15/20R
  • Battery TypeValve Regulated Lead Acid (VRLA)

VA 5000 VA / 120V Transformer

  • 5000 VA line-interactive UPS protects servers and network gear
  • Sine-wave output at 208 V and 120 V during battery operation
  • Corrects brownouts to 167 V and overvoltages to 260 V without using batteries
  • 11 outlets include NEMA L6-30R, L6-20R and 5-15/20R receptacles
  • Expandable runtime with external battery packs adds uptime flexibility

Power capacity

This 5000 VA, 3750 watt line-interactive UPS delivers sine-wave output at 208 V and 120 V simultaneously. It fits in a 3U rackmount or tower chassis and provides battery-backed power for servers, network gear and telecommunications equipment.

Input voltage window

The unit corrects brownouts down to 167 V and overvoltages up to 260 V without using battery power. A NEMA L6-30P plug connects to a 208 V source, with support for user-supplied 50 A or hardwired input.

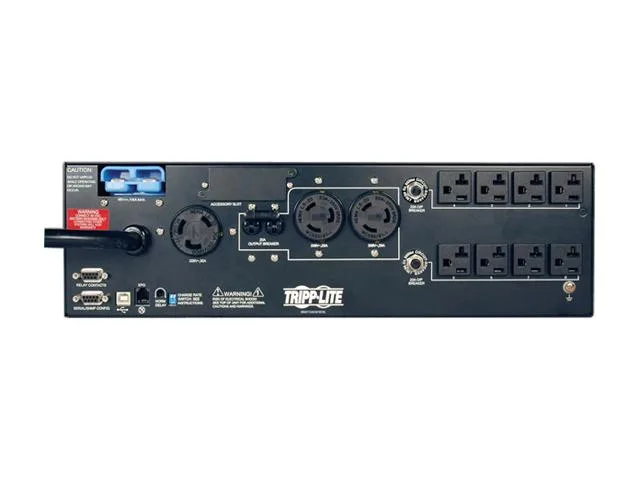

Outlet mix and monitoring

Eleven receptacles include one NEMA L6-30R, two NEMA L6-20R and eight NEMA 5-15/20R outlets. USB, DB9 serial and an SNMP card slot enable simultaneous monitoring, while optional external battery packs extend runtime beyond the 8.5 minutes at full load.

Highlights

  • 5000 VA line-interactive UPS protects servers and network gear
  • Sine-wave output at 208 V and 120 V during battery operation
  • Corrects brownouts to 167 V and overvoltages to 260 V without using batteries
  • 11 outlets include NEMA L6-30R, L6-20R and 5-15/20R receptacles
  • Expandable runtime with external battery packs adds uptime flexibility

Specifications

BrandTRIPP LITE
SeriesSmartPro
ModelSMART5000XFMRXL
VA Rating5000 VA
Watts3750 Watts
Output VoltageLINE MODE: Sine wave line voltage 208V & 120V (+/-10%)
BATTERY MODE: 208V & 120V (+/-5%)
Outlets11
Outlet Type1 NEMA L6-30R, 2 NEMA L6-20R and 8 NEMA 5-15/20R
Battery TypeValve Regulated Lead Acid (VRLA)
Battery Run TimeFull load runtime 8.5 min. (5000VA) expandable
Half load runtime 20 min. (2500VA) expandable
Battery Recharge Time2-4 hours to 90%
Alarms3-function audible alarm indicates power failure conditions (4 short beeps every 10 seconds), overload (continuous short beeps) and low battery (continuous tone)
Interface PortRS-232, USB
ApprovalsTested to UL1778 (USA), CSA C22.2 No. 107.3 (Canada), NOM (Mexico), Class A (emissions)
RackmountableRack (3U)
Surge Energy Rating1020 joules
FeaturesApplications
Ideal for protection of sensitive electronics in any application calling for upright tower or 19-in. rackmount UPS protection. Common applications include any mix of servers, workstations, hubs, routers, concentrators, IP telephony and traditional PBX switching systems
3U rack/tower UPS installs in standard 19 inch rack enclosures with an installed depth of only 22.5 inches
Protects sensitive networking equipment from blackouts, voltage fluctuations and transient surges
Line Interactive Automatic Voltage Regulation (AVR) corrects 208V nominal input from 167 to 260VAC bac
Dimensions5.25" x 17.5" x 25"
Weight143.3 lbs.
Package Contents56646W
VA5000 VA / 120V Transformer
Shipping weight82.55 kg
Package size1219 × 1219 × 1016 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What does the 5000 VA rating mean for the equipment I can connect?

The 5000 VA rating supports up to 3750 watts of connected load, delivering simultaneous 208 V and 120 V sine-wave output with 97% efficiency in a 3U chassis.

What does the NEMA L6-30P input and mixed NEMA outlets cap in practice?

The NEMA L6-30P input accepts 208 V nominal power, while the 11 outlets — one L6-30R, two L6-20R and eight 5-15/20R — provide both 208 V and 120 V distribution from a single UPS.

What rack space and clearance does the 3U all-in-one chassis need?

The unit occupies 3U (5.25 in) of 19-inch rack height, measures 17.5 in wide by 25 in deep and weighs 143.3 lbs, so the rack must support that depth and weight.
