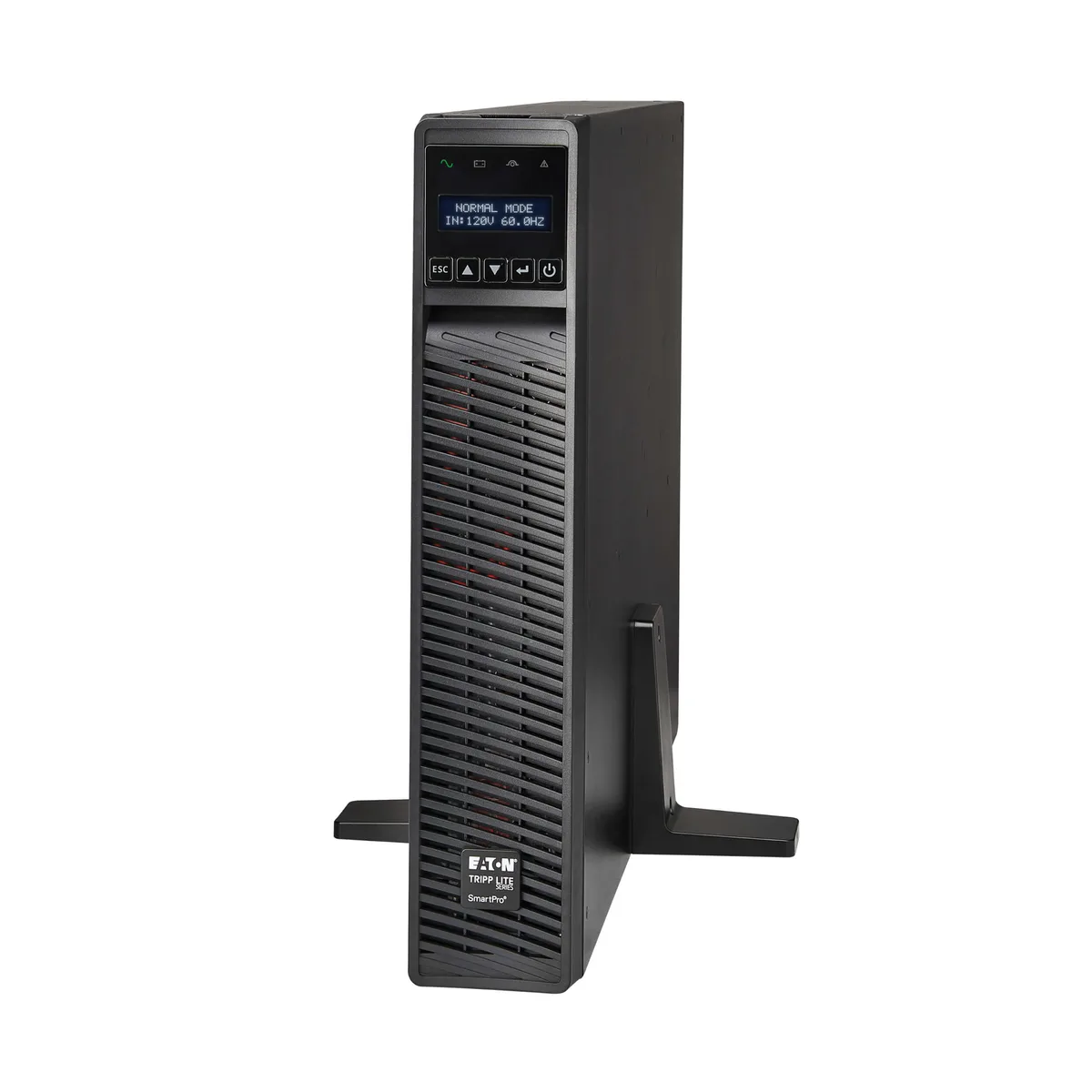

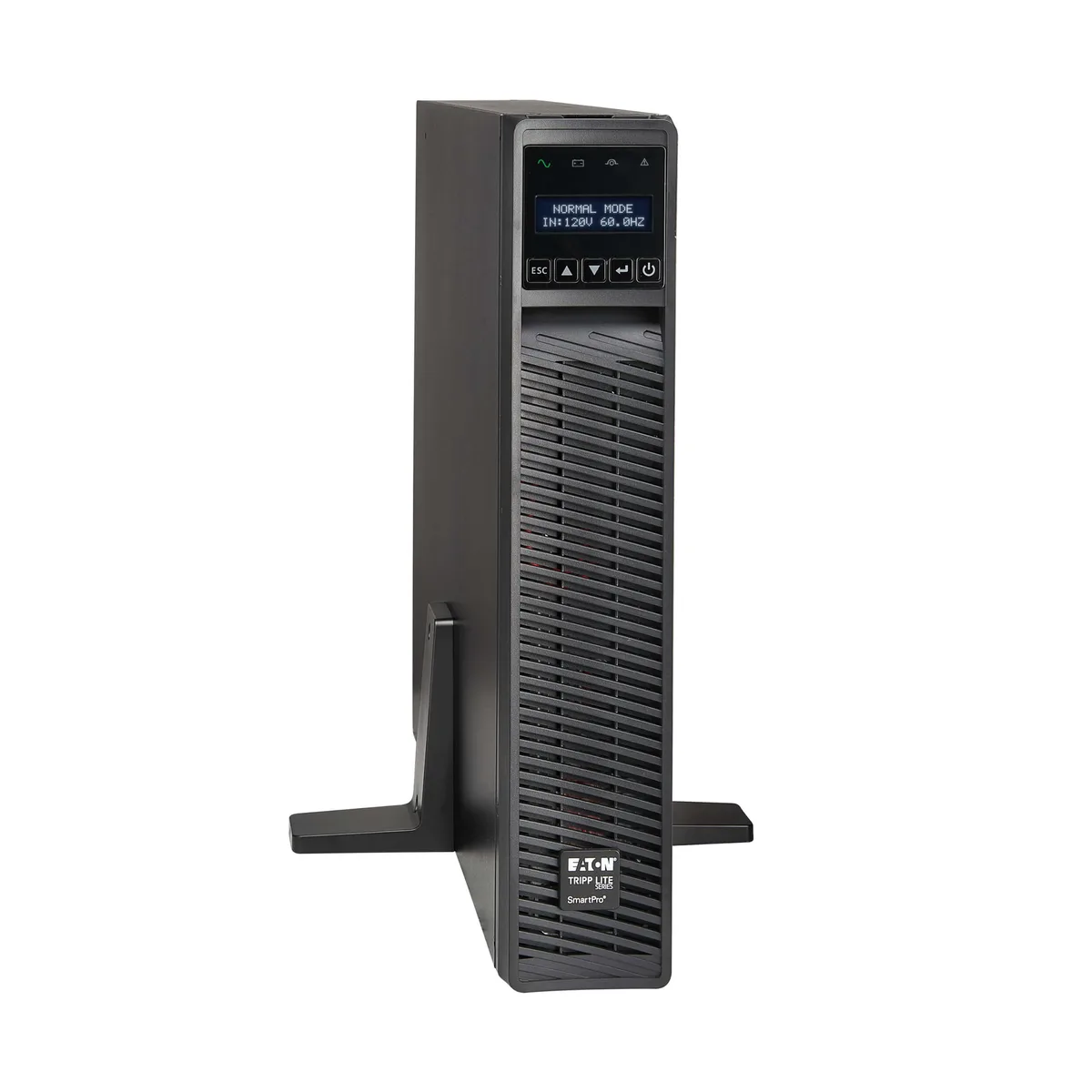

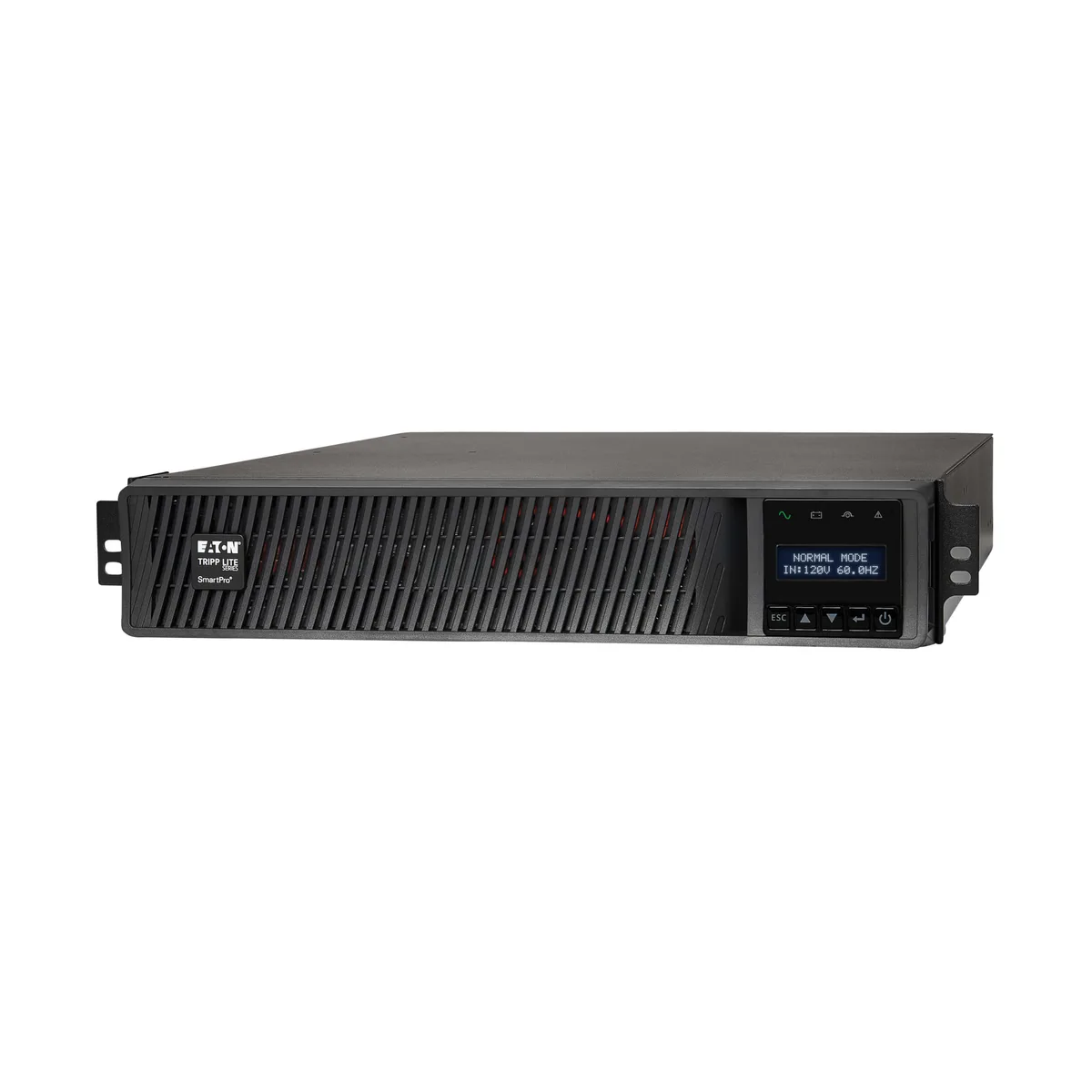

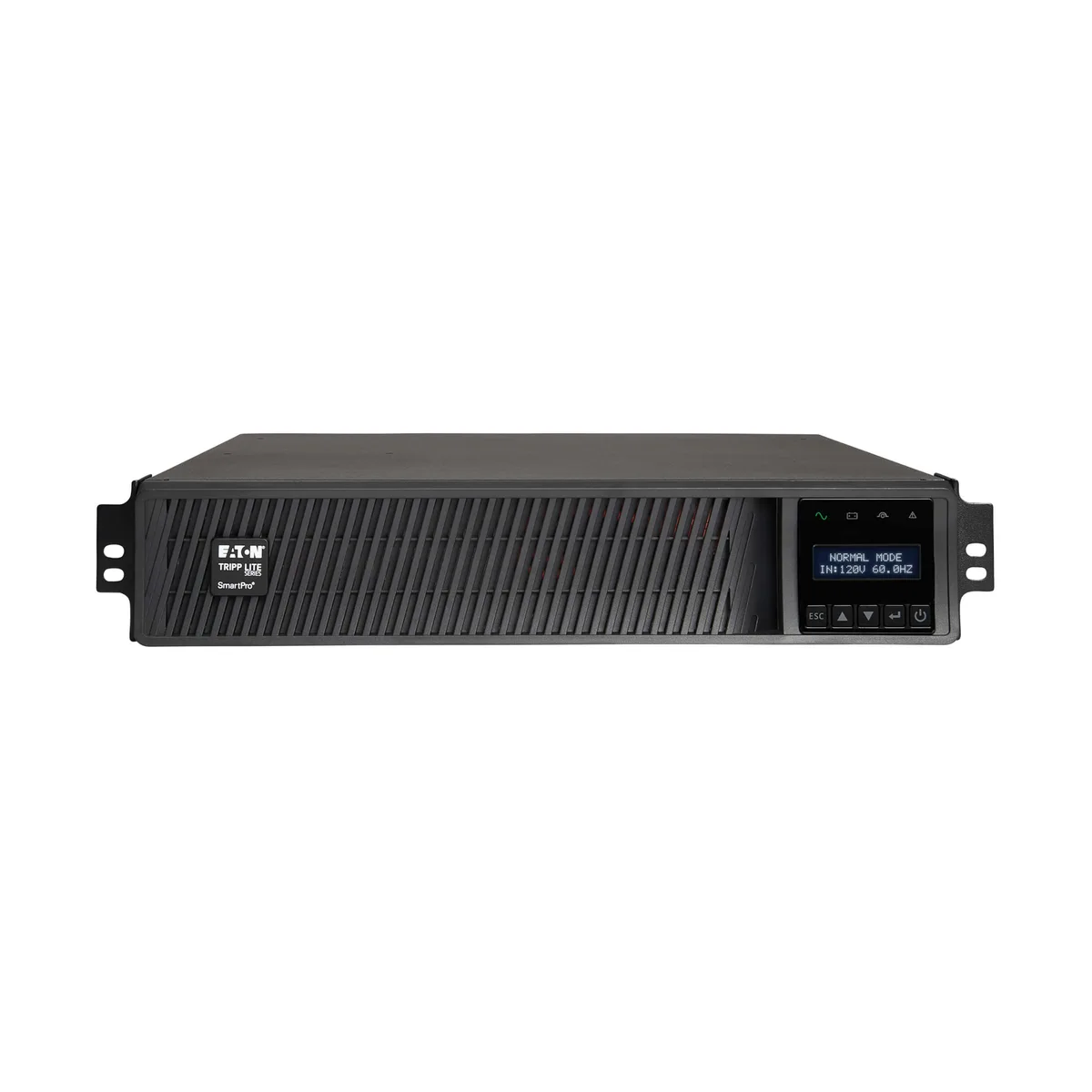

Black 2U rackmount UPS with front LCD display and seven rear outlets

Tripp Lite

Tripp Lite SMART2200RM2UN 1950VA 1950W UPS 7 Outlets 2U Rack/Tower

SKU CH-4CYH-0DACF MPN SMART2200RM2UN

Line-interactive sine-wave UPS delivering 1950VA/1950W with seven outlets, hot-swappable battery and pre-installed network card for remote monitoring

  • International Version120V
  • Input Voltage Range80V-151V; adjustable to 70-153V
  • Input ConnectionNEMA 5-20P
  • VA Rating1950 VA
  • Watts1950 Watts
  • Output Voltage100V; 110V; 120V; 125V

VA 2200 VA w/ WEBCARDLX

  • Unity power factor delivers full 1950 W from 1950 VA
  • Pre-installed WEBCARDLXE network card enables 24/7 remote monitoring
  • 2-line LCD with 10 selectable screens shows detailed UPS and site power data
  • Hot-swappable 72 V battery cartridge allows user replacement without downtime
  • Line-interactive AVR corrects 80-151 V input to stable 100-125 V output

SmartPro 1950VA UPS

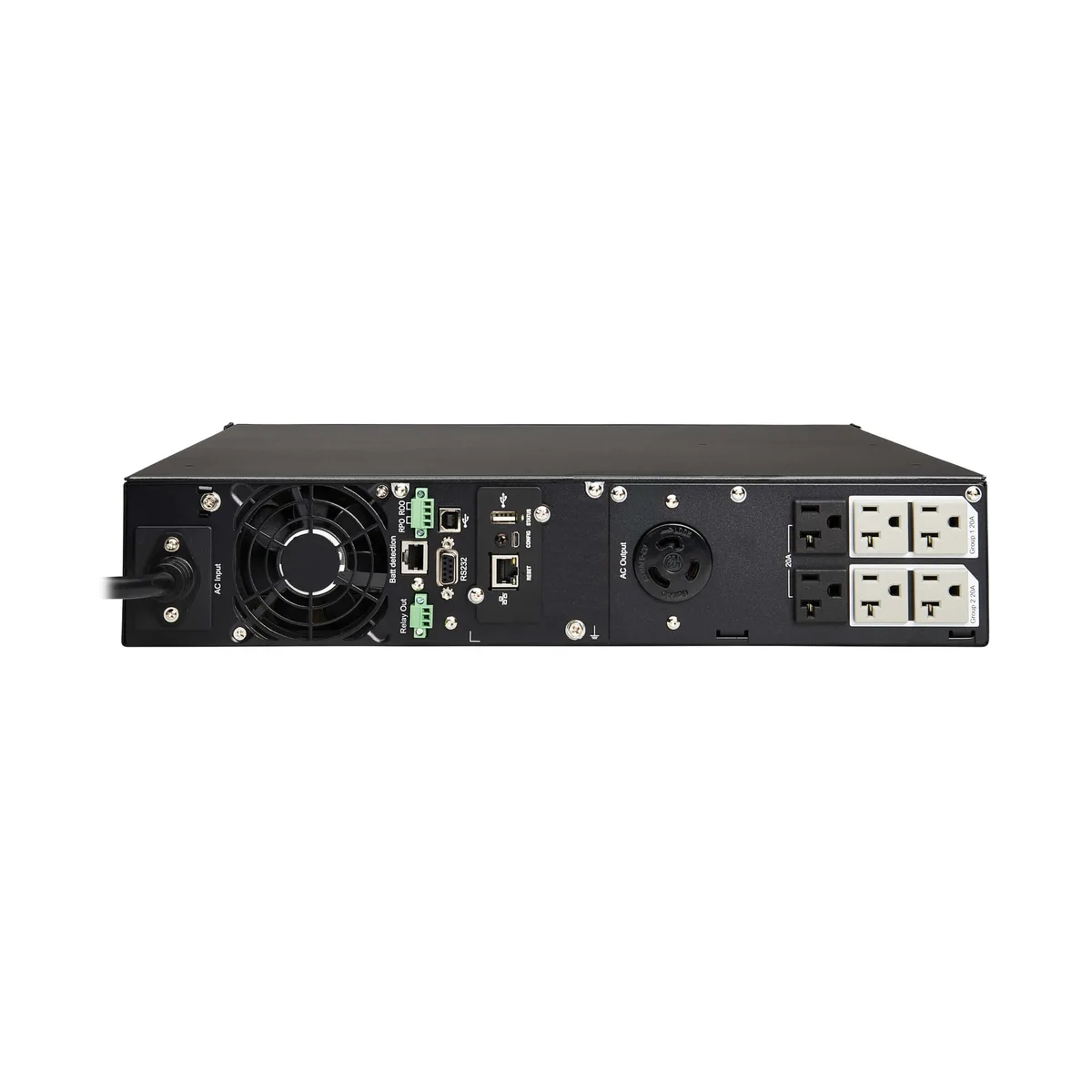

The Tripp Lite SmartPro SMART2200RM2UN is a line-interactive uninterruptible power supply rated at 1950VA and 1950W with unity power factor. It accepts 120V input through a NEMA 5-20P plug and delivers selectable output at 100V, 110V, 120V or 125V. The unit provides seven outlets, six 5-20R and one L5-20R, in a 2U rack or tower chassis.

Suits critical servers and network gear

This UPS protects servers, switches and storage arrays from blackouts, brownouts, surges and line noise while allowing time for safe shutdown. The pre-installed network card enables 24/7 remote monitoring and control, and the hot-swappable 72V battery cartridge can be replaced without powering down connected loads. Buyers who need extended runtime at full load or input voltage outside the 80V to 151V range should consider other solutions.

Runtime at load decides fit

At full 1950W load the internal battery provides four minutes of backup; at half load of 975W it provides twelve minutes. Recharge from 10% to 90% takes less than 4.5 hours. The 380 joule surge rating and selectable input window of 70V to 153V complete the protection profile. Match these runtime figures to your required shutdown window to confirm suitability.

Highlights

  • Unity power factor delivers full 1950 W from 1950 VA
  • Pre-installed WEBCARDLXE network card enables 24/7 remote monitoring
  • 2-line LCD with 10 selectable screens shows detailed UPS and site power data
  • Hot-swappable 72 V battery cartridge allows user replacement without downtime
  • Line-interactive AVR corrects 80-151 V input to stable 100-125 V output

Specifications

BrandTRIPP LITE
SeriesSmartPro
ModelSMART2200RM2UN
International Version120V
Input Voltage Range80V-151V; adjustable to 70-153V
Input ConnectionNEMA 5-20P
VA Rating1950 VA
Watts1950 Watts
Output Voltage100V; 110V; 120V; 125V
Output Frequency50 / 60 Hz
Outlets7
Outlet Type(6) 5-20R; (1) L5-20R
Battery TypeValve Regulated Lead Acid (VRLA)
Battery Run TimeFull Load (min.): 4 min. (1950W)
Half Load (min.): 12 min. (975W)
Battery Recharge TimeLess than 4.5 hours from 10% to 90% (typical, full load discharge)
Battery ReplaceableHot-swappable, user replaceable 72V DC internal battery cartridge
AlarmsAudible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions
Interface PortContact closure; DB9 Serial; EPO (emergency power off); Pre-installed network card; USB (HID enabled)
Rackmountable2U
Surge Energy Rating380 Joules
TemperatureOperating Temperature Range: 32° to 104°F (0° to 40°C)
Storage Temperature Range: 5° to 122°F (-15° to 50°C)
Humidity20 to 95%, non-condensing
Dimensions3.4" x 17.2" x 23.7"
Weight65.3 lbs.
Package Contents1950VA 1950W 120V Tripp Lite Series Line-Interactive UPS
WEBCARDLXE network management card
USB cable
Micro USB Cable
DB9 cable
Rack-mounting hardware
Tower support stands
Safety instructions
Quick Start Guide
WEBCARDLXE Quick Start Guide
Shipping weight34.93 kg
Package size610 × 554 × 224 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What input plug does the 1950 W UPS need on my 120 V circuit?

The unit ships with a NEMA 5-20P plug; you need a matching 20 A receptacle or an adapter rated for 20 A service.

Will the six 5-20R and one L5-20R outlets support my existing 5-15P gear?

Yes, standard 5-15P plugs fit the 5-20R outlets; the L5-20R outlet accepts a locking 5-20P plug for a single high-draw device.

How do I confirm the 72 V DC battery is delivering the rated 4 min at full load?

Watch the LCD runtime estimate during a self-test or simulated outage; it should show roughly 4 min remaining at 1950 W.
