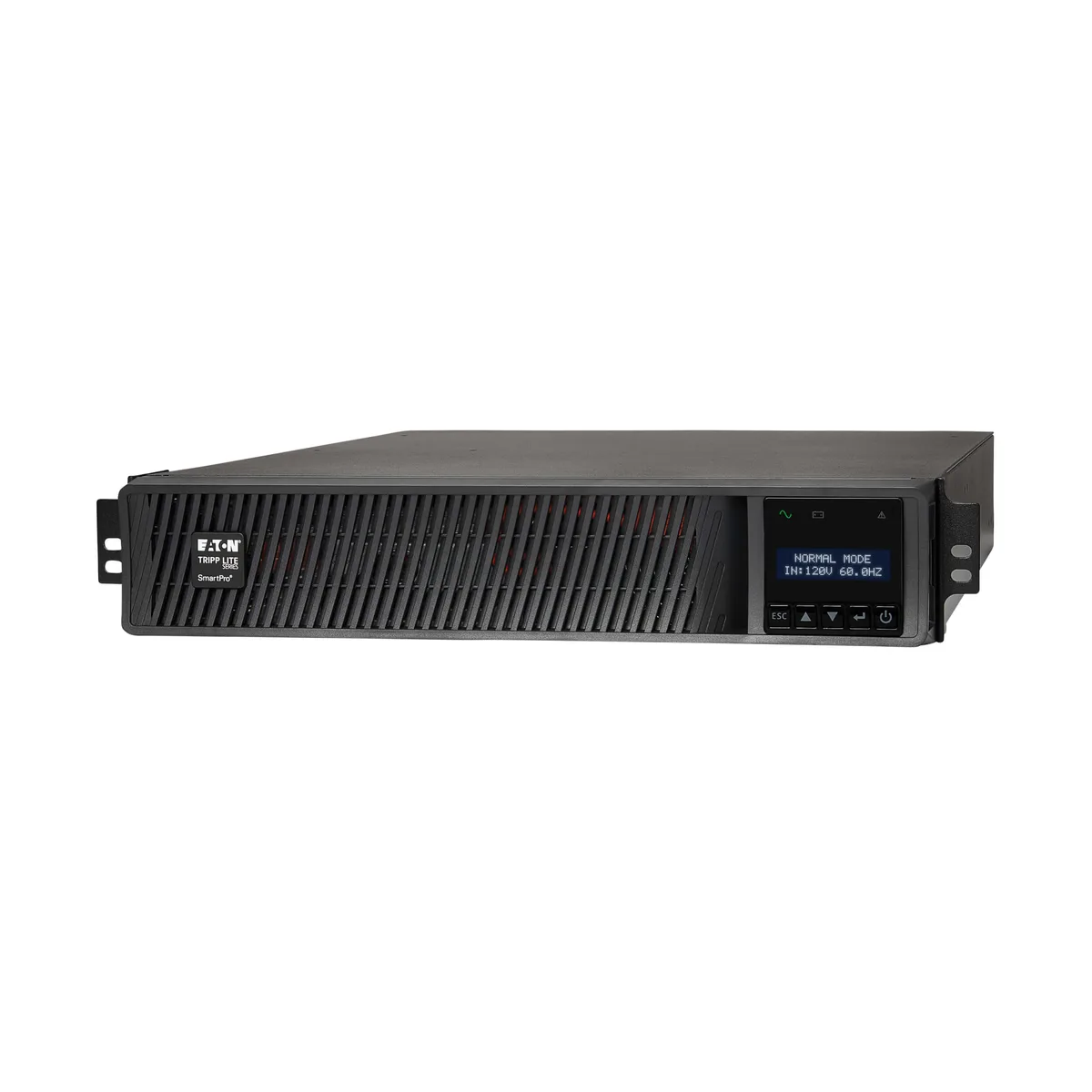

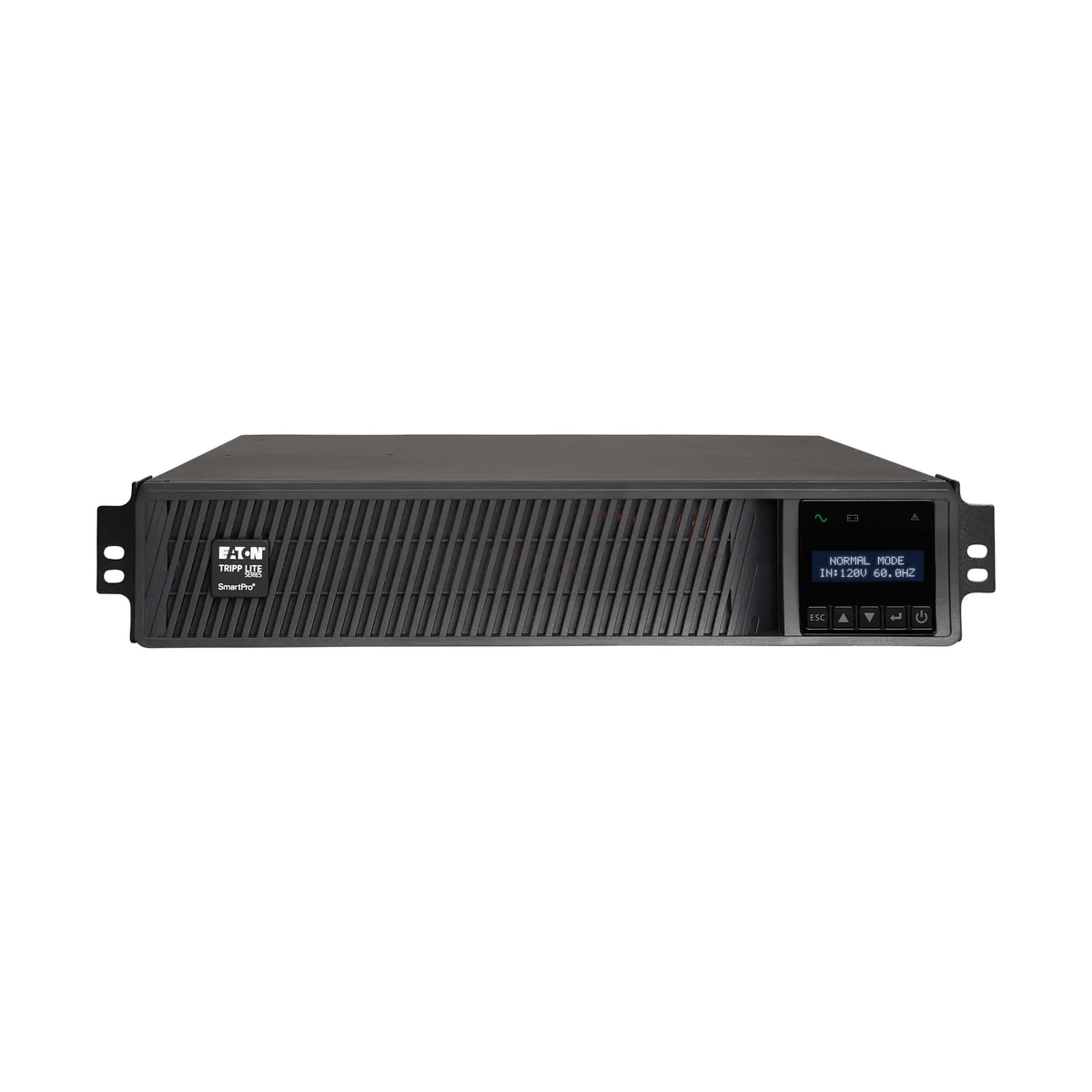

Black rectangular 2U rackmount UPS unit with front LCD display and multiple outlets visible

Tripp Lite

Tripp Lite SMART1500RMXL2U 1500VA 1350W 2U Rackmount UPS

SKU CH-CDN2-8E1R2 MPN SMART1500RMXL2U

Provides 1500VA line-interactive sine-wave backup with automatic voltage regulation and hot-swappable batteries

  • International Version120V
  • Input Voltage Range80V-151V; adjustable to 70-153V
  • Input ConnectionNEMA 5-15P
  • VA Rating1000VA
  • Watts1000W
  • Output Voltage100V; 110V; 120V; 125V
  • Sine wave output delivers clean power to sensitive equipment
  • Automatic Voltage Regulation corrects brownouts and overvoltages from 83V to 145V
  • Hot-swappable batteries allow replacement without powering down connected loads
  • Expandable runtime capability supports longer backup during extended outages

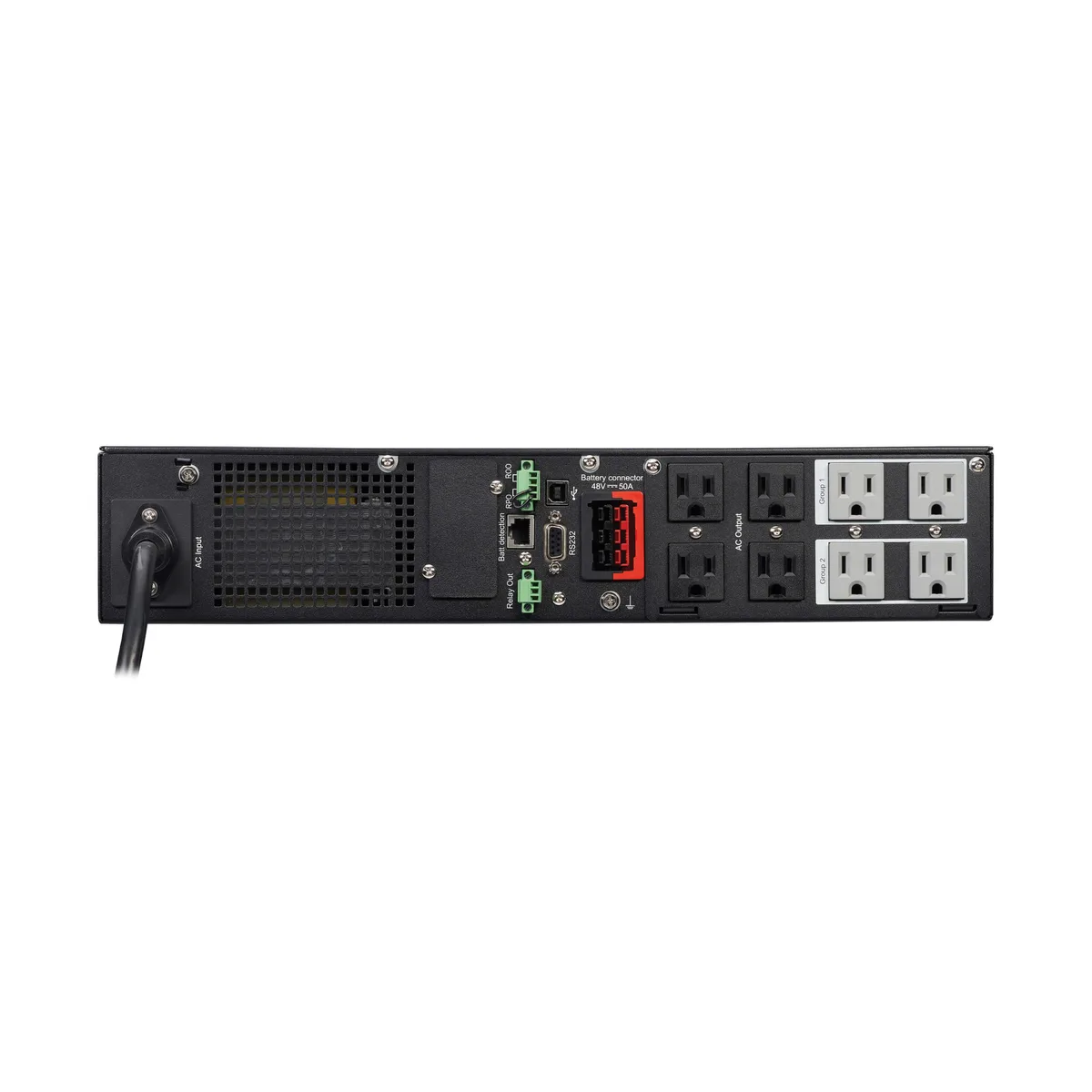

  • Eight NEMA 5-15R outlets provide surge-protected connections for multiple devices

2U Rackmount Sine-Wave UPS

The Tripp Lite SMART1500RMXL2U is a line-interactive uninterruptible power supply rated at 1500 VA and 1350 W. It delivers a pure sine-wave output at 120 V and fits a standard 2U rack space. Eight NEMA 5-15R outlets provide battery-backed and surge-protected power for servers, network gear and storage arrays.

Replaces standby or simulated-sine units

Stepping up from a standby UPS or a simulated-sine model adds automatic voltage regulation that corrects brownouts from 83 V to 145 V without using battery capacity. The upgrade is worthwhile when connected equipment requires a true sine wave or when runtime must be extended with external battery packs.

Fits a 120 V rack environment

The unit connects to a NEMA 5-15P wall receptacle and operates between 32 °F and 104 °F. Hot-swappable VRLA batteries can be replaced without powering down the load, and an expansion slot accepts an optional SNMP or Web management card. USB and RS-232 ports enable local monitoring and automated shutdown software.

Highlights

  • Sine wave output delivers clean power to sensitive equipment
  • Automatic Voltage Regulation corrects brownouts and overvoltages from 83V to 145V
  • Hot-swappable batteries allow replacement without powering down connected loads
  • Expandable runtime capability supports longer backup during extended outages
  • Eight NEMA 5-15R outlets provide surge-protected connections for multiple devices

Specifications

BrandTRIPP LITE
SeriesSmartPro
ModelSMART1500RMXL2U
International Version120V
Input Voltage Range80V-151V; adjustable to 70-153V
Input ConnectionNEMA 5-15P
VA Rating1000VA
Watts1000W
Output Voltage100V; 110V; 120V; 125V
Outlets8
Battery TypeValve Regulated Lead Acid (VRLA)
Battery Run TimeFull Load (min.): 6 min. (1000W)
Half Load (min.): 17 min. (500W)
Battery Recharge TimeLess than 4.5 hours from 10 to 90% (typical, full load discharge)
Battery ReplaceableHot-swappable, replaceable batteries
AlarmsAudible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions
RackmountableYes
Surge Energy Rating380 Joules
TemperatureOperating Temperature Range: 32° to 104°F (0° to 40°C)
Storage Temperature Range: 5° to 122°F (-15° to 50°C)
Humidity20 to 95%, non-condensing
FeaturesAutomatic Voltage Regulation (AVR); Expandable battery backup; Hot swappable batteries; Remote management; Sine wave output; Surge/noise protection
Dimensions3.40" x 17.200" x 17.60"
Weight44.5 lbs.
Package Contents1000VA 1000W 120V Line-Interactive UPS
USB cable
DB9 cable
Rack-mounting hardware

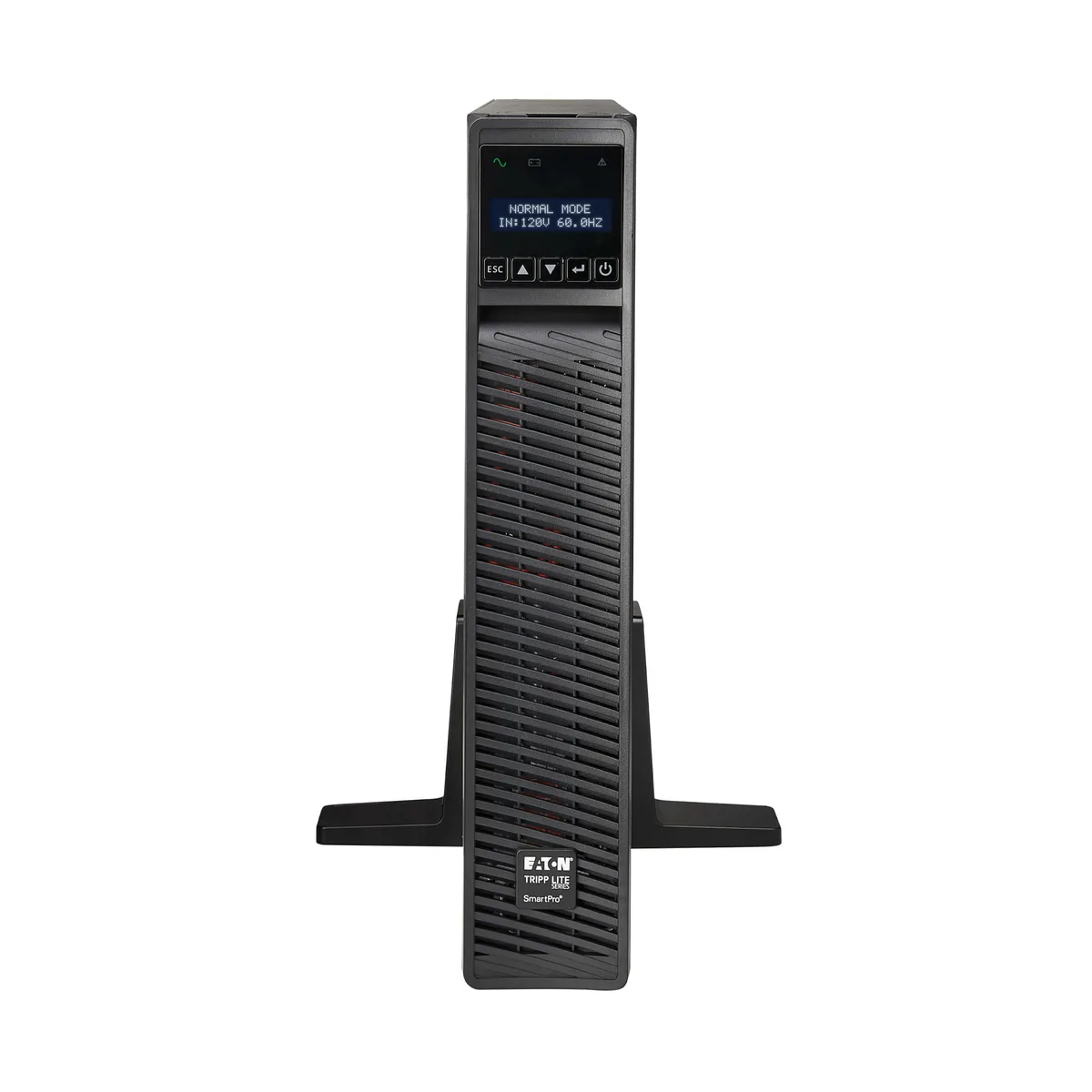

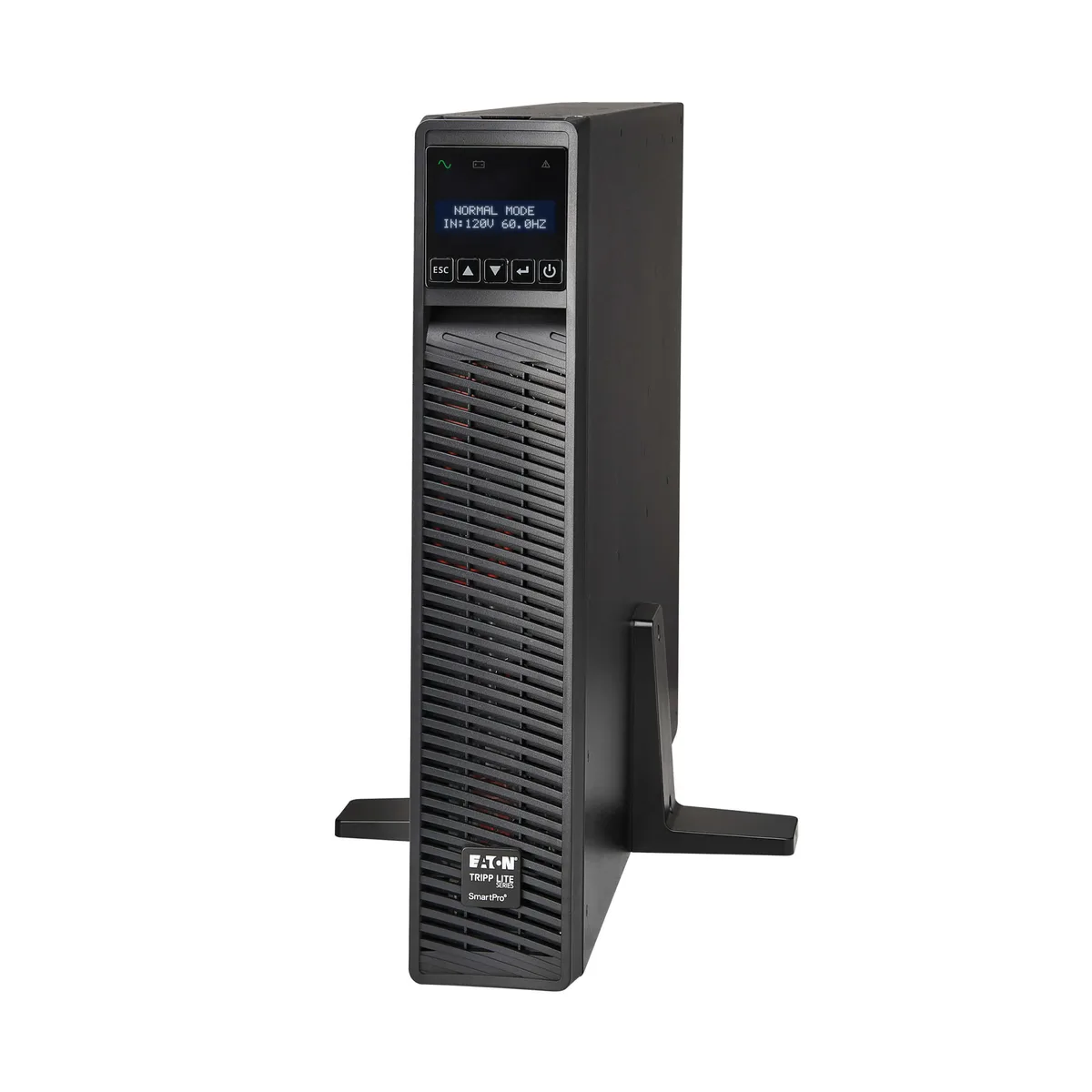

Tower support stands
Safety instructions
Advanced User Guide
Shipping weight10.89 kg
Package size151 × 98 × 65 mm

Questions about this item

What rack depth does the 2U SMART1500RMXL2U need for mounting?

The unit occupies a standard 2U rack space; ensure the rack depth accommodates the chassis and allows cable clearance at the rear NEMA 5-15R outlets.

Which step is often missed when installing the hot-swappable battery modules?

After inserting the four 12V7A VRLA cartridges, the LCD menu must be used to reset the battery replacement date so runtime calculations stay accurate.

How often should the four 12V7A VRLA batteries be replaced in typical use?

Expect a 3 to 5 year service life; the audible alarm and LCD will signal low capacity, and hot-swappable design lets you change all four modules without powering down.
