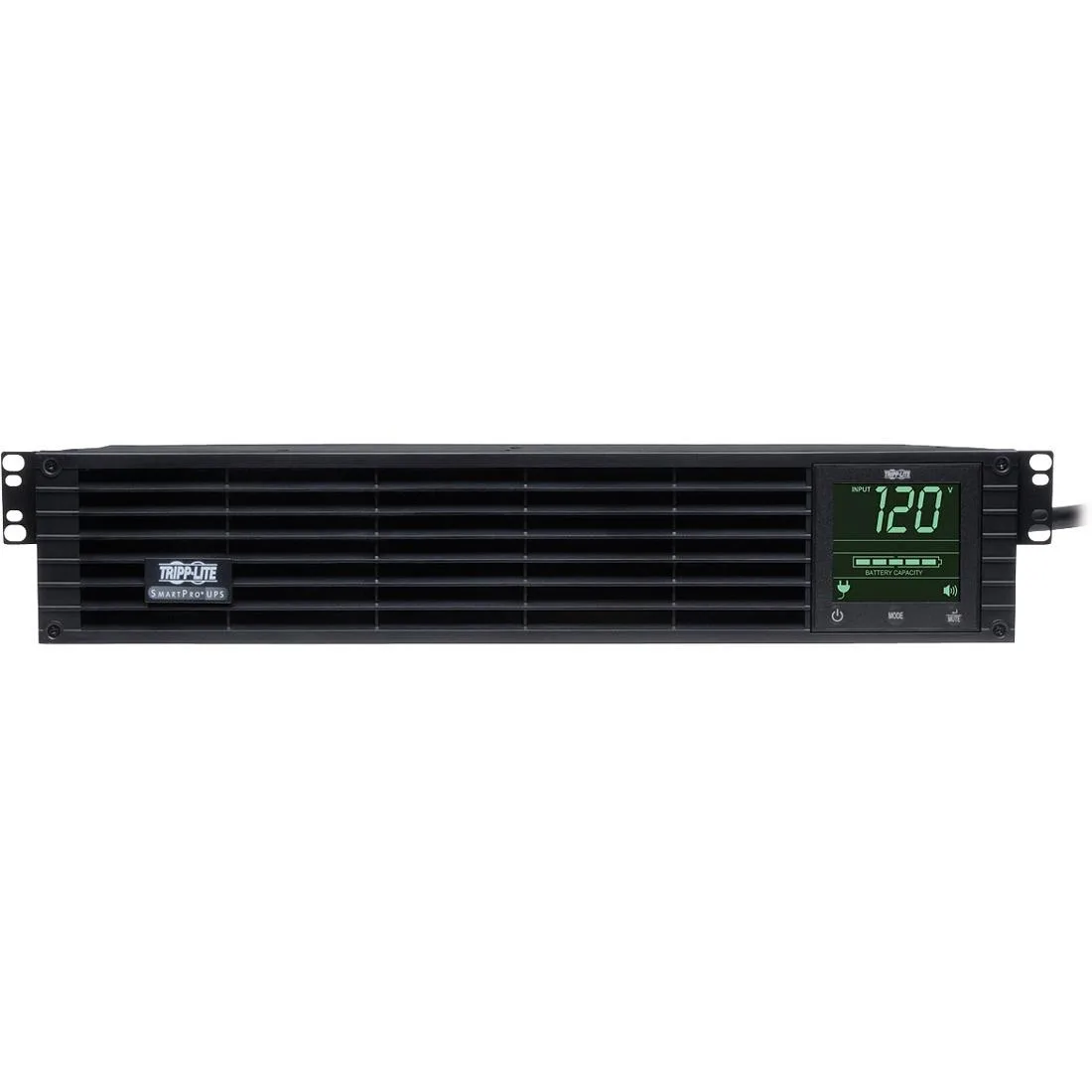

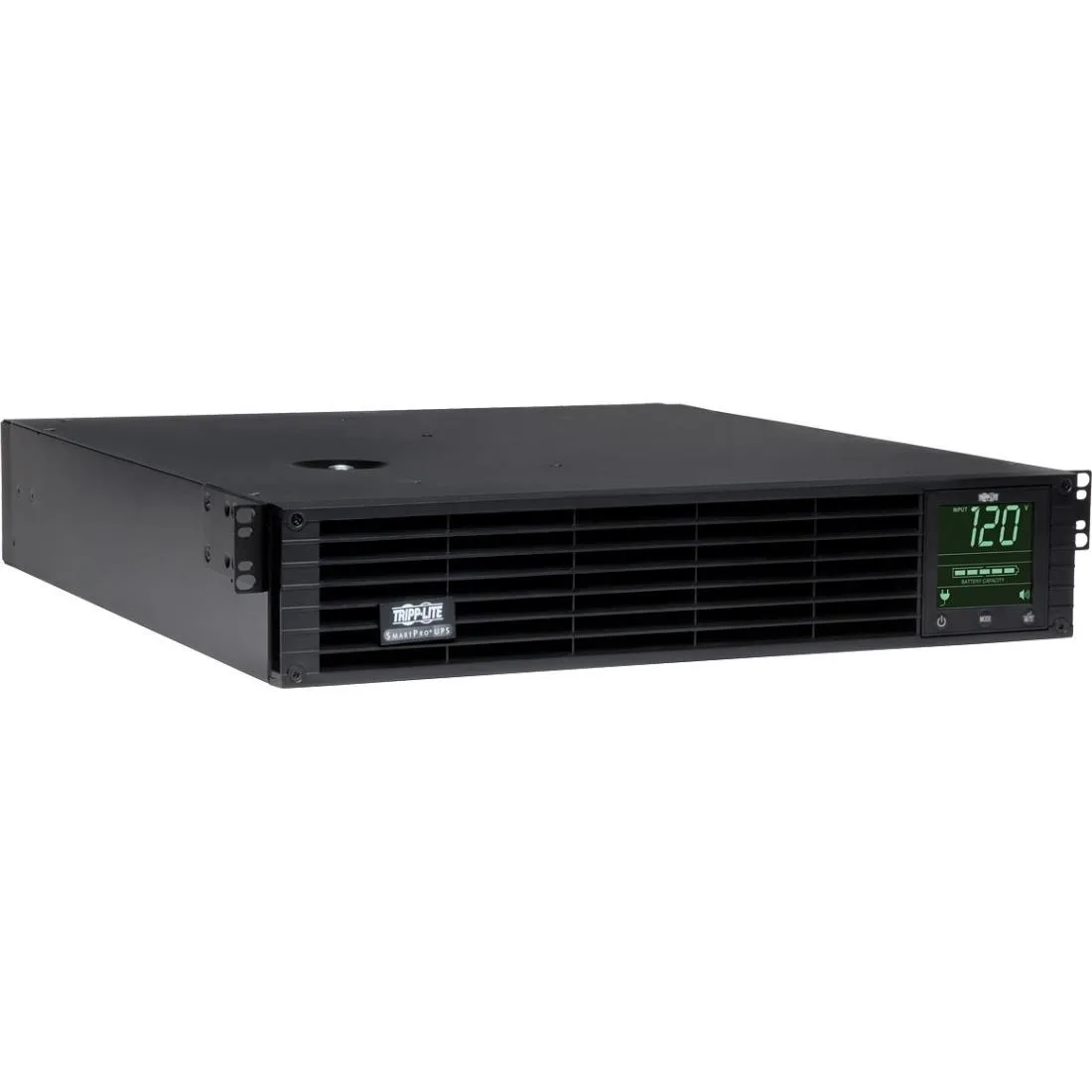

Black 2U rackmount UPS with LCD display and multiple rear outlets

Tripp Lite

Tripp Lite SM3000RM2UTAA 3000VA 2250W 2U UPS

SKU CH-GZR0-7YZ4T MPN SM3000RM2UTAA

A 2U rackmount UPS delivering 3000VA and 2250W with nine outlets, USB, serial and SNMP card slot for network management

  • International Version120V AC
  • Input ConnectionNEMA L5-30P
  • VA Rating3000VA
  • Watts2250W
  • Output Voltage120V
  • Output Frequency60Hz
  • 3000 VA 2250 W protects critical servers during outages
  • 9 outlets including NEMA L5-30R powers diverse rack equipment
  • 5 minutes full-load runtime allows orderly shutdown
  • USB DB9 SNMP slot enables remote monitoring
  • TAA compliant ENERGY STAR qualified meets government procurement standards

3000VA 2U Rackmount UPS for Critical Loads

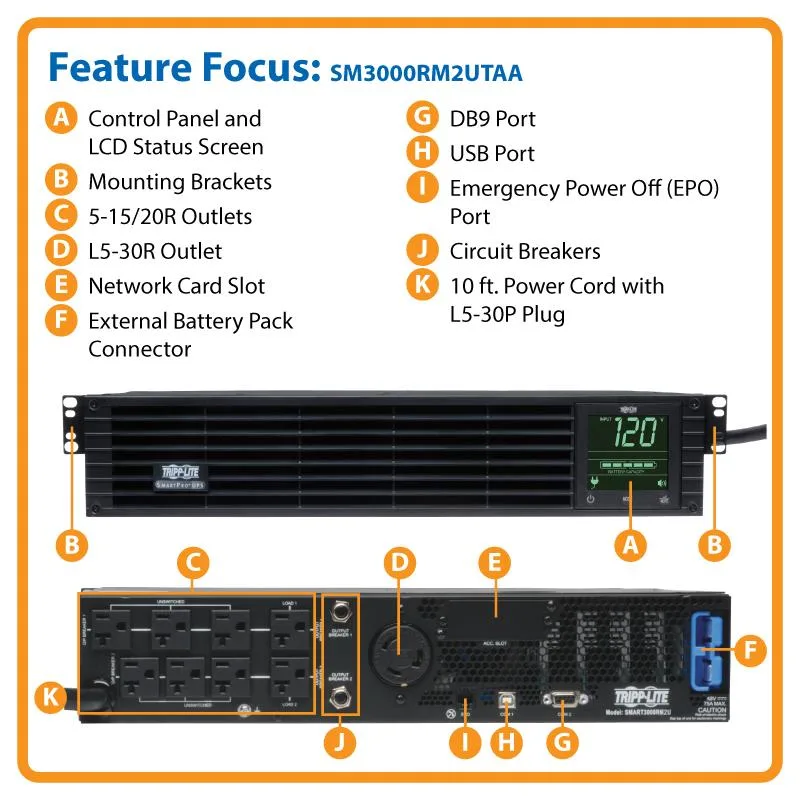

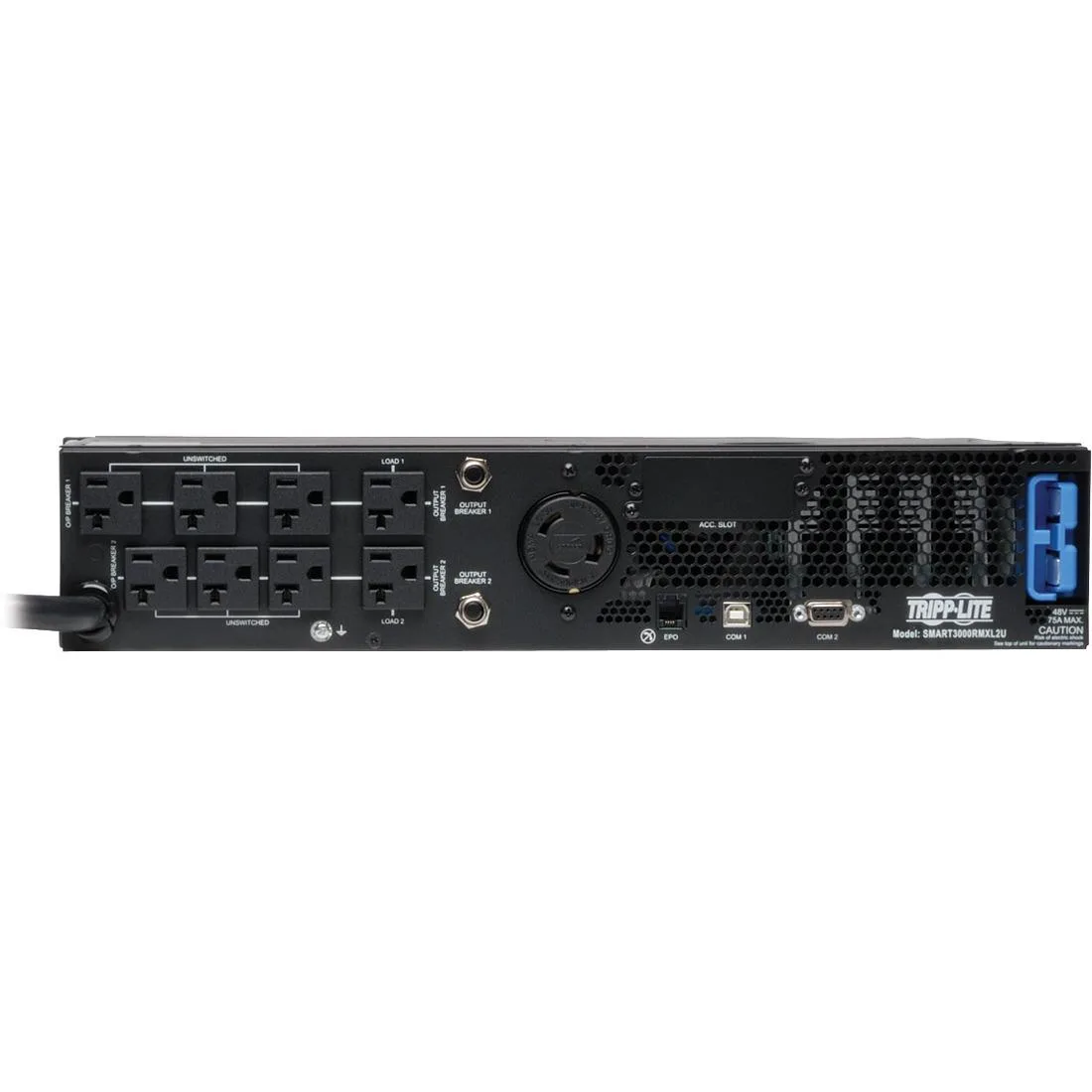

The Tripp Lite SM3000RM2UTAA is a line-interactive UPS delivering 3000VA and 2250W of pure sine-wave output at 120V. It fits a 2U rack space and provides nine outlets, including eight 5-15/20R receptacles and one L5-30R receptacle. TAA compliance and ENERGY STAR qualification make it suitable for government and regulated deployments.

Runtime Limits and Input Requirements

At full load the internal batteries supply power for 3.5 minutes, extending to 10 minutes at half load of 1125W. The unit recharges from 10% to 90% in less than 4.5 hours. Connection requires a NEMA L5-30P input circuit rated for 30A at 120V; sites without this receptacle cannot use the UPS without electrical work. Optional external battery packs can extend runtime beyond the built-in limits.

Installation Notes and Common Issues

Rack ears are included for standard 2U mounting, but the unit is heavy and requires two people or a lift for safe installation. The replaceable battery cartridge is RBC94-2U and is hot-swappable. Management uses USB HID, DB9 serial, or an optional SNMP/Web card in the expansion slot; without the network card remote monitoring is limited to local software via the serial or USB link.

Highlights

  • 3000 VA 2250 W protects critical servers during outages
  • 9 outlets including NEMA L5-30R powers diverse rack equipment
  • 5 minutes full-load runtime allows orderly shutdown
  • USB DB9 SNMP slot enables remote monitoring
  • TAA compliant ENERGY STAR qualified meets government procurement standards

Specifications

BrandTRIPP LITE
SeriesSmartPro
ModelSM3000RM2UTAA
International Version120V AC
Input ConnectionNEMA L5-30P
VA Rating3000VA
Watts2250W
Output Voltage120V
Output Frequency60Hz
Outlets9
Outlet Type8 5-15/20R outlet(s); 1 L5-30R outlet(s)
Battery TypeValve Regulated Lead Acid (VRLA)
Battery Run TimeFull Load Runtime: 3.5 minutes (2250w)
Half Load Runtime: 10 minutes (1125w)
Expandable Battery Runtime: Extended runtime supported via optional external battery packs
Battery Recharge TimeLess than 4.5 hours from 10% to 90%
Battery ReplaceableRBC94-2U
AlarmsAudible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions
Interface PortUSB (HID enabled); DB9 Serial; Slot for SNMP/Web interface
Management SoftwarePowerAlert
ApprovalsTested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category A (EMI); ROHS (Restriction of Hazardous Substances); TAA Compliant; ENERGY STAR Qualified
Rackmountable2U
Surge Energy Rating570J
FeaturesFederal Trade Agreements Act / TAA compliant for GSA schedule purchases
3kVA / 3000VA / 2250W line interactive 2U rack/tower UPS, Sine Wave
120V output, Corrects brownouts and overvoltages from 83V to 145V
0.75 Power Factor, Interactive LCD interface, Extended runtime options to 1600W
98% line-mode efficiency, 2 switched load banks, 4 post mounting accessories
USB, RS232, EPO and slot for SNMPWEBCARD option
120V NEMA L5-30P input, 8 NEMA 5-15/20R & 1 L5-30R outlets
Dimensions3.50" x 17.50" x 19.50" (H x W x D)
Weight62.80 lbs.
Package ContentsSM3000RM2UTAA UPS System
PowerAlert Software with USB, Serial & EPO cabling
4-post rackmount installation kit
Instruction manual
Shipping weight36.38 kg
Package size615 × 550 × 200 mm

Questions about this item

How do I choose between the 5-15/20R and L5-30R outlets for my equipment?

The unit provides eight 5-15/20R outlets for standard 120V devices and one L5-30R outlet for higher-draw 30A loads; match each device's plug type to the corresponding outlet.

What does the 2250W rating mean for actual server runtime?

At full 2250W load the internal batteries deliver 3.5 minutes; at half load (1125W) runtime extends to 10 minutes, and optional external packs can increase it further.

What management interfaces are built in and what do they support?

Built-in USB (HID), DB9 serial and an SNMP/Web card slot enable monitoring, graceful shutdown via PowerAlert software and network-based management.
