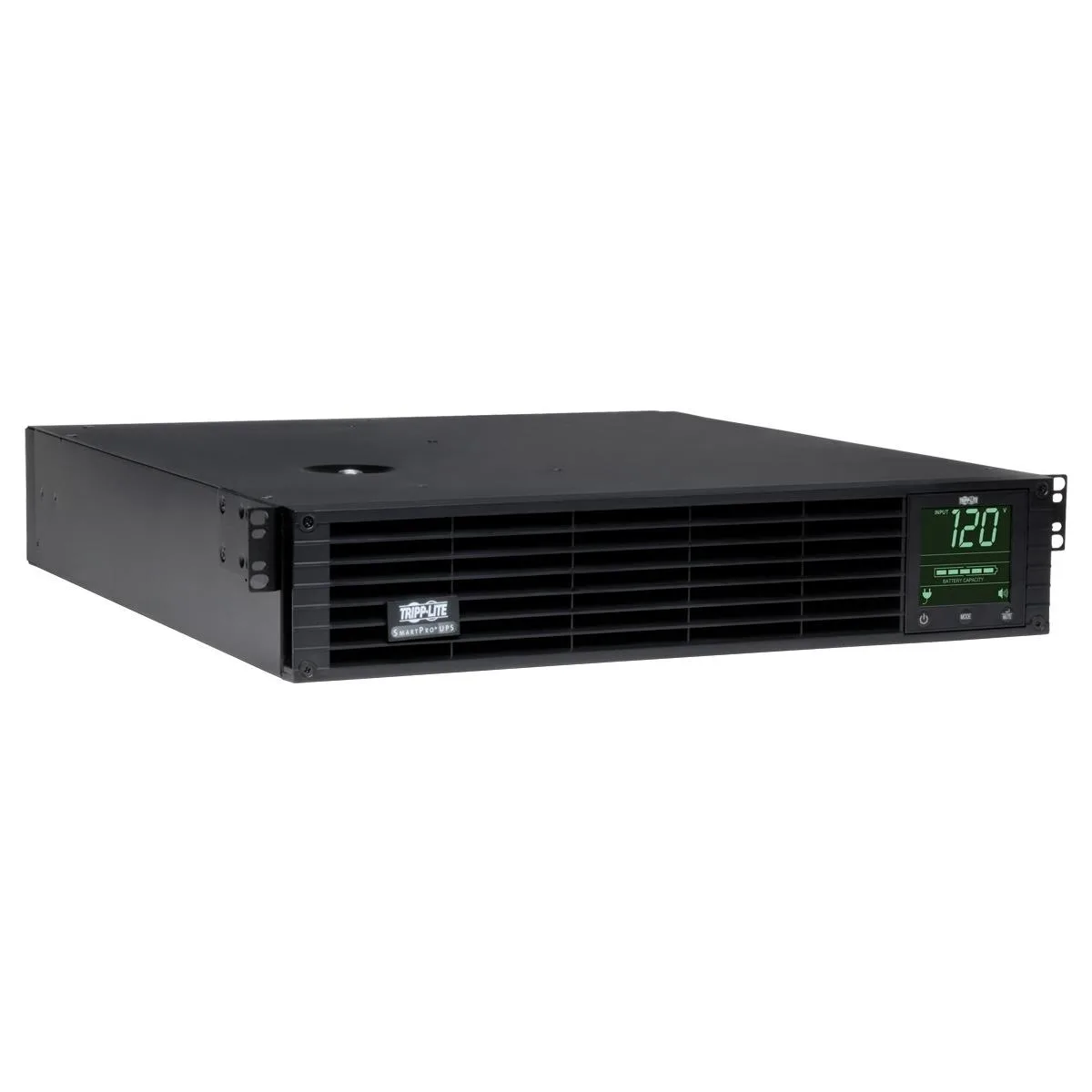

Black 2U rackmount UPS with LCD screen and nine rear outlets

Tripp Lite

Tripp Lite SM3000RM2UNTAA UPS 3000VA 2250W 120V 9 Outlets 2U

SKU CH-R7FG-DWSD1 MPN SM3000RM2UNTAA

Line-interactive UPS delivers 3000 VA / 2250 W with AVR, nine outlets, USB, serial and SNMP slot in a 2U rackmount chassis

  • International Version120V AC
  • Input ConnectionNEMA L5-30P
  • VA Rating3000VA
  • Watts2250W
  • Output Voltage120V
  • Output Frequency60 Hz
  • 3000 VA 2250 W protects critical servers and network gear
  • 9 outlets including 8 NEMA 5-15/20R and 1 L5-30R
  • 2U rackmount form factor fits standard cabinets
  • USB HID DB9 serial and SNMP slot enable remote management
  • 98% line-mode efficiency lowers heat and operating costs

SmartPro 3000VA UPS for critical servers

The Tripp Lite SmartPro SM3000RM2UNTAA is a line-interactive UPS rated at 3000VA and 2250W for 120V environments. It provides battery backup and automatic voltage regulation for critical server, network and telecommunications equipment in a 2U rackmount form factor.

Line-mode efficiency and runtime figures

The unit delivers 98% efficiency in line mode to reduce heat emissions and operating costs. Runtime is 3.5 minutes at the full 2250W load and 10 minutes at half load of 1125W, while recharge from 10% to 90% completes in under 4.5 hours.

WEBCARDLX and PowerAlert management

A pre-installed WEBCARDLX card adds a Java-free HTML5 interface for full remote access and monitoring. USB HID, DB9 serial and the SNMP slot work with PowerAlert software to enable automated shutdown, alerts and detailed UPS configuration.

Highlights

  • 3000 VA 2250 W protects critical servers and network gear
  • 9 outlets including 8 NEMA 5-15/20R and 1 L5-30R
  • 2U rackmount form factor fits standard cabinets
  • USB HID DB9 serial and SNMP slot enable remote management
  • 98% line-mode efficiency lowers heat and operating costs

Specifications

BrandTRIPP LITE
SeriesSmartPro
ModelSM3000RM2UNTAA
International Version120V AC
Input ConnectionNEMA L5-30P
VA Rating3000VA
Watts2250W
Output Voltage120V
Output Frequency60 Hz
Outlets9
Outlet Type8 5-15/20R outlet(s); 1 L5-30R outlet(s)
Battery TypeValve Regulated Lead Acid (VRLA)
Battery Run TimeFull Load Runtime: 3.5 min. (2250w)
Half Load Runtime: 10 min. (1125w)
Output with external battery pack configurations is limited to 1600 watts maximum
Battery Recharge TimeLess than 4.5 hours from 10% to 90%
Battery ReplaceableRBC94-2U
AlarmsAudible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions
Interface PortUSB (HID enabled); DB9 Serial; Slot for SNMP/Web interface
Management SoftwarePowerAlert
ApprovalsTested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category A (EMI); ROHS (Restriction of Hazardous Substances); TAA Compliant; ENERGY STAR Qualified
Rackmountable2U
Surge Energy Rating570J
FeaturesFederal Trade Agreements Act / TAA Compliant for GSA Schedule purchases
3kVA / 3000VA / 2250W line interactive 2U rack/tower UPS
120V nominal output during brownouts to 83V and overvoltages to 145V

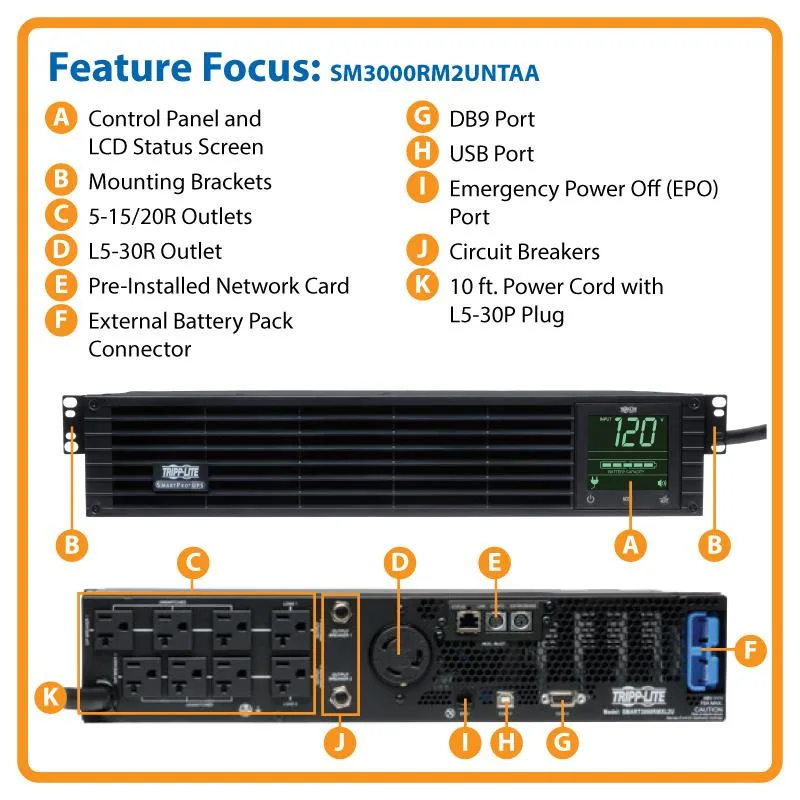

Interactive LCD, USB, RS232, EPO and Pre-installed SNMPWEBCARD interface
Hot-swap batteries, 98% efficiency, Sine wave output, 2 switchable load banks
NEMA L5-30P input, 8 NEMA 5-15/20R & 1 L5-30R outlets
Dimensions3.50" x 17.50" x 19.50" (H x W x D)
Weight62.80 lbs.
Package ContentsSM3000RM2UNTAA UPS System with Pre-installed SNMPWEBCARD
PowerAlert Software with USB, Serial & EPO cabling
4-post rackmount installation kit
Instruction manual
Shipping weight34.93 kg
Package size610 × 432 × 127 mm

Questions about this item

How do I install the SM3000RM2UNTAA in a 2U rack and connect the input plug?

Mount the 2U chassis in a standard rack, then connect the NEMA L5-30P input to a 30 A 120 V circuit; the step often missed is verifying the branch circuit is rated for 30 A before plugging in.

Which battery module replaces the internal pack when runtime drops?

The RBC94-2U cartridge is the direct replacement; swap it hot without powering down the load.

What power ceiling appears first when I add external battery packs for longer runtime?

Output is capped at 1600 watts maximum once external battery packs are connected, regardless of the 2250 W internal rating.
