Black 2U rackmount UPS with LCD screen and eight NEMA outlets

Tripp Lite

Tripp Lite SM2200RMXL2UP 2200VA 1920W UPS

SKU CH-9NQE-VP037 MPN SM2200RMXL2UP

Provides 2200VA and 1920W sine-wave battery backup with automatic voltage regulation, eight NEMA outlets, USB and serial management, and a 2U rack or tower form factor

  • Input Voltage Range120V AC
  • Input Connection5-20P
  • VA Rating2200 VA
  • Watts1920 W
  • Output Voltage120 V
  • Output Frequency60 Hz

VA 2200 VA

  • 2200 VA capacity supports critical servers and network gear
  • 1920 W pure sine-wave output protects sensitive electronics during outages
  • 8 NEMA outlets (four 5-15R, four 5-15/20R) connect diverse equipment without adapters
  • USB, serial and optional SNMP card enable remote monitoring and graceful shutdown
  • 570 J surge rating shields connected devices from damaging voltage spikes

2200VA 1920W Rackmount UPS

The Tripp Lite SM2200RMXL2UP is a 2U rackmount or tower uninterruptible power supply rated at 2200 VA and 1920 W. It delivers 120 V sine-wave output with automatic voltage regulation for servers, network gear and storage arrays. Eight NEMA outlets include four 5-15R and four 5-15/20R receptacles. The unit is tested to UL 1778, CSA and NOM standards.

Installation and common issues

The 2U form factor mounts in standard 19-inch racks or sits as a tower. Input uses a 5-20P plug requiring a matching 20 A branch circuit. Management connects via USB HID, DB9 serial, EPO port or an optional SNMP card slot. Audible alarms warn of power failure, overload and low battery. Battery modules are user-replaceable using the RBC94-2U cartridge.

Runtime and interface limits

At full 1920 W load the internal VRLA batteries provide 4.5 minutes of runtime; at half load (960 W) runtime extends to 12 minutes. Recharge from 10 % to 90 % takes under 4.5 hours after a full-load discharge. Surge protection is rated at 570 joules. The USB and serial ports support PowerAlert software for monitoring and graceful shutdown.

Highlights

  • 2200 VA capacity supports critical servers and network gear
  • 1920 W pure sine-wave output protects sensitive electronics during outages
  • 8 NEMA outlets (four 5-15R, four 5-15/20R) connect diverse equipment without adapters
  • USB, serial and optional SNMP card enable remote monitoring and graceful shutdown
  • 570 J surge rating shields connected devices from damaging voltage spikes

Specifications

BrandTRIPP LITE
ModelSM2200RMXL2UP
Input Voltage Range120V AC
Input Connection5-20P
VA Rating2200 VA
Watts1920 W
Output Voltage120 V
Output Frequency60 Hz
Outlets8
Outlet Type(4) 5-15R; (4) 5-15/20R
Battery TypeValve Regulated Lead Acid (VRLA)
Battery Run TimeFull Load Runtime (min.): 4.5 min. (1920w)
Half Load Runtime (min.): 12 min. (960w)
Battery Recharge TimeLess than 4.5 hours from 10% to 90% (typical, full load discharge)
Battery ReplaceableRBC94-2U
AlarmsAudible alarm indicates power-failure, overload and low-battery conditions
Interface PortUSB (HID enabled); DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface
Management SoftwarePowerAlert
ApprovalsTested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category A (EMI)
RackmountableYes
Surge Energy Rating570 joules
Features2.2kVA / 2200VA / 1920W line interactive 2U rack/tower UPS, Sine Wave
120V output, Corrects brownouts and overvoltages from 83V to 145V
0.9 Power Factor, Interactive LCD interface
Extended runtime options up to 1920W
4 post compatible mounting accessories
96% line-mode efficiency, 2 switched load banks
USB, RS232, EPO and slot for SNMPWEBCARD option
120V NEMA 5-20P input, 4 NEMA 5-15R & 4 NEMA 5-15/20R outlets
Dimensions3.50" x 17.50" x 19.00" (H x W x D)
Weight64.00 lbs.
Package ContentsSM2200RMXL2UP UPS system
PowerAlert software with USB, Serial & EPO cabling
4 post installation kit
Owner's manual
VA2200 VA
Shipping weight34.02 kg
Package size597 × 508 × 229 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I verify the UPS is working after setup?

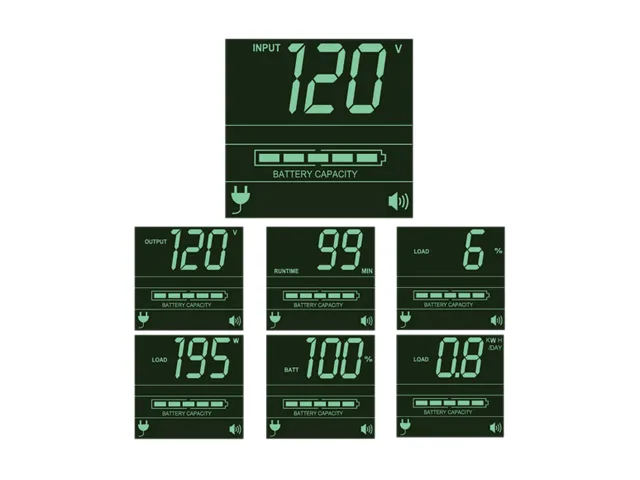

The LCD shows output voltage and load percentage, an audible alarm sounds only for power-failure, overload or low-battery, and PowerAlert software reports status over USB or serial.

What comes in the box and what must I buy separately?

The unit includes the 2U rack/tower chassis, internal VRLA batteries, USB and DB9 cables, EPO connector and PowerAlert software; the SNMP/Web card for the slot and replacement battery pack RBC94-2U are sold separately.

Which outlet group should I use for equipment with 5-20P plugs?

Use the four 5-15/20R outlets; they accept both 5-15P and 5-20P plugs, while the other four are 5-15R only.
