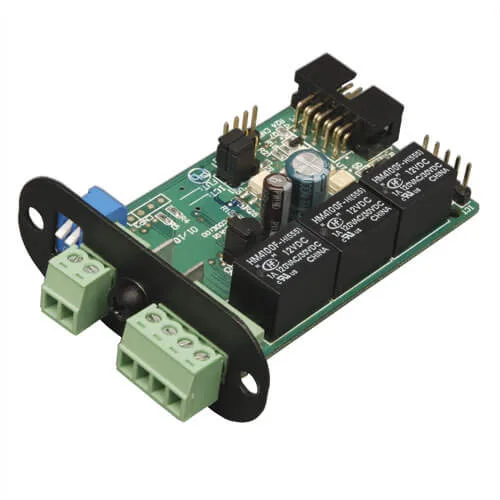

Small rectangular circuit board with metal brackets and connectors, .9 by 2.4 by 2.8 inches, weighs 1.28 oz

Tripp Lite

Tripp Lite RELAYIOMINI UPS Contact Closure Card

SKU CH-TT6V-6Z4AF

Adds three contact-closure outputs for UPS status monitoring to compatible SmartOnline models from 5 to 20 kVA

  • Communicate UPS status via three contact closure outputs
  • Installs in back panel of compatible SmartOnline UPS systems
  • Requires removal of existing USB module for installation
  • Mini slot card measuring .9 by 2.4 by 2.8 inches
  • RoHS certified and weighs approximately 1.28 ounces

UPS Contact Closure Card

The Tripp Lite RELAYIOMINI is an internal accessory card that adds three contact closure outputs to compatible SmartOnline UPS systems. It installs in the back panel mini slot of supported 5 to 20kVA models and communicates status events to external monitoring equipment. The card requires removal of the pre-installed USB module before installation. Dimensions are .9 by 2.4 by 2.8 inches and weight is approximately 1.28 oz.

Suited for Dry Contact Monitoring

This card suits administrators who need simple dry contact signals for building management systems, alarm panels or custom scripts. It is not for users who require full network management via SNMP or HTTP, nor for those needing USB or serial data streams from the UPS. Buyers with UPS units outside the listed SmartOnline model range cannot use this accessory. The package includes the module and an owner's manual.

Check Slot and USB Module

Verify that your UPS is one of the listed SmartOnline models shipping with a back panel USB module and a dedicated RS232 DB9 port. Confirm the mini slot is free and that you can remove the existing USB module to make room for this card. Ensure your monitoring equipment accepts contact closure inputs. The card carries RoHS certification and a two-year limited warranty.

Highlights

  • Communicate UPS status via three contact closure outputs
  • Installs in back panel of compatible SmartOnline UPS systems
  • Requires removal of existing USB module for installation
  • Mini slot card measuring .9 by 2.4 by 2.8 inches
  • RoHS certified and weighs approximately 1.28 ounces

Specifications

BrandTRIPP LITE
Shipping weight0.23 kg
Package size152 × 152 × 51 mm

Questions about this item

Which UPS models accept the RELAYIOMINI card in place of their pre-installed USB module?

Compatible SmartOnline UPS units range from 5 to 20kVA and include the SU5000RT4UHV, SU6000RT4U, SU8000RT3U, SU10000RT3U, SU12KRT4UHW, SU16KRT, and SU20KRT series, all of which originally ship with a back-panel USB module and a dedicated RS232 DB9 port.

Can I keep the RS232 DB9 connection active after installing this card?

Yes, the card installs in the mini slot that holds the USB module, leaving the dedicated RS232 DB9 port on the UPS rear panel untouched and fully functional for serial monitoring.

How do I verify the three contact closure outputs are signalling correctly once the card is fitted?

After installation, trigger a UPS event such as battery test or power failure; each of the three contact closure outputs should change state, confirming the card is communicating UPS status to your monitoring equipment.
