Vertical black metal power strip with 24 outlets and a 10ft cord

Tripp Lite

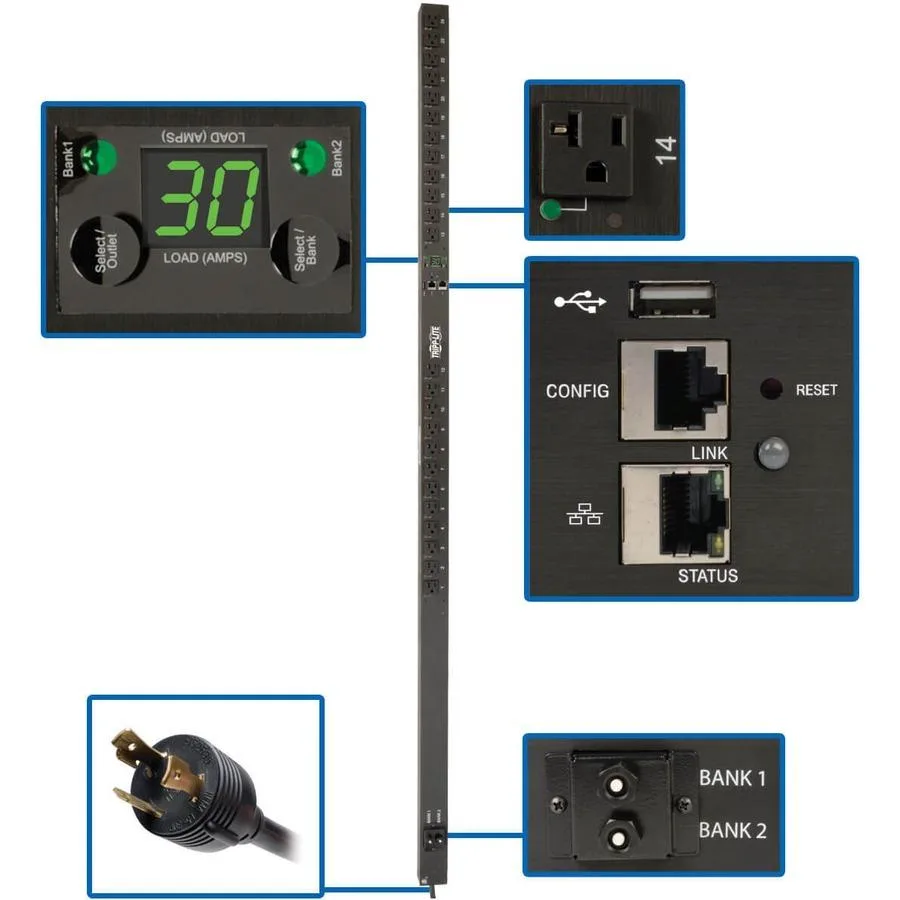

Tripp Lite PDUMVR30NETLX 24-Outlet Switched PDU 30A 120V 10ft

SKU CH-GBVF-N1E67 MPN PDUMVR30NETLX

A 0U vertical switched PDU distributes 120 V power to twenty-four 5-15/20R outlets through a 10 ft NEMA L5-30P cord with dual 20 A breakers

  • TypeSwitched
  • Rack Size0U
  • StyleVertical
  • CertificationsTested to UL60950-1: 2007 R12.11 (USA), CAN/CSA-C22.2 NO. 60
  • ROHSYes
  • Package IncludesPDUMVR30NETLX 2.9 kWatts Single-Phase Switched PDU Built-in
  • 9 kW switched PDU delivers remote power control for 24 outlets
  • Dual 20 A breakers protect 12 outlets each against overload
  • Vertical 0U mounting fits rack without consuming rack units
  • 10 ft cord with NEMA L5-30P plug connects to 30 A supply
  • LX Platform interface enables network monitoring and outlet-level switching

Rack Power Distribution

The Tripp Lite PDUMVR30NETLX is a 0U vertical switched PDU that delivers 2.9 kW of single-phase power from a 30 A NEMA L5-30P inlet through a 10.0-foot cord. Twenty-four 5-15/20R outlets are protected by two 20 A breakers, each covering 12 outlets, and the unit operates at 100 to 127 V across 50/60 Hz.

Sustained Load Behaviour

Dual 20 A breakers limit continuous draw to 20 A per 12-outlet bank, so the 30 A inlet rating is only reached when both banks are loaded together. Outlets can be switched individually or in groups through the built-in LX Platform interface, allowing staged power-on sequences that prevent inrush trips during extended operation.

Upgrade Path

This unit replaces a basic 0U power strip when remote outlet control, per-bank breaker protection and network monitoring are required. The jump is worthwhile for racks that need scheduled reboot cycles or outlet-level power metrics without adding a separate management appliance. Buyers who only need unmanaged power distribution will not use the switched features.

Highlights

  • 9 kW switched PDU delivers remote power control for 24 outlets
  • Dual 20 A breakers protect 12 outlets each against overload
  • Vertical 0U mounting fits rack without consuming rack units
  • 10 ft cord with NEMA L5-30P plug connects to 30 A supply
  • LX Platform interface enables network monitoring and outlet-level switching

Specifications

BrandTripp Lite
ModelPDUMVR30NETLX
TypeSwitched
Rack Size0U
StyleVertical
CertificationsTested to UL60950-1: 2007 R12.11 (USA), CAN/CSA-C22.2 NO. 60950-1-07+A1: 2011 (Canada), FCC CLASS A PART 15 (Emissions), NOM (Mexico), RoHS compliant, TAA Compliant
ROHSYes
Package IncludesPDUMVR30NETLX 2.9 kWatts Single-Phase Switched PDU
Built-in LX Platform interface
Configuration cable
Cord retention brackets
24 x Cable ties
Rack-mounting hardware
PDUMVROTATEBRKT mounting bracket accessory
Owner's manual
Input Voltage100V, 120V, 127V
Maximum Input Current30A
Input Connector(s)NEMA L5-30P
Cord Length10.0 Feet
Output Voltage100 - 127V
Output Frequency50/60Hz
Output Connector(s)24 x 5-15/20R

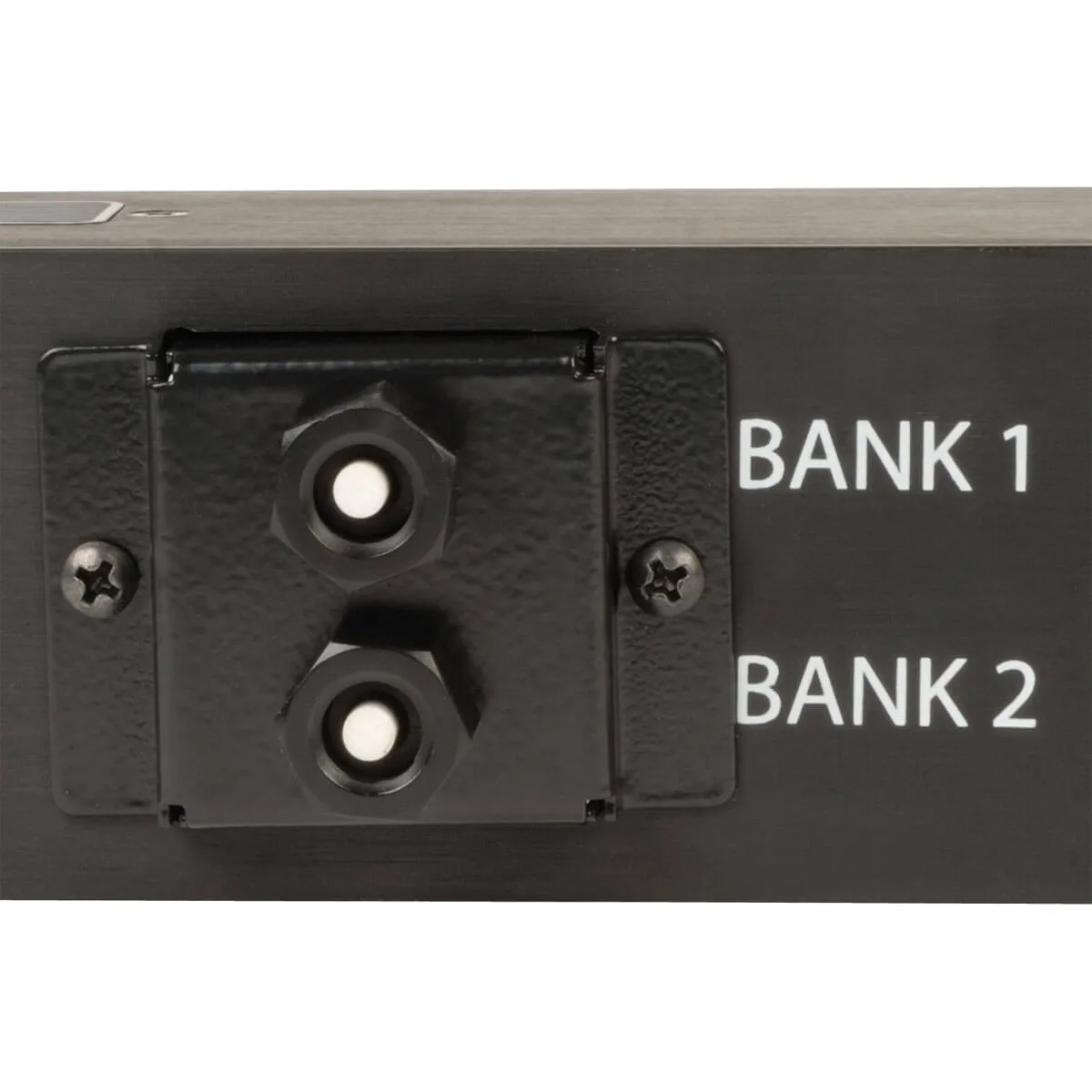

Overload Protection2 x 20A breakers protect 12 outlets each
Operating Relative Humidity5 - 95%
Operating Elevation0 - 3000 m
Storage Temperature-15 - 50 Degree Celcius
Storage Relative Humidity5 - 95%
FeaturesDistributes, Monitors and Manages Network-Grade AC Power
24 Switched NEMA 5-15/20R Outlets Distribute AC Power

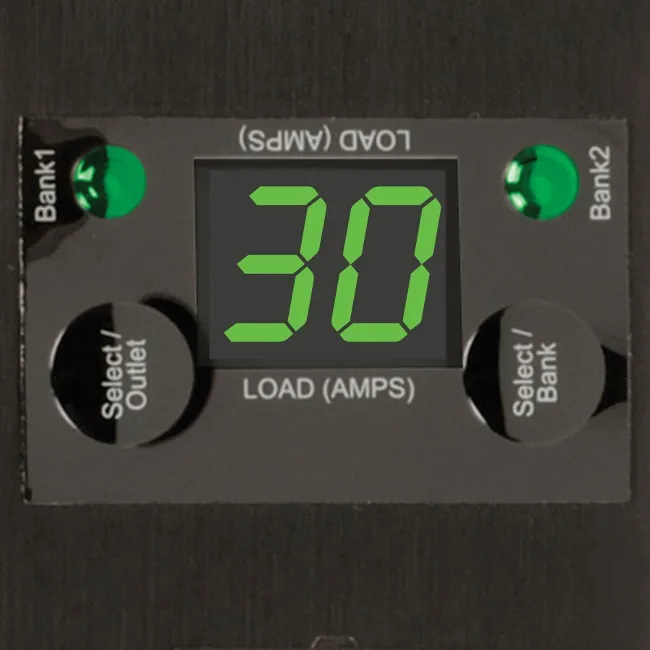

Digital Ammeter
Built-In LX Platform Interface
Broad Communications Compatibility
Essential Safety Features
Easy 0U Installation in EIA-Standard 19.0" Racks
TAA-Compliant
Dimensions2.04" x 2.20" x 70.00"
Weight9.94 lbs.
Shipping weight7.30 kg
Package size1933 × 173 × 137 mm

Questions about this item

How much heat does the 2.9 kW PDU add to a rack that runs continuously?

The unit delivers up to 2.9 kW of power; waste heat equals the load you plug in, so a fully loaded 30 A circuit can contribute roughly 2.9 kW of heat to the rack environment.

What site wiring and breaker are required before the NEMA L5-30P plug can be used?

You need a dedicated 30 A, 120 V branch circuit terminated in a NEMA L5-30R receptacle and protected by a 30 A breaker.

Will the 5-15/20R outlets accept legacy equipment with standard 5-15 plugs?

Yes, each of the 24 outlets accepts both NEMA 5-15 and 5-20 plugs, so older 15 A gear fits without adapters.
