Vertical 0U power strip with 24 NEMA 5-15/20R outlets and digital ammeter

Tripp Lite

Tripp Lite PDUMNV20LX 1.9kW 20A 24-Outlet Monitored PDU

SKU CH-Z42B-N187X MPN PDUMNV20LX

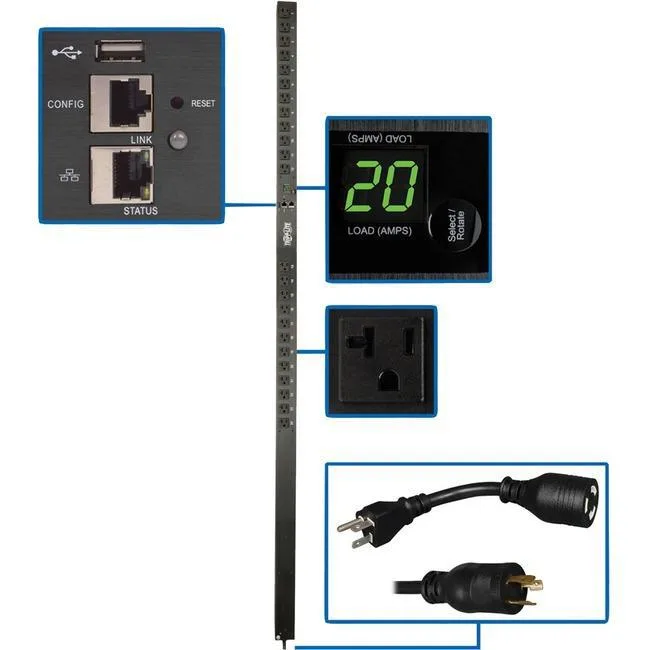

Monitored 0U vertical PDU delivers 1.9 kW through 24 NEMA 5-15/20R outlets with real-time remote voltage, frequency and load monitoring via built-in LX Platform network interface

  • TypeMonitored
  • Rack Size0U
  • StyleVertical
  • CertificationsTested to UL/CAN 60950-1 (USA, Canada), FCC Class A, Part 15
  • ROHSYes
  • Input Voltage100V AC 120V AC 127V AC
  • Real-time remote monitoring of voltage, frequency and load via built-in network
  • 24 NEMA 5-15/20R outlets distribute single-phase power with cord retention brackets

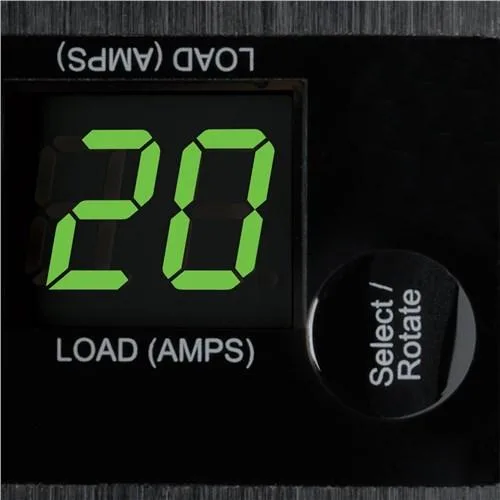

  • Digital ammeter shows current level in real time to prevent overload

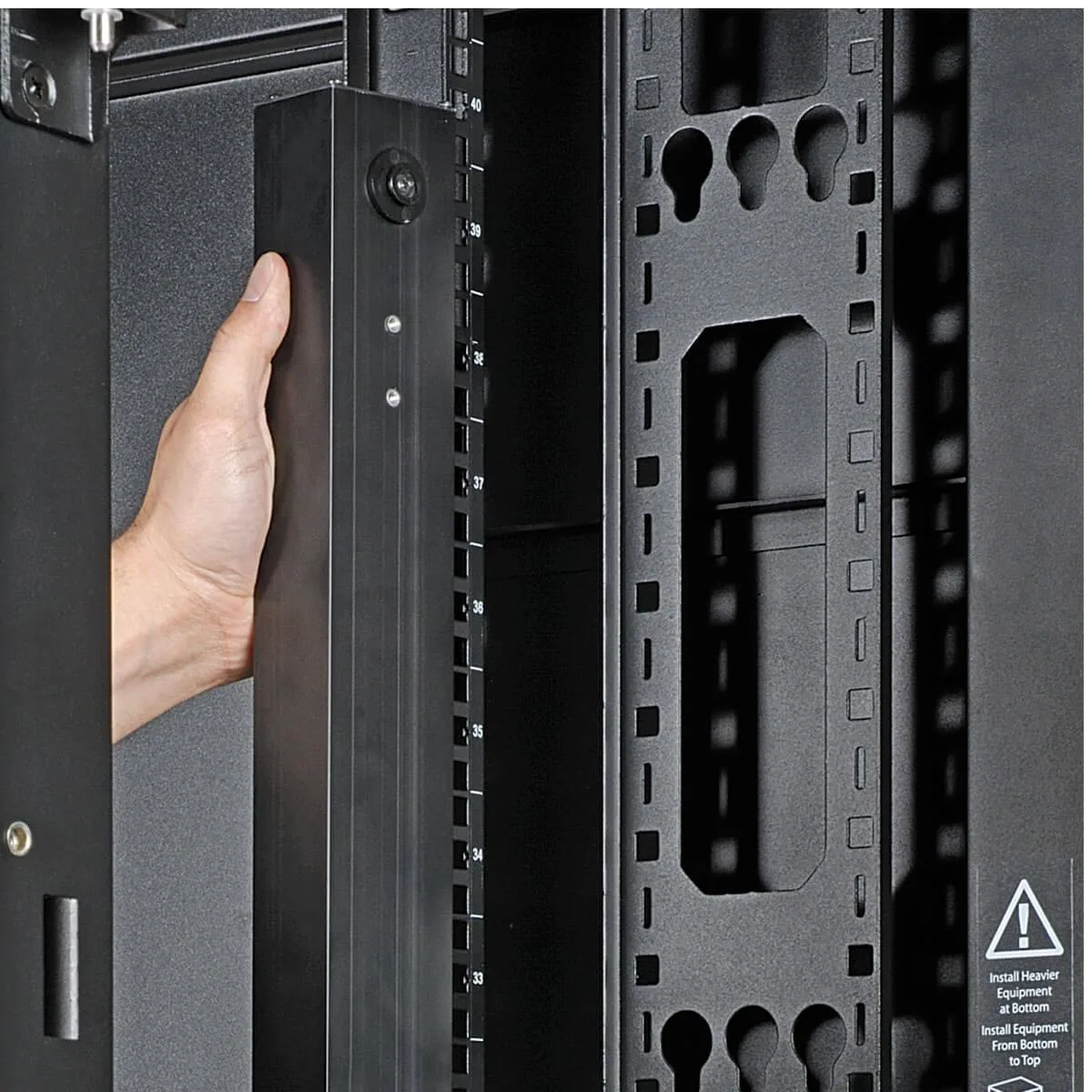

  • 0U vertical mounting fits EIA-standard 19-inch racks using included toolless hardware
  • TAA-compliant and tested to UL/CAN 60950-1, FCC Class A, NOM, RoHS

Monitored PDU for rack power distribution

The Tripp Lite PDUMNV20LX is a 0U vertical power distribution unit designed for 19-inch EIA racks. It provides real-time remote monitoring of voltage, frequency and load levels through a built-in network interface. This unit suits IT and industrial environments that require tracked power delivery to multiple devices.

Single-phase 20A input limits outlet capacity

The PDU accepts 100V, 120V or 127V AC at a maximum of 20A through a NEMA L5-20P plug with a 5-20P adapter. All 24 NEMA 5-15/20R outlets share this single 1.9kW supply, so total connected load must stay within the 20A rating. Cord retention brackets help prevent accidental disconnection of attached equipment.

24 NEMA 5-15/20R outlets define device support

Twenty-four outlets deliver AC power to connected hardware, each accepting standard 5-15 or 5-20 plugs. The LX Platform interface enables browser, SNMP, telnet and SSH access for monitoring and email alerts. Buyers who need IEC outlets or higher per-outlet ratings should consider a different PDU configuration.

Highlights

  • Real-time remote monitoring of voltage, frequency and load via built-in network
  • 24 NEMA 5-15/20R outlets distribute single-phase power with cord retention brackets
  • Digital ammeter shows current level in real time to prevent overload
  • 0U vertical mounting fits EIA-standard 19-inch racks using included toolless hardware
  • TAA-compliant and tested to UL/CAN 60950-1, FCC Class A, NOM, RoHS

Specifications

BrandTripp Lite
ModelPDUMNV20LX
TypeMonitored
Rack Size0U
StyleVertical
CertificationsTested to UL/CAN 60950-1 (USA, Canada), FCC Class A, Part 15 (Emissions), NOM (Mexico), RoHS compliant, TAA Compliant
ROHSYes
Input Voltage100V AC
120V AC
127V AC
Maximum Input Current20A
Cord Length10.0 Feet
Output Voltage100V AC
120V AC
127V AC
Output Frequency50/60Hz
Output Connector(s)24 x 5-15/20R
Operating Relative Humidity5 - 95%
Operating Elevation0 - 3000 m
Storage Temperature-15 - 50 Degree Celcius
Storage Relative Humidity5 - 95%
FeaturesDistributes Network-Grade Single-Phase Power
24 Outlets Distribute AC Power
Digital Ammeter
Built-In LX Platform Interface
Broad Communications Compatibility
Easy 0U Installation in EIA-Standard 19.0" Racks
TAA-Compliant
Weight12.20 lbs.
Shipping weight6.03 kg
Package size1854 × 165 × 140 mm

Questions about this item

How do the 24 NEMA 5-15/20R outlets help me choose the right PDU for my rack?

The 24 outlets accept both 5-15P and 5-20P plugs, so you can mix standard and high-draw devices without needing adapter cables. Cord-retention brackets keep every plug secure in a vertical 0U mount.

What does the 1.9 kW rating mean for my actual equipment load?

At 120 V the 20 A input limit equals 2.4 kW, but the 1.9 kW figure reflects a 100 V source (100 V × 20 A). Size your connected gear so the total draw stays below the rating for your supply voltage.

What does the built-in LX Platform interface cap in practice?

The 10/100 Mbps Ethernet port limits management traffic to 100 Mbps, while the Java-free HTML5 UI, SNMP v1/v2/v3, SSH, telnet, HTTP/S, FTP, DHCP and NTP run within that bandwidth.
