Horizontal 2U rackmount PDU, black metal, 16 C13 outlets, blue IEC-309 input plug, 12 ft cord, front LED display

Tripp Lite

Tripp Lite PDUMH32HVNET surge protector 16 C13 32A 7.4kW 2U

SKU CH-27CX-XH8MN MPN PDUMH32HVNET

A switched 2U rackmount PDU with 16 C13 outlets, 32A input and Ethernet remote monitoring

  • TypeSwitched
  • Rack Size2U
  • StyleRackmount
  • Remote Management ProtocolHTTP, HTTPS, PowerAlert Network Management System, SMTP, SNM
  • Front Panel LEDs16 power availability LEDs confirm power off / on status for
  • CertificationsTested to CE (IEC 60950-1)
  • Remote monitoring via HTTP, HTTPS, SNMP and Telnet
  • 16 switched C13 outlets with individual power control
  • Two 20A circuit breakers protect each bank of 8 outlets
  • Visual current meter shows load for bank 1, bank 2 or combined
  • 2U rackmount design with 12 ft IEC-309 32A input cord

Switched 32A rack PDU

The Tripp Lite PDUMH32HVNET is a 2U horizontal rack-mount power distribution unit that delivers 7.4 kW at 230 V from 16 switched C13 outlets. Network administrators use it to cycle power on individual servers or network gear and to monitor aggregate load through a built-in Ethernet interface.

Verify inlet and cord reach

Confirm the rack power source provides a blue IEC-309 32 A 2P+E connector and that the 12 ft input cord reaches the PDU mounting location. Each of the two outlet banks is protected by a 20 A circuit breaker, so total connected load per bank must stay within that limit.

Cord retention and remote protocols

Brackets on every C13 outlet secure plugs against accidental disconnection during maintenance. The unit speaks HTTP, HTTPS, SNMPv1, SNMPv2, SMTP, Telnet, FTP, DHCP, BOOTP and NTP for integration with PowerAlert or third-party monitoring tools.

Highlights

  • Remote monitoring via HTTP, HTTPS, SNMP and Telnet
  • 16 switched C13 outlets with individual power control
  • Two 20A circuit breakers protect each bank of 8 outlets
  • Visual current meter shows load for bank 1, bank 2 or combined
  • 2U rackmount design with 12 ft IEC-309 32A input cord

Specifications

BrandTripp Lite
ModelPDUMH32HVNET
TypeSwitched
Rack Size2U
StyleRackmount
Remote Management ProtocolHTTP, HTTPS, PowerAlert Network Management System, SMTP, SNMPv1, SNMPv2, Telnet, FTP, DHCP, BOOTP, NTP
Front Panel LEDs16 power availability LEDs confirm power off / on status for each built-in outlet. Two additional LEDs with toggle button identify which bank the visual current meter is reporting (bank 1, bank 2 or bank 1&2 combined)
CertificationsTested to CE (IEC 60950-1)
ROHSYes
Input Voltage230V
Maximum Input Current32A
Input Connector(s)IEC-309 32A BLUE (2P+E)
Cord Length12 ft
Output Voltage230V
Output Frequency50/60Hz
Output Watts (VA)7.36 kVA
Output Connector(s)16 C13 outlets
Overload ProtectionOutlets are arranged in two banks of 8. Each bank is protected by a separate 20A circuit breaker
Operating Elevation0 - 10,000
Storage Temperature-15 - 50 ºC
FeaturesSupports individually controllable output receptacles, current metering, network monitoring and remote control via built-in web/network monitoring and control card
Offers the ability to turn on, turn off, recycle or lock-out power to each individual PDU receptacle on a programmable or real-time basis
Remote interface provides data regarding input power conditions, load level and individual outlet power status via secure network or web browser interface
Supports notification and logging of all major power events and user specified alarm thresholds
Optional ENVIROSENSE temperature and
Dimensions3.50" x 17.50" x 12.50"
Weight13.70 lbs
Shipping weight7.67 kg
Package size521 × 432 × 203 mm

Questions about this item

What comes in the box with the PDUMH32HVNET and do I need to buy a power cord or mounting hardware separately?

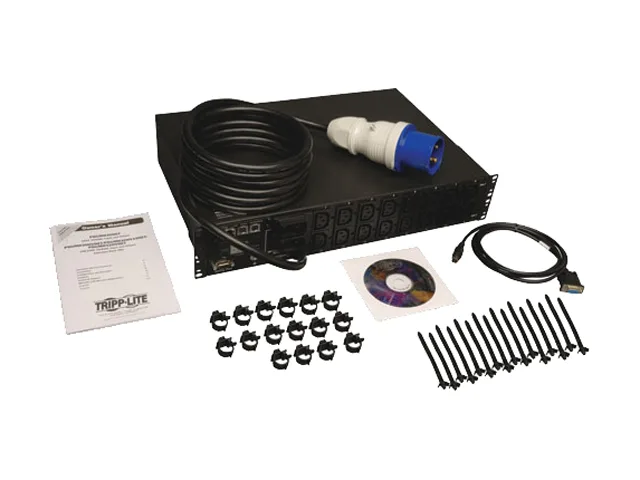

The unit ships with a 12 ft cord terminated by a blue IEC-309 32A (2P+E) plug and includes brackets for 2U rack mounting; no separate cord or rail kit is required.

Should I choose a different capacity model or is the 7.4 kW 32 A version right for a full rack of servers?

This model delivers 7.36 kVA at 230 V through 16 switched C13 outlets split into two banks of eight, each bank protected by its own 20 A breaker, so it suits a dense rack that stays within 32 A total draw.

What does the 7.4 kW rating mean once the PDU is installed and powered up?

It means the PDU can supply up to 7.36 kVA continuous load at 230 V across all 16 outlets, with real-time current metering per bank visible on the front LEDs and remotely via SNMP or HTTP.
