Tripp Lite PDUMH32HVATNET PDU 7.4kW 32A 16C13 2C19 2U
Switched 7.4 kW PDU with 16 C13 and 2 C19 outlets, dual 32 A IEC309 inputs and automatic transfer switching
- TypeSwitched
- Rack Size1U, 2U
- StyleHorizontal
- Rack Mounting Kit2U rackmount
- Front Panel LEDsFront panel LEDs confirm amp / kilowatt / voltage reporting
- CertificationsTested to CE / IEC 60950-1, EN CLASS A (Emissions), NOM (Mex
- Redundant dual-input power keeps equipment running if one source fails
- Automatic TRIAC transfer switching restores supply in 1–5 minutes without interruption
- Switched outlets let you reboot individual C13 and C19 sockets remotely

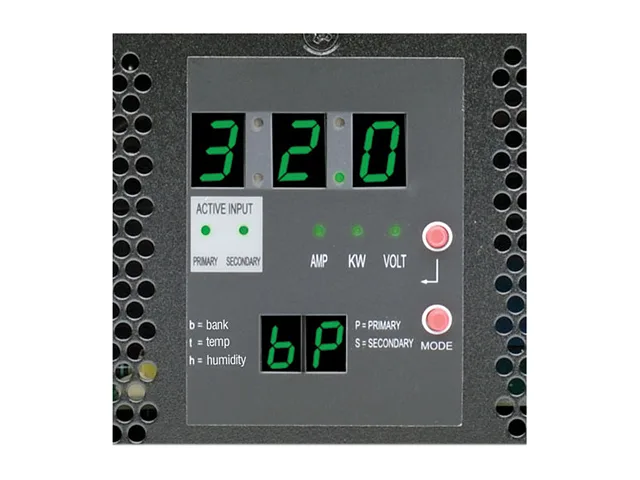

- Front-panel digital meter shows real-time amps, kilowatts and volts at a glance
- Two 20 A breakers protect upper and lower outlet rows independently
Switched PDU with Automatic Transfer
This 7.4 kW switched power distribution unit provides redundant power for single-phase rack equipment. Dual IEC-309 32A input cords connect to separate sources and a solid-state transfer switch moves load between them in one to five minutes. Eighteen outlets (16 C13 and 2 C19) are protected by two 20A breakers.
For racks needing network-monitored redundancy
Suits administrators who want remote outlet switching and real-time amp, kilowatt and voltage data on the front LED display. Not for sites without 32A IEC-309 blue supply circuits, for loads that exceed the 7.4 kW rating, or for installations that require vertical mounting instead of the horizontal 2U form factor.
Dual 32A IEC-309 inputs with 1–5 minute transfer
The automatic transfer switch accepts two independent 200–240V feeds and maintains power during source failure. This single specification decides whether the unit matches your facility wiring and redundancy requirements.
Highlights
- Redundant dual-input power keeps equipment running if one source fails
- Automatic TRIAC transfer switching restores supply in 1–5 minutes without interruption
- Switched outlets let you reboot individual C13 and C19 sockets remotely
- Front-panel digital meter shows real-time amps, kilowatts and volts at a glance
- Two 20 A breakers protect upper and lower outlet rows independently
Specifications
| Brand | Tripp Lite |
|---|---|
| Model | PDUMH32HVATNET |
| Type | Switched |
| Rack Size | 1U, 2U |
| Style | Horizontal |
| Rack Mounting Kit | 2U rackmount |
| Front Panel LEDs | Front panel LEDs confirm amp / kilowatt / voltage reporting information |
| Certifications | Tested to CE / IEC 60950-1, EN CLASS A (Emissions), NOM (Mexico) |
| ROHS | RoHS Complaint, TAA Compliant |
| Input Voltage | 200; 208; 220; 230; 240 |
| Maximum Input Current | 32A |
| Input Connector(s) | (2) IEC-309 32A BLUE (2P+E) |
| Cord Length | 9.84 ft. |
| Output Voltage | 200, 208, 220, 230, 240V nominal, single phase |
| Output Frequency | 50/60Hz |
| Overload Protection | Includes two 20A output circuit breakers Breaker 1 controls the upper row of 9 outlets (8 C13, 1 C19) Breaker 2 controls the lower row of outlets (8 C13, 1 C19) |
| Operating Elevation | 0 - 3000 m |
| Storage Temperature | 5 to 122F (-15 to 50C) |
| Storage Relative Humidity | Up to 95% (non-condensing) |
| Features | Primary and Secondary Inputs for Power Redundancy Automatic Transfer Switching Multifunction Digital LED Display Advanced Network Monitoring Broad Communications Compatibility 20A Circuit Breakers Cord Retention Brackets Mounts Horizontally in 2U of Rack Space TAA-Compliant |
| Shipping weight | 7.11 kg |
| Package size | 495 × 368 × 139 mm |
