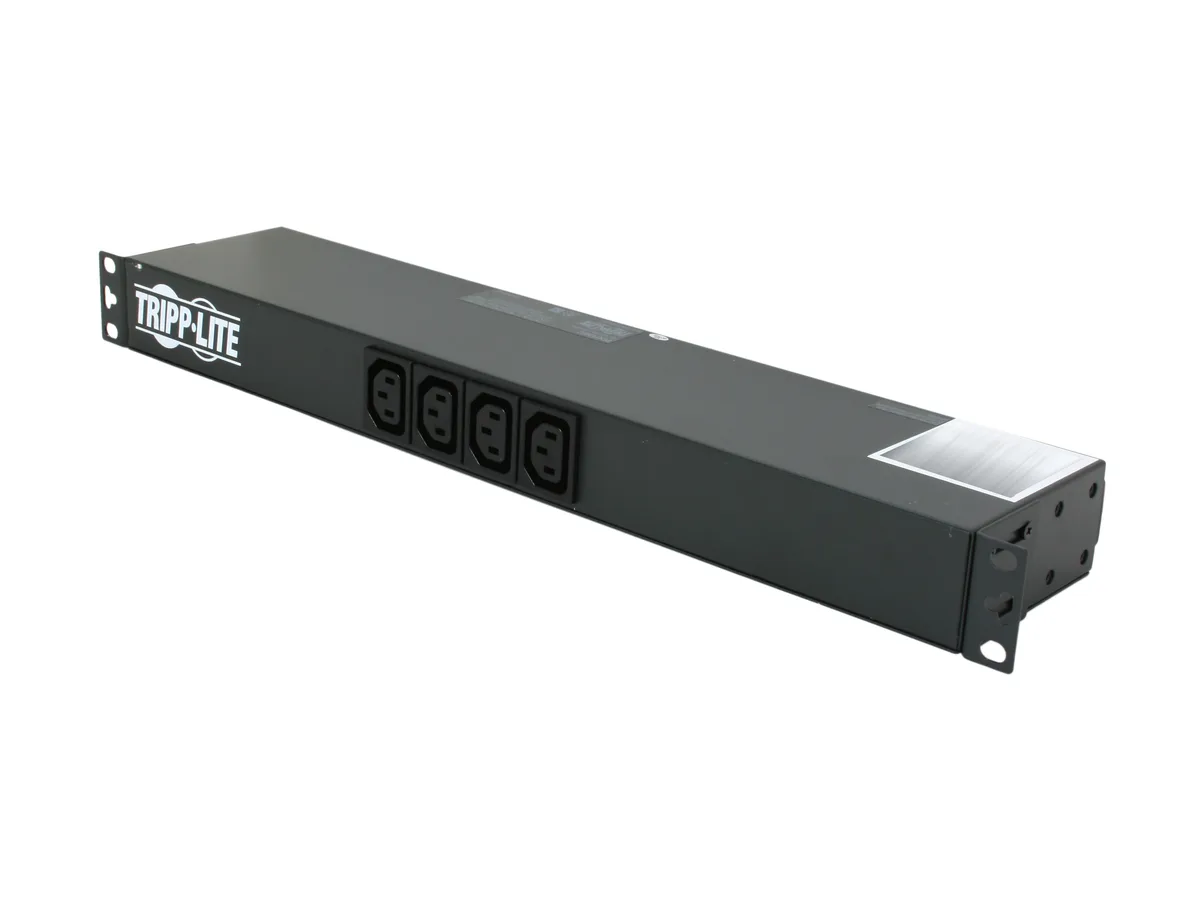

Black metal 1U rack PDU with twelve C13 and two C19 outlets and a C20 inlet

Tripp Lite

Tripp Lite PDU12IEC PDU 16A 14 Outlets 12 C13 2 C19 C20 1U

SKU CH-28KC-8KYEC MPN PDU12IEC

Distributes 16 A across 12 C13 and 2 C19 outlets from a C20 inlet in a 1U rack-mount cabinet

  • TypeBasic
  • Rack Size1U
  • Front Panel LEDs1U
  • CertificationsTested to UL60950-1 (USA) and CAN/CSA C22.2 No. 60950-1-03 (
  • Input Voltage100V, 120V, 208V, 230V, 240V
  • Maximum Input Current16A
  • 16 A capacity supports dense rack loads
  • 14 outlets (12 C13, 2 C19) fit varied gear
  • 100–240 V input works worldwide
  • 1U all-metal chassis mounts in rack, wall or under-counter
  • Tested to UL 60950-1, CSA C22.2 No. 60950-1-03 and CE

Power Distribution Unit

The Tripp Lite PDU12IEC is a basic 1U rack-mountable power distribution unit designed for network closets and server racks. It accepts worldwide 100-240 V single-phase input through an IEC-320 C20 inlet and delivers unfiltered pass-through power to fourteen outlets. The all-metal cabinet includes detachable flanges for flexible wallmount, under-counter or 0U cable-management installation.

Outlet Configuration

This unit provides twelve IEC-320 C13 outlets and two IEC-320 C19 outlets on the front panel. The mixed receptacle layout supports a variety of server, switch and storage power cords without adapters. Input voltage range covers 100 V, 120 V, 208 V, 230 V and 240 V at 50 or 60 Hz nominal frequency.

Sustained Load Behaviour

A 16 A overload protection breaker covers the entire strip for continuous operation up to the rated current. Unfiltered electrical pass-through without a power switch makes the PDU suitable for distributing alternate-waveform UPS or generator power. The unit is tested to UL 60950-1 and CAN/CSA C22.2 No. 60950-1-03 standards for safe sustained use.

Highlights

  • 16 A capacity supports dense rack loads
  • 14 outlets (12 C13, 2 C19) fit varied gear
  • 100–240 V input works worldwide
  • 1U all-metal chassis mounts in rack, wall or under-counter
  • Tested to UL 60950-1, CSA C22.2 No. 60950-1-03 and CE

Specifications

BrandTripp Lite
ModelPDU12IEC
TypeBasic
Rack Size1U
Front Panel LEDs1U
CertificationsTested to UL60950-1 (USA) and CAN/CSA C22.2 No. 60950-1-03 (Canada), CE (Europe)
Input Voltage100V, 120V, 208V, 230V, 240V
Maximum Input Current16A
Input Connector(s)IEC-320 C20
Output Voltage100 - 240 V nominal, single phase
Output Frequency50/60Hz
Output Connector(s)12 IEC-C13 & 2 IEC-C19
Overload Protection16A
FeaturesCorded AC power distribution unit with 16 amp capacity in a versatile 100-240 volt, worldwide compatible, multi-mount cabinet
Versatile all-metal cabinet with detachable mounting flanges allows wallmount, under-counter and 19 inch rackmount mounting in both 1U or 0U formats
Detachable flanges with pre-punched access holes and adjustable depth channels allow user configuration in dozens of potential mounting schemes, including zero-U rackmount capability in the cable management area or other available space within a rack enclosure
Unfiltered electrical pass-through reliably distribute
Dimensions1.75" x 17.50" x 4.25"
Weight3.20 lbs.
Shipping weight1.70 kg
Package size514 × 241 × 51 mm

Questions about this item

What does the 16 A rating mean for the equipment I can plug in?

The unit can supply up to 16 A total across all 14 outlets, so the combined draw of connected servers and network gear must stay at or below that limit.

What does the C20 input connector limit in practice?

The IEC C20 inlet accepts a 16 A supply cord, so the PDU cannot draw more than 16 A from the upstream UPS, generator or wall circuit.

How much rack space does the 1U chassis need and what mounting options exist?

It occupies 1U (1.75 in) of a 19 in rack, and the detachable flanges also allow 0U, wall-mount or under-counter installation.
