Six-foot black cable kit with DisplayPort USB and VGA connectors

Tripp Lite

Tripp Lite P778006DP power splitter cord

SKU CH-4SSE-03871 MPN P778006DP

Connects a computer's DisplayPort and USB ports to compatible Tripp Lite KVM switches with a single 6 ft cable kit

  • Combines DisplayPort and USB cables into one kit
  • Supports 1920 x 1080 resolution at 60 Hz
  • Provides 36-bit Deep Color for vivid display quality
  • Delivers USB 2.0 data speeds up to 480 Mbps
  • Operates without external power or software installation

KVM cable kit for DisplayPort and USB

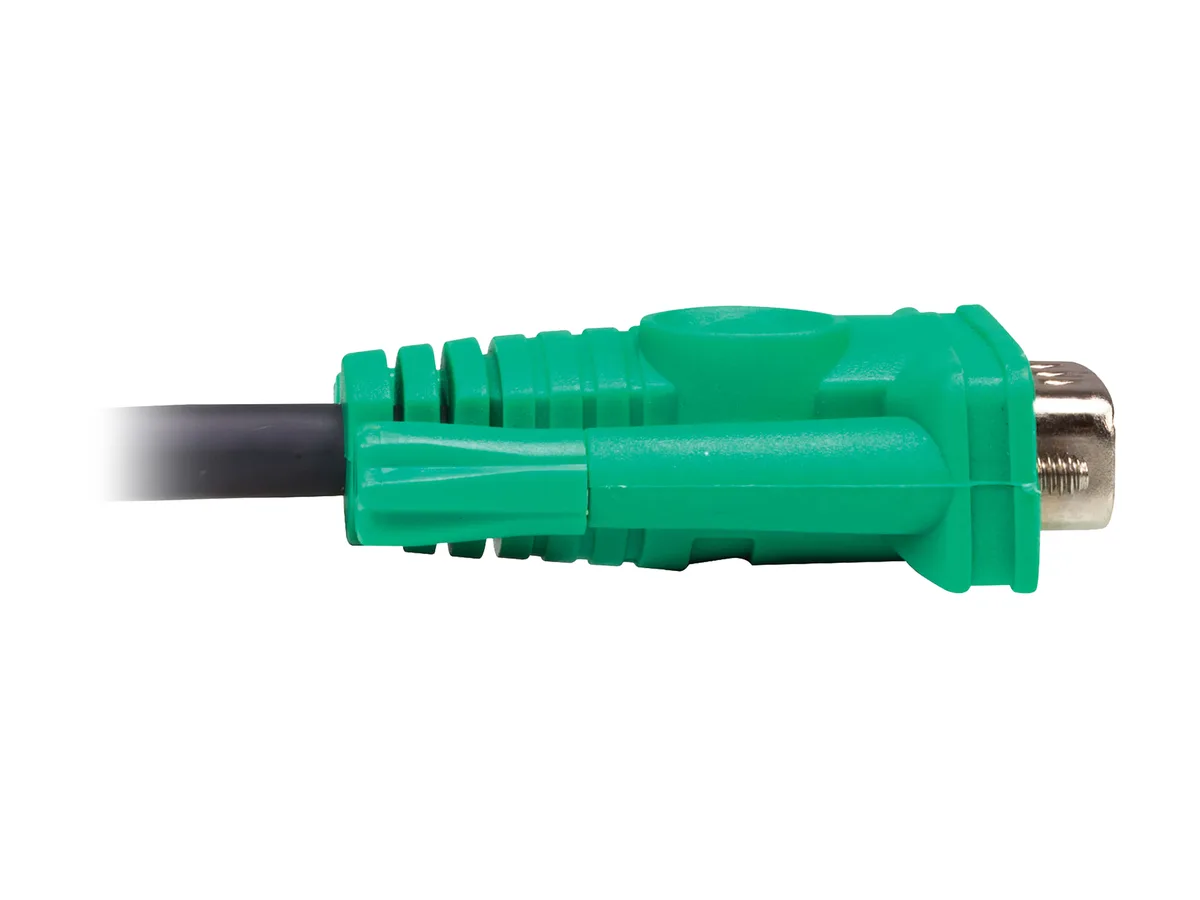

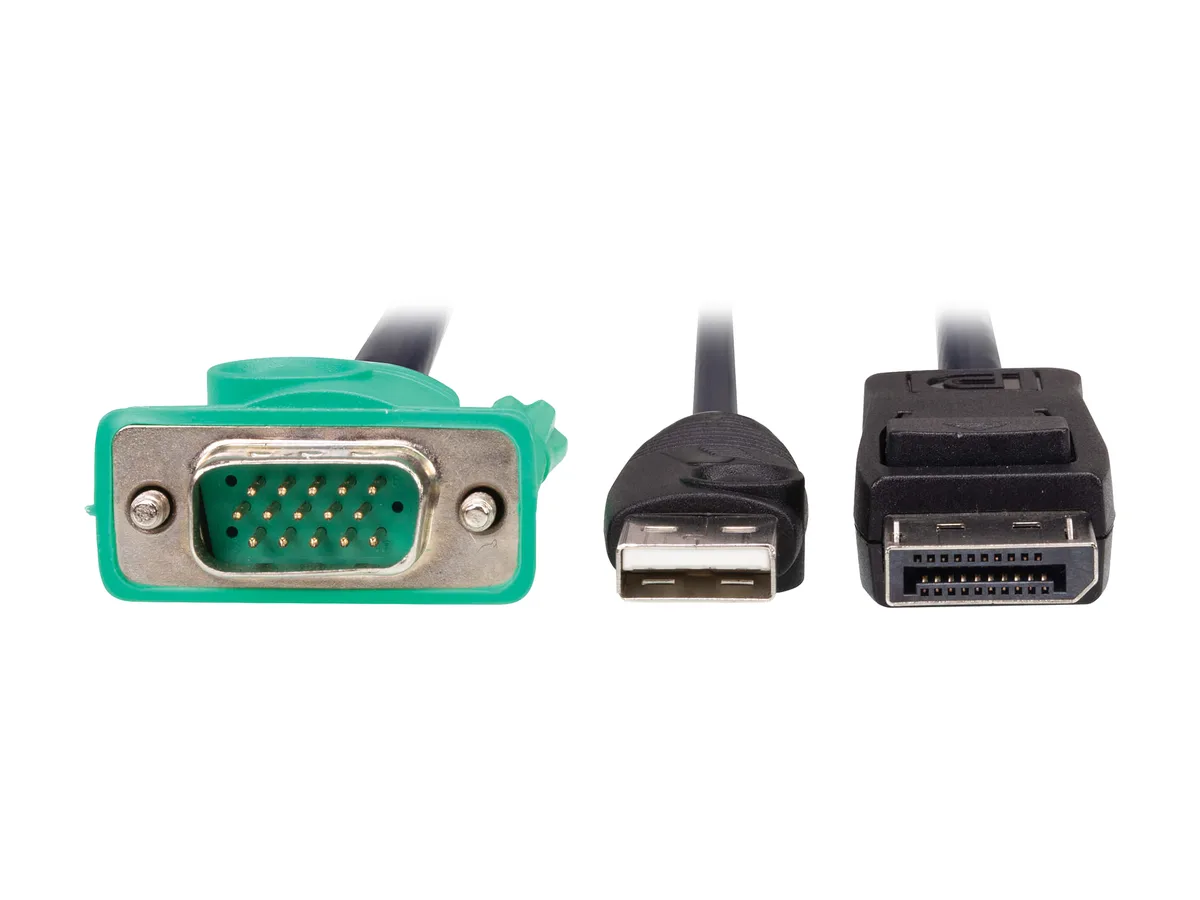

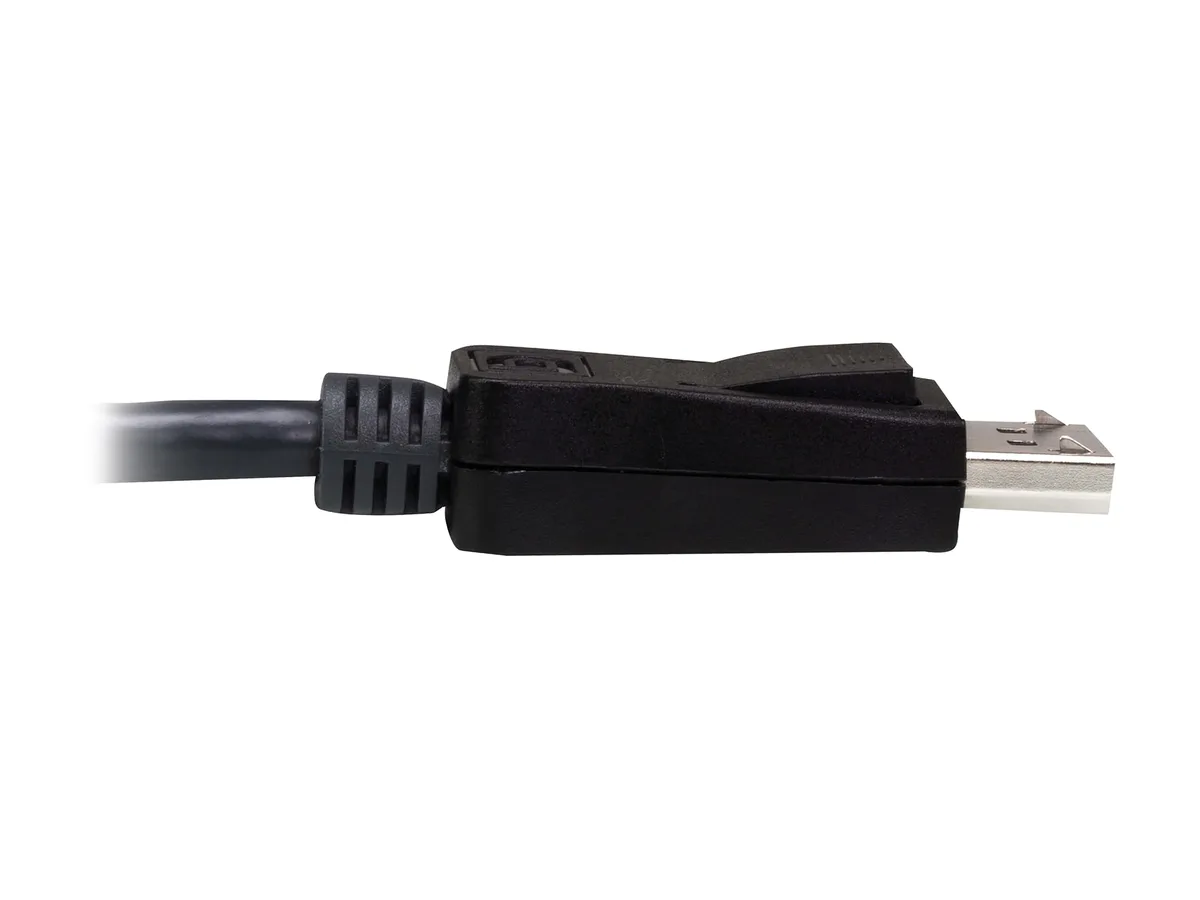

The Tripp Lite P778006DP combines a male DisplayPort connector, a USB-A connector and a male HD15 connector in a single 6 ft cable assembly. It is designed to link a server or computer directly to compatible Tripp Lite B020-U and B022-U KVM switches. The DisplayPort 1.1 link supports 1920 x 1080 resolution at 60 Hz with 36-bit Deep Color. The USB 2.0 channel runs at 480 Mbps and the kit draws power from the bus without extra adapters.

Suits admins managing Tripp Lite KVM switches

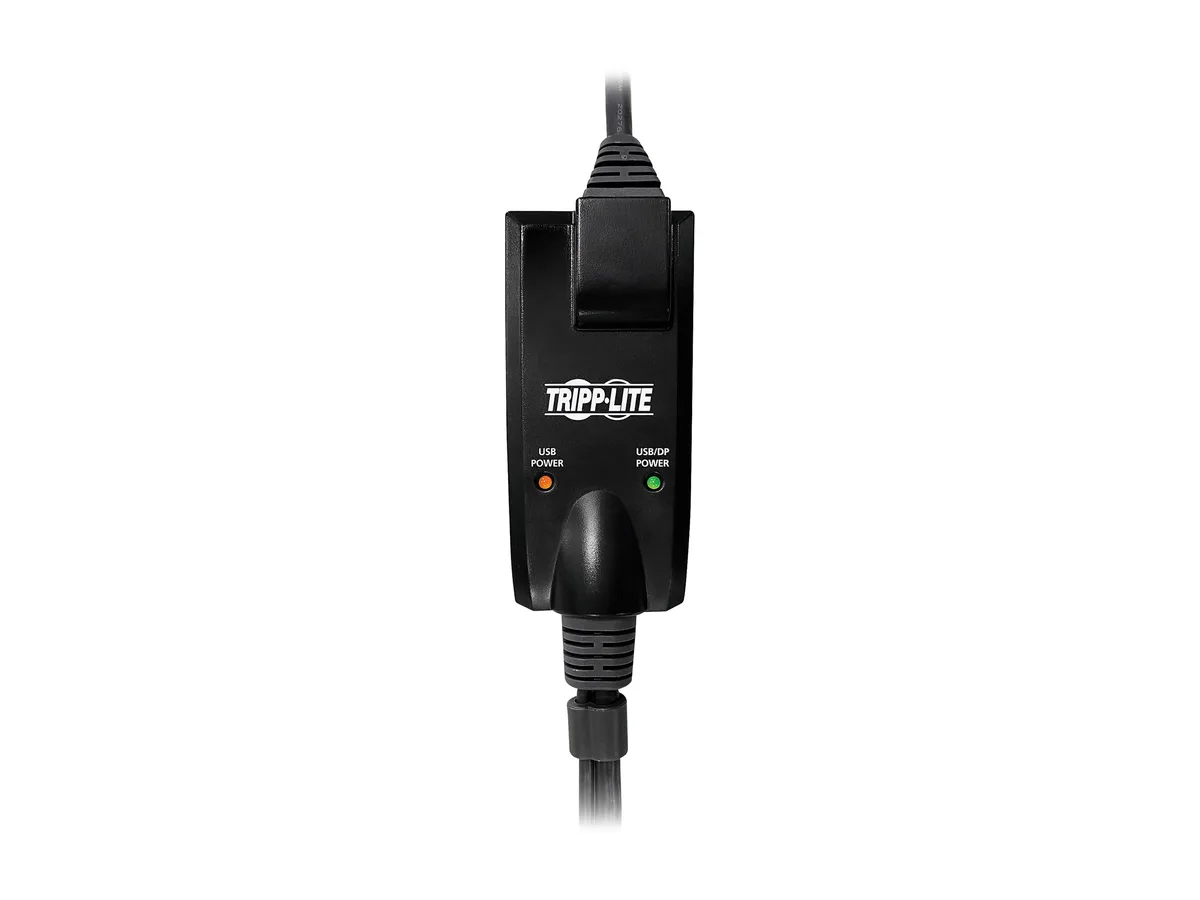

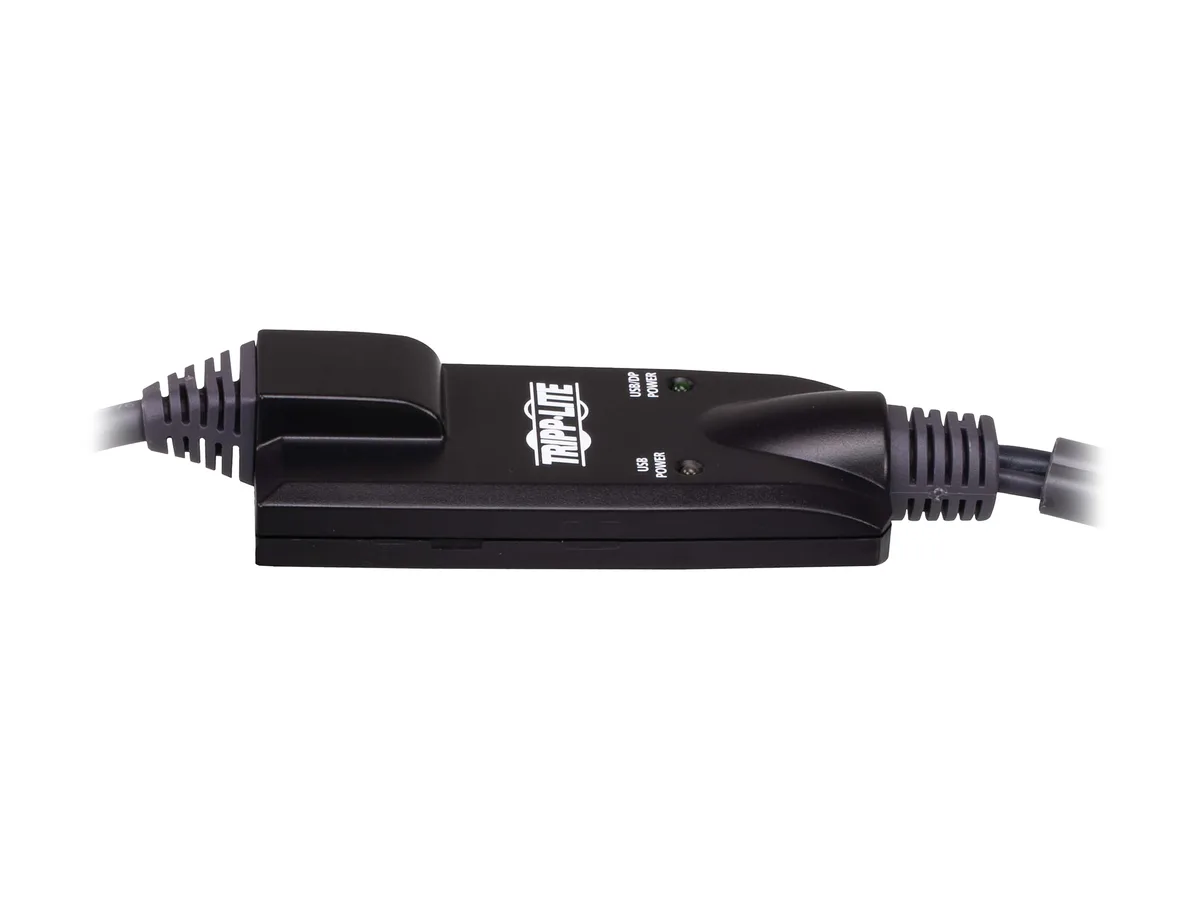

This kit suits administrators who need a tidy, single-bundle connection between a DisplayPort-equipped host and a supported Tripp Lite KVM. It is not for installations that require a different video interface such as DVI or HDMI on the host side. It is also not for switches outside the B020-U and B022-U families or for setups needing longer reach than the supplied 1.8 m length. A sliding switch selects USB power mode or USB plus DisplayPort power mode with LED indication.

DisplayPort 1.1 support up to 1080p at 60 Hz

The single specification that determines fit is the DisplayPort 1.1 compliance limiting video to 1920 x 1080 at 60 Hz with 36-bit Deep Color. Hosts outputting higher resolutions or refresh rates will not pass those modes through this cable. The USB 2.0 channel is fixed at 480 Mbps. Verify that your KVM switch is a B020-U or B022-U model and that 1080p 60 Hz meets your display requirements before purchasing.

Highlights

  • Combines DisplayPort and USB cables into one kit
  • Supports 1920 x 1080 resolution at 60 Hz
  • Provides 36-bit Deep Color for vivid display quality
  • Delivers USB 2.0 data speeds up to 480 Mbps
  • Operates without external power or software installation

Specifications

No published specifications for this item yet.

Questions about this item

Should I choose the 6 ft or 1.8 m length for my rack setup?

Both figures describe the same cable length — 6 ft equals 1.8 m — so select whichever unit matches your rack documentation.

What resolution will I actually see at 60 Hz on a 1080p monitor?

The DisplayPort 1.1 link delivers 1920 x 1080 at 60 Hz with 36-bit Deep Color, so a 1080p panel will run at its native resolution and refresh rate.

Does the USB 2.0 connection limit KVM switching speed to 480 Mbps?

Yes, the USB 2.0 cable caps peripheral traffic at 480 Mbps, which is the maximum throughput for keyboard, mouse and standard USB devices through the KVM.
