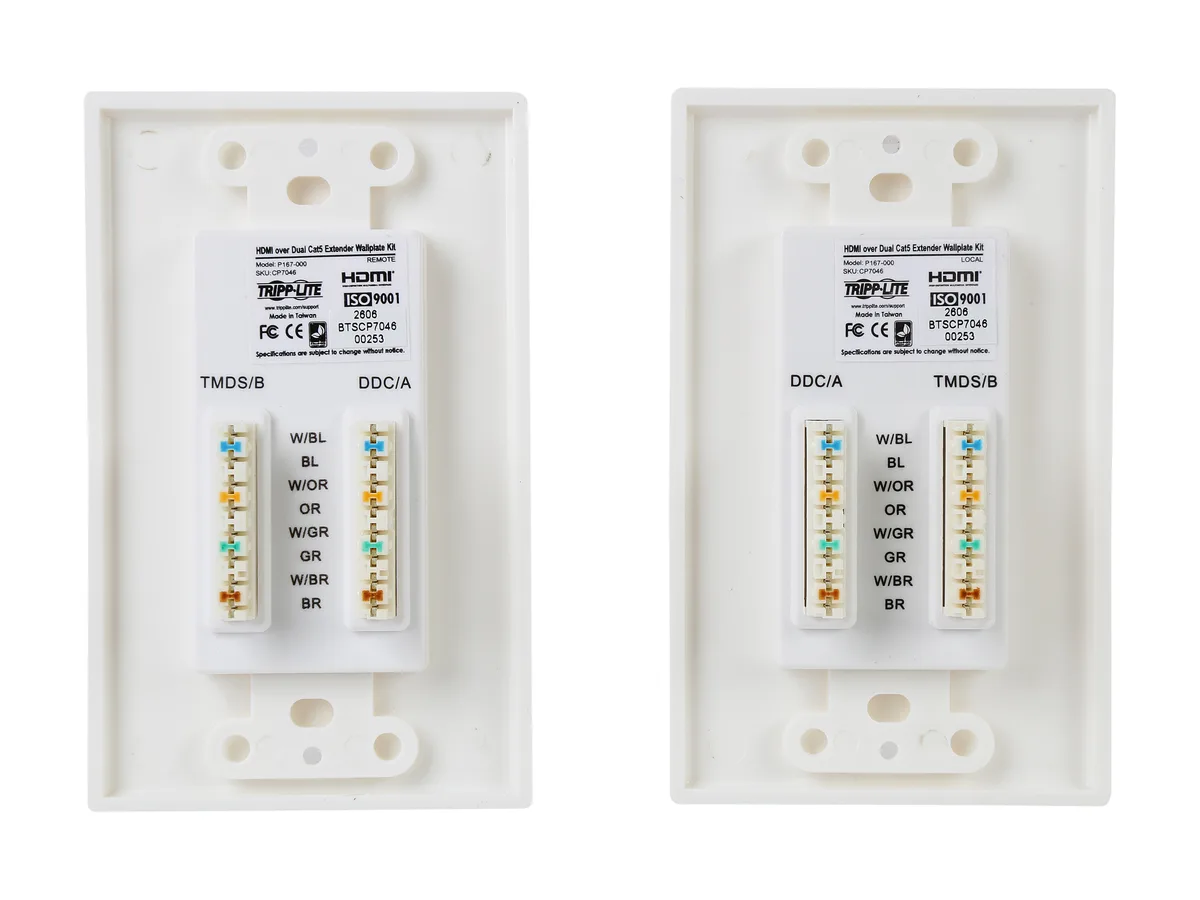

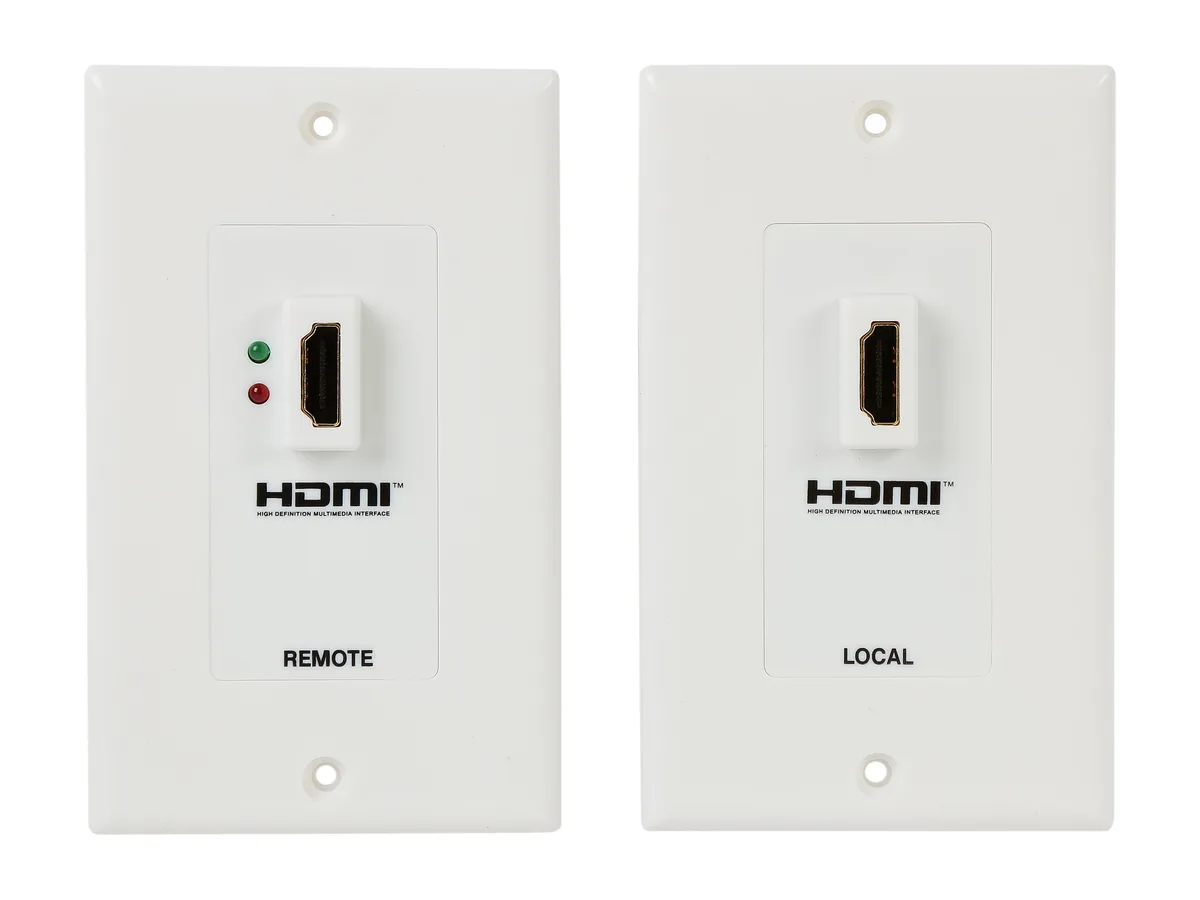

Two white HDMI wall plates with Cat5/6 ports

Tripp Lite

Tripp Lite P167-000 HDMI Extender Wall Plate Kit 1080p 150 ft

SKU CH-VJBV-8SZ60 MPN P167-000

Extends 1080p HDMI up to 150 feet over dual Cat5/6 wall plates without external power

  • TypeHDMI over Ethernet
  • Max Extend Distance150 feet
  • ColorWhite
  • Cable LengthNo
  • FeaturesBreak the 5-meter HDMI barrier using Cat5/6 UTP Cable 1080p

Style HDMI Wall Plate

  • Extends 1080p signals up to 150 ft using dual Cat5/6 cables
  • Supports 1080i at 60 Hz and 3D up to 100 ft over solid Cat6
  • Delivers 24-bit True Color with 7.1-channel surround sound audio
  • Passive transmitter and active receiver wall plates need no external power
  • HDCP, EDID and DDC compliance ensures reliable handshake with source and display

HDMI Over Cat5/6 Wall Plate Kit

The Tripp Lite P167-000 kit extends an HDMI signal up to 150 feet using two Cat5 or Cat6 UTP cables. It includes a passive transmitter wall plate and an active receiver wall plate with a built-in signal regenerator. The system supports 1080p resolution at 24Hz or 1080i at 60Hz without requiring external power.

Installers Needing Long Runs Over Structured Cabling

This kit suits projects where a display must sit far from the source and Cat5/6 infrastructure is preferred over long HDMI leads. It handles 720p up to 196 feet and 480p up to 230 feet. Buyers needing 4K resolution, HDR metadata, or HDMI 2.1 features such as variable refresh rate should look at a different extender class.

Dual Cat5/6 Cabling And Solid Conductor

The extender requires two separate UTP cables between the wall plates to operate. Tripp Lite specifies solid-conductor Cat6 cable, such as their N222 or N224 series, for best performance at the maximum distances. Using stranded patch cable or a single cable run will reduce the achievable range.

Highlights

  • Extends 1080p signals up to 150 ft using dual Cat5/6 cables
  • Supports 1080i at 60 Hz and 3D up to 100 ft over solid Cat6
  • Delivers 24-bit True Color with 7.1-channel surround sound audio
  • Passive transmitter and active receiver wall plates need no external power
  • HDCP, EDID and DDC compliance ensures reliable handshake with source and display

Specifications

BrandTripp Lite
ModelP167-000
TypeHDMI over Ethernet
Max Extend Distance150 feet
ColorWhite
Cable LengthNo
FeaturesBreak the 5-meter HDMI barrier using Cat5/6 UTP Cable
1080p Resolution up to 115 ft.
720p Resolution up to 196 ft.
480p Resolution up to 230 ft.
For best performance, use Solid conductor Cat6 cable (Model # N222-01K-BL)

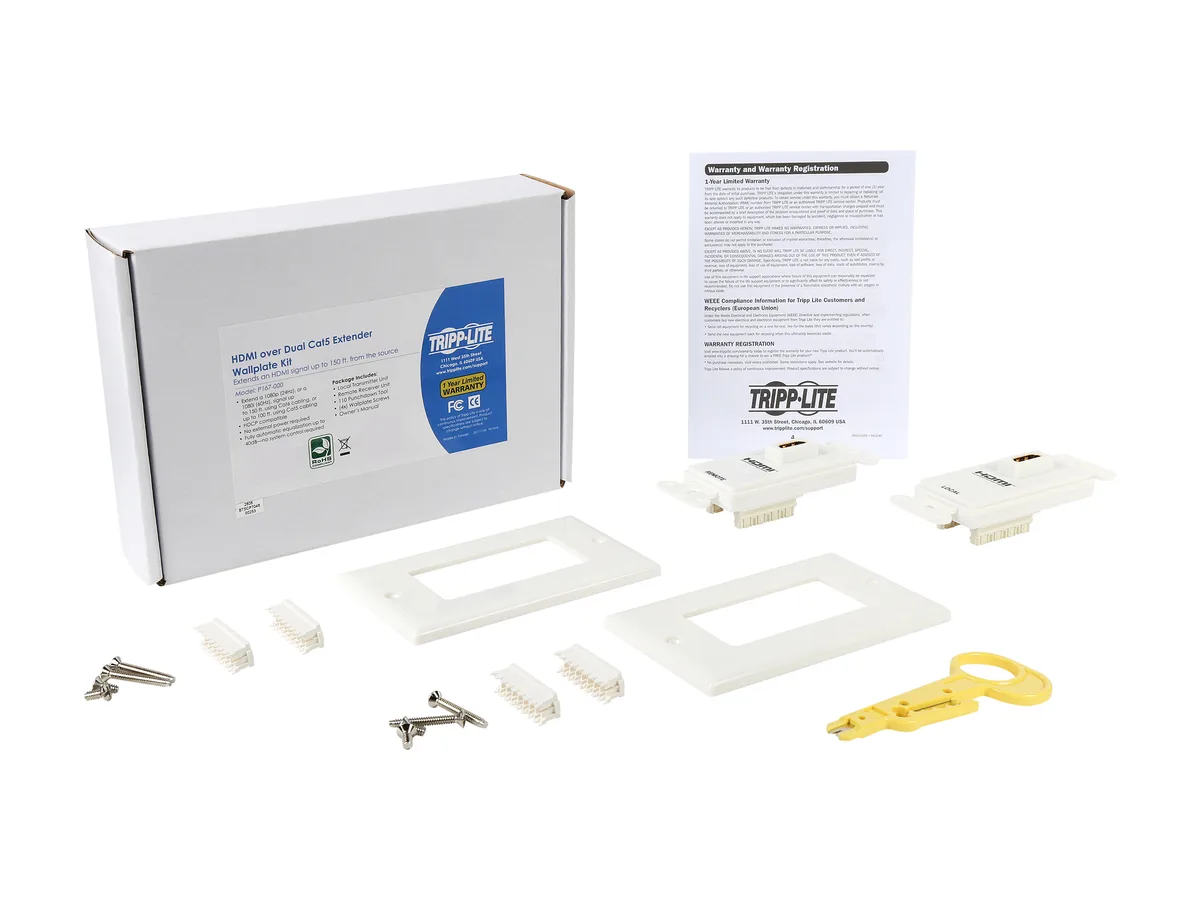

Termination Tool included for punching down UTP wire
Use Tripp Lite P568 HDMI cables from wallplates to devices
Shipping weight0.20 kg
Package size201 × 137 × 46 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What type of Ethernet cable must I already have to reach the full 150 ft range?

You need two runs of solid-conductor Cat6 cable (such as Tripp Lite N222-Series or N224-Series) between the transmitter and receiver wallplates.

Will my existing 1080p 60 Hz source work through this extender?

The kit extends 1080p at 24 Hz or 1080i at 60 Hz; a 1080p 60 Hz signal is not supported.

How can I confirm the link is operating at 1080p after installation?

Verify the display reports a 1080p 24 Hz or 1080i 60 Hz signal and that 7.1-channel surround audio such as DTS-HD or Dolby TrueHD passes through.
