Magenta duplex OM4 fibre patch cable with LC uniboot connectors, 3.28 ft

Tripp Lite

Tripp Lite N821-01M-MG-T 3.28 ft OM4 duplex multimode fibre optic cable

SKU CH-BA9J-ZC39M MPN N821-01M-MG-T

A 3.28 ft magenta OM4 duplex multimode patch cable with LC uniboot connectors supporting 10 Gbps, 40 Gbps and 100 Gbps links up to 400 m

  • TypeFiber
  • ColorMagenta
  • Length3 ft.
  • Connector Number2
  • Connector DetailLC DUPLEX (MALE) WITH PULL/PUSH TAB to LC DUPLEX (MALE) WITH
  • Speed10Gbps / 40Gbps / 100Gbps
  • 10 Gb up to 400 m for high-speed links
  • 4× bandwidth over 62.5 µm multimode fiber
  • Magenta jacket identifies OM4 at a glance
  • Pull-push tabs let you connect with one hand
  • LSZH jacket meets RoHS for safer installs

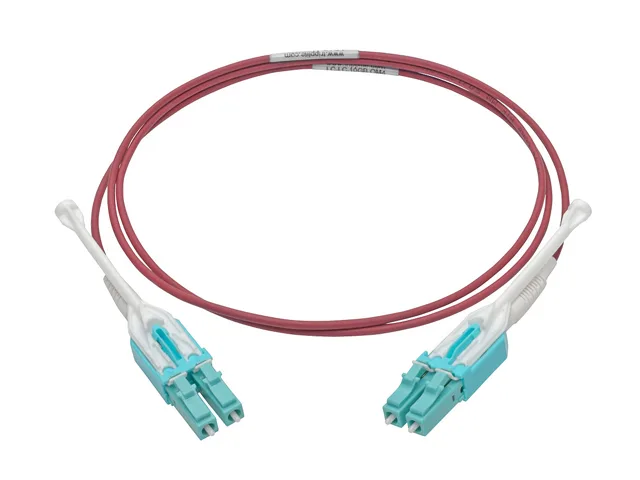

Tripp Lite OM4 Duplex Fibre Patch Cable

This 3.28 ft magenta cable carries 10, 40 and 100 Gbps over 50/125 µm OM4 multimode fibre with LC duplex connectors on both ends. It is built for LANs, SANs and high-speed parallel interconnects in head-ends, central offices and data centres.

Verify LC duplex ports

Ensure each device presents LC duplex receptacles and that the link budget allows OM4 multimode transmission at 850 nm up to 400 m. The uniboot push/pull tabs need one hand to seat or release, so confirm adjacent port spacing accepts the slim connector profile.

Sustained throughput within rated temperature range

Operating and storage temperatures span -4 to 140 °F (-20 to 60 °C), so the cable maintains rated bandwidth across the full environmental envelope. Ceramic ferrules and LSZH jacket resist degradation during continuous 12.50 GB/s serial traffic without the signal drop-off seen in short bursts.

Highlights

  • 10 Gb up to 400 m for high-speed links
  • 4× bandwidth over 62.5 µm multimode fiber
  • Magenta jacket identifies OM4 at a glance
  • Pull-push tabs let you connect with one hand
  • LSZH jacket meets RoHS for safer installs

Specifications

BrandTripp Lite
ModelN821-01M-MG-T
TypeFiber
ColorMagenta
Length3 ft.
Connector Number2
Connector DetailLC DUPLEX (MALE) WITH PULL/PUSH TAB to LC DUPLEX (MALE) WITH PULL/PUSH TAB
Speed10Gbps / 40Gbps / 100Gbps
SpecificationsOperating Temperature Range: -4 to 140 degree F (-20 to 60 degree C)
Storage Temperature Range: -4 to 140 degree F (-20 to 60 degree C)
Package Includes: N821-01M-MG-T 10 Gb Duplex Multimode 50/125 OM4 LSZH Fiber Patch Cable, 1 m (3 ft.)
FeaturesNearly 4x the bandwidth over conventional 62.5 µm multimode fiber
Push/pull tab connectors install/remove with one hand
Slim, space-saving uniboot design for neat cable management
Premium-grade ceramic ferrules designed for fast applications
Magenta color for easy OM4 identification
Shipping weight0.02 kg
Package size229 × 178 × 13 mm

Questions about this item

What connectors come on the cable and do I need any adapters?

The cable has LC duplex male connectors with push/pull tabs on both ends, so it plugs directly into matching LC ports without adapters.

Should I choose this 3.28 ft OM4 cable or a longer length for a 10 Gb link?

At 3.28 ft it supports 10 Gb, 40 Gb and 100 Gb speeds; the 10 Gb rating extends to 400 m at 850 nm, so length only matters for reach, not bandwidth.

What does the 12.50 GB/s transfer rate mean for my switch uplinks?

That is the line-rate for 100 Gb Ethernet; your switch ports and transceivers must also be 100 Gb capable to use the full bandwidth.
