Black rectangular fiber cassette with twelve LC duplex ports on the front face

Tripp Lite

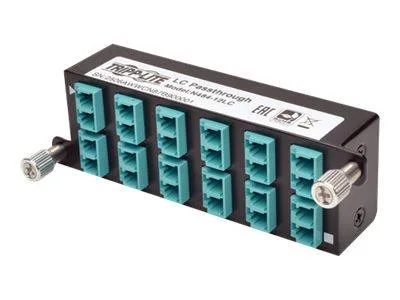

Tripp Lite N484-12LC 12 LC Duplex Pass-Through Cassette

SKU CH-NSM2-TDVXS MPN N484-12LC

High-density pass-through cassette with twelve LC duplex connections for 10 GbE and Fibre Channel links

  • TypeOthers
  • ColorBlack
  • Connector Number1
  • Connector DetailConnector A LC DUPLEX (FEMALE) (X12) Connector B LC DUPLEX (
  • Terminal GenderFemale to Female
  • SpecificationsCable Type: Fiber Operating Temperature Range: -4 to 122 F (
  • High-density design fits four cassettes per N484-01U chassis
  • 12 LC duplex ports support 10GbE and Fibre Channel links
  • IEEE 802.3ae and ANSI T11.2 compliance ensures standard compatibility
  • Tool-free screw tabs enable quick cassette installation and removal
  • Factory-terminated connectors reduce field termination time and labor

High-density cassette for N484 chassis

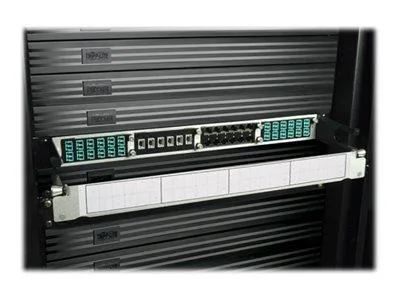

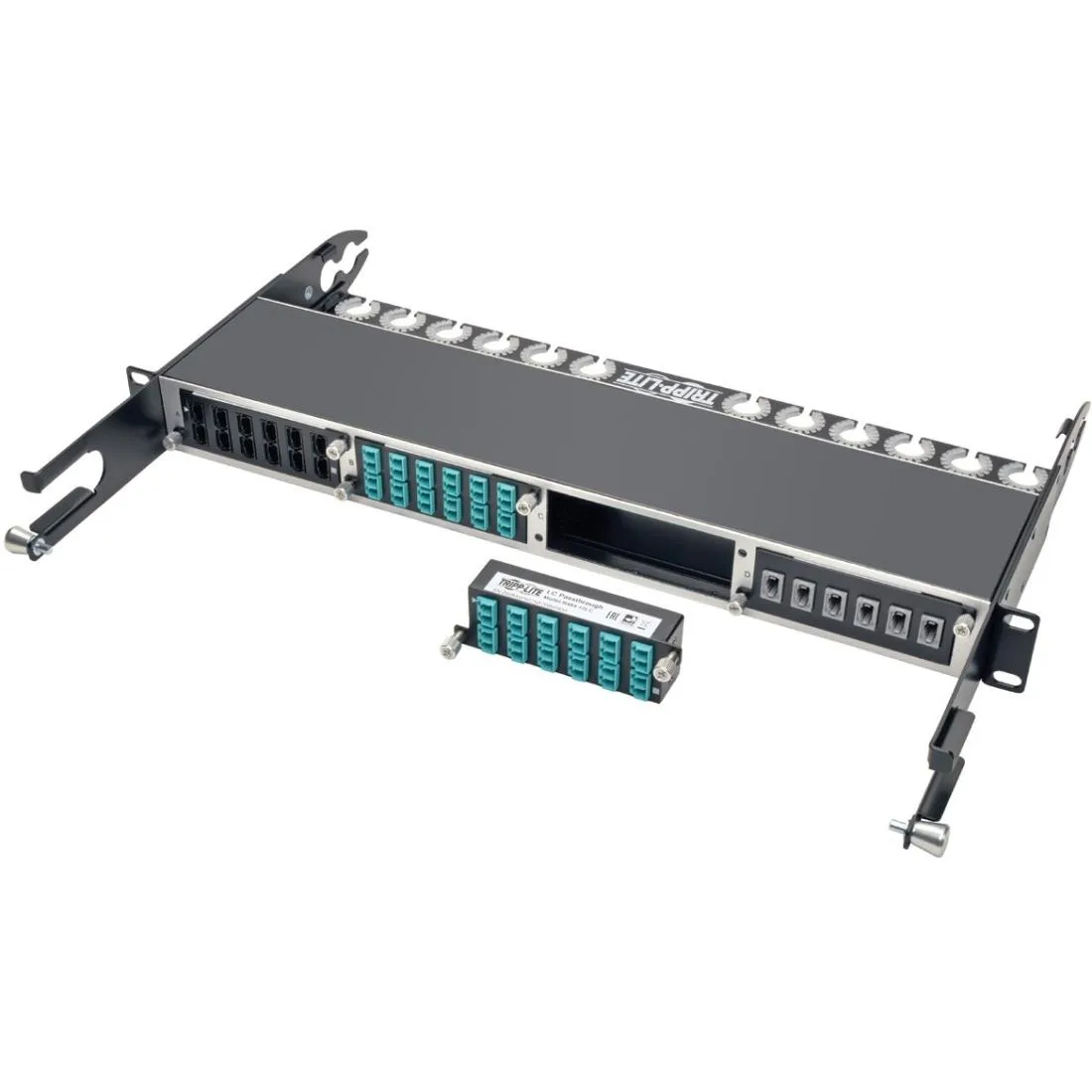

The N484-12LC is a 10GbE pass-through cassette that holds twelve LC duplex connections in a black cold-rolled steel housing. It is built for the N484-00U and N484-01U enclosures, accepting one cassette in the 00U and up to four in the 01U. Factory-terminated connectors eliminate field termination work and screw tabs lock the unit in place without tools.

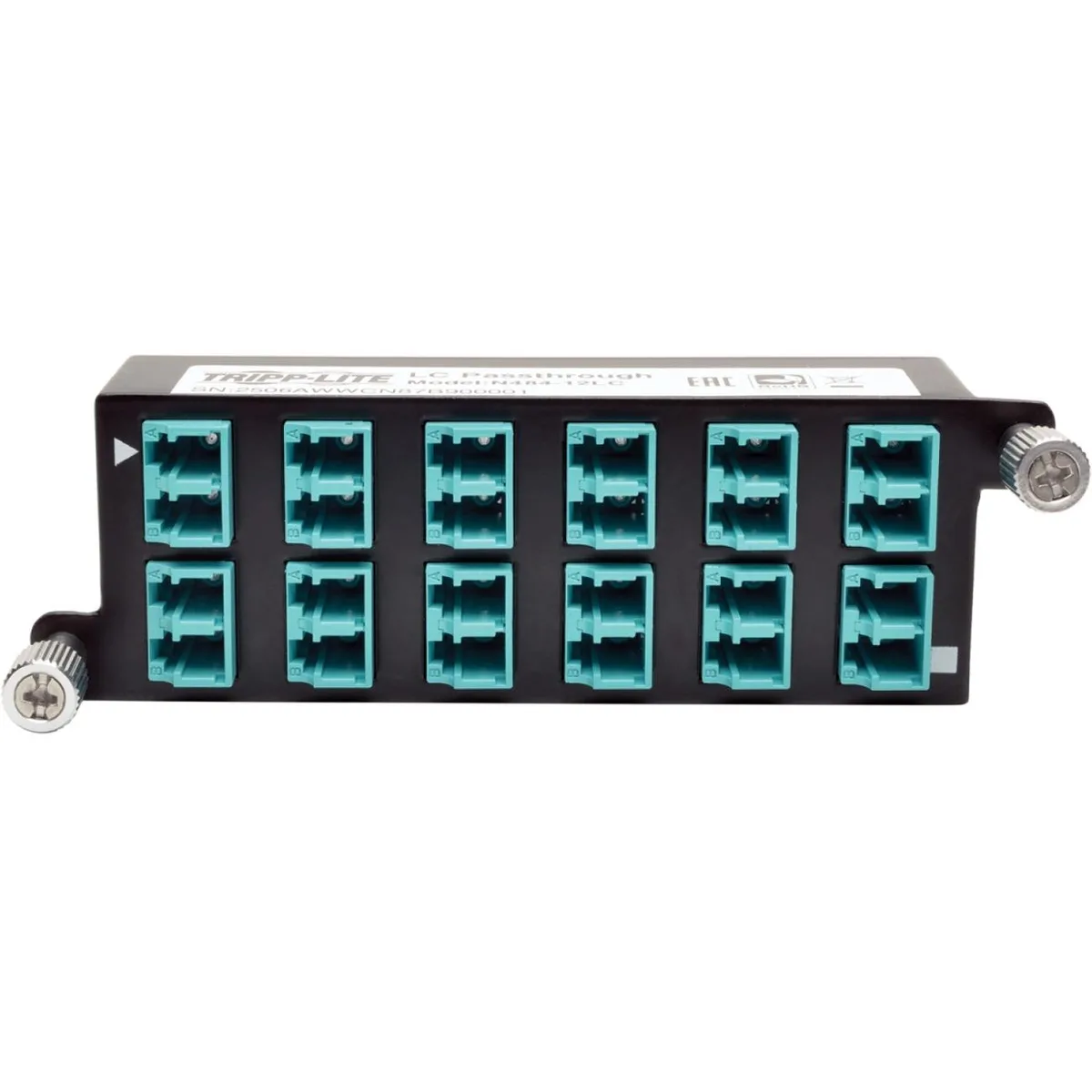

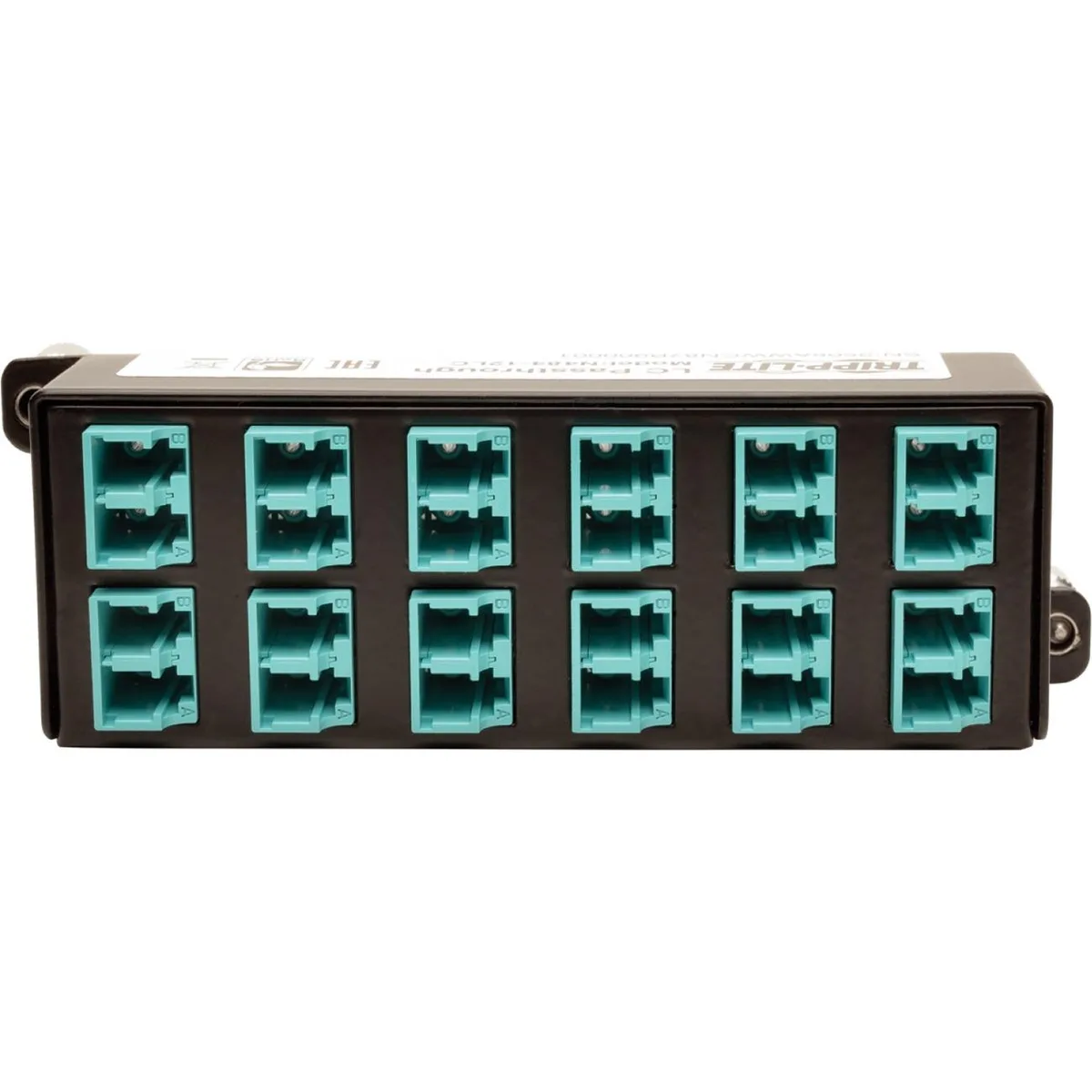

Twelve LC duplex ports at 10GbE

Each of the twelve LC duplex ports is rated for 10GbE and meets IEEE 802.3ae and ANSI T11.2 requirements. Maximum insertion loss is 0.35db, which sits well below the 25db channel loss limit. Female-to-female gender provides straight-through patching for compatible N820- and N821-series cables.

Stable loss within rated temperature range

Operating temperature spans -20 to 50 Celsius and the cassette maintains its insertion loss specification across that range. The 1.0mm steel housing protects the internal fiber alignment from rack vibration and handling stress. RoHS and REACH compliance confirm material suitability for continuous deployment.

Highlights

  • High-density design fits four cassettes per N484-01U chassis
  • 12 LC duplex ports support 10GbE and Fibre Channel links
  • IEEE 802.3ae and ANSI T11.2 compliance ensures standard compatibility
  • Tool-free screw tabs enable quick cassette installation and removal
  • Factory-terminated connectors reduce field termination time and labor

Specifications

BrandTripp Lite
ModelN484-12LC
TypeOthers
ColorBlack
Connector Number1
Connector DetailConnector A LC DUPLEX (FEMALE) (X12)
Connector B LC DUPLEX (FEMALE) (X12)
Terminal GenderFemale to Female
SpecificationsCable Type: Fiber
Operating Temperature Range: -4 to 122 F (-20 to 50 C)
Approvals: RoHS, REACH
FeaturesHigh Density Fiber Cassette for use with the N484-00U and N484-01U chassis'
10GbE Pass-Through Cassette, with (x12) LC Duplex connections
Complies with IEEE 802.3ae (10GbE) and ANSI T11.2 (Fibre Channel) requirements
Max insertion loss of 0.35dB falls well under the IEEE 802.3ae maximum channel loss spec of <25dB
Installation is simple, with the cassette being easily installed or removed using screw tabs to lock or unlock it from the panel; no tools required
Each cassette features factory terminated connectors that reduce the time and labor required of field connector terminations.
H
Shipping weight0.25 kg
Package size130 × 60 × 37 mm

Questions about this item

What does the 10GbE rating mean when this cassette is installed in a rack?

Each of the 12 LC duplex ports supports 10GbE throughput, compliant with IEEE 802.3ae, so the cassette passes full 10GbE traffic without adding more than 0.35dB insertion loss per connection.

Which standards govern the LC duplex interfaces on this cassette?

The 12 LC duplex ports follow IEEE 802.3ae for 10GbE and ANSI T11.2 for Fibre Channel, capping channel loss at 25dB while each port adds only 0.35dB.

What chassis does this cassette mount in and how many fit?

It slides into the N484-00U (one cassette) or N484-01U (up to four cassettes) and locks with screw tabs, no tools required.
